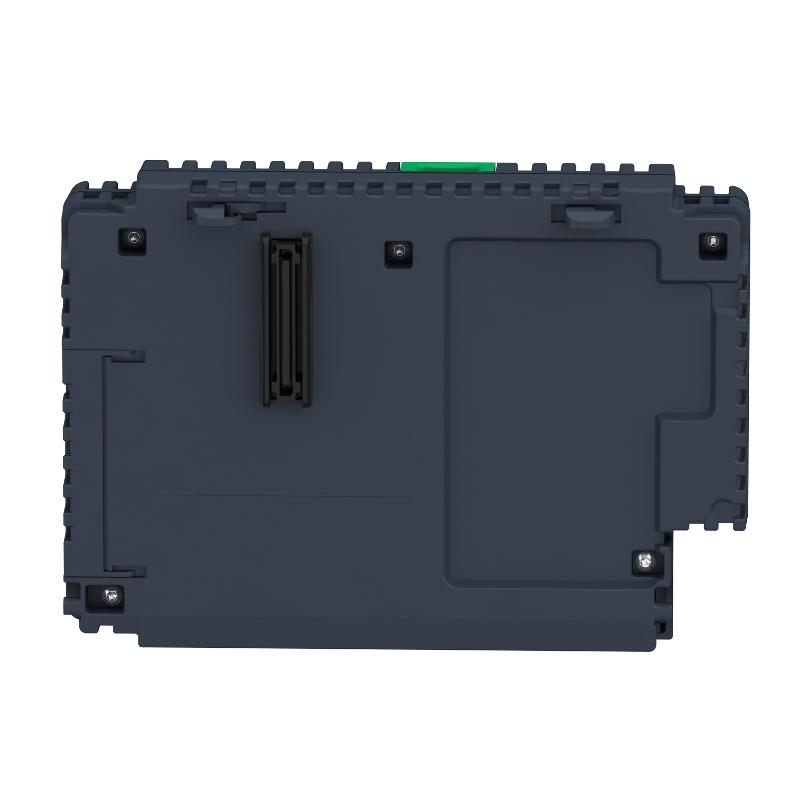

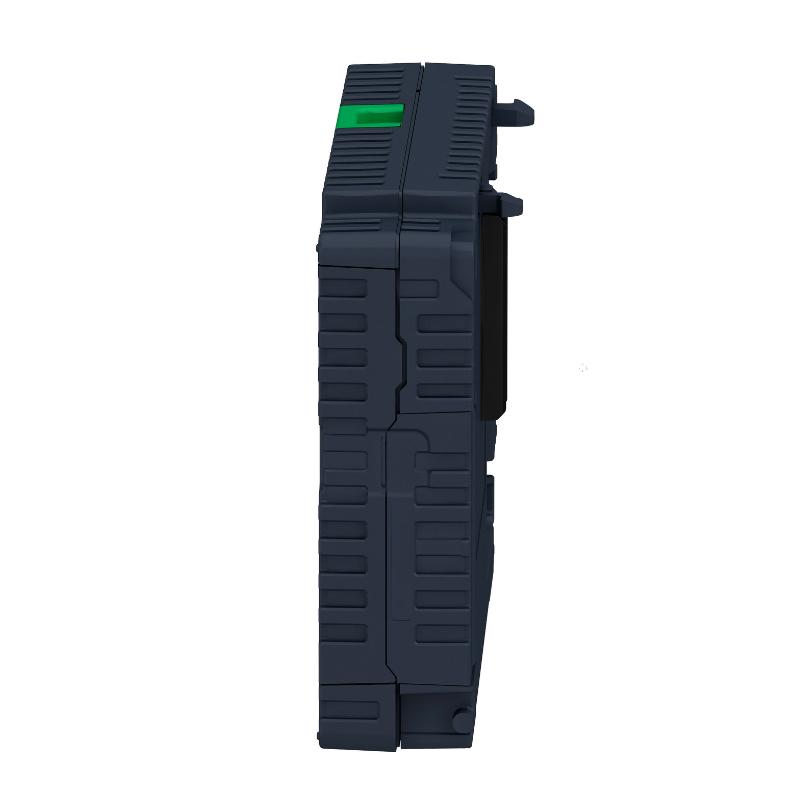

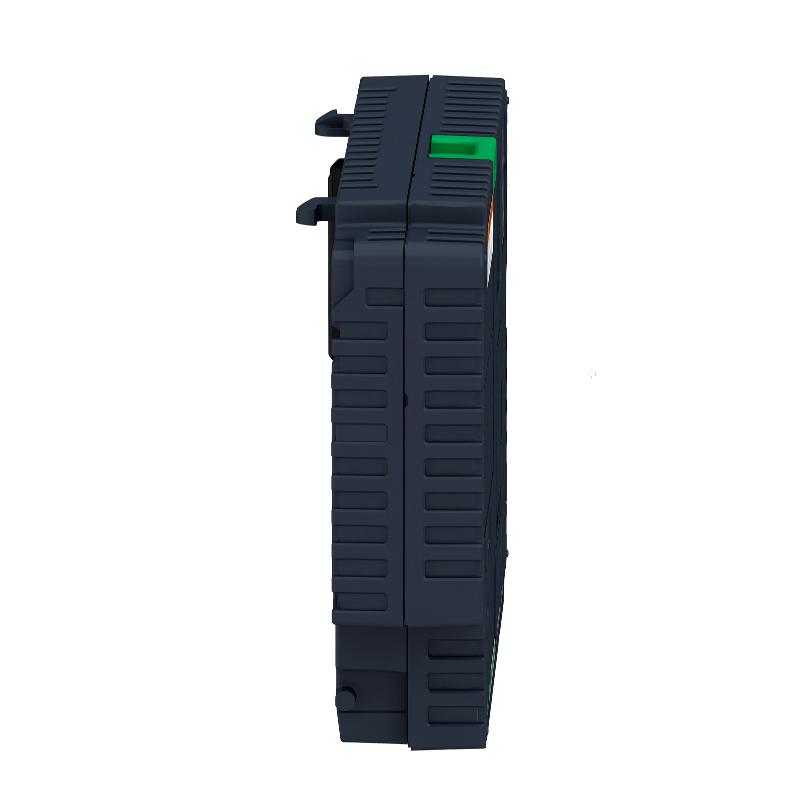

Schneider HMIG5U2 Basic Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Schneider Electric |
| Model | HMIG5U2 |
| Product Name | Harmony GTU Open Box Basic Unit |
| Product Type | HMI Base Unit for Universal Panel |
| Product Series | Harmony GTU |
| Processor | Intel x86, 1.33 GHz |
| Operating System | Windows Embedded 7 |
| Supported Software | Vijeo Designer Runtime, Vijeo Citect Web Client, Internet Explorer, .NET Framework 4.0, VNC Client/Server |
| Rated Supply Voltage | 12–24 V DC |
| Internal Memory | 2 GB RAM |
| Non-Volatile Memory | 512 KB NVRAM |
| Storage | 32 GB CFast card |
| Ethernet Interfaces | 2 × RJ45, 10/100/1000 Mbps Ethernet |
| Serial Interface COM1 | RJ45, RS-485 |
| Serial Interface COM2 | 9-pin SUB-D, RS-232C / RS-422 / RS-485 |
| Serial Transmission Rate | 110–115200 bit/s, depending on interface and configuration |
| USB Interfaces | 3 × USB 2.0 Type-A, 1 × USB 2.0 Mini-B |
| Video Interface | DVI-D |
| Audio Interface | Microphone mini-jack |
| Additional Interfaces | Auxiliary terminal block and fieldbus expansion card slot |
| Supported Communication Protocols | Modbus, Modbus TCP/IP, Uni-Telway |
| Cooling Method | Natural convection |
| Operating Temperature | 0–60°C |
| Compatible Display Modules | Compatible Harmony GTU display modules |
| Dimensions | 188 × 45 × 131 mm |
| Weight | 0.9 kg |
| Typical Applications | Industrial HMI systems, PLC communication, process monitoring, machine control, and operator interfaces |
FAQ
Q1: What is the main function of the Schneider HMIG5U2 Basic Unit?
A: The HMIG5U2 is an open-box processing unit designed for the Harmony GTU modular HMI system. It runs HMI applications, manages communication with industrial controllers, and provides interfaces for connecting compatible displays and peripheral devices.
Q2: Which operating system does the HMIG5U2 use?
A: The HMIG5U2 uses Windows Embedded 7. Its software environment supports applications such as Vijeo Designer Runtime, Vijeo Citect Web Client, and VNC Client/Server. Software compatibility should be checked before installing or updating applications.
Q3: Which display modules are compatible with the HMIG5U2?
A: The HMIG5U2 is designed to work with compatible Harmony GTU display modules. Confirm the exact display model and connection requirements before installation, especially when replacing an existing base unit.
Q4: Which communication protocols does the HMIG5U2 support?
A: The unit supports Modbus, Modbus TCP/IP, and Uni-Telway. The available protocol depends on the connected controller, selected interface, installed drivers, and application configuration.
Q5: Can the HMIG5U2 communicate with third-party PLCs?
A: Yes, provided the PLC supports a compatible protocol and physical interface. Ethernet can be used for Modbus TCP/IP communication, while the serial ports support compatible RS-485, RS-232C, or RS-422 connections. Correct addressing and communication parameters are essential.
Q6: What should be checked if the HMIG5U2 fails to communicate with a PLC?
A: Inspect the network or serial cable, verify the selected COM port or Ethernet connection, and check IP addresses, baud rate, parity, and station settings as applicable. Also confirm that the correct communication driver is configured in the HMI project.
Q7: What is the purpose of the 32 GB CFast card?
A: The CFast card provides storage for the operating system, applications, and associated system data. Before replacing or removing it, follow the approved shutdown procedure and back up important application files to reduce the risk of data loss.
Q8: What should be considered when replacing an HMIG5U2 unit?
A: Confirm compatibility with the existing display module, fieldbus expansion card, communication wiring, and HMI application. Back up project files and configuration data before replacement, then verify power, network communication, and application operation during commissioning.
Schneider HMIG5U2 Basic Unit is in stock. Please contact us for a quick quote and competitive pricing.
