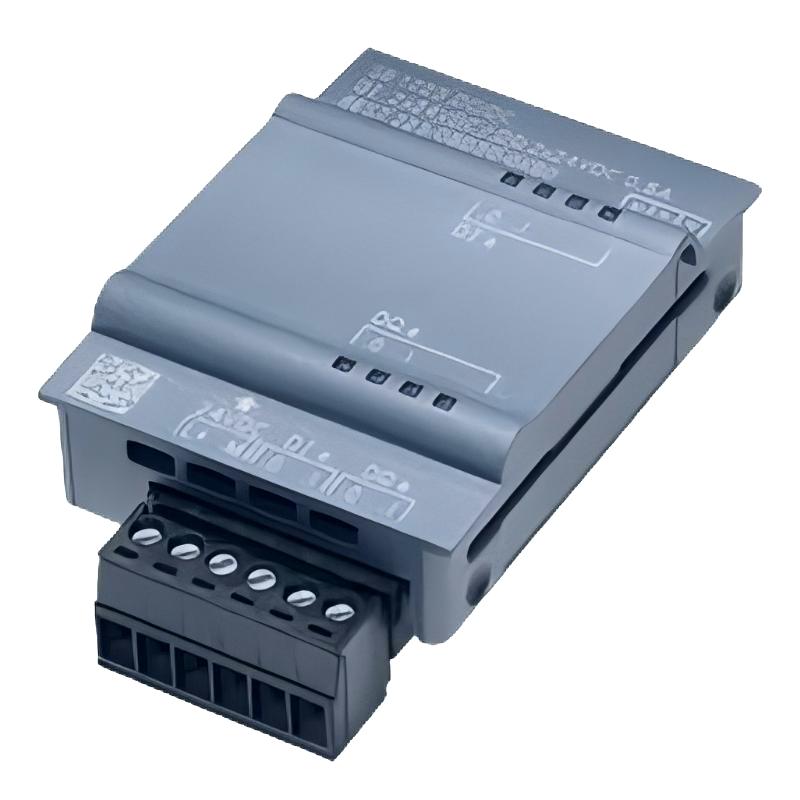

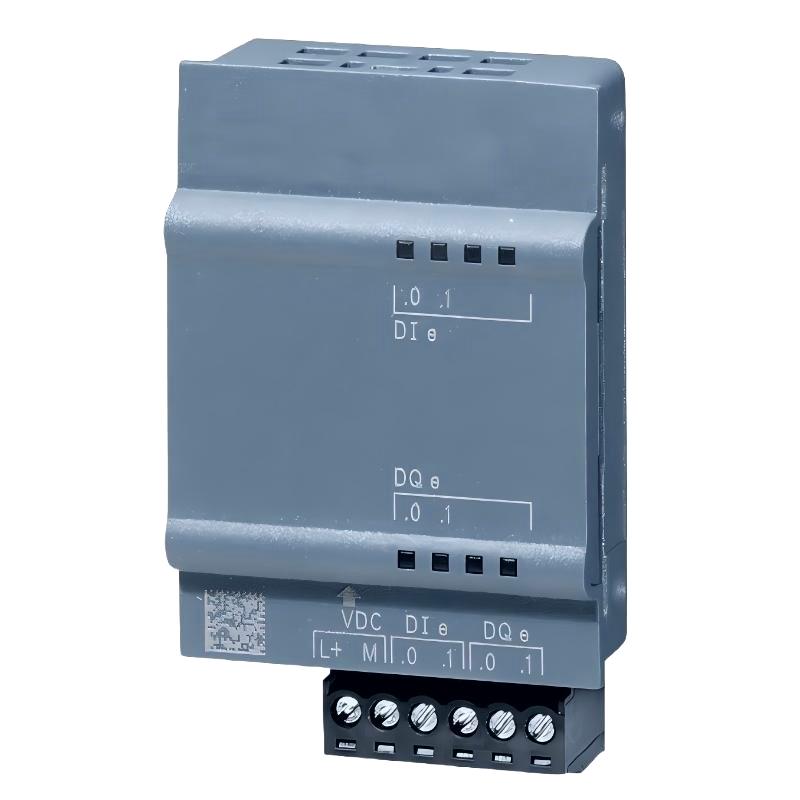

Siemens 6AG1223-3BD30-5XB0 VDC Logic I/O Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Model |
|
|
Brand |
|
|
Product Series |
SIPLUS S7-1200 SB 1223 |
|
Product Type |
Digital Input/Output Signal Board |
|
Base Model |
6ES7223-3BD30-0XB0 |
|
Number of Digital Inputs |
2 |
|
Number of Digital Outputs |
2 |
|
Rated Input Voltage |
24 V DC |
|
Rated Output Voltage |
24 V DC |
|
Digital Input Type |
Current-sourcing |
|
Digital Output Type |
Solid-state MOSFET |
|
Maximum Output Current |
0.1 A per channel |
|
Maximum Switching Frequency |
200 kHz |
|
Typical Backplane Bus Current |
35 mA at 5 V DC |
|
Typical Power Dissipation |
0.5 W |
|
Input Signal “0” |
Maximum 5 V DC |
|
Input Signal “1” |
Minimum 15 V DC |
|
Output Signal “0” |
Maximum 0.1 V with 10 kΩ load |
|
Output Signal “1” |
Minimum 20 V DC |
|
Short-Circuit Protection |
Not integrated |
|
Diagnostic Functions |
Input/output status indication and diagnostics |
|
Protective Coating |
Conformal coating |
|
Operating Temperature Range |
-40°C to +60°C |
|
Startup Temperature |
-25°C |
|
Compatible Controller |
Siemens SIMATIC S7-1200 |
|
Dimensions |
80 × 50 × 30 mm |
|
Weight |
0.031 kg |
FAQ
1. What is the Siemens 6AG1223-3BD30-5XB0 used for?
The 6AG1223-3BD30-5XB0 is a SIPLUS S7-1200 SB 1223 digital signal board. It adds two digital inputs and two digital outputs to a compatible S7-1200 PLC, making it suitable for compact automation and machine-control applications.
2. How many digital inputs and outputs does the module provide?
It provides two digital inputs and two digital outputs. The inputs receive 24 V DC signals, while the outputs control compatible 24 V DC loads within the specified current limits.
3. What is the maximum switching frequency?
The module supports switching frequencies of up to 200 kHz. Actual performance depends on the signal characteristics, wiring, PLC configuration, and connected equipment.
4. What type of digital outputs does this module use?
It uses solid-state MOSFET outputs. Each output supports a maximum current of 0.1 A, so connected devices must remain within the module’s electrical ratings.
5. Can the module be used in harsh industrial environments?
Yes. The SIPLUS version includes conformal coating and supports an operating temperature range of -40°C to +60°C. Startup is specified from -25°C; installation conditions and environmental limits should still be checked before commissioning.
6. Does the module provide built-in short-circuit protection?
No. Short-circuit protection is not integrated. External circuit protection and suitable load selection are recommended to reduce the risk of damage caused by wiring faults or excessive current.
7. How can users diagnose an input or output problem?
Check the input and output status indicators, verify the 24 V DC supply and wiring, and inspect the PLC configuration. Also confirm that the connected load does not exceed the rated output current and that the input signal meets the required switching thresholds.
8. Is the 6AG1223-3BD30-5XB0 compatible with every S7-1200 CPU?
It is designed for compatible SIMATIC S7-1200 systems and plugs directly into the CPU as a signal board. Before installation, verify CPU compatibility, available signal-board support, and any restrictions in the applicable hardware documentation.
Siemens 6AG1223-3BD30-5XB0 VDC Logic I/O Module is in stock. Please contact us for a quick quote and competitive pricing.
