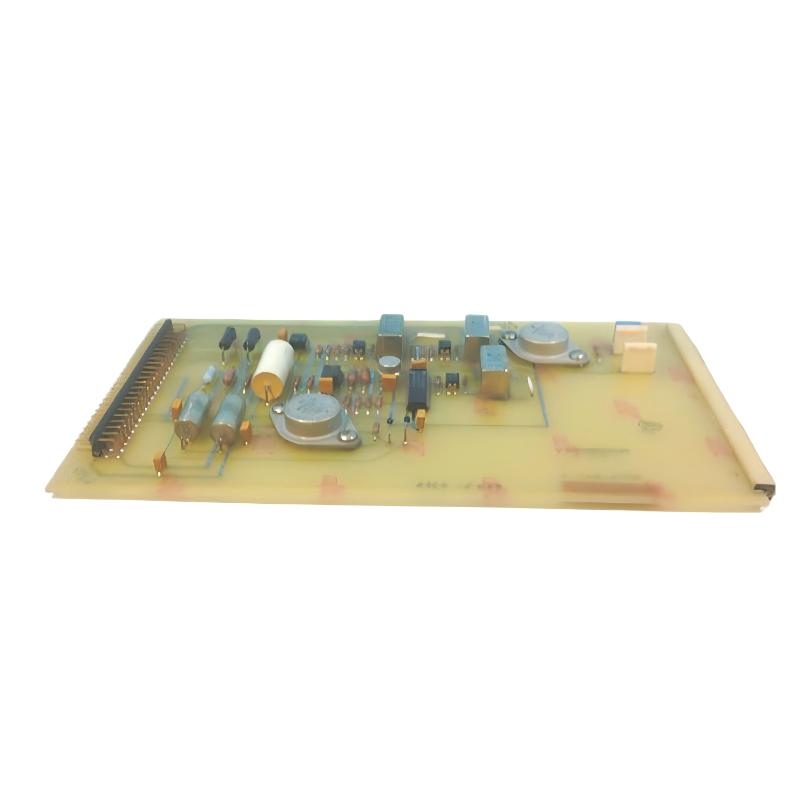

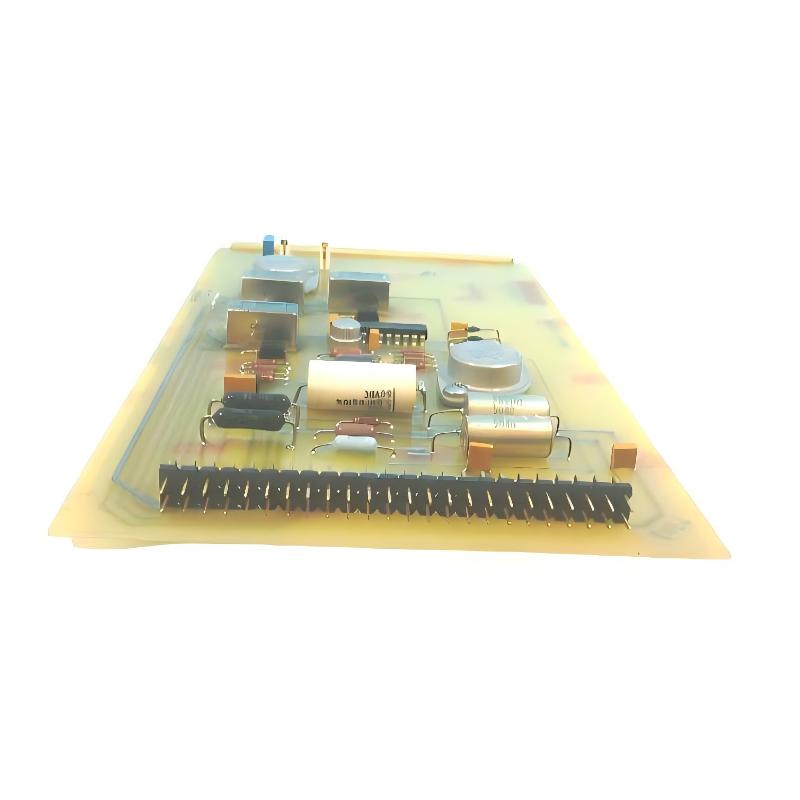

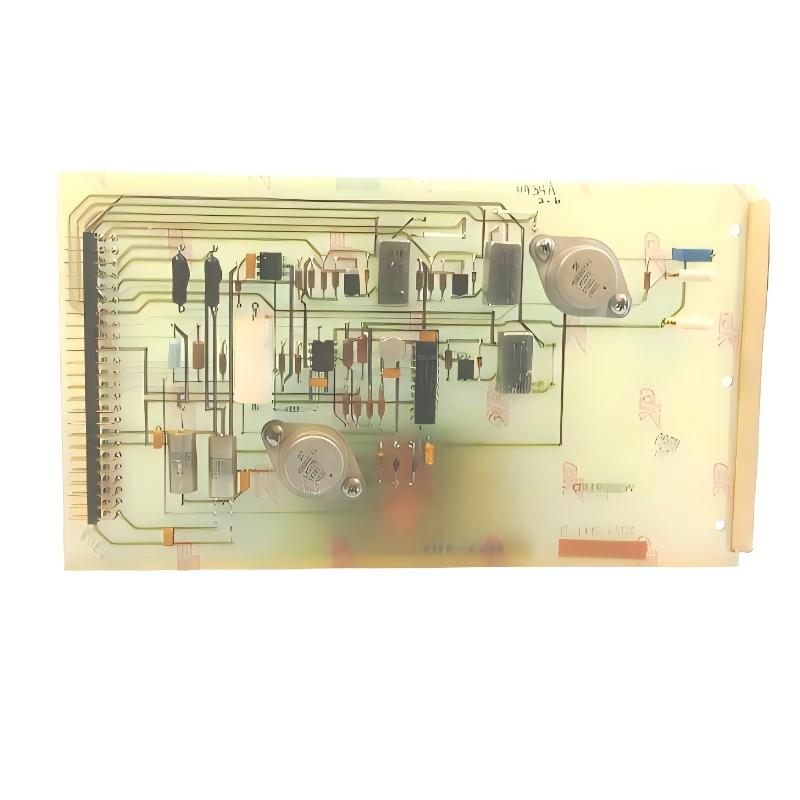

Woodward 5463-034 Auxiliary Power Supply Module Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Woodward |
| Model / Part Number | 5463-034 |
| Product Type | Auxiliary Power Supply Module Board |
| Board Type | Power Auxiliary Control Board |
| Circuit Configuration | Normally Closed (N.C.) |
| Connector | 48-Pin Male Header |
| Power Compatibility | 24 VDC / 48 VDC systems |
| Main Function | Auxiliary power distribution and control interface |
| Typical Application | Legacy Woodward turbine and engine control systems |
| Application Areas | Power generation, industrial automation, turbine control |
| Installation | Industrial control cabinet / Woodward control system |
| Interface Type | Backplane or wiring-harness connection |
| Operating Environment | Industrial control environment |
| Product Status | Discontinued |
| Dimensions | 130 × 100 × 20 mm |
| Weight | 0.05 kg |
FAQ
1. What is the main function of the Woodward 5463-034?
The Woodward 5463-034 is a Power Auxiliary control board used in legacy Woodward control architectures. It provides an interface for auxiliary power-related circuits and supports stable power distribution within the associated control system.
2. What type of connector is used on the 5463-034?
The 5463-034 uses a 48-pin male header for system connection. During installation, the connector should be correctly aligned and fully seated to ensure reliable electrical contact and prevent intermittent control-system faults.
3. What does the N.C. configuration mean on the 5463-034?
N.C. means Normally Closed. The board’s circuit configuration is intended for applications where the normal closed state is part of the control or monitoring logic. The exact behavior should be checked against the wiring diagram and control-system documentation before commissioning.
4. Is the 5463-034 compatible with 24 VDC and 48 VDC systems?
Available technical references identify the 5463-034 with 24 VDC / 48 VDC system compatibility. Before installation, the actual system voltage and hardware revision should be verified against the original Woodward system documentation.
5. Which Woodward systems can use the 5463-034?
The 5463-034 is associated with legacy Woodward control systems and is commonly identified as a Power Auxiliary N.C. module. It should not be assumed to be universally interchangeable across Woodward platforms; compatibility should be confirmed using the existing system configuration and part documentation.
6. What should be checked before installing a 5463-034?
Power should be isolated before removing or installing the board. Check the part number, board revision, connector alignment, system voltage, wiring condition, grounding, and surrounding environmental conditions. The PCB should also be handled using appropriate ESD precautions.
7. What are common symptoms of a faulty 5463-034?
Possible symptoms include loss or instability of an auxiliary power circuit, abnormal control-system indications, intermittent operation of connected circuits, or failure of equipment that depends on the associated auxiliary power path. Troubleshooting should begin with the incoming power, connector, wiring, and circuit continuity before replacing the board.
8. How should a 5463-034 be tested after replacement?
After installation, verify that the board is correctly seated and that all wiring and connectors are secure. Confirm the applicable supply voltage and check the associated auxiliary circuit according to the system documentation. The control system should then be monitored for abnormal indications or intermittent faults during commissioning.
Woodward 5463-034 Auxiliary Power Supply Module Board is in stock. Please contact us for a quick quote and competitive pricing.
