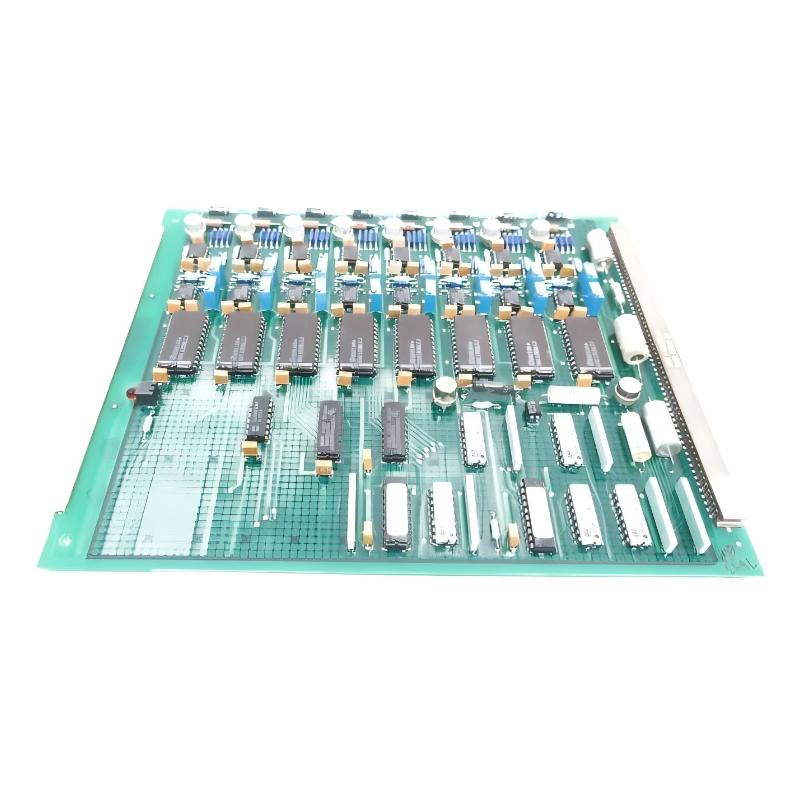

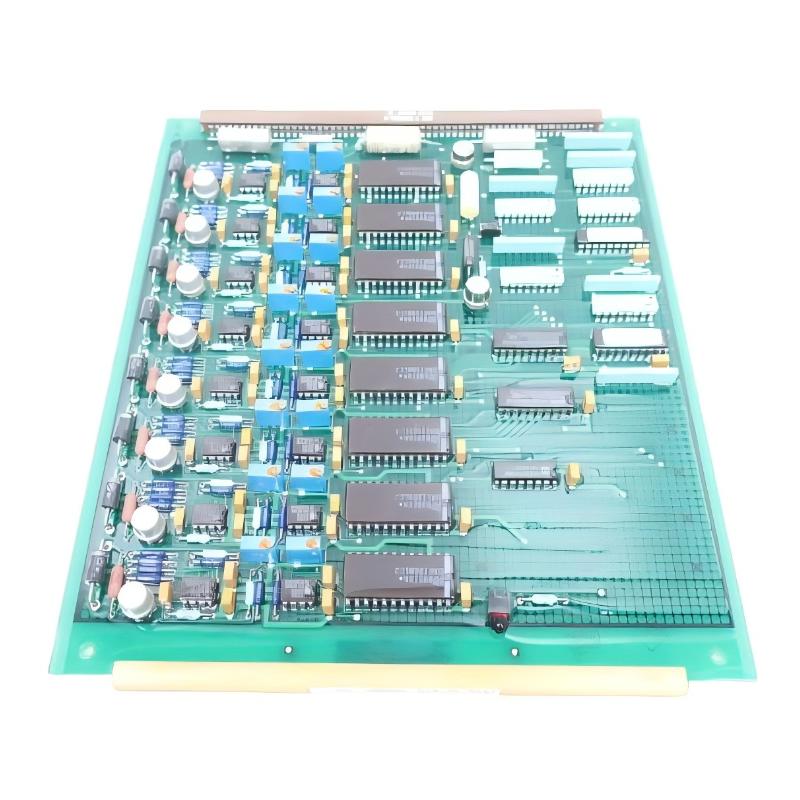

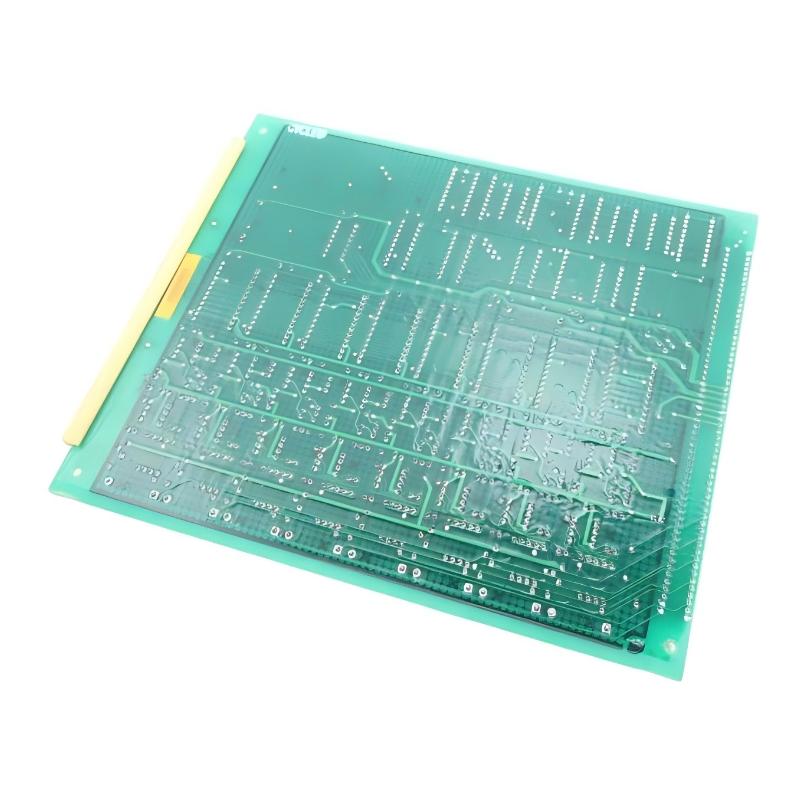

Woodward 5461-644 Analog Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Woodward |
| Model / Part Number | 5461-644 |
| Product Type | Analog Output Module |
| Module Assembly | DCS II 4–20 mA Current Output Assembly |
| Output Type | Analog Current Output |
| Output Signal | 4–20 mA |
| Architecture | Woodward DCS II |
| Main Function | Provides proportional analog current signals to external control devices |
| Typical Applications | Turbine control, process control, power generation and industrial automation |
| Typical Controlled Devices | Control valves, actuators and other analog-input field devices |
| Signal Function | Continuous analog control and regulation |
| Installation | Control system rack / industrial control cabinet |
| Connection | System terminal interface |
| Operating Environment | Industrial automation and process-control environments |
| Dimensions | 203 × 25 × 229 mm |
| Weight | 0.3 kg |
FAQ
1. What is the main function of the Woodward 5461-644?
The Woodward 5461-644 is a DCS II analog output module designed to provide 4–20 mA current signals to external control devices. It is typically used where continuous analog control is required, such as regulating valves, actuators, or other field devices.
2. What type of output signal does the 5461-644 provide?
The 5461-644 provides a 4–20 mA analog current output. This signal range is commonly used in industrial control systems because it provides a reliable method for transmitting proportional control commands over field wiring.
3. What systems can use the Woodward 5461-644?
The module is associated with Woodward DCS II control architecture and is used in applications such as turbine control, power generation, and industrial process control. System compatibility should be confirmed from the original control-system configuration before replacement.
4. What devices can be controlled by the 5461-644?
Typical loads include control valves, actuators, and other field devices that accept a compatible analog current input. The connected device must match the module’s signal requirements and the wiring arrangement specified by the control-system documentation.
5. What should be checked before installing a 5461-644?
Verify the part number, rack position, system configuration, terminal assignments, field wiring, signal polarity, and connected load requirements. Shielding and grounding should also be checked to minimize electrical interference on the analog signal circuit.
6. How can a 4–20 mA output fault be diagnosed?
Start by checking the controller’s commanded output value and then measure the actual current at the appropriate output terminals. If the commanded value and measured value do not agree, inspect the module connection, terminal wiring, field cable, power conditions, and connected load to identify the source of the problem.
7. What can cause an unstable 4–20 mA signal?
Signal instability can result from loose terminals, poor shielding or grounding, electromagnetic interference, damaged field wiring, an abnormal load, or changes in the controller’s output command. Checking the signal both at the module and at the receiving device can help determine whether the problem is in the module or the field circuit.
8. What commissioning checks should be performed after replacing the 5461-644?
After installation, verify that the module is correctly seated and wired, then confirm that the control system recognizes the output module. Test representative output values within the permitted operating range and verify that the connected field device responds correctly. Critical control loops should also be checked for alarms, interlocks, and abnormal output conditions before returning the system to normal operation.
Woodward 5461-644 Analog Output Module is in stock. Please contact us for a quick quote and competitive pricing.
