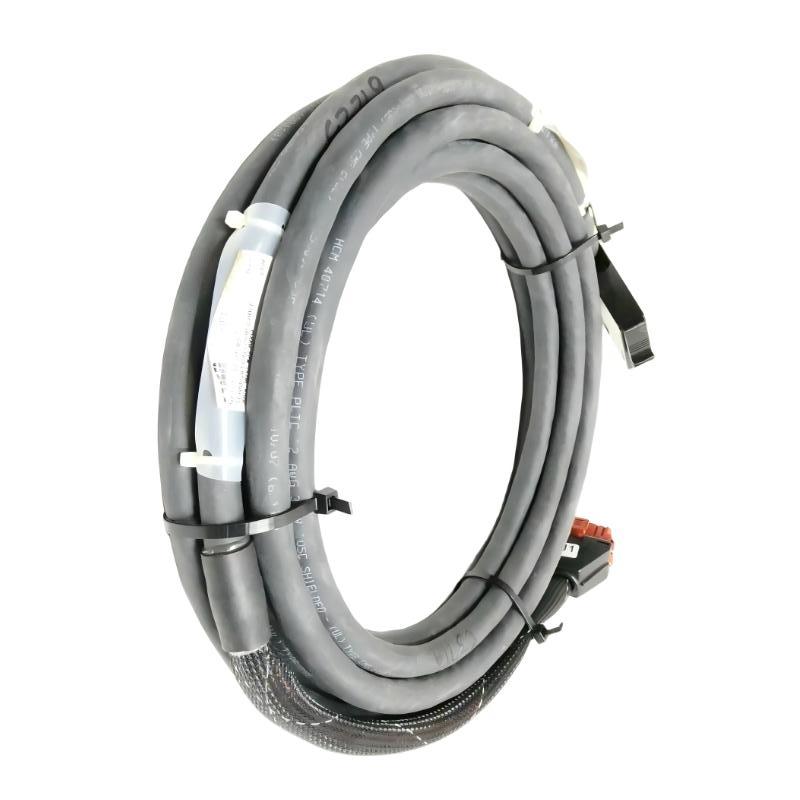

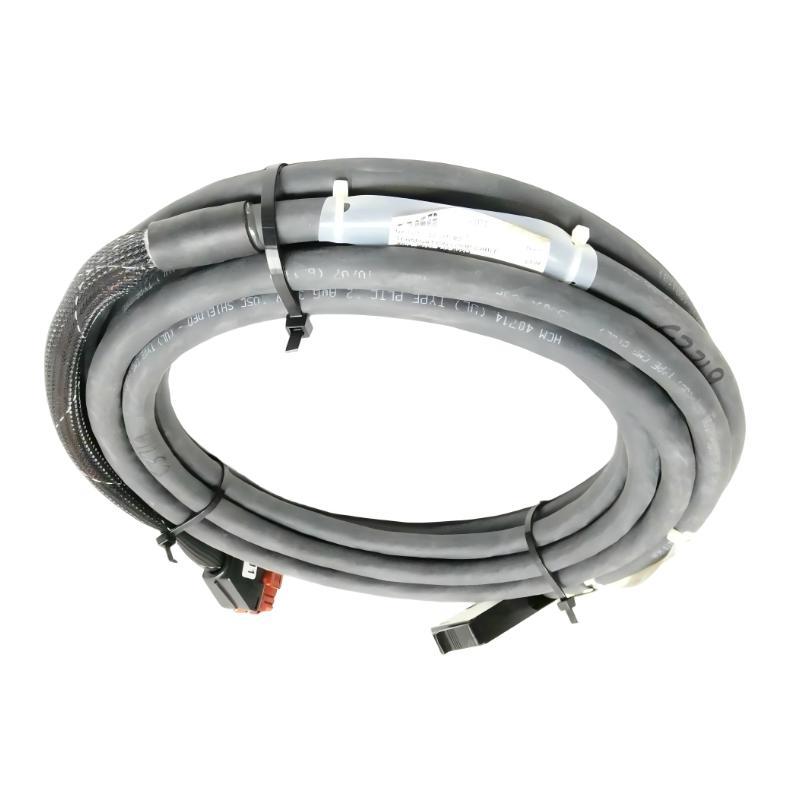

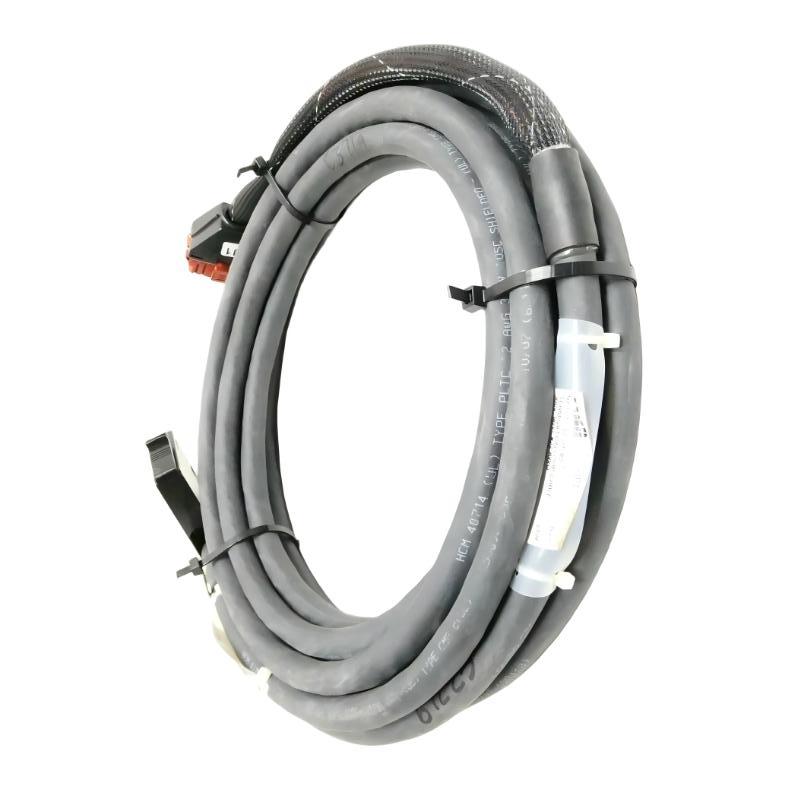

ABB Bailey NKTK01-10 Timer Module Cable
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | NKTK01-10 |
| Product Type | Timer Module Cable / Time Keeper Master Cable |
| Product Description | Time Keeper Master Cable – 10 Ft |
| Product Series | Bailey Infi 90 / Net 90 |
| Cable Type | PVC-insulated industrial control cable |
| Main Function | Connects the SOE Time Keeper Master module to the time synchronization termination unit |
| Typical Connection | INTKM01 / SPTKM-related Time Keeper equipment to NTST01 |
| Compatible System | ABB Bailey Infi 90 DCS |
| System Function | Time synchronization and timing signal transmission for SOE systems |
| Cable Length | 10 feet |
| Insulation | PVC |
| Typical Application | SOE event timestamp synchronization and DCS time management |
| Installation | Control cabinet and DCS internal interconnection |
| Connection Type | Pre-assembled module-to-termination-unit cable |
| Product Category | ABB Bailey Infi 90 DCS Spare Part |
| Shipping Weight | 3 kg |
FAQ
1. What is the main function of the ABB Bailey NKTK01-10 cable?
The NKTK01-10 is a Time Keeper Master Cable used to transmit timing and synchronization signals between the Time Keeper equipment and the corresponding termination unit in ABB Bailey Infi 90 systems.
2. Which ABB Bailey system is the NKTK01-10 designed for?
It is designed for ABB Bailey Infi 90 and related Net 90 DCS configurations where SOE time synchronization and Time Keeper functions are required.
3. What equipment does the NKTK01-10 typically connect?
The cable is used for the interconnection of Time Keeper Master equipment, such as INTKM01 or SPTKM-related modules, with the NTST01 time synchronization termination unit.
4. Why is the Time Keeper cable important in an SOE system?
Accurate time synchronization allows sequence-of-events records to maintain consistent timestamps. A reliable Time Keeper connection is therefore important when analyzing the order and timing of process events.
5. Is the NKTK01-10 a general-purpose communication cable?
No. It is a dedicated ABB Bailey system cable designed for the specific Time Keeper and synchronization interfaces used in the Infi 90 DCS architecture.
6. What should be checked if SOE timestamps become inaccurate?
Check the NKTK01-10 cable connections, connector seating, Time Keeper module status, NTST01 termination unit, and the system time synchronization configuration. Loose or damaged connections can cause timing abnormalities.
7. What are typical symptoms of a faulty NKTK01-10 cable?
Possible symptoms include loss of time synchronization, inconsistent SOE timestamps, abnormal timing indications, or failure of the Time Keeper signal to reach the termination unit.
8. What should be checked before replacing the NKTK01-10?
Confirm the cable model and length, inspect both connectors for damage or contamination, verify correct routing and connection points, and isolate the DCS equipment according to site maintenance procedures before replacement.
ABB Bailey NKTK01-10 Timer Module Cable is in stock. Please contact us for a quick quote and competitive pricing.
