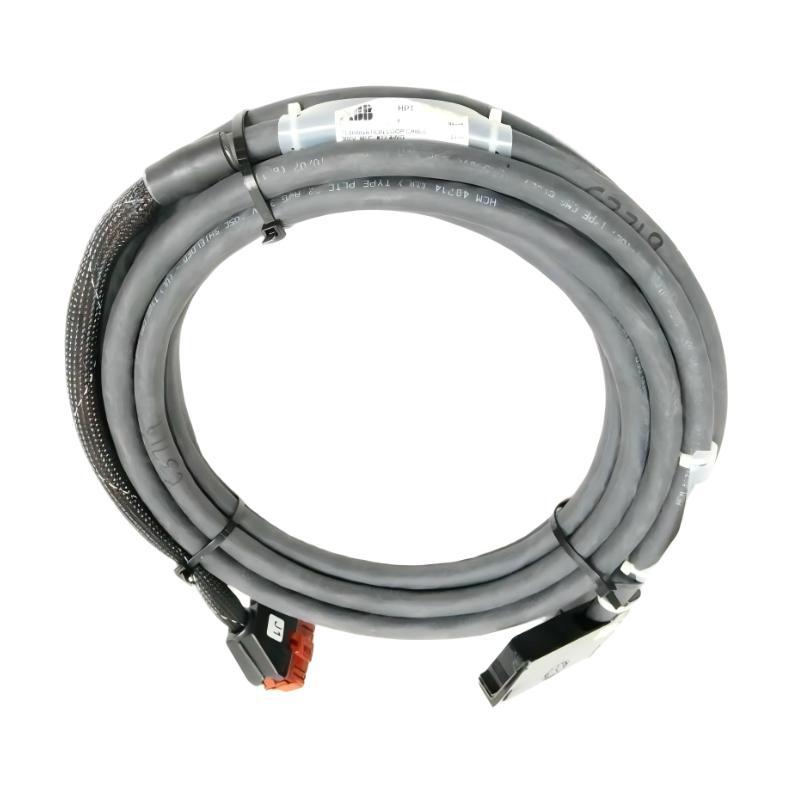

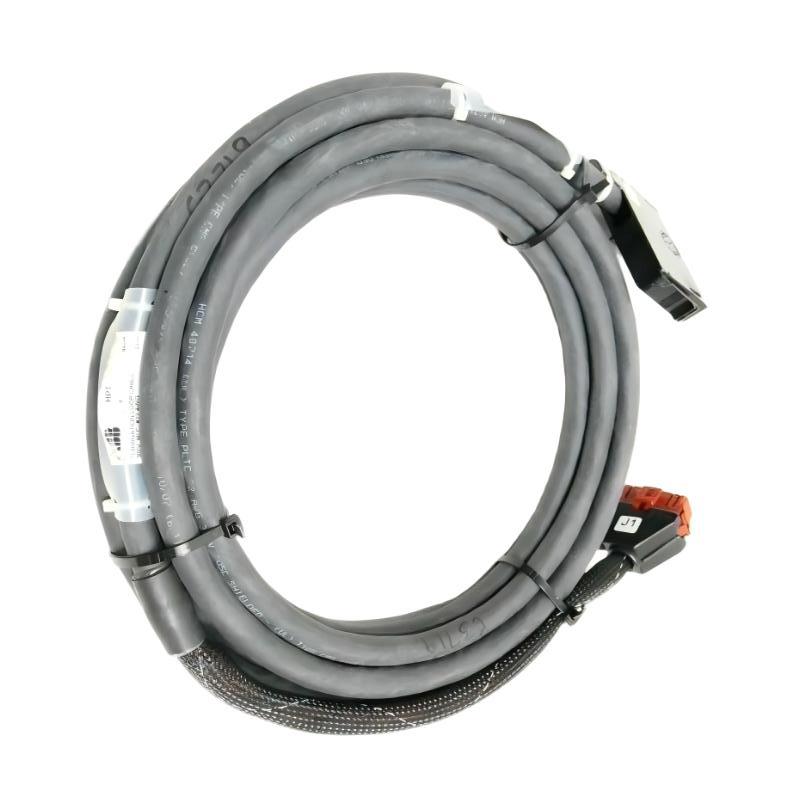

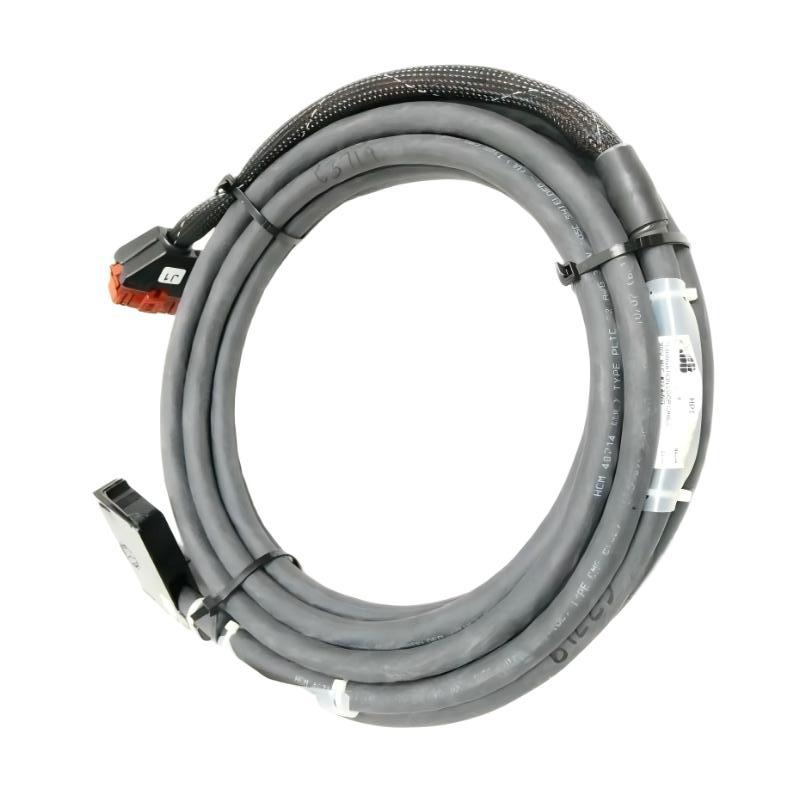

ABB Bailey NKTK01 Timer Module Cable
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB Bailey |
| Model | NKTK01 |
| Product Type | Timer Module Cable / Time Keeper Master Cable |
| Product Description | Time Keeper Master Cable |
| Product Series | Bailey Infi 90 / Net 90 |
| Cable Type | PVC-insulated cable |
| Main Function | Connects the Time Keeper Master module to the time synchronization termination unit |
| Typical Connection | INTKM01 to NTST01 |
| Compatible Module | INTKM01 Time Keeper Master |
| Compatible Termination Unit | NTST01 |
| System Function | Time synchronization and timing signal transmission |
| Typical Application | SOE time synchronization in ABB Bailey DCS systems |
| Cable Length | Optional |
| Product Category | Pre-assembled Industrial Control Cable |
| Installation | Control cabinet / DCS system interconnection |
| Dimensions | Not specified |
| Shipping Weight | 3 kg |
FAQ
1. What is the main function of the ABB Bailey NKTK01 Timer Module Cable?
The NKTK01 is used to connect the Time Keeper Master module to the NTST01 termination unit for time synchronization functions in ABB Bailey control systems.
2. Which modules are connected by the NKTK01?
The NKTK01 is primarily used between the INTKM01 Time Keeper Master and the NTST01 time synchronization termination unit.
3. What role does the NKTK01 play in an SOE system?
It provides the physical connection required to distribute timing information from the Time Keeper Master to the associated SOE timing infrastructure.
4. Is the NKTK01 an ordinary communication cable?
No. It is a dedicated ABB Bailey system cable designed for the Time Keeper and SOE timing architecture. Replacement cables should be checked for model and interface compatibility.
5. What type of insulation does the NKTK01 use?
The NKTK01 is a PVC-insulated cable designed for industrial control system interconnection.
6. What should be checked if the time synchronization function is abnormal?
Check both cable connections, connector condition, cable continuity, and the operating status of the INTKM01 and NTST01. System diagnostics should also be reviewed for timing-related faults.
7. What symptoms can occur if the NKTK01 connection fails?
A failed or poor connection can cause loss of timing information, synchronization errors, abnormal SOE time references, or inconsistent event timestamps.
8. What should be checked before replacing the NKTK01?
Confirm the cable model, required cable length, connector configuration, and compatibility with the INTKM01 and NTST01. After replacement, verify that the time synchronization and SOE functions operate normally.
ABB Bailey NKTK01 Timer Module Cable is in stock. Please contact us for a quick quote and competitive pricing.
