1. What is the main function of the Allen Bradley 1769-L33ERK controller?

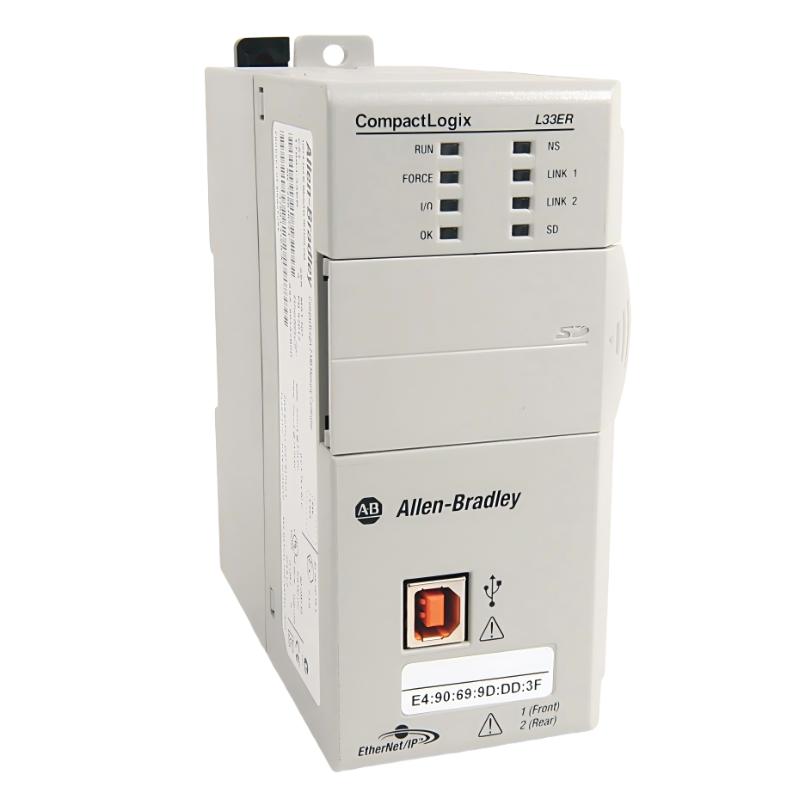

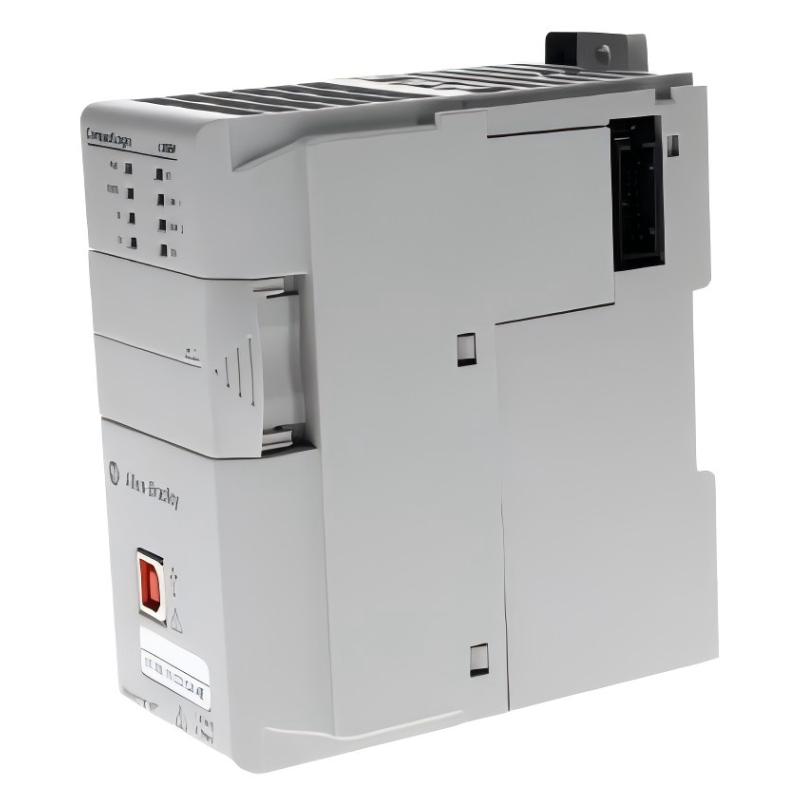

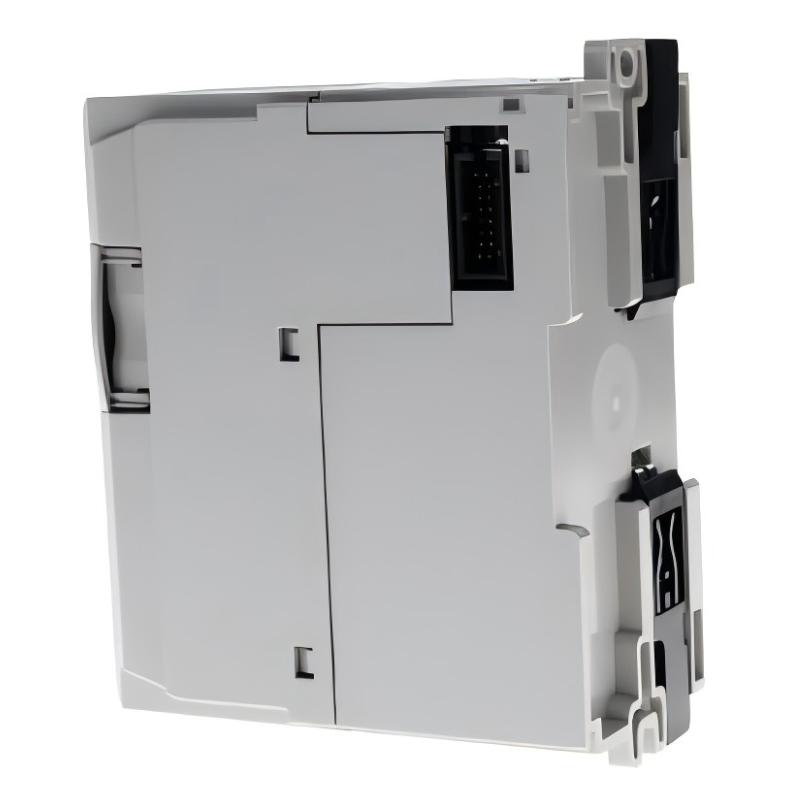

The 1769-L33ERK is a CompactLogix 5370 L3 programmable controller designed for industrial automation and machine-control applications. It provides 2 MB of user memory and integrated EtherNet/IP communication, allowing the controller to manage local 1769 Compact I/O as well as distributed EtherNet/IP devices. Its dual Ethernet ports also support Device Level Ring network architectures for applications requiring improved network resilience.

2. How much memory does the 1769-L33ERK provide?
The controller provides 2 MB of user memory for application programs, controller data, tags, and related project information. It is also supplied with a 1 GB SD memory card and supports SD cards up to 2 GB. The removable memory can be useful for application backup, project transfer, firmware-related procedures, and controller maintenance.

3. How many local I/O modules can be connected to the 1769-L33ERK?
The 1769-L33ERK supports up to 16 local 1769 Compact I/O expansion modules. The maximum local I/O capacity can reach up to 512 points, depending on the type and configuration of the installed I/O modules. When designing the system, the engineer should also consider the available power budget, module placement, communication requirements, and the limitations of the selected 1769 power supply.

4. Does the 1769-L33ERK support EtherNet/IP communication?
Yes. EtherNet/IP is one of the primary communication interfaces of the 1769-L33ERK. The controller has two Ethernet ports and supports communication with distributed I/O, drives, HMIs, managed switches, and other EtherNet/IP devices. The controller supports up to 32 EtherNet/IP nodes, making it suitable for moderately sized control systems with both local and distributed automation devices.

5. Does the 1769-L33ERK support Device Level Ring (DLR)?
Yes. The dual Ethernet-port configuration supports Device Level Ring networking. DLR can provide an alternative communication path when a network connection is interrupted, helping maintain communication between devices in a properly configured ring network. When commissioning a DLR system, the network topology, device configuration, controller settings, and network infrastructure should all be checked carefully.

6. What power supply does the 1769-L33ERK require?
The controller is powered through the 1769 system and requires a compatible 1769 series power supply. Its specified backplane requirements include approximately 500 mA at 5 VDC and 225 mA at 24 VDC. When additional Compact I/O modules are installed, their current consumption must be included in the overall power calculation to ensure that the selected 1769 power supply has adequate capacity.

7. What are common causes of communication or controller faults on the 1769-L33ERK?
Typical causes include incorrect IP addressing, duplicate IP addresses, damaged Ethernet cables, loose network connections, incorrect controller configuration, incompatible firmware, overloaded network infrastructure, or problems with connected EtherNet/IP devices. For troubleshooting, first check the controller status indicators and Ethernet link status, then verify IP configuration and controller diagnostics. If the controller is operating normally but a specific I/O device is unavailable, the fault should be isolated to the corresponding network segment or device.

8. How is the 1769-L33ERK programmed and commissioned?
The controller is programmed within the Rockwell Automation Logix programming environment using supported languages such as Ladder Diagram, Structured Text, Function Block Diagram, and Sequential Function Chart. During commissioning, the controller should be configured with the correct firmware and project settings, followed by configuration of local 1769 I/O and EtherNet/IP devices. After downloading the application, engineers should verify controller status, I/O connections, Ethernet communication, diagnostics, and actual machine operation before placing the system into production.
