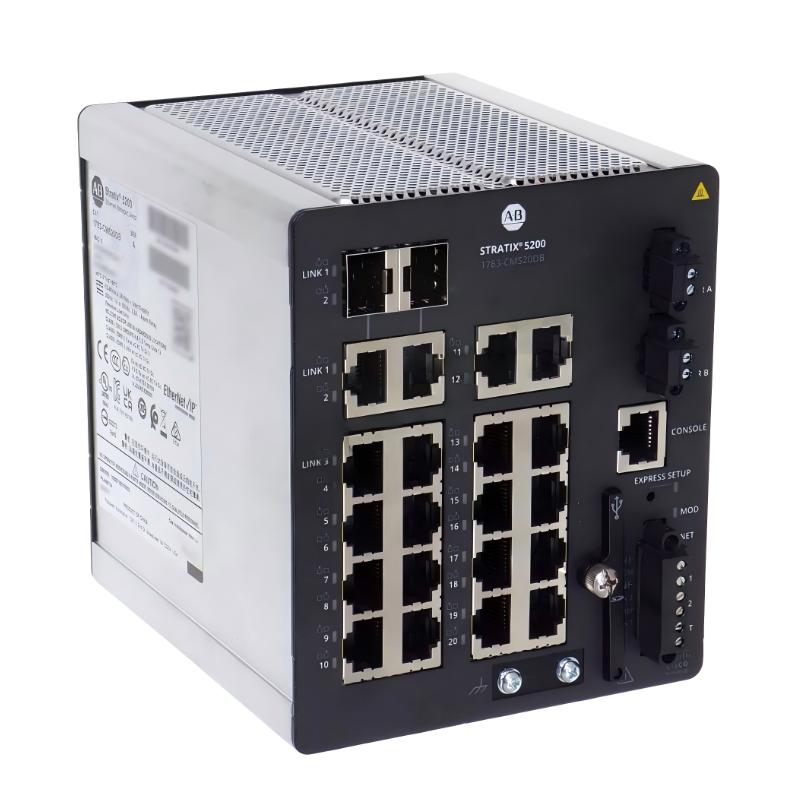

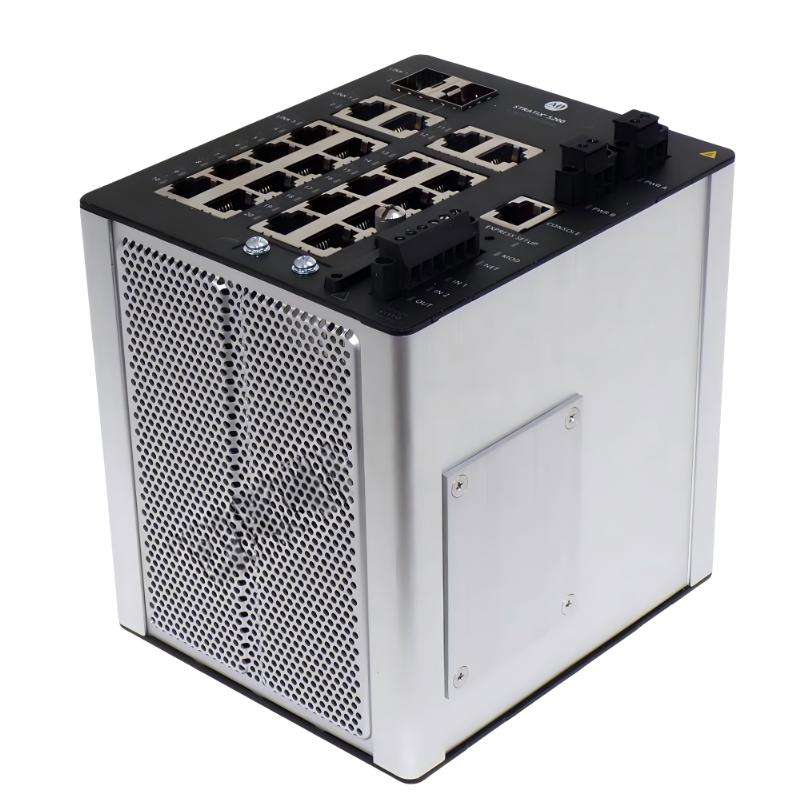

Allen Bradley 1783-CMS20DB Stratix 5200 Managed Ethernet Switch
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1783-CMS20DB |
| Product Series | Stratix 5200 |
| Product Type | Managed Ethernet Switch |
| Total Ports | 20 |
| Copper Ethernet Ports | 18 × 10/100 Mbps Fast Ethernet |
| Combination Ports | 2 × 10/100/1000 Mbps |
| SFP Interfaces | 2 combination SFP interfaces |
| Firmware Type | Base Firmware |
| DLR | Supported, 1 DLR ring |
| NAT | Not supported |
| CIP Sync / IEEE 1588 | Not supported |
| PoE | Not supported |
| Routing | Not supported |
| Switch Type | Managed |
| Power Input | 12–48 V DC |
| Maximum Current | 4.2 A at 12 V DC |
| Typical Power Consumption | 36.7 W |
| Alarm Relay Rating | 1.0 A at 30 V DC; 0.5 A at 60 V DC |
| Operating Temperature | -40°C to +60°C |
| Protection Rating | IP30 |

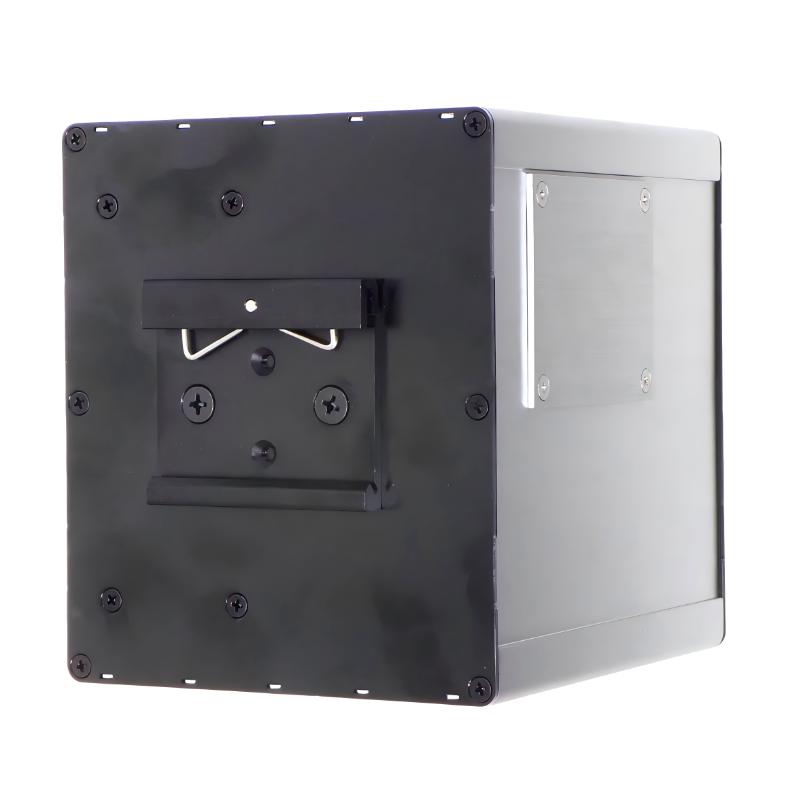

| Mounting | DIN Rail |
| Console Interface | RJ45 Console, USB |
| Memory Card | 1784-SDHC8 |
| SFP Module Support | Compatible 100 Mbps and 1 Gbps SFP modules |
| Enclosure Type | Open-style |
| Environmental Rating | T4 |
| Dimensions | 129 × 109.2 × 127 mm |
| Weight | 2.8 kg |
FAQ
1. How many Ethernet ports does the 1783-CMS20DB provide?
The 1783-CMS20DB provides 20 Ethernet ports in total. It has 18 copper Fast Ethernet ports supporting 10/100 Mbps communication and two combination ports supporting 10/100/1000 Mbps operation. The combination ports can be used for copper Ethernet or compatible SFP connections depending on the network design. This configuration makes the switch suitable for industrial control systems with a large number of connected PLCs, HMIs, remote I/O devices, industrial computers, drives, and other Ethernet-enabled equipment.
2. Does the 1783-CMS20DB support Device Level Ring?
Yes. The 1783-CMS20DB supports Device Level Ring (DLR) and can be used to establish one DLR ring. DLR provides an industrial network topology with an alternative communication path when a link in the ring is interrupted. This can improve network availability and reduce the effect of a single cable or connection failure on connected automation devices. When configuring a DLR network, the connected devices, ring ports, and network topology should be correctly planned and configured according to the requirements of the automation system.
3. What Ethernet speeds are supported by the 1783-CMS20DB?
The 18 copper Ethernet ports support 10/100 Mbps Fast Ethernet communication, while the two combination ports support 10/100/1000 Mbps. The combination ports therefore provide Gigabit Ethernet capability for applications that require higher bandwidth. This mixed-speed configuration is useful in industrial networks where standard field devices operate at 10/100 Mbps while uplinks, backbone connections, or high-bandwidth equipment require 1 Gbps communication. Proper cable and SFP selection should be made according to the required network speed.
4. What power supply is required for the 1783-CMS20DB?
The 1783-CMS20DB uses a 12–48 V DC power input. The maximum current can reach 4.2 A at a 12 V DC input, while typical power consumption is approximately 36.7 W. The control cabinet power supply should therefore have sufficient capacity to operate the switch continuously and provide additional margin for other connected equipment. Before energizing the unit, technicians should verify DC polarity, terminal connections, grounding, and the overall power distribution design to prevent electrical faults.
5. Can the 1783-CMS20DB be used in an EtherNet/IP industrial network?
Yes. The 1783-CMS20DB is designed for industrial Ethernet applications and can be used in EtherNet/IP control networks. It can provide network connectivity for PLC controllers, remote I/O, HMIs, industrial computers, drives, and other Ethernet-based automation equipment. As a managed switch, it is also suitable for applications where network monitoring, configuration, and troubleshooting are required. Its 20-port configuration allows multiple field devices to be connected within the same industrial network segment.
6. Does the 1783-CMS20DB support fiber-optic communication?
Yes. The two combination ports can be used with compatible SFP modules to provide fiber-optic Ethernet connections. Fiber is particularly useful for long-distance connections between control cabinets, production areas, or different sections of an industrial facility. It can also provide better immunity to electromagnetic interference than copper cabling in environments containing motors, variable frequency drives, high-power equipment, and other electrical noise sources. The SFP module should be selected based on the required transmission speed, fiber type, transmission distance, and compatibility requirements.
7. What is the operating temperature range of the 1783-CMS20DB?
The specified operating temperature range is -40°C to +60°C. This wide temperature range makes the switch suitable for many industrial environments where ambient conditions can vary considerably. However, the temperature inside an electrical cabinet can be higher than the surrounding environment because of heat generated by PLCs, power supplies, drives, and other components. Adequate cabinet ventilation and thermal management should therefore be considered when installing the switch, particularly in high-temperature applications.
8. What industrial applications are suitable for the 1783-CMS20DB?
The 1783-CMS20DB is suitable for industrial automation networks that require multiple Ethernet connections, managed network functionality, and DLR support. Typical applications include PLC control systems, machine automation, production lines, remote I/O networks, industrial monitoring systems, and EtherNet/IP device networks. The 18 Fast Ethernet copper ports provide connections for numerous field devices, while the two combination ports can be used for high-speed Ethernet or fiber-optic uplinks. This makes the switch suitable for larger control cabinets and industrial network segments where reliable device connectivity and network management are important.
Allen Bradley 1783-CMS20DB Stratix 5200 Managed Ethernet Switch is in stock. Please contact us for a quick quote and competitive pricing.
