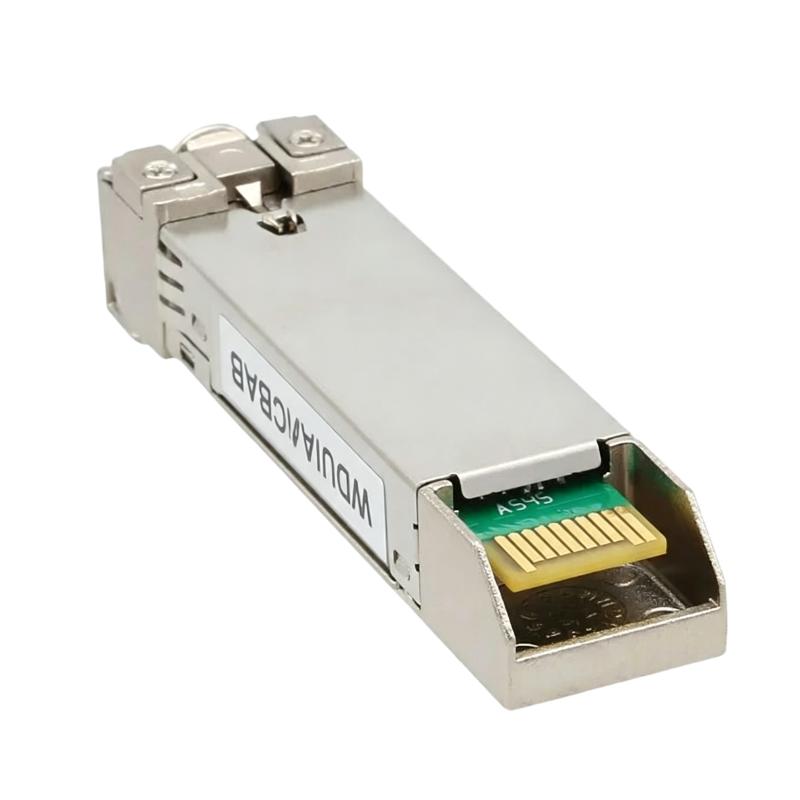

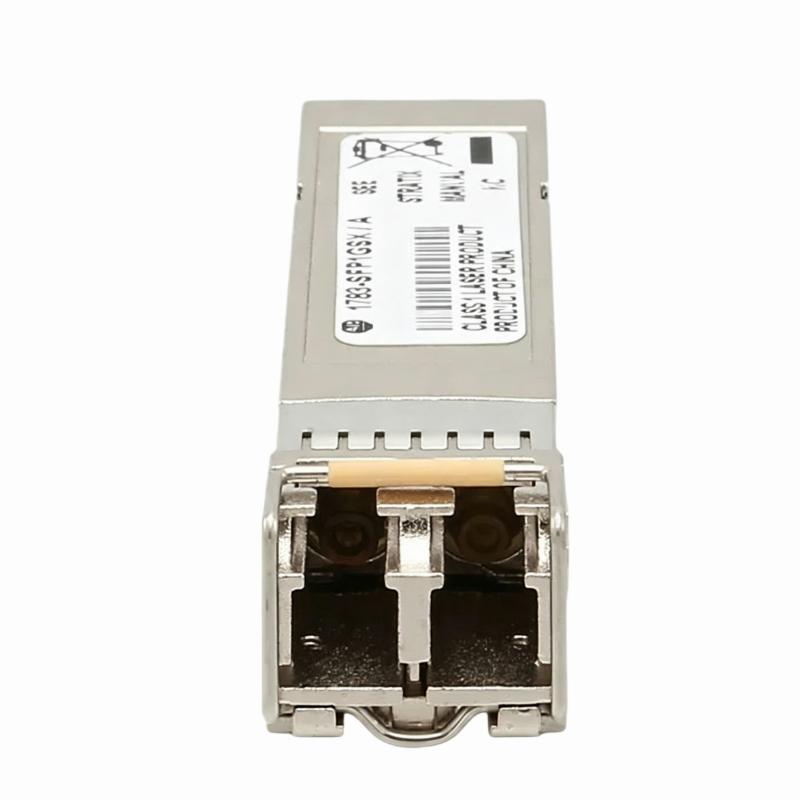

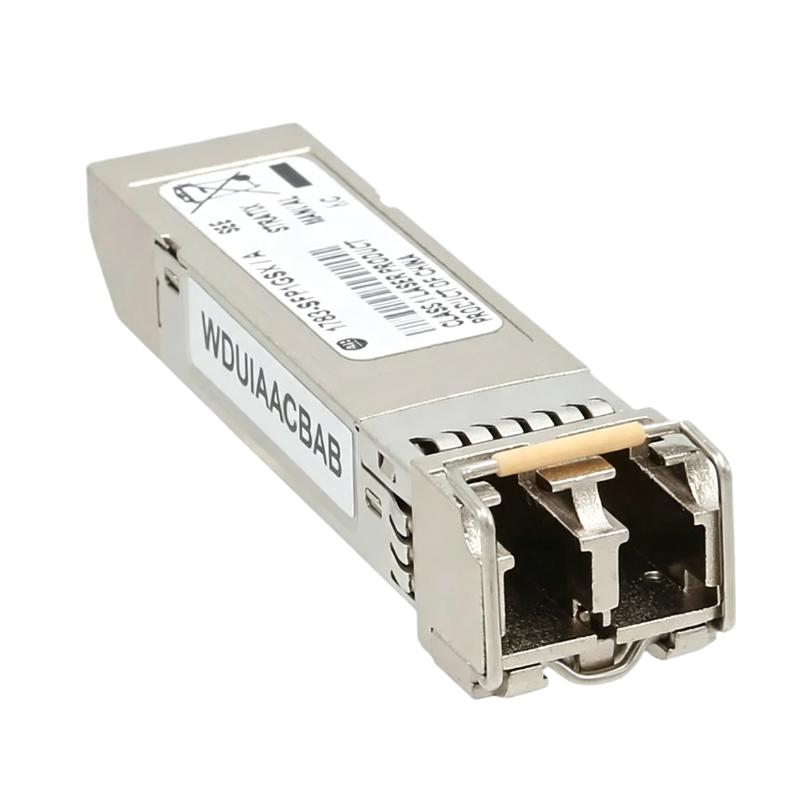

Allen Bradley 1783-SFP1GSX Stratix Fiber-Optic SFP Transceivers
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1783-SFP1GSX |
| Product Type | Fiber-Optic SFP Transceiver |
| Product Series | Stratix |
| Transceiver Type | 1000BASE-SX Multimode Fiber |
| Network Speed | 1 Gbps |
| Fiber Type | Multimode Fiber |
| Wavelength | 850 nm |
| Fiber Connector | Dual LC |
| Digital Optical Monitoring (DOM) | Supported |
| Fiber Core / Cladding | 62.5/125 μm or 50/125 μm |
| Modal Bandwidth | 160, 200, 400, or 500 MHz/km |
| Maximum Cable Length | 220 m at 160 MHz/km; 275 m at 200 MHz/km; 500 m at 400 MHz/km; 550 m at 500 MHz/km |
| Transmit Power | -3 to -9.5 dBm |
| Receive Power | 0 to -17 dBm |
| Ethernet Standard | 1000BASE-SX |
| Compatible Stratix Platforms | Stratix 6000, 5700, 8000, 8300 |
| Installation | SFP Slot |
| Application | Gigabit Ethernet over Multimode Fiber |
| Operating Temperature | Industrial-rated application |
| Dimensions | 90 × 25 × 50 mm |
| Weight | 0.03 kg |
FAQ
1. What is the main function of the 1783-SFP1GSX?
The 1783-SFP1GSX is a 1 Gbps fiber-optic SFP transceiver designed for Gigabit Ethernet communication over multimode fiber. It is installed in a compatible Stratix switch SFP slot and converts the electrical Ethernet interface of the switch into an optical communication interface. It is commonly used for industrial network uplinks, connections between control cabinets, and communication between Ethernet switches located in different areas of an industrial facility.
2. What type of fiber does the 1783-SFP1GSX support?
The 1783-SFP1GSX is designed for 1000BASE-SX multimode fiber and operates at an 850 nm wavelength. It supports 62.5/125 μm and 50/125 μm multimode fiber. The appropriate transmission distance depends on the fiber core size and modal bandwidth. Before installation, the fiber specification should be checked carefully to ensure that it matches the optical characteristics of the SFP transceiver and the module installed at the opposite end of the network connection.
3. What is the maximum transmission distance of the 1783-SFP1GSX?
The maximum transmission distance depends on the modal bandwidth of the multimode fiber. With 62.5/125 μm fiber at 160 MHz/km, the supported distance is up to 220 m. At 200 MHz/km, the distance can reach 275 m. With 50/125 μm fiber at 400 MHz/km, the distance is up to 500 m, while 50/125 μm fiber with 500 MHz/km modal bandwidth supports up to 550 m. The complete fiber link should be evaluated when determining the actual installation distance.
4. What wavelength does the 1783-SFP1GSX use?
The 1783-SFP1GSX operates at 850 nm and is designed for 1000BASE-SX Gigabit Ethernet communication over multimode fiber. Both ends of the optical link should use compatible optical specifications. When troubleshooting a fiber connection, engineers should verify the wavelength, fiber type, connector condition, optical power, and transmission distance. A mismatch between the optical modules or fiber characteristics can prevent the Ethernet link from establishing correctly.
5. What connector is used by the 1783-SFP1GSX?
The 1783-SFP1GSX uses a dual LC fiber-optic connector. One optical path is used for transmission and the other for reception. During installation, the transmit and receive paths must be connected with the correct fiber polarity between the two network devices. LC connectors should also be kept clean and protected from dust or physical damage. Contaminated connectors, damaged fiber ends, or incorrect polarity can cause excessive optical loss and result in an unstable or unavailable network link.
6. Does the 1783-SFP1GSX support Digital Optical Monitoring?
Yes. The 1783-SFP1GSX supports Digital Optical Monitoring (DOM). DOM can provide useful optical information for maintenance and troubleshooting of the fiber connection. When a network link becomes unstable, engineers can use available optical monitoring information together with switch port status to determine whether the problem is related to optical signal strength or another part of the Ethernet network. This is particularly useful when troubleshooting longer multimode fiber connections.
7. Which Stratix switches are compatible with the 1783-SFP1GSX?
The 1783-SFP1GSX is designed for compatible Stratix platforms that support the corresponding Gigabit SFP interface. Its listed compatible platforms include Stratix 6000, Stratix 5700, Stratix 8000, and Stratix 8300. Before installation, the specific switch model and available SFP interface should be verified. The SFP module installed at the opposite end of the fiber link should also provide compatible 1000BASE-SX optical characteristics.
8. What should be checked if the 1783-SFP1GSX has no fiber link?
First, check that the SFP module is fully inserted into the switch and that the switch recognizes the module correctly. Next, verify that both ends of the fiber connection use compatible 1000BASE-SX multimode optical modules operating at 850 nm. Check whether the fiber is 50/125 μm or 62.5/125 μm and confirm that the total cable distance does not exceed the applicable limit for its modal bandwidth. The LC connectors should be inspected for contamination, damage, or incorrect polarity. If the physical fiber connection is confirmed to be correct, check the switch port status, Ethernet configuration, optical monitoring information, and the network equipment at the opposite end.
Allen Bradley 1783-SFP1GSX Stratix Fiber-Optic SFP Transceivers is in stock. Please contact us for a quick quote and competitive pricing.
