1. What is the rated output current of the 20BC260G0ANNANC0?

The 20BC260G0ANNANC0 has a continuous output current rating of 260 A. It is rated for 132 kW under normal-duty operation and 110 kW under heavy-duty operation at a nominal 400 VAC supply. Under heavy-duty conditions, the drive can provide approximately 308 A for one minute and 410 A for three seconds. When selecting this drive, the motor full-load current should be compared with the drive’s continuous output rating. The actual load profile, starting torque, acceleration requirements, and overload frequency should also be considered to ensure the drive operates within its intended electrical and thermal limits.

2. What is the difference between the 20BC260G0ANNANC0 and an IP20 PowerFlex 700 configuration?

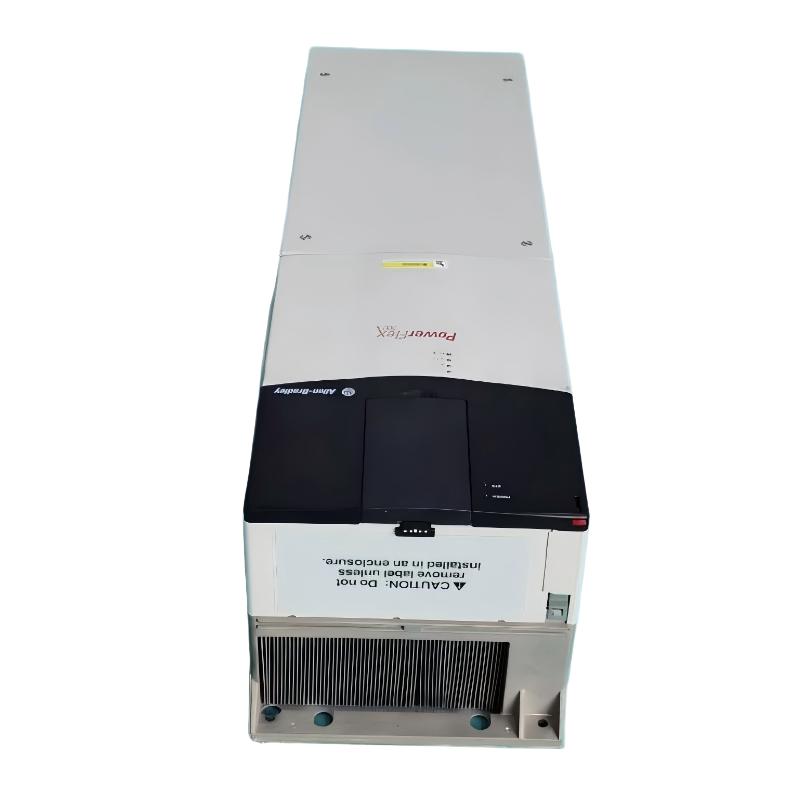

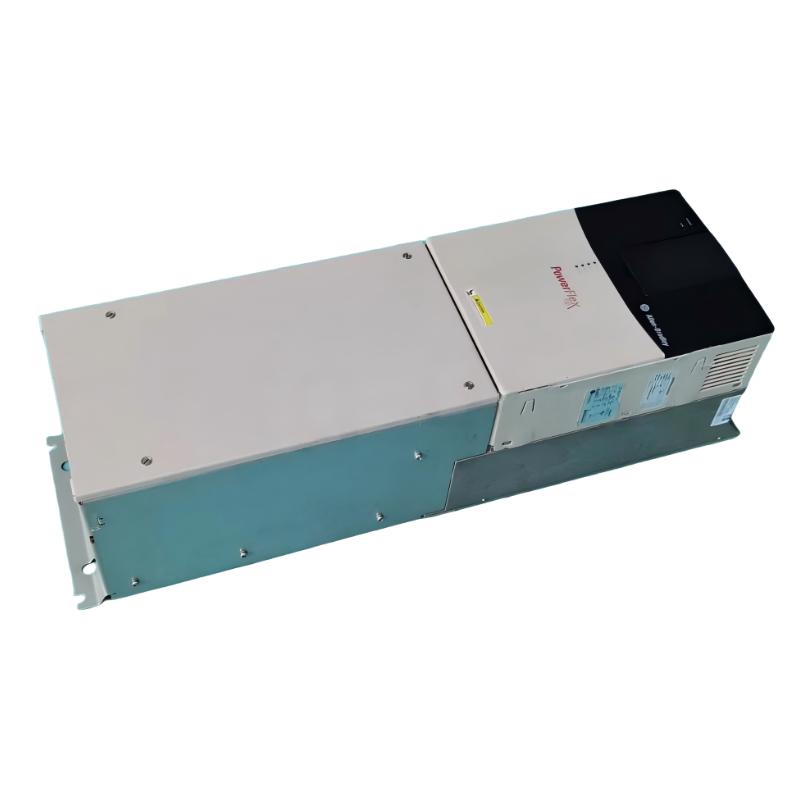

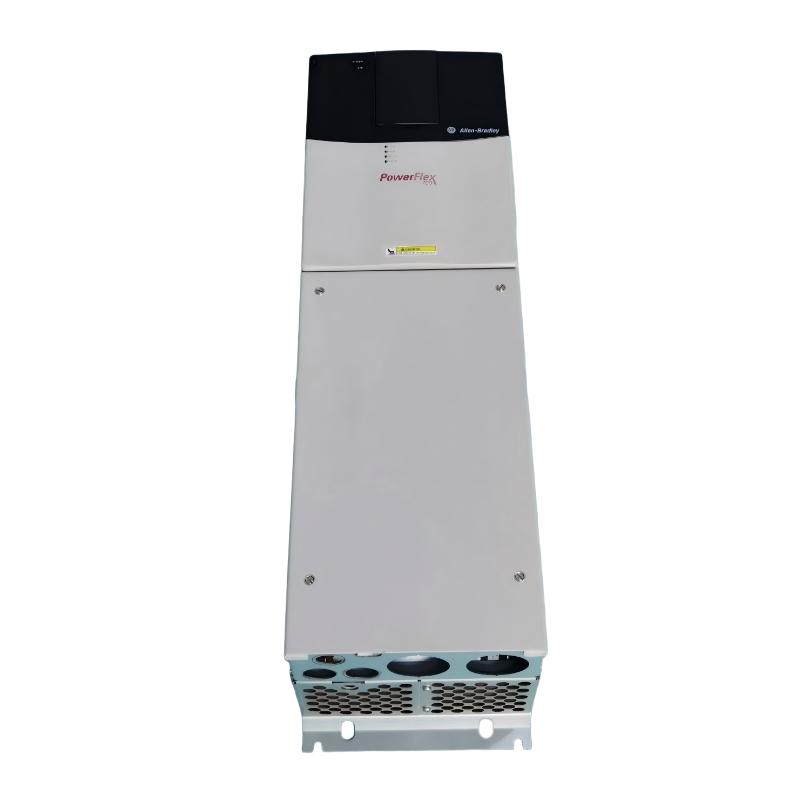

The 20BC260G0ANNANC0 is designed as a wall or machine-mounted configuration with an IP54 / NEMA Type 12 enclosure. This provides a higher level of protection against dust and water ingress than a standard IP20 configuration. It is therefore more suitable for certain industrial environments where the drive requires additional enclosure protection. The installation environment should still be controlled to prevent exposure to corrosive gases, excessive moisture, conductive contamination, or other conditions outside the specified operating limits. Proper ventilation and heat dissipation must also be maintained because the drive generates significant heat during operation.

3. Which motor control modes are supported by the 20BC260G0ANNANC0?

The drive supports V/Hz, Sensorless Vector, and Vector Control. V/Hz control is suitable for general-purpose variable-speed equipment such as fans, pumps, and conveyors. Sensorless Vector control provides improved low-speed torque and speed regulation without requiring an encoder. Vector Control is appropriate for applications requiring better speed stability, torque response, and dynamic performance. During commissioning, the motor’s rated voltage, current, frequency, and speed should be entered accurately. The selected control mode should then be matched to the mechanical load and required operating performance.

4. Does the 20BC260G0ANNANC0 include a built-in braking resistor or Brake IGBT?

No. The 20BC260G0ANNANC0 does not include an internal braking resistor or Brake IGBT. This should be considered when the drive is used with high-inertia loads or machinery requiring rapid and repeated deceleration. During deceleration, the motor can return regenerative energy to the drive’s DC bus, causing the bus voltage to increase. If the regenerated energy cannot be dissipated, a DC bus overvoltage fault may occur. Applications requiring rapid braking should therefore be evaluated for an external braking solution based on motor power, load inertia, deceleration time, and the frequency of braking events.

5. What should be checked if the 20BC260G0ANNANC0 develops an overcurrent fault?

Start by checking the motor and mechanical load for abnormal conditions such as mechanical blockage, excessive friction, bearing problems, gearbox issues, or unexpected load increases. Next, inspect the motor cables for phase-to-phase shorts, ground faults, damaged insulation, and incorrect U/V/W connections. The acceleration time should also be checked, particularly when the drive controls a high-inertia machine. If the acceleration time is too short, the motor may require excessive current and trigger the drive’s current protection. The motor nameplate data programmed into the drive should also be compared with the actual motor specifications. If the fault remains after disconnecting the motor, the drive’s power section and current-sensing circuitry should be investigated.

6. Why can the 20BC260G0ANNANC0 experience an overvoltage fault during deceleration?

An overvoltage fault during deceleration is commonly caused by regenerative energy. When a high-inertia load slows down, the motor can temporarily operate as a generator and return energy to the drive’s DC bus. If the deceleration time is too short, the regenerated energy can cause the DC bus voltage to rise rapidly. The drive has a DC bus overvoltage trip level of approximately 810 VDC at a 380/400 VAC input condition. Troubleshooting should include checking the deceleration time, load inertia, braking frequency, and incoming supply voltage. If the process permits, increasing the deceleration time can reduce regenerative energy. For frequent rapid braking, an appropriately sized external braking system should be evaluated.

7. How should the 20BC260G0ANNANC0 be commissioned before normal operation?

Before commissioning, verify the incoming three-phase power, motor wiring, grounding, control wiring, and motor nameplate information. Configure the motor rated voltage, rated current, rated frequency, rated speed, minimum and maximum frequency, acceleration time, and deceleration time according to the application. The command source and speed reference source should also be checked. Since this configuration does not include a HIM, commissioning and parameter access should be planned around the available control and configuration interface. After configuration, the motor should initially be operated at low speed while checking rotation direction, current, drive status, and mechanical behavior. Any abnormal current, vibration, noise, or fault indication should be investigated before continuous operation.

8. How can the reliability of the 20BC260G0ANNANC0 be improved in industrial applications?

Reliable operation depends on correct sizing, proper installation, accurate parameter configuration, adequate cooling, and preventive maintenance. The 260 A continuous output capability should be matched to the motor’s actual current and load profile. Acceleration and deceleration times should be selected according to the mechanical inertia instead of simply using the shortest possible settings. Because this configuration has no internal braking resistor or Brake IGBT, regenerative energy should be evaluated separately for high-inertia and frequent-braking applications. The IP54 / NEMA Type 12 enclosure provides additional environmental protection, but the installation area should still be kept free from corrosive gases, excessive moisture, and conductive contamination. Routine maintenance should include checking power connections, motor cables, grounding, cooling airflow, enclosure condition, and abnormal temperature rise. Recording operating parameters and fault history can also help identify recurring problems and reduce unexpected downtime.
