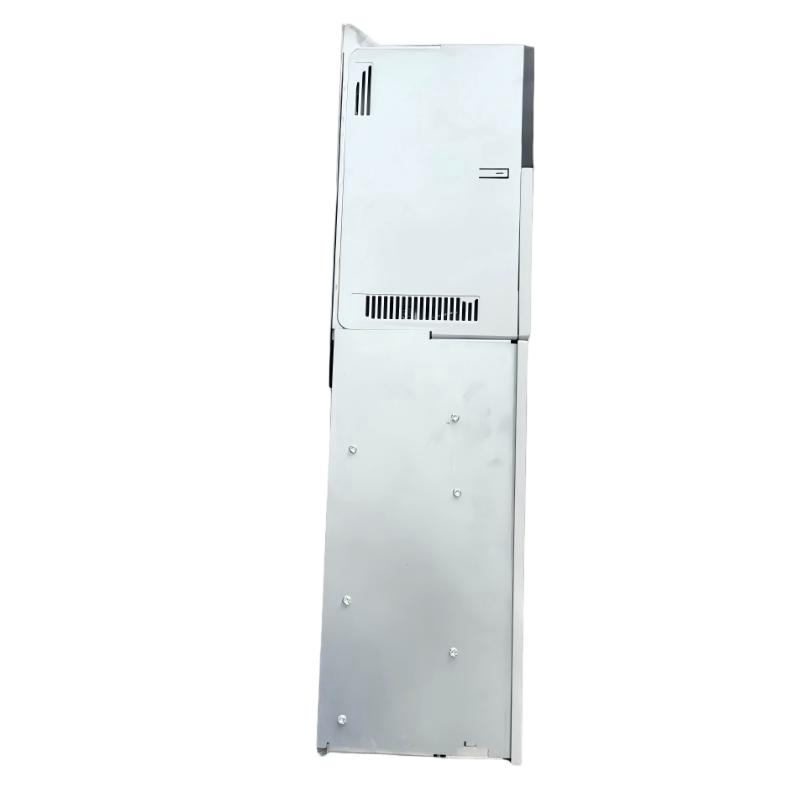

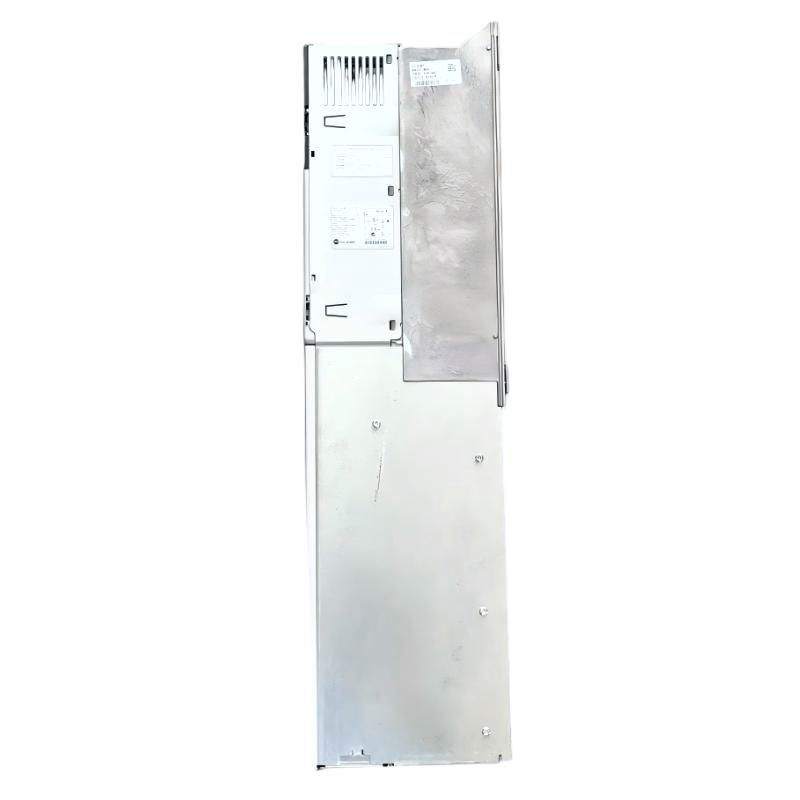

1. What motor power rating is suitable for the 20BD077A0ANNANC0?
The 20BD077A0ANNANC0 has a rated output current of 77 A and is suitable for motors up to approximately 60 HP under normal-duty operation and 50 HP under heavy-duty operation. Motor selection should be based primarily on the motor nameplate current rather than horsepower alone. For applications involving high starting torque, frequent acceleration, frequent starts and stops, or continuous operation at high load, the heavy-duty rating should be used when evaluating the drive. This helps ensure that the drive has sufficient current capacity and thermal capability for the actual operating conditions.

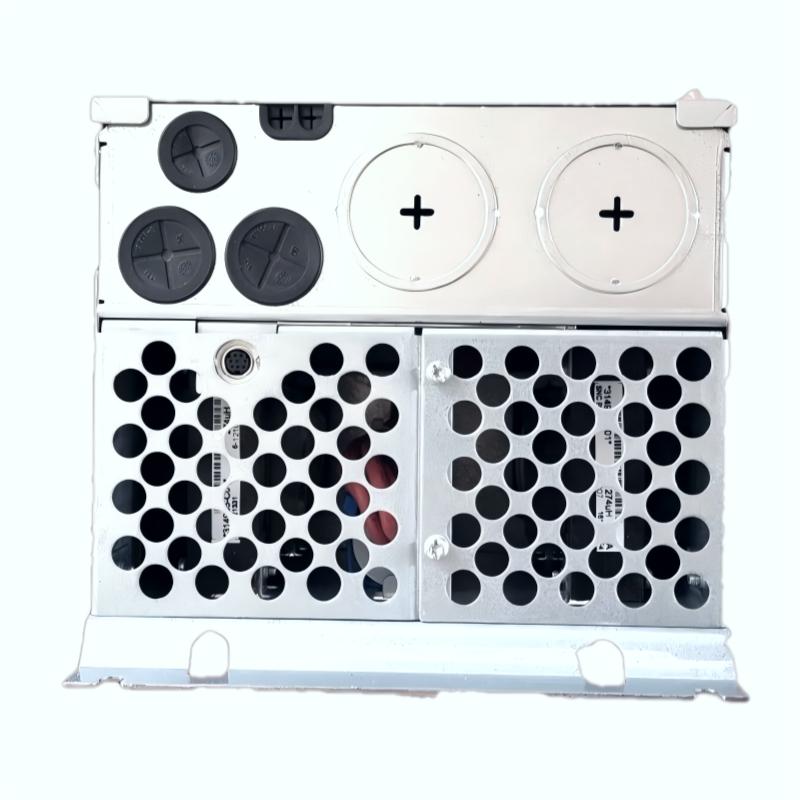

2. What input power supply does the 20BD077A0ANNANC0 require?
The 20BD077A0ANNANC0 uses a three-phase 480 V AC input supply with a nominal frequency of 60 Hz. Before commissioning, the three-phase input voltage should be measured and the phase-to-phase voltage balance should be checked. The supply should remain within the permitted operating range during both idle and loaded conditions. Appropriate circuit protection, disconnect equipment, and grounding should also be provided. Excessive voltage, insufficient voltage, or significant phase imbalance can result in input undervoltage, overvoltage, DC bus faults, and unexpected drive shutdowns.

3. What motor control methods are supported by the 20BD077A0ANNANC0?
The drive supports V/Hz control, sensorless vector control, and vector-based control. V/Hz control is suitable for common variable-speed applications such as fans, pumps, and conveyors. Sensorless vector control can provide improved low-speed torque and speed regulation without requiring an encoder. For applications with more demanding dynamic performance, the appropriate vector control configuration can be selected according to the motor and load characteristics. Accurate motor data, including rated voltage, current, frequency, and power, should be entered to achieve stable operation and reliable torque performance.

4. Does the 20BD077A0ANNANC0 support encoder feedback?
This specific configuration does not include an encoder feedback function and is intended primarily for open-loop motor control. For many standard variable-speed applications, sensorless vector control can provide satisfactory speed and torque performance without a physical encoder. If the machine requires highly accurate low-speed operation, closed-loop speed regulation, or precise torque control, a drive configuration with the appropriate feedback interface should be considered. When replacing an existing drive, it is important to verify whether the original system depends on encoder feedback before selecting this configuration.

5. Does the 20BD077A0ANNANC0 include a brake resistor or brake IGBT?
No. This configuration does not include a brake IGBT or an internal brake resistor. During rapid deceleration of a high-inertia load, the motor can operate as a generator and return energy to the drive’s DC bus. This regenerative energy can increase the DC bus voltage and potentially cause an overvoltage trip. Applications requiring rapid stopping or frequent deceleration should therefore be evaluated during system design. The required external braking solution should be selected according to load inertia, motor power, deceleration time, and braking frequency.

6. How should an overcurrent fault on the 20BD077A0ANNANC0 be diagnosed?
First determine whether the overcurrent occurs during starting, acceleration, constant-speed operation, or deceleration. If it occurs during acceleration, check whether the acceleration time is too short for the connected load. The motor nameplate data should then be compared with the parameters programmed into the drive. Inspect the motor cables for phase-to-phase shorts, ground faults, damaged insulation, loose terminals, or incorrect connections. The mechanical system should also be checked for excessive load, seized components, bearing problems, or sudden increases in resistance. If the fault continues after these checks, verify that the motor rating and drive output capacity are properly matched.

7. What should be done if a DC bus overvoltage fault occurs?
If the DC bus overvoltage occurs mainly during deceleration, first check whether the programmed deceleration time is too short. High-inertia equipment can generate significant regenerative energy when it is stopped quickly, causing the DC bus voltage to rise rapidly. Increasing the deceleration time can reduce the regenerative energy rate. The incoming AC voltage should also be measured to eliminate excessive line voltage as a possible cause. Since this configuration does not include a brake IGBT or internal brake resistor, applications requiring rapid or repeated braking should be evaluated for an appropriate external braking solution. Load inertia and the actual braking cycle should also be reviewed if the fault continues.

8. Why does the motor not run after the 20BD077A0ANNANC0 is powered on?
First check whether the drive has an active fault, alarm, or run-inhibit condition. Then verify that the start command is being received correctly and that the configured control source is appropriate. The 24 V DC control supply and digital input signals should be checked for proper operation. Confirm that the frequency reference is not zero and that the command and reference sources are configured correctly. If the drive is controlled by a PLC or another external controller, inspect the PLC output signals, interlocks, and control logic. Motor output wiring and motor parameters should also be verified. When sensorless vector control is used, incorrect motor nameplate data can cause insufficient starting torque, unstable speed, or failure to accelerate properly.
