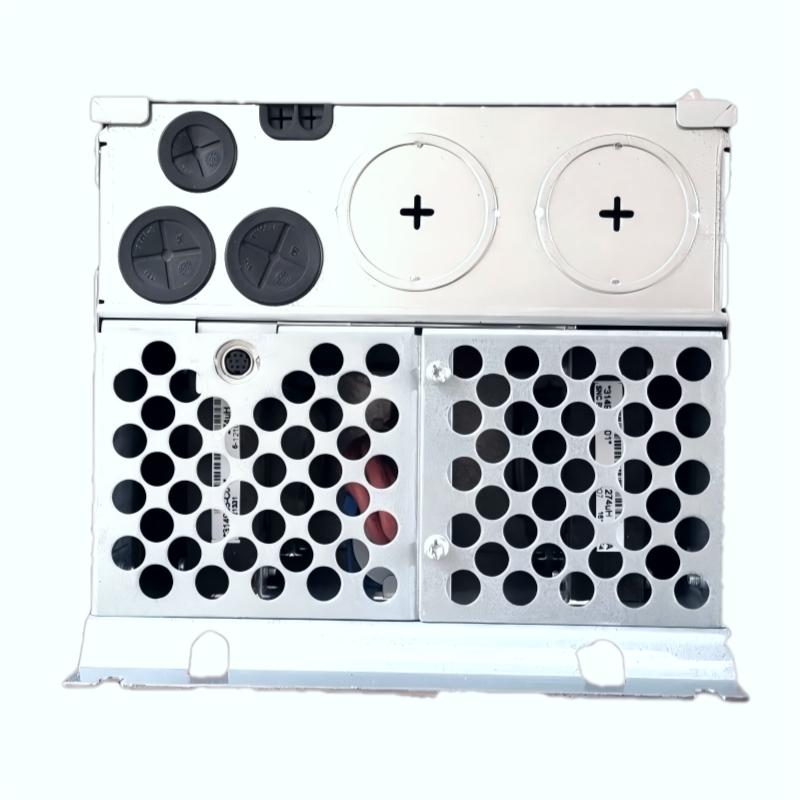

1. What motor power rating is suitable for the 20BD077A3ANNADA0?
The 20BD077A3ANNADA0 has a continuous output rating of 77 A and is designed for applications up to 60 HP under normal-duty conditions and 50 HP under heavy-duty conditions. Motor selection should be based primarily on the motor nameplate current rather than horsepower alone. The actual load profile, starting torque, acceleration requirements, operating speed, and duty cycle should also be considered. For applications involving frequent starts and stops or sustained high loading, the heavy-duty rating should be used when determining whether the drive has sufficient capacity.

2. What input power supply is required for the 20BD077A3ANNADA0?
The drive is designed for a three-phase 480 V AC input supply at 60 Hz. The actual incoming voltage should be measured between all phases before commissioning, and phase-to-phase voltage balance should be checked. The input circuit should include appropriate circuit protection, disconnect equipment, and a reliable grounding arrangement. The drive has an AC input undervoltage trip level of approximately 280 V at a 480 V nominal input. Excessive voltage fluctuations or unstable power can result in undervoltage, overvoltage, or DC bus-related faults.

3. What control methods can be used with the 20BD077A3ANNADA0?
The drive supports V/Hz control, sensorless vector control, and vector control. V/Hz is suitable for many general-purpose variable-speed applications such as fans, pumps, and conveyors. Sensorless vector control provides improved speed and torque performance without requiring an encoder. Vector control can be used when more precise dynamic response and torque regulation are needed. When using vector-based control, accurate motor nameplate data should be programmed into the drive, including motor voltage, current, frequency, and power. Proper motor tuning can further improve performance.

4. Does the 20BD077A3ANNADA0 support encoder feedback?
This specific configuration is listed as a no-feedback version, so it is intended primarily for open-loop motor control. The drive can provide 12 V DC encoder supply capability, but this configuration does not include the required feedback option. Sensorless vector control can therefore be used when improved speed and torque regulation are required without a physical encoder. If the application requires closed-loop speed control, highly accurate low-speed operation, or precise torque regulation, a PowerFlex 700 configuration with the appropriate feedback hardware should be selected.

5. Does the 20BD077A3ANNADA0 include an internal brake resistor or brake IGBT?
No. This configuration does not include a brake IGBT or an internal brake resistor. During rapid deceleration, high-inertia loads can return regenerative energy to the DC bus, increasing the bus voltage. If the regenerative energy becomes excessive, the drive can trip on DC bus overvoltage. For applications involving rapid stopping or frequent braking, the braking requirements should be evaluated based on motor power, load inertia, deceleration time, and braking frequency. An appropriate external braking solution may be required for demanding applications.

6. How should an overcurrent fault be diagnosed on the 20BD077A3ANNADA0?
Start by determining when the overcurrent occurs. If it happens during acceleration, check whether the programmed acceleration time is too short for the load. High-inertia equipment may require a longer acceleration period. Verify the motor nameplate data programmed into the drive, especially rated voltage, current, frequency, and power. Inspect the motor and output cables for phase-to-phase shorts, ground faults, damaged insulation, loose terminals, or incorrect wiring. The mechanical system should also be checked for excessive load, seized bearings, blocked mechanisms, or abnormal friction. If the fault continues, verify that the 77 A output rating is suitable for the motor and actual load.

7. What should be checked when a DC bus overvoltage fault occurs?
If the fault occurs during deceleration, first check the programmed deceleration time. A high-inertia load that is stopped too quickly can regenerate a large amount of energy into the DC bus. Increasing the deceleration time can reduce the rate of regenerative energy. The incoming AC supply should also be checked because excessive line voltage can increase the DC bus voltage. The nominal DC bus voltage for a 480 V input is approximately 648 V, while the overvoltage trip level is approximately 810 V. Because this configuration does not include an internal brake resistor or brake IGBT, an external braking solution may be necessary for applications requiring rapid or repeated deceleration.

8. Why does the motor fail to start even though the 20BD077A3ANNADA0 is powered?
First check the drive display for active faults, alarms, or a run-inhibit condition. Verify that the start command is being generated from the configured control source and that the frequency reference is greater than zero. The digital input configuration, control wiring, and start/stop logic should then be checked. Because this configuration includes DeviceNet communication, the network connection, node configuration, command source, and reference source should also be verified when the drive is controlled over the network. Finally, inspect the motor output wiring and programmed motor parameters. Incorrect motor data, an invalid control command, or an external interlock can all prevent the motor from starting even when the drive itself has power.
