1. What applications is the Allen Bradley 20BD156A0ANNAND0 PowerFlex 700 AC Drive suitable for?

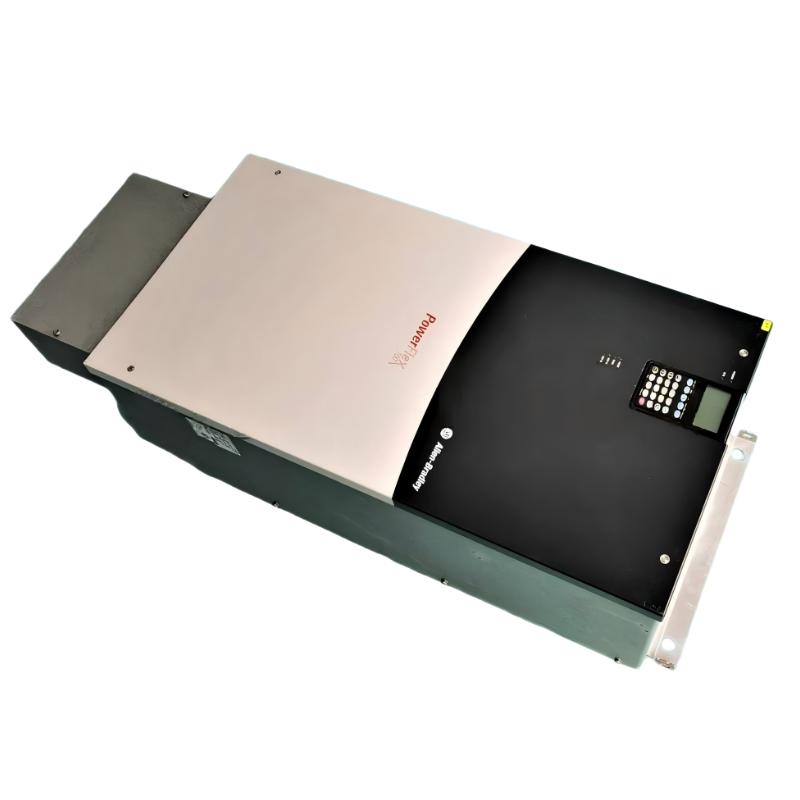

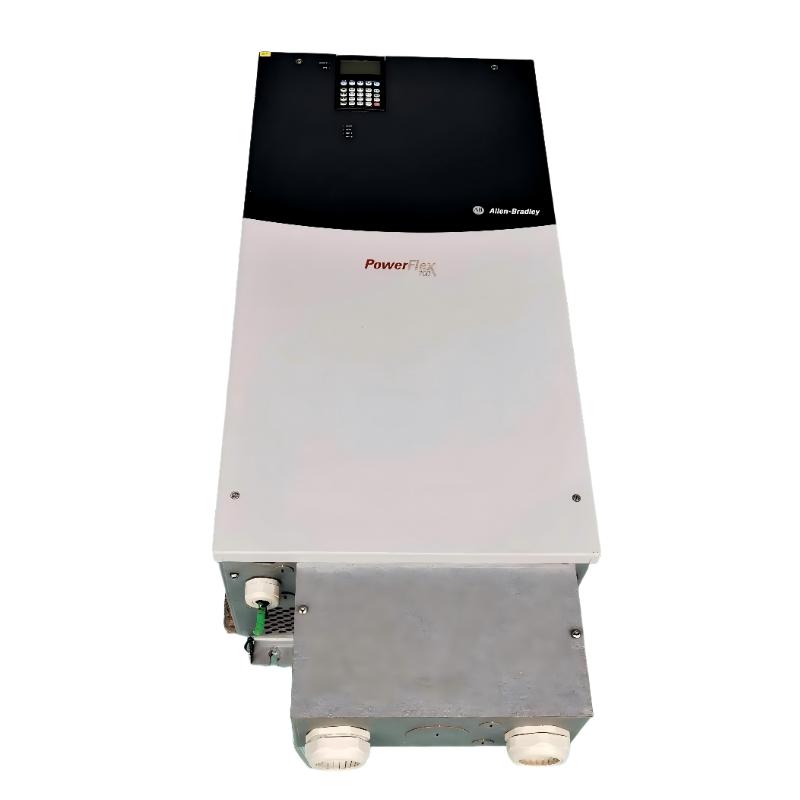

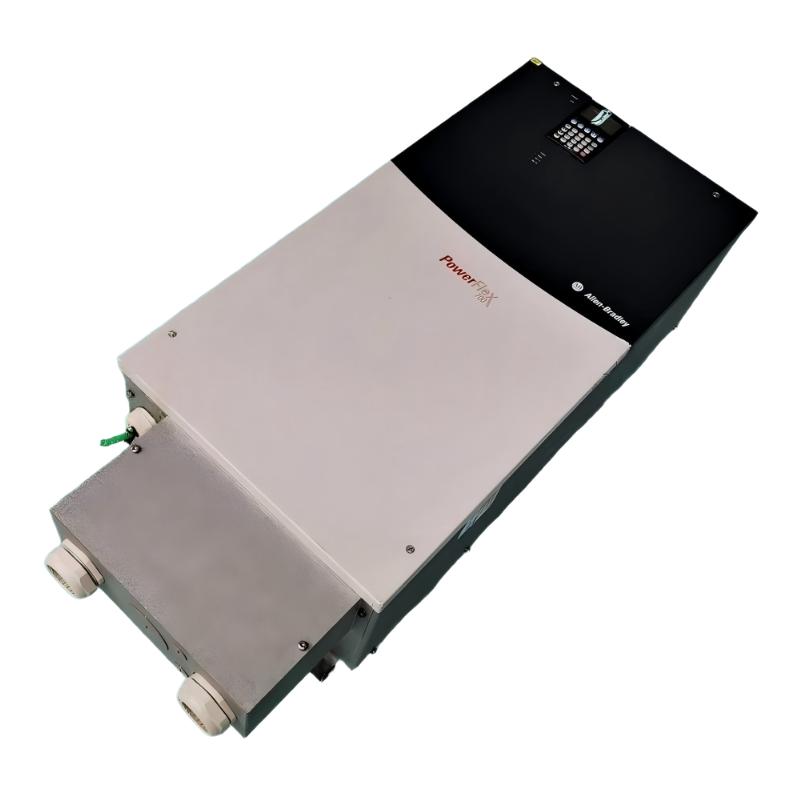

The 20BD156A0ANNAND0 is a 480 V three-phase PowerFlex 700 drive rated at 156 A, with a 125 HP normal-duty rating and 100 HP heavy-duty rating. It is suitable for large industrial motors used in conveyors, pumps, fans, compressors, material handling equipment, production machinery, and other variable-speed applications. Its vector-control architecture provides better torque and speed control than basic V/Hz operation, making it useful for applications where motor performance changes significantly with load.

2. Why does the 20BD156A0ANNAND0 trip on overcurrent when the motor starts?
Startup overcurrent can be caused by incorrect motor parameters, excessive mechanical load, short acceleration time, or problems in the motor and power cables. Check the programmed motor voltage, current, frequency, power, and speed against the motor nameplate. Inspect the output wiring for phase-to-phase or phase-to-ground faults and make sure all terminals are properly tightened. If the motor is driving a high-inertia load, increasing the acceleration time may also reduce the current demand during startup.

3. What causes DC bus overvoltage during deceleration on the 20BD156A0ANNAND0?
When a high-inertia motor decelerates, mechanical energy can flow back into the drive and increase the DC bus voltage. This is especially important because the 20BD156A0ANNAND0 does not have an internal brake IGBT or drive-mounted brake resistor. If overvoltage occurs mainly during rapid stopping, increase the programmed deceleration time and observe whether the fault disappears. For applications requiring repeated rapid deceleration, an appropriately sized external braking solution may be necessary.

4. Can the 20BD156A0ANNAND0 operate without an encoder?
Yes. This model is configured without feedback and supports vector control without an encoder. Sensorless vector control can provide good speed and torque performance for many industrial applications without requiring a physical speed feedback device. It is commonly suitable for conveyors, pumps, fans, and general machinery. If the application requires extremely accurate low-speed torque, precise speed feedback, or positioning functionality, the control architecture should be evaluated carefully before selecting a no-feedback configuration.

5. What should be checked when a PLC sends a start command but the 20BD156A0ANNAND0 motor does not run?
First check whether the PLC output signal reaches the drive’s 120 V I/O circuit correctly. Then verify the enable, stop, start, and fault-reset conditions. Since this model has no internal communication module, the control system normally relies on hardwired I/O, making wiring and control-voltage checks particularly important. If the drive recognizes the run command but the output frequency remains at zero, check the selected speed reference, analog input signal, minimum frequency setting, and any active interlocks or inhibit conditions.

6. How can the 20BD156A0ANNAND0 be connected to a PLC without an internal communication module?
The drive can be controlled through its hardwired I/O. Digital inputs can be assigned to commands such as start, stop, forward, reverse, and fault reset, while analog inputs can be used for speed or frequency references. Drive status and operating information can be returned through the available digital and analog outputs. For a PLC-based control system, the I/O voltage and signal wiring must be matched correctly to the drive configuration, especially because this model uses the 120 V I/O version of the Vector Control configuration.

7. Why might the motor speed become unstable at low speed when using the 20BD156A0ANNAND0?
Low-speed instability can be related to incorrect motor data, unsuitable vector-control parameters, changing mechanical load, or motor characteristics. Start by verifying that the motor nameplate information is entered correctly. Check the motor tuning or identification procedure and make sure the load is not producing large periodic torque variations. Long motor cables, poor connections, or mechanical problems in the motor or driven equipment can also affect low-speed operation. If the problem remains, the vector-control parameters should be optimized for the actual motor and load combination.

8. What maintenance should be performed regularly on the 20BD156A0ANNAND0 PowerFlex 700 drive?
Regular maintenance should focus on cooling, electrical connections, the cabinet environment, and fault history. Keep ventilation paths and heat-dissipation areas clean and make sure cooling fans are operating correctly. Inspect input, output, grounding, and control connections for looseness or signs of overheating. Check the drive for repeated overcurrent, overvoltage, or overtemperature faults and investigate recurring events rather than simply resetting them. For equipment operating continuously, periodic inspections and recorded maintenance results can help identify deteriorating components before they cause an unexpected shutdown.
