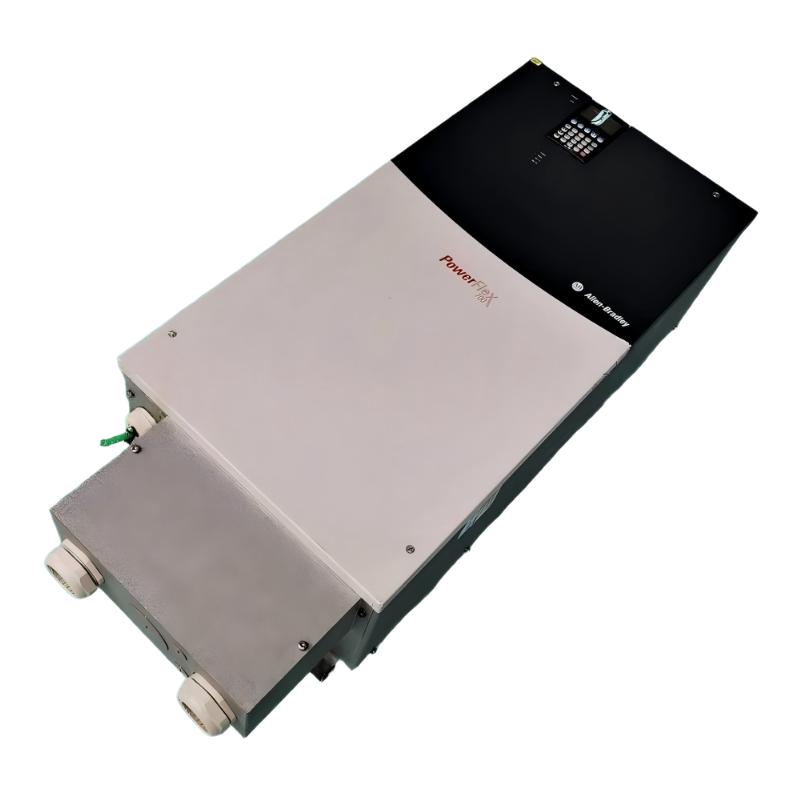

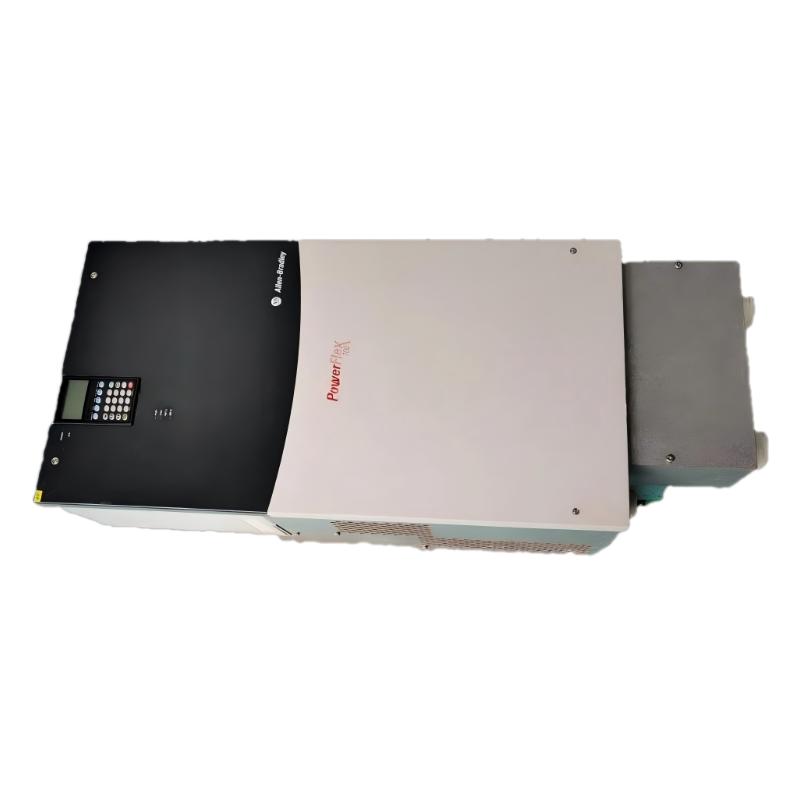

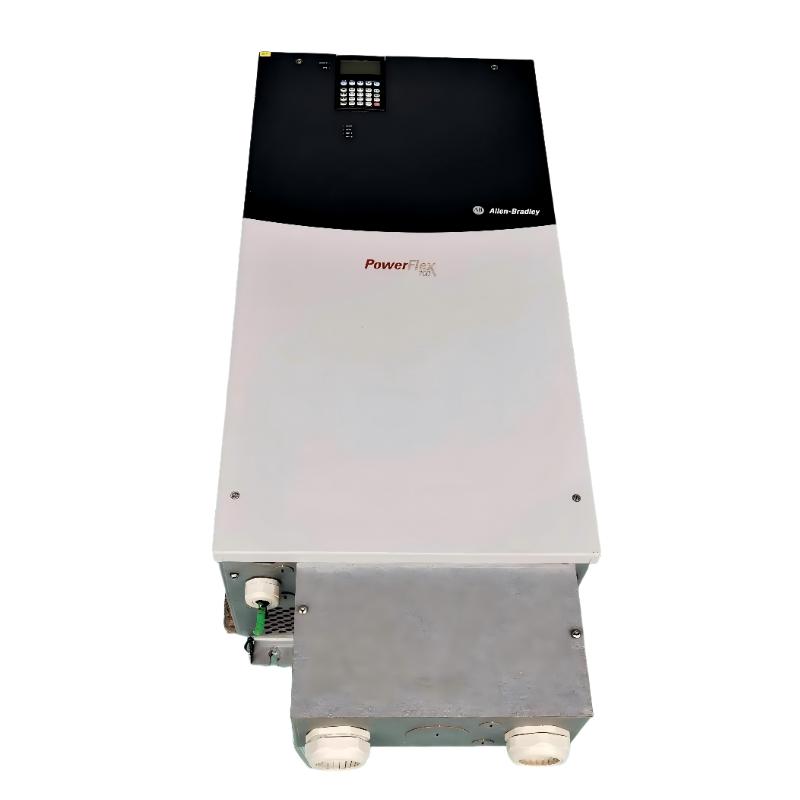

1. What applications is the Allen Bradley 20BD156A3ANNACA0 PowerFlex 700 AC Drive suitable for?
The 20BD156A3ANNACA0 is a 480 V three-phase PowerFlex 700 AC drive with a 156 A continuous output rating. It is suitable for industrial motor applications such as conveyors, pumps, fans, compressors, material handling equipment, production machinery, and other variable-speed systems. With sensorless vector control and a 125 HP normal-duty rating, it can provide stable motor operation and improved torque performance for demanding industrial loads.

2. What should be checked if the 20BD156A3ANNACA0 trips on overcurrent during startup?
Start by checking the motor nameplate parameters programmed into the drive, particularly rated voltage, current, frequency, power, and speed. Incorrect motor data can cause poor current regulation during acceleration. The motor cable should also be inspected for phase-to-phase shorts, ground faults, or loose terminals. If the driven machine has high inertia or excessive starting resistance, the acceleration time may need to be increased. Repeated overcurrent trips should also be checked against the actual motor load rather than simply resetting the drive.

3. Why does the 20BD156A3ANNACA0 experience DC bus overvoltage during rapid deceleration?
Rapid deceleration of a high-inertia load can cause the motor to operate regeneratively, returning energy to the drive’s DC bus. This increases the DC bus voltage and can eventually trigger an overvoltage fault. The 20BD156A3ANNACA0 does not include an internal brake IGBT or drive-mounted brake resistor, so applications with frequent rapid stopping require careful braking-energy management. Increasing the deceleration time is often the first adjustment to make. If the process requires very short stopping times, an external braking solution may be required.

4. Can the 20BD156A3ANNACA0 operate without an encoder?
Yes. The model uses a no-feedback configuration and supports sensorless vector control. This allows the drive to control motor speed and torque without installing an encoder. For conveyors, pumps, fans, and general industrial machinery, sensorless vector control can provide good performance while simplifying the feedback system. Applications requiring precise positioning, very low-speed high torque, or extremely accurate closed-loop speed control should be evaluated separately to determine whether a feedback system is necessary.

5. Why does the motor not start even though the PLC sends a run command to the 20BD156A3ANNACA0?
First verify that the PLC command is reaching the drive’s control I/O correctly. Check the start, stop, enable, and fault-reset signals and confirm that no external interlock is preventing operation. Because this model does not include an internal communication module, hardwired I/O is normally used for basic control. If the drive recognizes the start command but the output frequency remains at zero, check the selected speed reference, analog input signal, minimum frequency setting, and any active inhibit conditions. The drive’s status information should also be checked before changing control parameters.

6. How can the 20BD156A3ANNACA0 be integrated with a PLC?
The drive can be integrated with a PLC through its available digital and analog I/O. Digital inputs can be assigned to commands such as start, stop, forward, reverse, and fault reset, while analog inputs can receive a speed or frequency reference. Analog and digital outputs can provide operating information such as output frequency, current, and drive status to the PLC. Since this model has no internal communication module, the control system should be designed around the available hardwired I/O or an appropriate external communication solution when network control is required.

7. What can cause unstable motor speed when the 20BD156A3ANNACA0 operates at low speed?
Low-speed instability can be caused by incorrect motor data, unsuitable vector-control settings, unstable load torque, or motor and wiring problems. Verify that all motor nameplate parameters are correctly entered and that the appropriate motor tuning procedure has been completed. Check whether the mechanical load changes significantly at low speed. Motor cable length, grounding, electrical connections, and motor condition should also be inspected. If the basic checks are satisfactory, the vector-control and speed-regulation parameters may need to be optimized for the specific motor and load combination.

8. What maintenance should be performed on the 20BD156A3ANNACA0 PowerFlex 700 AC Drive?
Regular maintenance should include inspection of the cooling system, electrical connections, control wiring, and cabinet environment. Keep ventilation paths and heat-dissipation areas clean, and verify that cooling fans operate normally. Input, output, grounding, and control terminals should be checked for looseness or signs of overheating. It is also important to review the drive’s fault history and identify repeated overcurrent, overvoltage, or overtemperature events. Periodic inspection of these conditions can help detect developing problems before they result in an unexpected shutdown.
