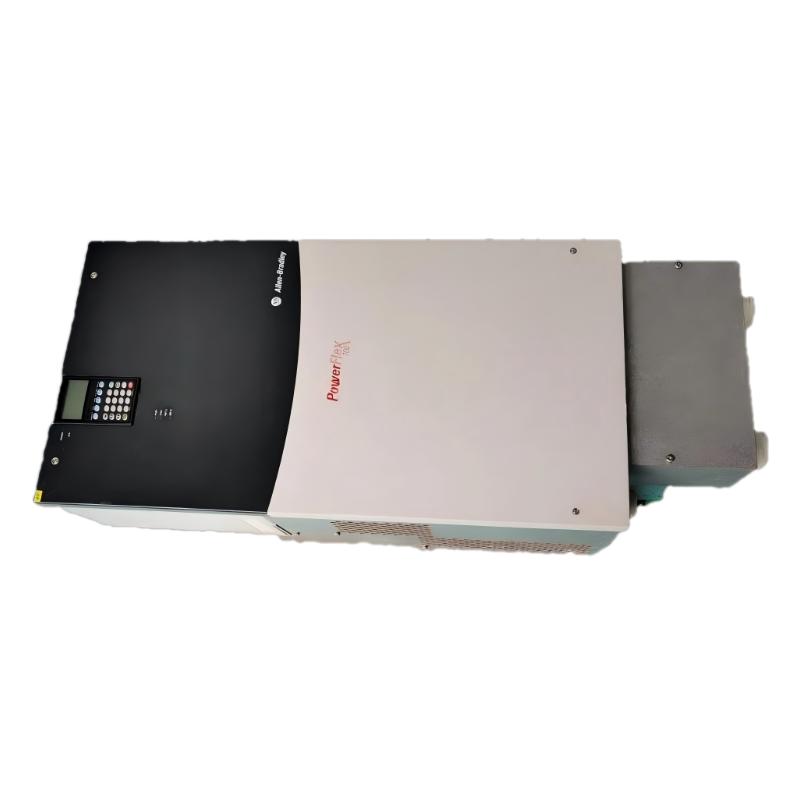

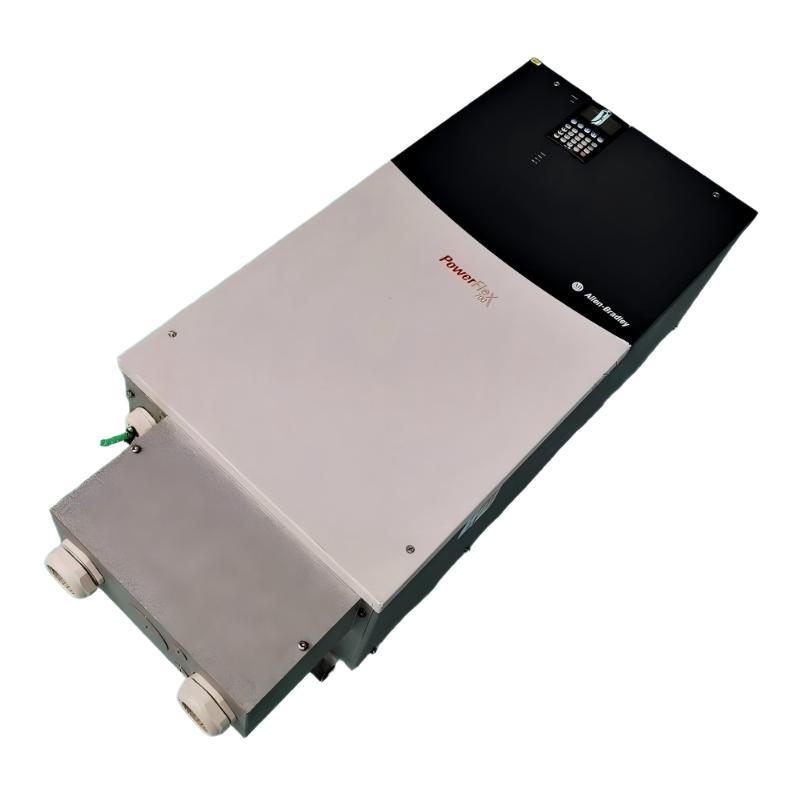

1. What are the rated input voltage and output current of the 20BD156A3ANNAND0?

The 20BD156A3ANNAND0 is designed for a three-phase 480 VAC power supply and provides a rated output current of 156 A. This current rating makes the drive suitable for controlling relatively high-power industrial motors used in applications such as pumps, fans, conveyors, compressors, material handling equipment, and other automated machinery. During system design, the drive rating should be evaluated together with the motor nameplate current and the actual operating load rather than selecting the drive only according to motor horsepower. The motor rated voltage, rated current, frequency, and operating duty should be correctly entered into the drive during commissioning. Proper matching between the motor and drive helps maintain stable acceleration, reliable speed regulation, and appropriate protection during changing load conditions.

2. What type of motor control does the 20BD156A3ANNAND0 support?

The 20BD156A3ANNAND0 uses vector-based motor control technology, which provides improved control of motor speed and torque compared with basic voltage-frequency control in many industrial applications. During commissioning, accurate motor nameplate information should be entered into the drive so that the control algorithm can operate with the correct electrical characteristics. Parameters such as motor voltage, current, frequency, and power should be checked carefully before the motor is started. For applications with significant load variation, high starting torque requirements, or frequent acceleration and deceleration, additional tuning of acceleration time, deceleration time, speed references, and other control parameters may be required. Correct configuration can improve motor response and help reduce unnecessary trips caused by unsuitable operating parameters.

3. What can cause an overcurrent fault on the 20BD156A3ANNAND0?

An overcurrent fault can result from several conditions, including excessive mechanical load, an acceleration time that is too short, incorrect motor parameters, motor cable problems, or electrical faults in the motor itself. If the connected machine requires a large amount of torque during startup and the acceleration time is configured too aggressively, the drive may attempt to increase motor current rapidly and trigger its protection function. A short circuit between motor phases, a ground fault, incorrect motor wiring, or a mechanically locked motor can also produce excessive current. Troubleshooting should begin with a safe inspection of the motor, output wiring, and mechanical load. The motor nameplate data should then be compared with the programmed drive parameters. If the fault occurs only during acceleration, the acceleration profile and mechanical load should receive particular attention.

4. How should an overvoltage fault on the 20BD156A3ANNAND0 be investigated?

An overvoltage condition is commonly associated with excessive DC bus voltage inside the drive. One typical situation occurs when a high-inertia motor or load is decelerated too quickly. During rapid deceleration, energy can be transferred from the motor back into the drive, causing the DC bus voltage to increase. If the available braking capacity is insufficient or the deceleration time is too short, the drive may activate its protection function. Troubleshooting should include checking the incoming power supply, reviewing the acceleration and deceleration settings, and determining whether the fault occurs specifically during motor stopping or speed reduction. If overvoltage repeatedly occurs during deceleration, the operating profile and braking requirements should be reviewed instead of repeatedly resetting the drive. The correct solution depends on the load characteristics and the overall drive system configuration.

5. What is the purpose of the 120 VAC I/O configuration on the 20BD156A3ANNAND0?

The 120 VAC I/O configuration allows the drive to exchange control and status signals with external industrial control equipment. Depending on the control scheme, these inputs and outputs can be used for functions such as start commands, stop commands, direction control, interlocking, operating status, and other predefined control functions. Proper electrical separation and wiring practices are important because the control terminals must be connected according to their intended voltage and signal requirements. During commissioning, each digital input and output should be tested individually to verify that the actual field signal corresponds to the intended drive function. Incorrect I/O configuration can result in unexpected starting behavior, failure to respond to a control command, or incorrect status indications. The control logic should therefore be verified together with the physical wiring before the drive is placed into continuous operation.

6. What are the limitations of the 20BD156A3ANNAND0 without a feedback option?

The 20BD156A3ANNAND0 configuration does not include a motor feedback option, so applications requiring direct feedback from an encoder or similar feedback device should be evaluated carefully before installation. For many conventional variable-speed motor applications, sensorless control can provide satisfactory performance without a dedicated feedback device. However, applications requiring very precise shaft speed, extremely low-speed regulation, accurate positioning, or highly dynamic closed-loop control may require a different configuration or additional control hardware. The decision should be based on the actual machine requirements, including the required speed range, torque characteristics, load inertia, acceleration response, and speed accuracy. Selecting a drive based only on horsepower or current rating may not be sufficient when the application has demanding closed-loop performance requirements.

7. How can the 20BD156A3ANNAND0 be integrated into an industrial control system without an internal communication module?

The 20BD156A3ANNAND0 does not include an internal communication module in this configuration, so system designers should determine the required control architecture before installation. Basic control functions can be implemented through the available control I/O, allowing an external PLC or control system to provide commands and receive operating status signals. If network-based control or monitoring is required, the appropriate compatible communication hardware and system architecture should be evaluated separately. During integration, particular attention should be given to signal voltage levels, grounding, shielding, control logic, and electrical isolation. For retrofit projects, the existing PLC or DCS control scheme should be reviewed carefully before replacing an older drive, because differences in I/O logic or signal configuration can cause unexpected behavior even when the motor power ratings appear compatible.

8. How can the long-term reliability of the 20BD156A3ANNAND0 be improved?

Long-term reliability depends heavily on installation quality, thermal management, electrical connections, and preventive maintenance. The drive should be installed in an environment that provides suitable ventilation and sufficient airflow for its forced-air cooling system. Dust accumulation around cooling passages, fans, and cabinet ventilation areas should be controlled because restricted airflow can increase internal temperatures and accelerate component aging. Electrical terminals should also be inspected periodically for loose connections, abnormal heating, corrosion, or other signs of deterioration. Operating data and fault history should be reviewed when possible so that repeated overcurrent, overvoltage, overheating, or other abnormal conditions can be identified early. In addition, acceleration and deceleration settings should match the mechanical characteristics of the machine. Preventive inspection combined with correct parameter configuration can significantly reduce unexpected downtime and help maintain stable operation of the drive over an extended service period.
