1. What is the rated output current of the 20BD180A0ANNANC0?

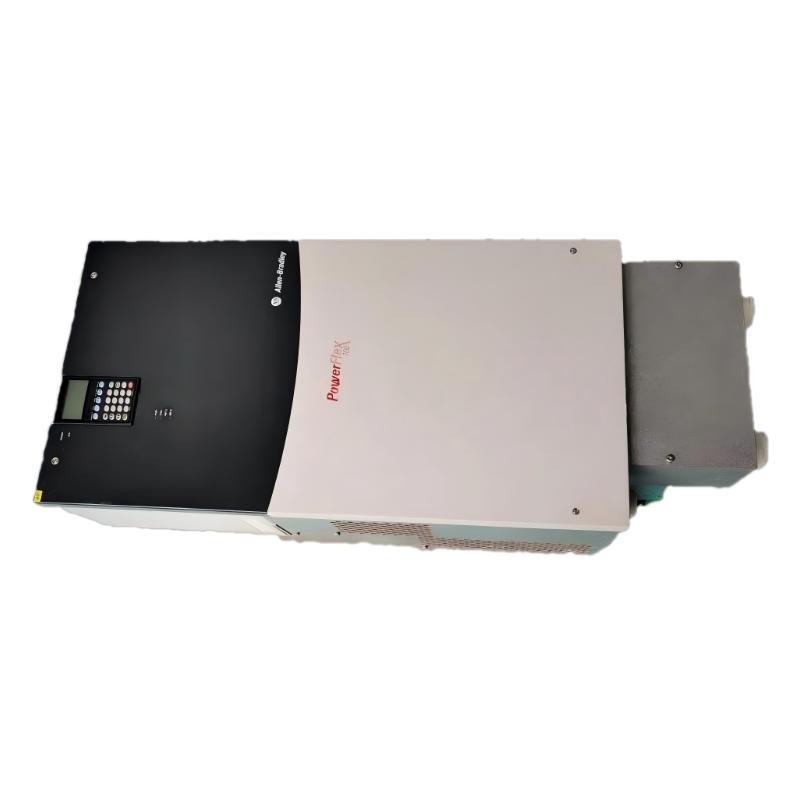

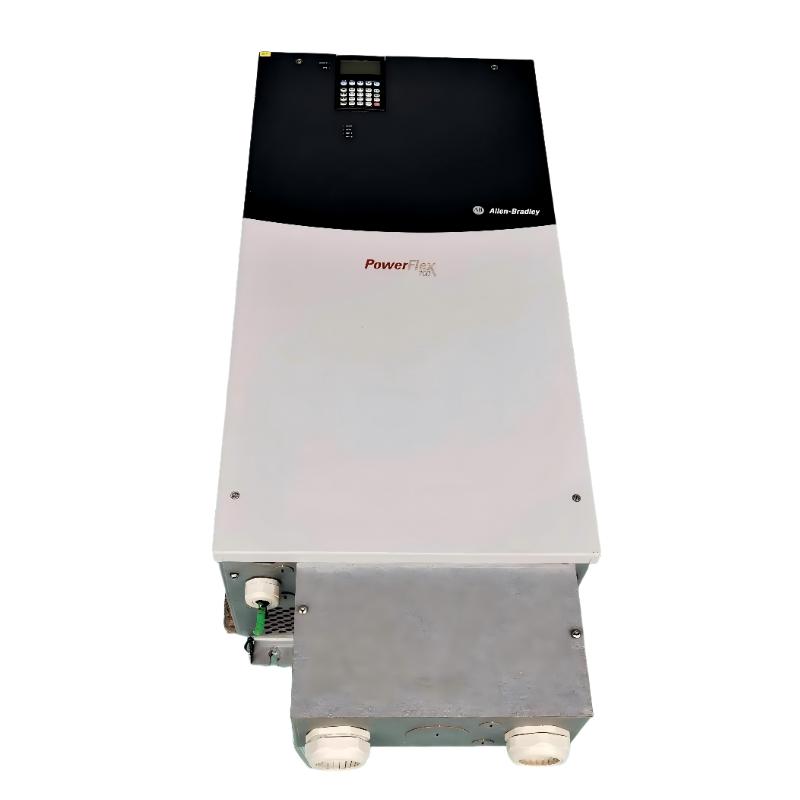

The 20BD180A0ANNANC0 has a continuous output current rating of 180 A at a 480 VAC three-phase supply. It is rated for 150 HP under normal-duty operation and 125 HP under heavy-duty operation. The drive can also provide higher short-term current capability for demanding operating conditions, with a heavy-duty output rating of 234 A for up to one minute and 312 A for up to three seconds. When selecting this drive for an application, the motor’s actual full-load current should be compared with the drive rating rather than relying only on horsepower. The motor load profile, starting requirements, acceleration characteristics, and expected overload conditions should also be considered to ensure that the drive operates within its intended electrical limits.

2. What type of motor control is available on the 20BD180A0ANNANC0?

The 20BD180A0ANNANC0 supports vector-based motor control, including sensorless vector control. This control method allows the drive to regulate motor speed and torque without requiring a dedicated encoder feedback device in the standard configuration. Sensorless vector control can provide improved low-speed torque and speed regulation compared with basic V/Hz control when the motor parameters are correctly configured. During commissioning, the motor nameplate information should be entered accurately, including rated voltage, current, frequency, and power. For applications involving large inertia, frequent acceleration and deceleration, or significant load changes, additional tuning may be necessary to obtain the desired dynamic response. Proper motor parameter configuration is particularly important because incorrect values can result in unstable operation, excessive current, or reduced speed regulation.

3. Does the 20BD180A0ANNANC0 include an internal brake resistor or brake IGBT?

No. The 20BD180A0ANNANC0 is configured without a brake IGBT and does not include an internal drive-mounted brake resistor. This configuration should therefore be evaluated carefully when the application requires frequent rapid deceleration or involves a high-inertia load. During deceleration, a motor can return regenerative energy to the drive’s DC bus, causing the DC bus voltage to increase. If the energy cannot be adequately managed, an overvoltage fault may occur. In applications with demanding braking requirements, the complete braking strategy should be considered during system design. Increasing the deceleration time may help reduce regenerative energy, but this may not be sufficient for every high-inertia application. The required braking method should be selected according to the machine’s stopping time, load inertia, duty cycle, and safety requirements.

4. How should an overcurrent fault on the 20BD180A0ANNANC0 be diagnosed?

An overcurrent fault can be caused by excessive mechanical load, an acceleration time that is too short, incorrect motor data, damaged motor cables, incorrect motor wiring, or a mechanical condition that prevents the motor from accelerating normally. The first step is to determine when the fault occurs. If it happens immediately after a start command, the motor wiring, output circuit, motor condition, and programmed motor parameters should be checked carefully. If the fault occurs only during acceleration, the acceleration time and mechanical load should be examined. If the drive operates normally at low speed but trips as speed increases, the machine’s load characteristics and motor operating condition should also be evaluated. Repeatedly resetting the drive without identifying the underlying cause is not recommended because continued operation under abnormal current conditions can place additional stress on the drive, motor, and connected equipment.

5. What input and output signals are available for the 20BD180A0ANNANC0?

The 20BD180A0ANNANC0 is configured with 24 V DC I/O and provides six digital inputs, three digital outputs, two analog inputs, and two analog outputs. These interfaces can be used to connect the drive to external control equipment such as a PLC, relay control system, instrumentation equipment, or other industrial automation devices. Digital inputs can be assigned to functions such as start, stop, direction, reset, speed selection, and external control commands. Analog inputs can be used for variable speed references or other configurable analog signals, while the analog outputs can provide selected drive operating information to external equipment. During commissioning, the I/O assignments should be checked against the actual control logic to prevent unintended motor starting or incorrect operating commands.

6. Can the 20BD180A0ANNANC0 be connected directly to a PLC or DCS system?

Yes, the drive can be integrated into a PLC or DCS-based control system through its available I/O configuration, although this specific configuration does not include an internal communication module. External control can therefore be implemented using the available 24 V DC digital and analog interfaces. A PLC can provide commands such as start, stop, direction, and speed reference, while the drive can return operating status or other configured signals to the control system. When designing the interface, the control engineer should verify signal voltage, input/output assignments, scaling, common connections, grounding, and interlocking logic. For retrofit applications, particular attention should be given to the existing control cabinet because an older drive may use different signal assignments or control conventions. Proper I/O testing should be completed before connecting the motor to automatic production sequences.

7. What should be checked when commissioning a 20BD180A0ANNANC0 for the first time?

Before applying power, the incoming three-phase supply, motor wiring, grounding, control wiring, and protective devices should be inspected carefully. The motor nameplate data should then be entered into the drive so that the control algorithm has accurate electrical information. The programmed maximum and minimum speeds, acceleration and deceleration times, direction commands, current limits, and stop mode should be reviewed according to the machine requirements. It is also important to verify that the motor can rotate safely in the commanded direction and that the mechanical system is ready for movement. The control inputs should be tested individually before automatic operation is enabled. If the application uses a PLC or DCS, the communication through the physical I/O signals should also be checked. A controlled no-load or low-load test can help identify incorrect parameters before the drive is placed under full production load.

8. How can the 20BD180A0ANNANC0 be maintained for reliable long-term operation?

Reliable operation requires attention to cooling, electrical connections, operating conditions, and drive parameters. Because the drive uses forced-air cooling, airflow around the cooling system should be maintained and excessive dust or contamination should be prevented from restricting ventilation. Electrical connections should be inspected periodically for looseness, overheating, corrosion, or other signs of deterioration. The motor and output cables should also be checked for insulation problems, grounding issues, and physical damage. Fault history and operating conditions should be reviewed when abnormal trips occur, especially repeated overcurrent, overvoltage, or thermal protection events. Acceleration and deceleration parameters should match the mechanical characteristics of the connected equipment rather than being selected only for fast response. Preventive maintenance combined with correct motor parameter settings can reduce unexpected shutdowns and help maintain stable performance throughout the drive’s service life.
