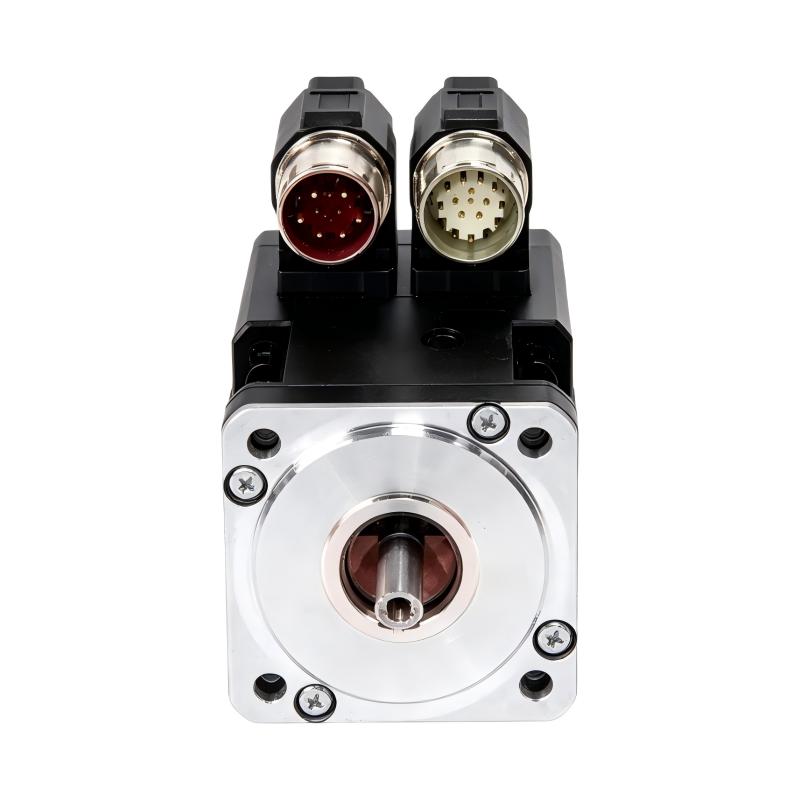

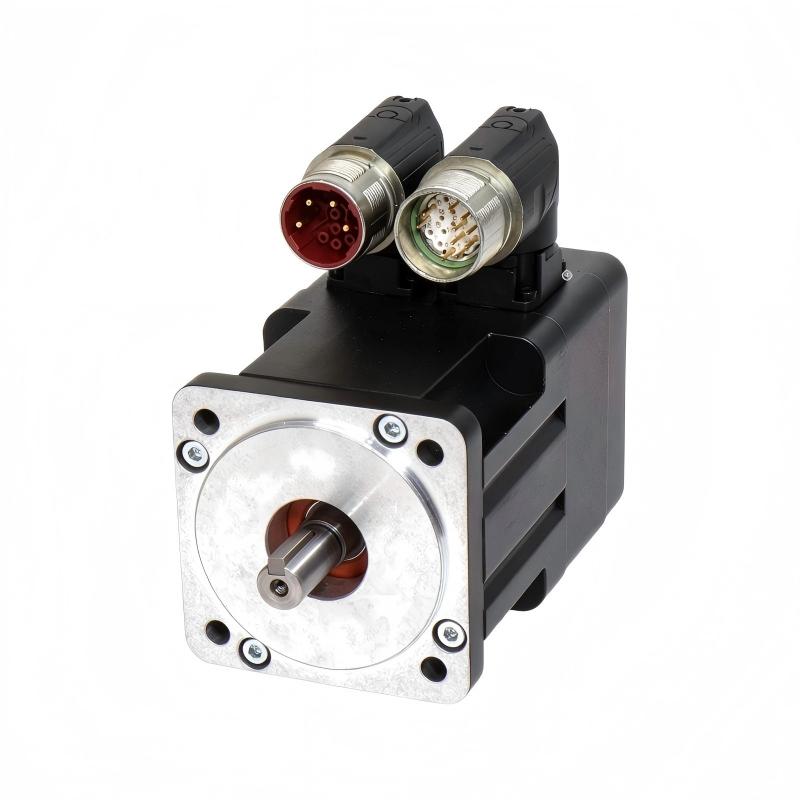

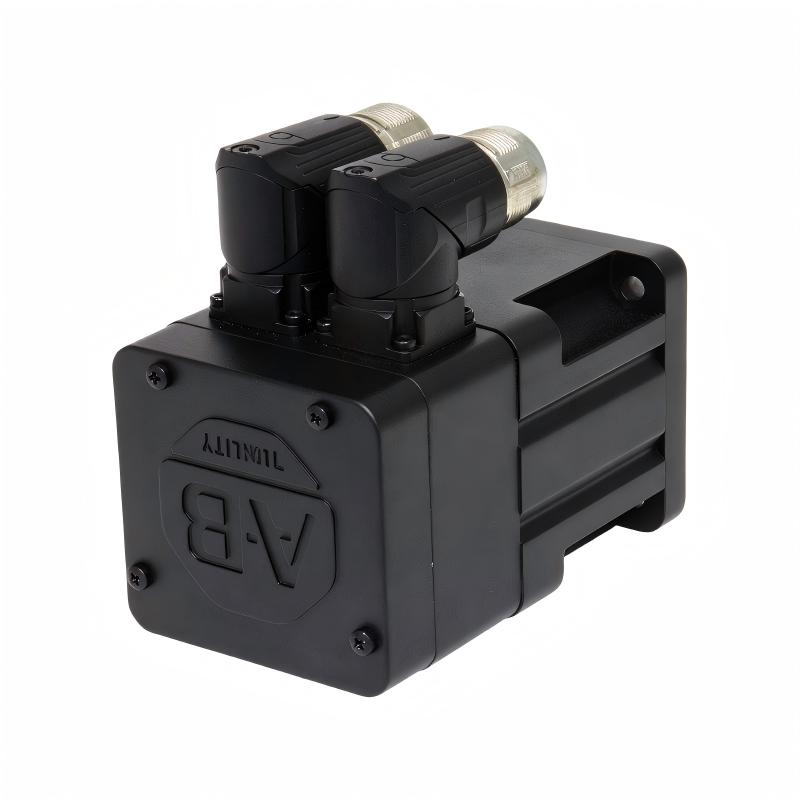

1. What type of servo motor is the MPL-A210V-HJ72AA?

The MPL-A210V-HJ72AA is an Allen-Bradley MP-Series low-inertia brushless AC servo motor designed for industrial motion control applications. Its compact construction and low-inertia rotor support responsive acceleration and deceleration, making it suitable for automated machinery that requires repeatable positioning and controlled rotational movement. It is commonly considered for applications such as assembly equipment, packaging machinery, material handling systems, and automated production lines. Before installation, verify the motor’s electrical ratings, feedback configuration, and mechanical compatibility with the intended system.

2. Which servo drives are compatible with the MPL-A210V-HJ72AA?

Drive compatibility depends on the motor’s voltage class, feedback interface, current requirements, and control configuration. The MPL-A210V-HJ72AA belongs to the 230 V AC class and uses a multi-turn high-resolution feedback encoder. When selecting a drive, confirm that it supports the motor’s feedback protocol and provides suitable current and voltage ratings. Rockwell Automation drive families should be evaluated against their published motor compatibility information rather than assumed to be interchangeable. Correct matching helps prevent feedback communication errors, commissioning problems, and unexpected drive faults.

3. What is the advantage of the multi-turn absolute encoder?

A multi-turn absolute encoder provides position information across multiple shaft revolutions, allowing the control system to determine both the angular position within a revolution and the accumulated multi-turn position within its supported range. This can be particularly useful in automated machinery that requires repeatable positioning after controlled power cycles. The actual startup behavior depends on the encoder implementation, drive configuration, and application settings. During troubleshooting, inspect the feedback cable and connectors, confirm the configured feedback type, and check for encoder-related alarms before adjusting motion-control parameters.

4. Does the MPL-A210V-HJ72AA include a holding brake?

No. The HJ72AA configuration is specified without an integrated holding brake. If the application requires the motor shaft to remain stationary when power is removed, an appropriate external holding or mechanical braking solution may be necessary. This is particularly important for vertical axes and gravity-loaded mechanisms, where uncontrolled movement could damage equipment or create a safety hazard. The braking arrangement should be engineered for the load, stopping requirements, and applicable safety standards. Do not assume that a brake-equipped motor with a similar model number has the same configuration as this model.

5. What should be checked if the motor fails to start?

Begin by checking the servo drive’s status indicators and recording any active fault codes. Verify that the drive has an appropriate power supply, that the control system is issuing a valid enable command, and that the required safety interlocks are satisfied. Inspect the motor power cable and connectors for loose connections, damage, or incorrect wiring. Feedback configuration errors can also prevent normal startup, so confirm that the drive recognizes the installed encoder correctly. If the drive reports an electrical or feedback fault, follow the corresponding troubleshooting procedure before attempting another startup.

6. Why might the motor experience vibration or unstable positioning?

Vibration and positioning instability can result from mechanical misalignment, excessive load inertia, coupling wear, unsuitable servo tuning, or feedback signal interference. Inspect the motor mounting, coupling, and driven mechanism first to identify looseness or excessive mechanical resistance. Next, review the commanded motion profile and confirm that the drive parameters are appropriate for the connected load. If the mechanical system is sound, evaluate the position and velocity control settings according to the drive manufacturer’s commissioning instructions. Make controlled adjustments and test the results under safe operating conditions to avoid introducing additional instability.

7. How should the MPL-A210V-HJ72AA be maintained?

Routine maintenance should include inspecting the motor housing, mounting hardware, shaft coupling, connectors, and associated cables for signs of wear or damage. Monitor operating temperature, vibration, noise, and drive fault history to identify changes that may indicate developing problems. Keep the motor and surrounding equipment free from excessive dust, oil, and other contaminants that could affect cooling or electrical connections. Maintenance intervals should reflect the operating environment, duty cycle, and machine manufacturer’s recommendations. Before performing physical inspections or electrical work, isolate the equipment from its power source and follow the applicable lockout and safety procedures.

8. What should be considered when replacing the MPL-A210V-HJ72AA?

Replacement selection should account for more than the motor’s frame size and rated speed. Verify the voltage class, continuous and peak torque requirements, feedback type, shaft configuration, connector arrangement, mounting dimensions, and brake configuration. A motor with a similar base model number may use a different encoder or include a brake, which can affect system compatibility. The MPL-A210V-HJ72AA has been discontinued, so replacement planning should include checking the manufacturer’s designated replacement information and confirming the proposed alternative against the existing drive and machine requirements. Before commissioning a replacement, update the drive configuration as required and perform controlled tests of rotation, feedback, positioning, and fault handling.
