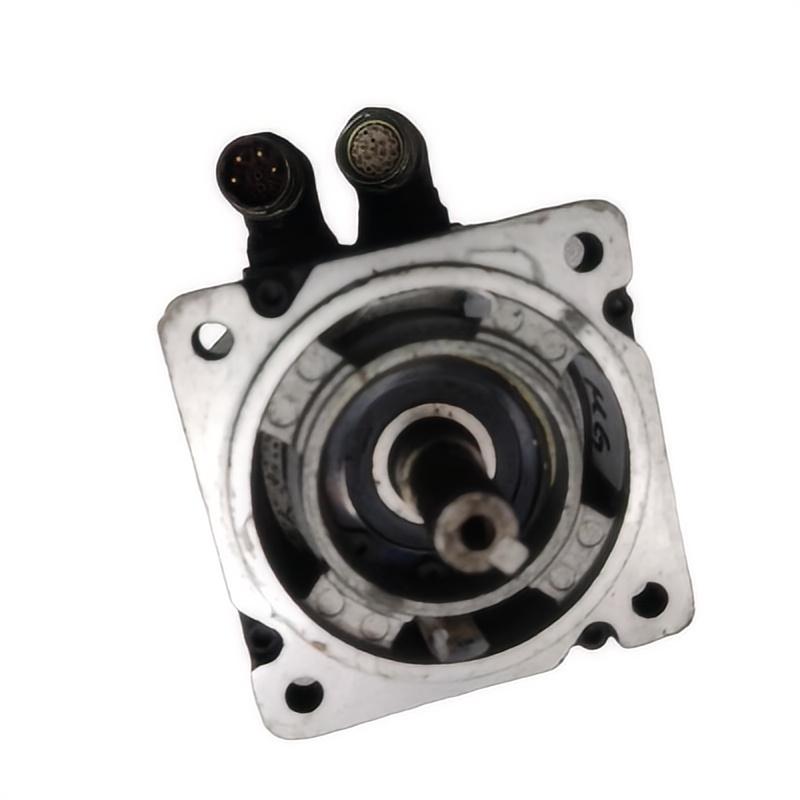

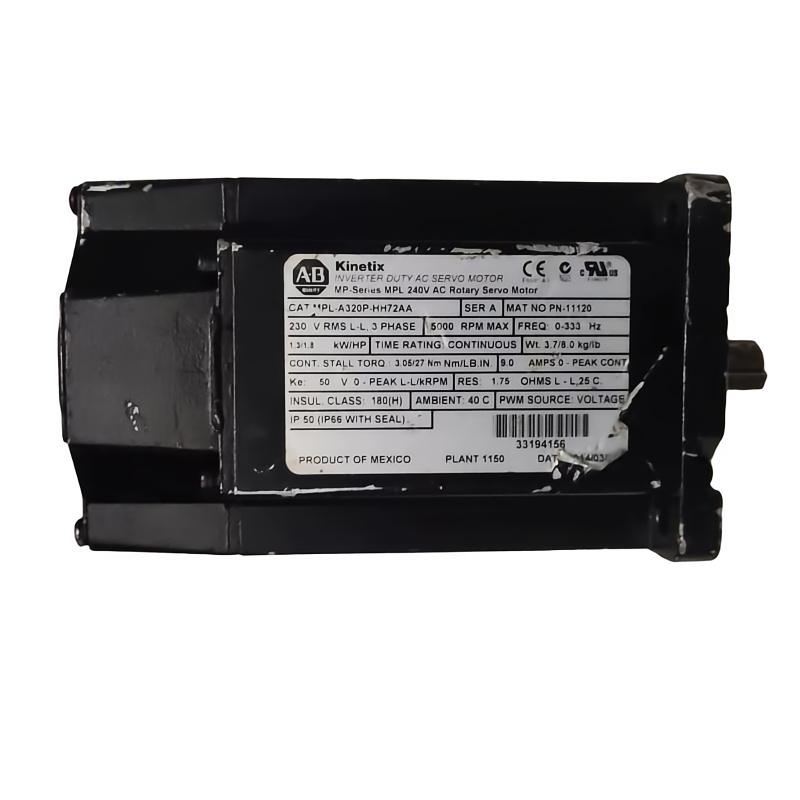

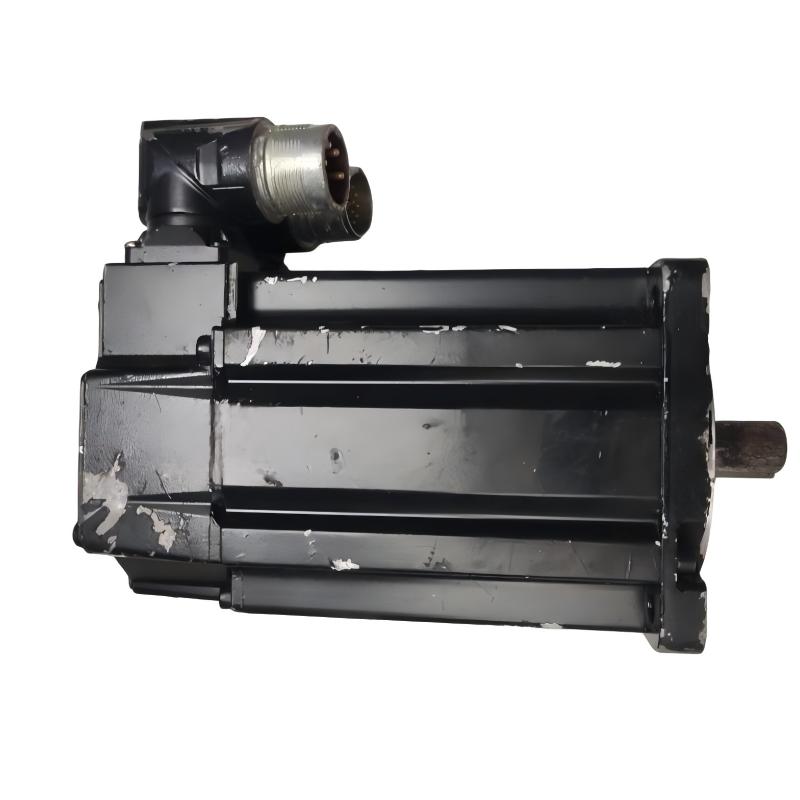

Allen Bradley MPL-A320P-HH72AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-A320P-HH72AA |
| Product Type | Low-Inertia Brushless Servo Motor |
| Product Series | MP-Series MPL |
| Motor Type | AC Rotary Servo Motor |
| Voltage Class | 200 V AC |
| Rated Power | 1.3 kW |
| Rated Speed | 5000 RPM |
| Maximum Speed | 5000 RPM |
| Continuous Stall Torque | 3.05 Nm |
| Peak Torque | 7.91 Nm |
| Frame Size | 100 mm |
| Magnet Stack Length | 50.8 mm |
| Weight | 3.7 kg |
| Feedback Type | Incremental Encoder |
| Encoder Resolution | 2000 lines/revolution |
| Brake | No |
| Shaft Type | Keyed Shaft |
| Shaft Seal | No |
| Connector Type | SpeedTEC DIN Circular Connector |
| Connector Orientation | Right-Angle, Rotatable 180° |
| Mounting Type | IEC Metric Flange Mount |
| Mounting Holes | Free Mounting Holes (Type FF) |
| Protection Rating | IP50 (shaft facing upward); IP53 (shaft facing downward) |
| Rotor Inertia | 7.8 × 10⁻⁵ kg·m² |
| Operating Temperature | 0°C to 40°C |
| Product Status | Discontinued |
FAQ
Q1: What type of motor is the Allen-Bradley MPL-A320P-HH72AA?
A: The MPL-A320P-HH72AA is a low-inertia brushless AC servo motor in the Allen-Bradley MP-Series MPL family. It is designed for industrial motion-control systems requiring accurate positioning, high-speed operation, and responsive acceleration.
Q2: What is the rated speed of the MPL-A320P-HH72AA?
A: The rated speed is 5000 RPM. Actual performance depends on the servo drive configuration, load inertia, operating conditions, and motion profile.
Q3: What feedback system does this servo motor use?
A: This model uses an incremental encoder with a resolution of 2000 lines per revolution. The encoder provides position and speed feedback to the compatible servo drive for closed-loop motion control.
Q4: Does the MPL-A320P-HH72AA include a holding brake?
A: No. This model does not include an integrated holding brake. Applications involving vertical loads or requiring position retention when power is removed may need a separate mechanical brake or another suitable load-holding solution.
Q5: Which servo drives are compatible with the MPL-A320P-HH72AA?
A: Compatibility depends on the drive’s voltage class, supported encoder interface, motor configuration, and control requirements. Compatible drive families may include selected Allen-Bradley Kinetix and Ultra 3000 models. Verify the exact drive catalog number and configuration before installation.
Q6: What is the function of the keyed shaft?
A: The keyed shaft provides a mechanical interface for transmitting torque through a compatible coupling or pulley. The key and coupling must be correctly matched and installed to prevent slippage, excessive vibration, and premature mechanical wear.
Q7: What should be considered when selecting a cable for this motor?
A: Select a motor power cable and feedback cable compatible with the motor’s SpeedTEC DIN connectors and the intended servo drive. Check connector compatibility, cable length, shielding, grounding, and routing requirements to help reduce electrical interference and connection faults.
Q8: Is the MPL-A320P-HH72AA still manufactured, and what should be checked before replacement?
A: This model has been discontinued by Rockwell Automation. Before sourcing a replacement, verify the complete catalog number, rated speed, torque, encoder type, shaft configuration, connector arrangement, and mounting interface. A replacement motor should not be selected by frame size alone.
Allen Bradley MPL-A320P-HH72AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
