1. What is the main function of the Ingersoll Rand 24900433 Oil Filter?

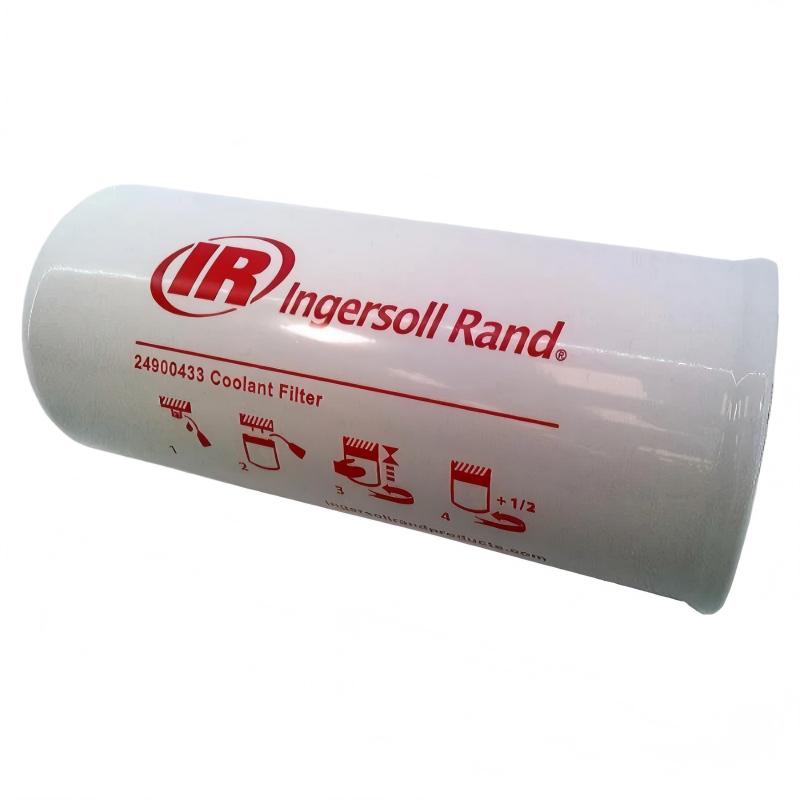

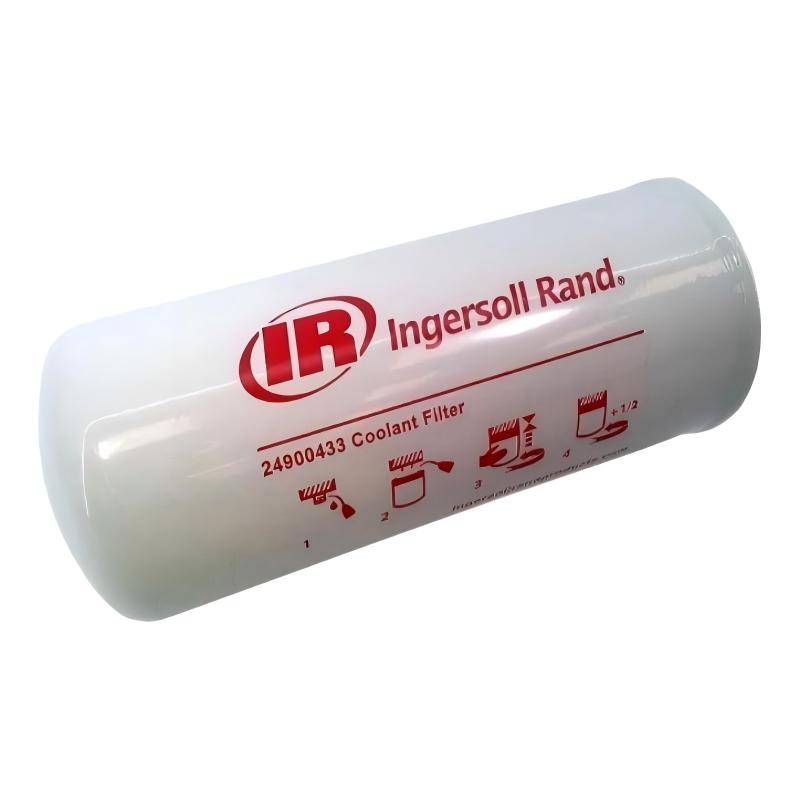

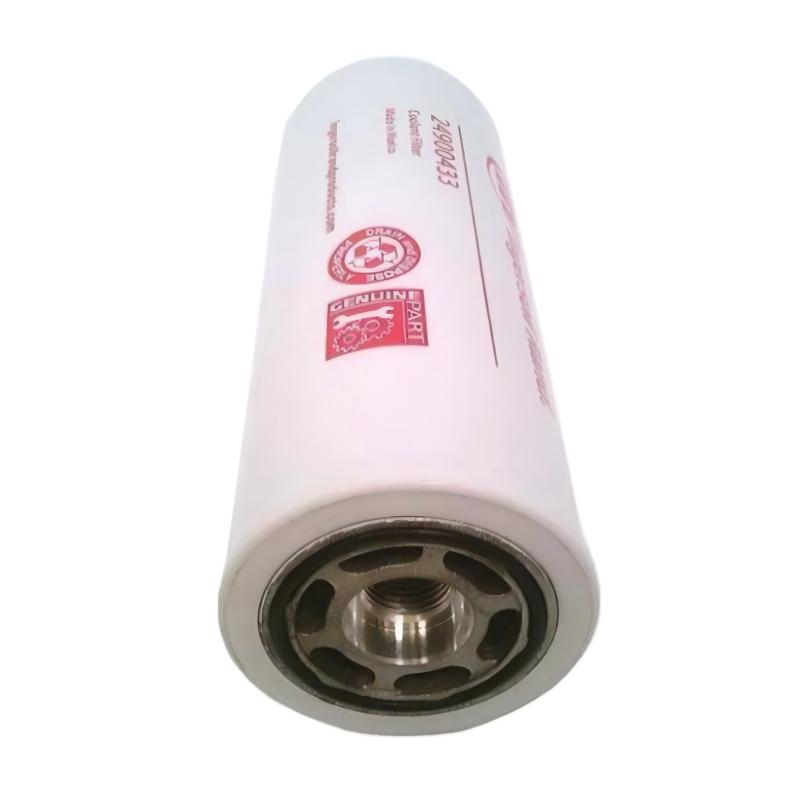

The Ingersoll Rand 24900433 oil filter is designed to remove solid particles, wear debris, and other contaminants from the lubricating oil circulating through a compatible air compressor. Clean oil is essential for reducing friction, carrying heat away from critical components, and supporting the sealing performance of oil-injected screw compressors. By reducing the circulation of contaminants, the filter helps protect the airend, bearings, and other components in the lubrication circuit. Regular replacement is an important part of preventive compressor maintenance.

2. Which Ingersoll Rand air compressors use the 24900433 Oil Filter?

The 24900433 oil filter is used in selected Ingersoll Rand rotary screw compressor configurations, including certain RS-series models. However, compatibility can vary according to the compressor model, production revision, and lubrication system design. Before ordering, check the compressor nameplate, serial number, and original parts list. Also confirm that the replacement filter matches the existing component. Do not rely solely on the brand or a similar appearance when selecting a replacement.

3. What is the difference between model number 47704434001 and order number 24900433?

47704434001 is the model number provided for this product, while 24900433 is the order number. Both identifiers should be included in purchase inquiries to help verify the required component. Because oil filter references can vary between compressor configurations and replacement versions, confirm both numbers against the equipment documentation before placing an order. If the original filter carries a different reference, check the manufacturer’s parts information to ensure that the proposed replacement is compatible.

4. What are the common signs of a clogged or damaged compressor oil filter?

A clogged oil filter may cause an increased pressure differential across the filter, restricted oil flow, or an oil-filter alarm if the compressor is equipped with the relevant monitoring system. In some cases, the compressor may experience abnormal oil temperature or unstable operating conditions. These symptoms are not exclusive to a blocked filter and may also result from low oil levels, unsuitable lubricant, a faulty pressure sensor, or other lubrication-system problems. Inspect the filter and check the relevant operating readings before deciding on the appropriate repair.

5. How often should the Ingersoll Rand 24900433 Oil Filter be replaced?

The correct replacement interval depends on the compressor model, operating hours, lubricant condition, and working environment. For some compatible RS-series compressors, maintenance guidance specifies oil filter replacement at least annually or every 4,000 operating hours, whichever comes first. This interval should not be applied universally to every compressor. Always follow the maintenance schedule for the specific machine, and consider earlier replacement if the filter becomes excessively contaminated or the differential pressure reaches the manufacturer’s limit.

6. Can a blocked oil filter affect compressor performance and service life?

Yes. A heavily restricted oil filter can interfere with normal lubricant circulation and increase the pressure drop in the lubrication circuit. If lubrication becomes inadequate, the compressor may experience increased friction, higher operating temperatures, and accelerated wear of critical internal components. A filter that is damaged or incorrectly installed may also allow contaminants to circulate through the system. Replacing the filter at the recommended interval and investigating recurring restrictions helps maintain reliable lubrication and reduces the risk of costly compressor repairs.

7. What precautions should be taken when replacing the oil filter?

Before replacement, shut down the compressor, isolate the electrical power supply, and allow hot components to cool. Follow the equipment service manual to release any residual pressure and safely handle the lubricating oil. Remove the old filter carefully, inspect the mounting surface and sealing area, and check that the replacement part has the correct connection and seal arrangement. Install the new filter according to the manufacturer’s instructions, avoiding excessive tightening. After servicing, restart the compressor using the approved procedure and check for oil leaks, abnormal pressure readings, and other signs of improper installation.

8. How can the service life of the oil filter and compressor lubrication system be improved?

Use the lubricant specified for the compressor and maintain the recommended oil and filter replacement intervals. Check oil levels regularly, investigate unusual oil discoloration or contamination, and keep the surrounding operating environment as clean as practical. When replacing the filter, inspect the sealing surface and related components for damage. If the new filter becomes blocked unusually quickly, investigate possible causes such as internal component wear, contaminated lubricant, or problems elsewhere in the oil circuit. Good maintenance practices help preserve oil cleanliness, reduce unnecessary component wear, and support stable compressor operation.
