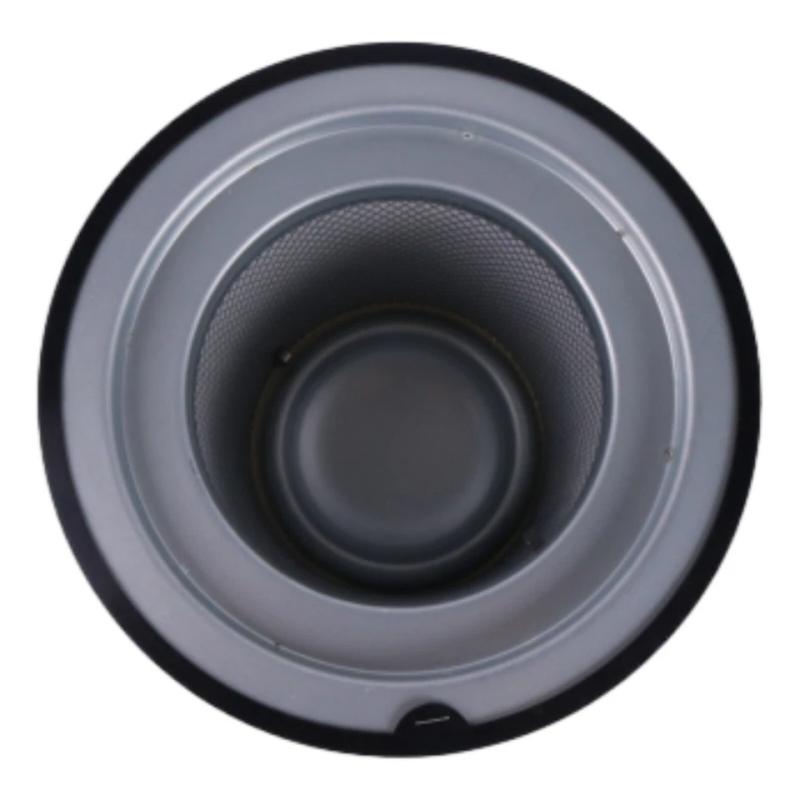

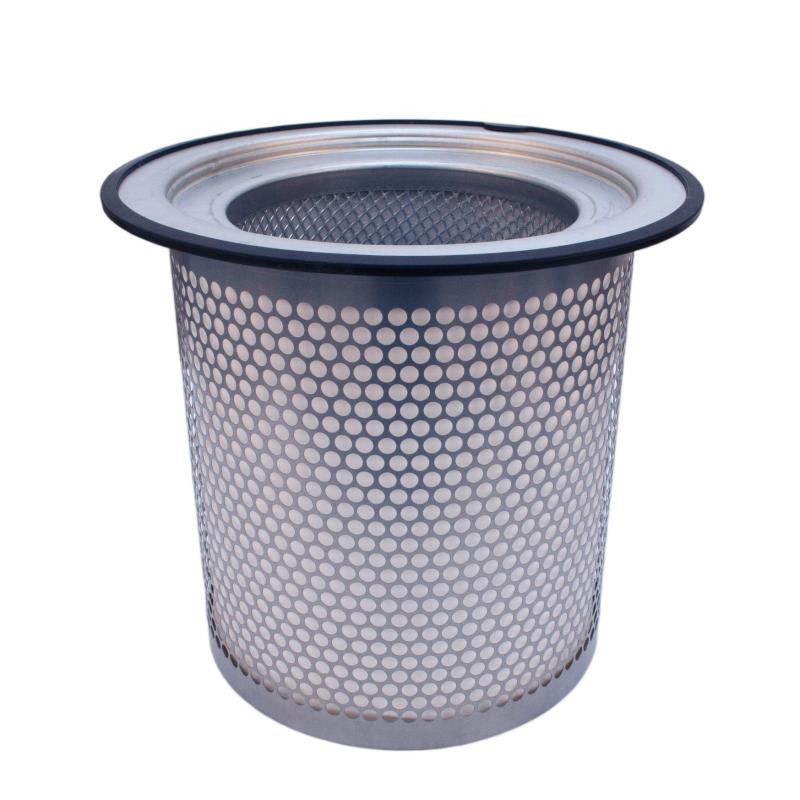

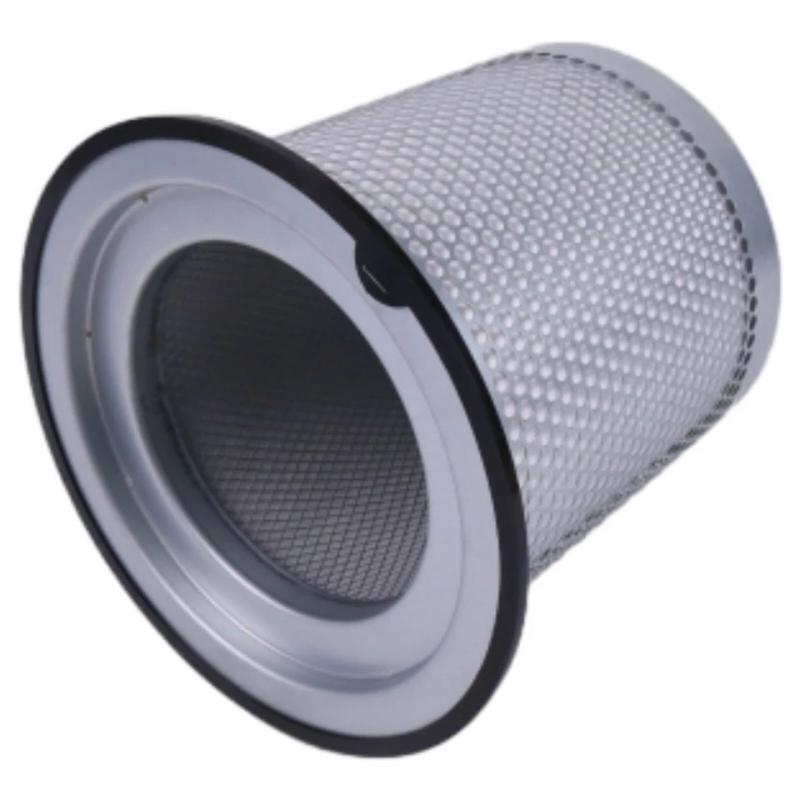

Ingersoll Rand 47704434001 23708423 Air-Oil Separator
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Ingersoll Rand |
| Product Name | Air-Oil Separator |
| Model Number | 47704434001 |
| Order Number | 23708423 |
| Product Type | Air-Oil Separator Element |
| Application | Rotary Screw Air Compressors |
| Main Function | Separates oil mist from compressed air |
| Separation Method | Coalescing Filtration |
| Outer Diameter | 240 mm |
| Largest Outer Diameter | 297 mm |
| Height | 278 mm |
| Weight | 4.9 kg |
| Installation Location | Air-oil separator tank |
| Compatible Equipment | Selected Ingersoll Rand R-series compressors; verify model and serial number before ordering |
| Maintenance | Replace according to operating conditions and the compressor manufacturer’s maintenance schedule |
FAQ
Q1: What is the function of the Ingersoll Rand 47704434001 23708423 Air-Oil Separator?
The air-oil separator removes fine oil droplets from compressed air inside an oil-injected rotary screw compressor. During compression, some lubricating oil becomes mixed with the air. The separator helps capture this oil and allows it to return to the lubrication system, reducing oil carryover into downstream air lines and equipment.
Q2: What is the difference between model number 47704434001 and order number 23708423?
47704434001 is the model number provided for this product, while 23708423 is the order number used to identify the separator. Including both numbers when requesting a quotation or replacement helps suppliers check the part more accurately and reduces the risk of ordering an incompatible component.
Q3: Which air compressors can use the 23708423 Air-Oil Separator?
This separator is listed for selected Ingersoll Rand rotary screw compressors, including certain R45, R55, and R75 series configurations. Compatibility may depend on the exact compressor version and serial number, so the series name alone is not sufficient for confirmation. Check the compressor nameplate and parts catalog before purchasing.
Q4: What are the common signs of a worn or damaged air-oil separator?
Typical signs include increased oil consumption, excessive oil in the compressed-air outlet, rising pressure differential across the separator, and changes in compressor operating performance. These symptoms can also result from other issues, such as an incorrect oil level, a blocked oil return line, or a faulty minimum pressure valve. Check the complete system before replacing the element.
Q5: How often should the air-oil separator be replaced?
The replacement interval depends on the compressor manufacturer’s maintenance recommendations, operating hours, ambient conditions, oil quality, and the amount of dust or contamination entering the system. Heavy-duty operation or unsuitable lubricant may shorten service life. Follow the maintenance schedule for the specific compressor and replace the element sooner if inspection or operating data indicates a problem.
Q6: Can a clogged air-oil separator affect compressor efficiency?
Yes. As the separator becomes restricted, the pressure drop across it may increase, forcing the compressor to work harder to maintain the required discharge pressure. This can increase energy consumption and affect overall operating efficiency. Monitoring separator differential pressure and recording operating trends can help maintenance teams identify deterioration before it causes more serious performance issues.
Q7: What should be checked before installing a replacement separator?
Confirm the part number, compressor model, serial number, housing arrangement, and sealing surfaces. Inspect the separator housing for accumulated deposits or damage, and check that the oil return line is clear. Install the replacement according to the manufacturer’s procedure, ensuring the seals are correctly positioned and all connections are secure. Follow the required isolation and depressurization procedures before servicing the compressor.
Q8: What can cause excessive oil carryover even after replacing the separator?
A new separator may not resolve oil carryover if the underlying cause remains. Possible reasons include an obstructed oil return line, excessive lubricant level, incorrect lubricant, damaged seals, unsuitable operating conditions, or a separator that does not match the compressor configuration. Verify installation and oil levels first, then inspect the oil return system and other related components before concluding that the replacement element is defective.
Ingersoll Rand 47704434001 23708423 Air-Oil Separator is in stock. Please contact us for a quick quote and competitive pricing.
