Technical Specifications

FAQ

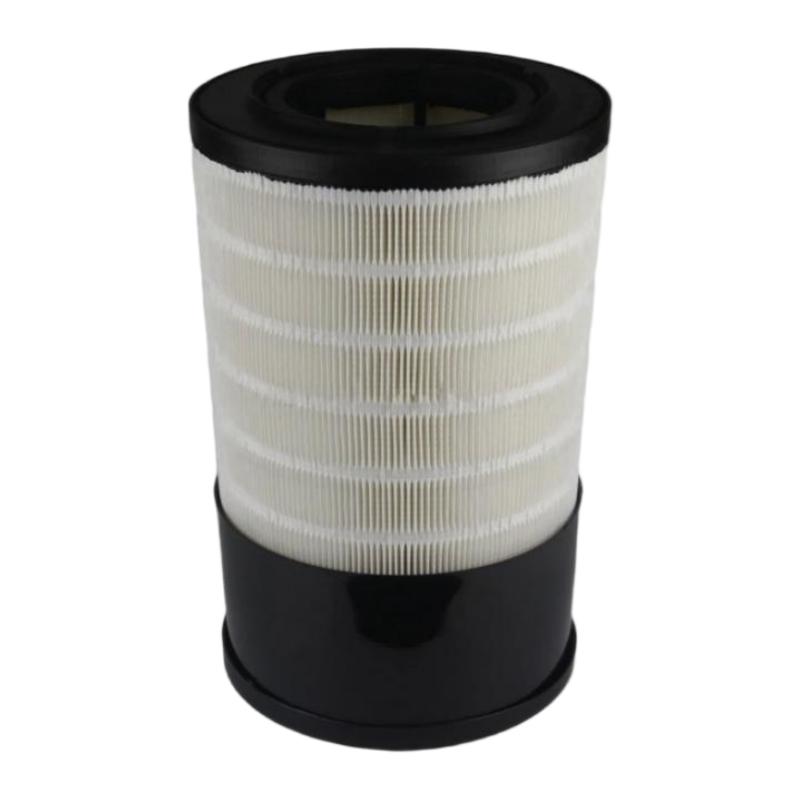

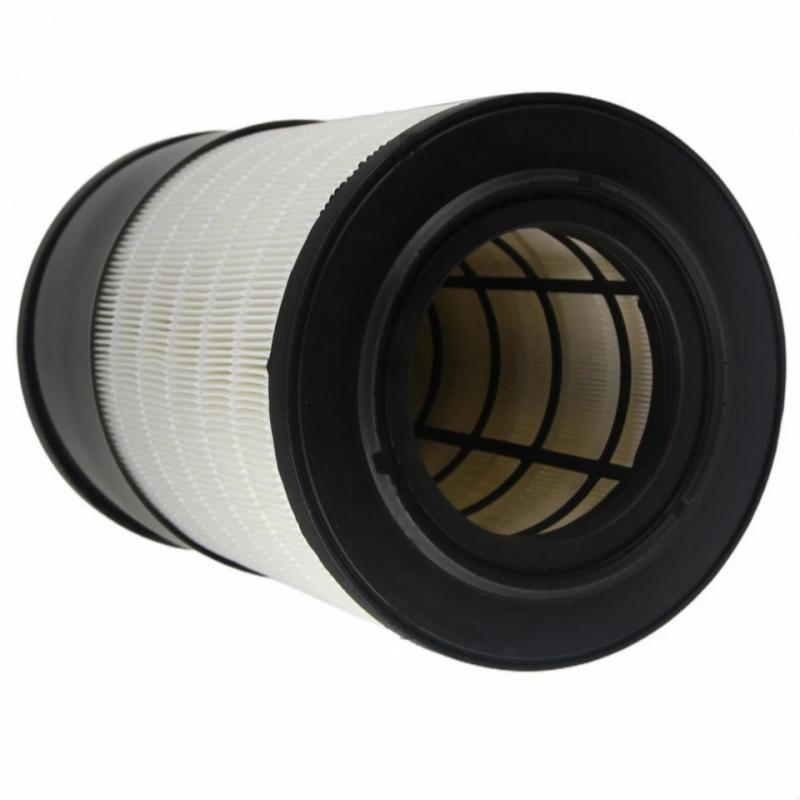

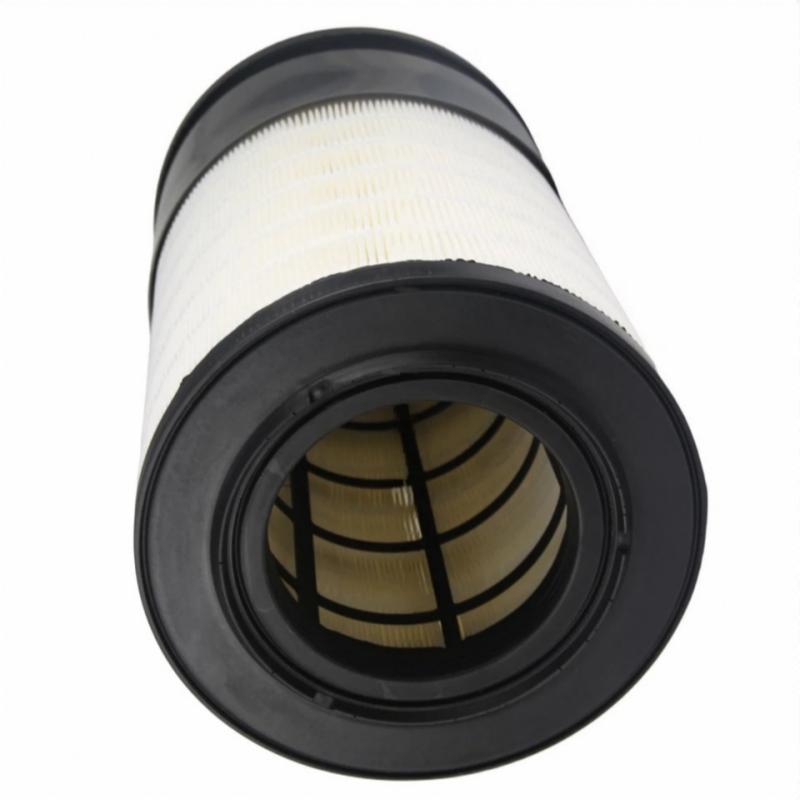

1. What is the main function of the Ingersoll Rand 47557738001 Air Cleaner?

The Ingersoll Rand 47557738001 air cleaner filters dust, dirt, and other airborne particles from the intake air before it enters the compressor. Clean intake air helps protect the compression element, bearings, and other internal components from contamination and premature wear. Maintaining proper filtration also helps preserve airflow and compressor efficiency. In dusty industrial environments, regular inspection is particularly important because accumulated particles can gradually restrict airflow and increase the load on the intake system.

2. What is the difference between model number 47704434001 and order number 47557738001?

47704434001 is the model number provided for this product, while 47557738001 is the order number used to identify the air filter element. When requesting a quotation or purchasing a replacement, provide both numbers along with the compressor model and serial number. This helps the supplier verify the correct component and reduces the risk of ordering an incompatible filter. The order number should also be checked against the original part label or the equipment parts list.

3. Which Ingersoll Rand compressors are compatible with the 47557738001 air filter?

The 47557738001 air filter is listed for selected Ingersoll Rand RS45i, RS55i, and RS75i rotary screw compressor configurations. However, compatibility may vary depending on the equipment revision and intake filter arrangement. Some machines may use a different filter configuration, including versions designed for high-dust environments. Before ordering, check the compressor nameplate and parts manual to confirm that the replacement matches the installed assembly.

4. How often should the Ingersoll Rand 47557738001 air filter be replaced?

The replacement interval depends on the compressor manufacturer’s maintenance schedule, operating hours, and the amount of dust in the surrounding environment. For certain compatible RS-series compressors, a replacement interval of approximately 4,000 operating hours is commonly specified. The actual interval should be confirmed in the maintenance documentation for the specific machine. Compressors operating in dusty conditions may require more frequent inspection and replacement to prevent excessive intake restriction.

5. What are the common signs of a clogged air filter?

A clogged air filter may cause increased intake restriction, reduced airflow, higher energy consumption, or an air filter restriction alarm if the compressor has the relevant monitoring function. In some cases, the machine may struggle to maintain its expected operating performance. These symptoms can also result from blocked intake passages or other system problems, so the entire intake assembly should be checked before diagnosing the filter as the sole cause. Replacing a filter that has reached its service limit helps restore the intended airflow.

6. Can a restricted air filter affect compressor efficiency and service life?

Yes. When an air filter becomes heavily contaminated, the pressure drop across the filter increases and less air may enter the compression system. The compressor may then require more energy to achieve the required operating conditions, reducing overall efficiency. Inadequate filtration can also allow dust and abrasive particles to enter the airend, accelerating internal wear. Regular maintenance with a correctly specified replacement filter helps maintain airflow, protect critical components, and reduce the risk of avoidable repairs.

7. Can an aftermarket air filter replace the original Ingersoll Rand filter?

An aftermarket filter may be suitable if it is specifically designed for the same compressor configuration and meets the required filtration efficiency, airflow capacity, pressure-drop characteristics, and sealing requirements. A filter that fits physically but has unsuitable media or sealing may allow contaminants to bypass the element or restrict intake airflow. Before using an alternative, verify its technical specifications and compatibility with the equipment. For demanding operating conditions, confirm that the proposed replacement meets the compressor manufacturer’s requirements.

8. What should be checked when installing a new air filter element?

Before installation, shut down the compressor, isolate the power supply, and follow the manufacturer’s safety procedures. Remove the used element carefully and inspect the filter housing for dust buildup, damage, or contamination. Check the sealing surfaces and ensure that the new filter is the correct part for the machine. Install it in the specified orientation and make sure it sits securely without gaps that could allow unfiltered air to enter the compressor. After reassembly, check that the housing is properly closed and that the equipment operates normally when restarted.
