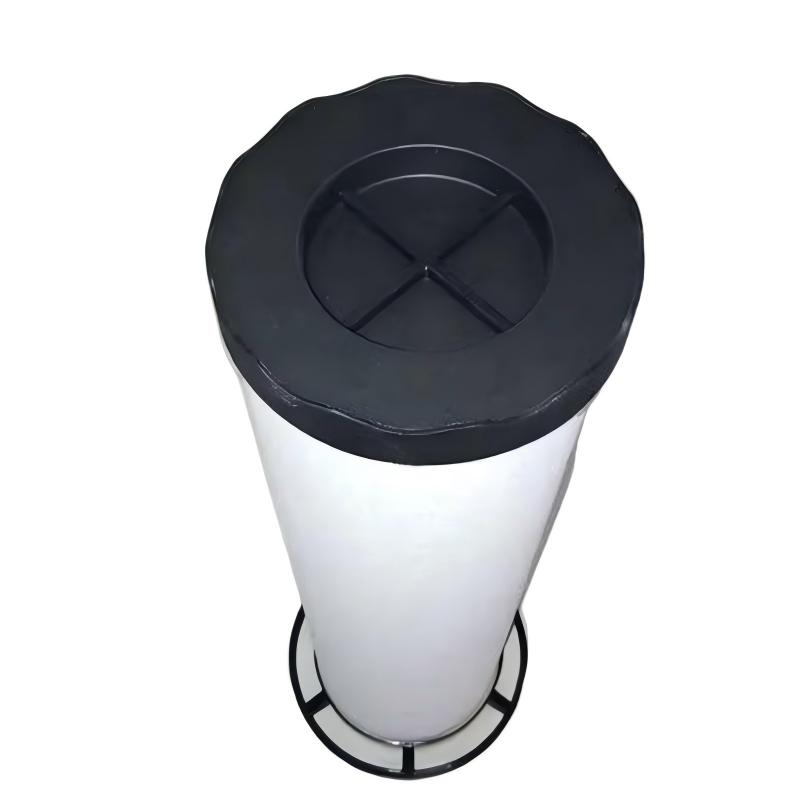

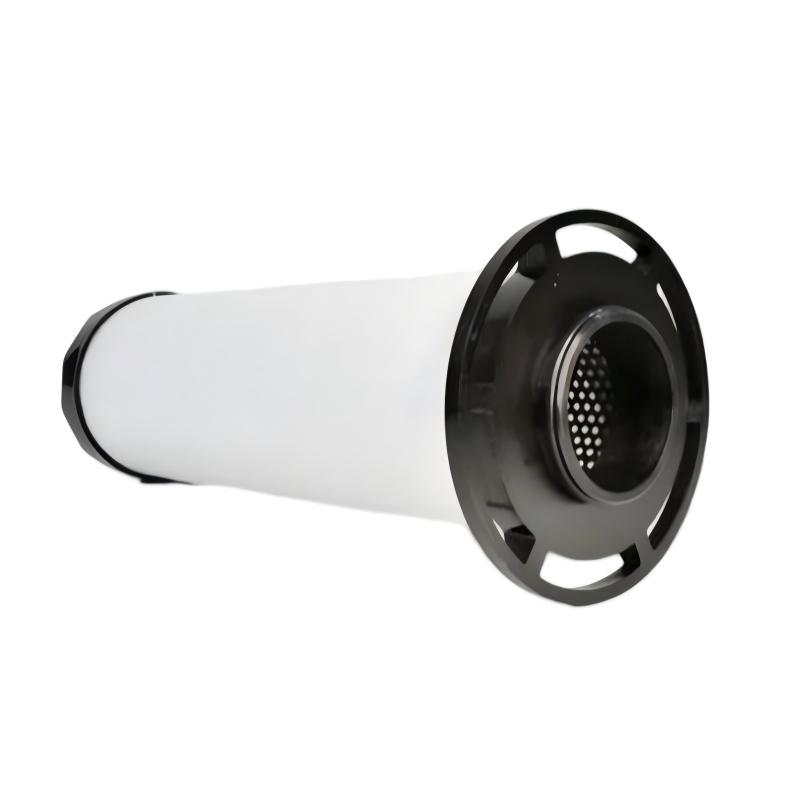

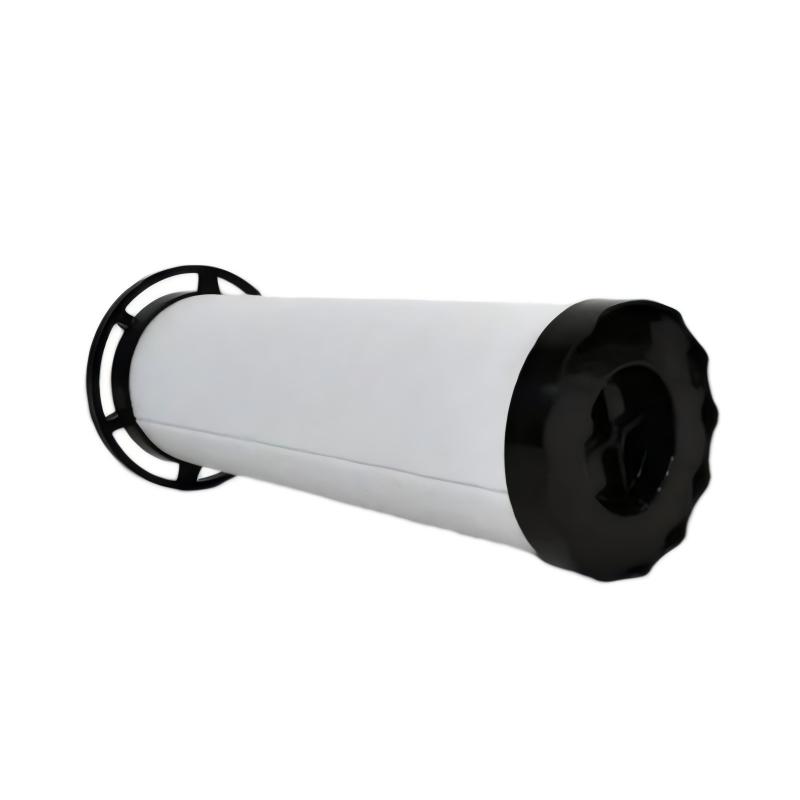

1. What is the main function of the Ingersoll Rand 24242398 Pipeline Filter Element?

The Ingersoll Rand 24242398 pipeline filter element is designed to improve compressed air quality by removing liquid aerosols, oil mist, moisture droplets, and fine particulate contamination. These contaminants can enter the air stream during compression or accumulate within the air distribution system. Effective filtration helps protect downstream pneumatic valves, cylinders, instruments, and production equipment from contamination-related wear and operating problems. The actual removal performance depends on the filter grade and the operating conditions of the system.

2. What is the difference between model number 47704433001 and order number 24242398?

47704433001 is the model number provided for this product, while 24242398 is the order number used to identify the filter element. When requesting a quotation or placing an order, it is best to provide both numbers along with the compressor or filter housing model. This helps the supplier check the correct part and reduces the risk of receiving an element with an incompatible filtration grade or mounting configuration. The order number should also be compared with the part number printed on the existing element or listed in the equipment documentation.

3. Which filter housing is compatible with the 24242398 filter element?

Part number 24242398 is associated with the Ingersoll Rand FA1000IH inline filter housing. Before purchasing, check the identification plate on the existing housing and compare its model with the replacement element information. Compatibility should not be determined by appearance alone, because filter elements may differ in sealing arrangement, filtration grade, and internal construction. If the original part number has changed or the equipment has been modified, confirm the replacement reference with the supplier before installation.

4. What contaminants can this pipeline filter element remove from compressed air?

A coalescing filter element is primarily designed to capture fine liquid aerosols, including oil mist and water droplets, and allow the collected liquid to combine into larger droplets that can drain from the filter housing. Depending on the filtration grade and element design, it can also retain fine particles. It should not be assumed that every element removes all types of contaminants to the same degree. For applications requiring low oil carryover, dry air, or strict air purity, select the appropriate filtration stages and verify that the complete compressed air treatment system meets the process requirements.

5. What are the common signs that a pipeline filter element needs replacement?

Common warning signs include an increasing pressure differential across the filter, reduced downstream air pressure, insufficient airflow, or deterioration in compressed air quality. Visible contamination in the housing or repeated problems with downstream pneumatic equipment may also indicate that the filtration system needs inspection. However, these symptoms can be caused by other restrictions, such as blocked piping, malfunctioning drains, or problems with upstream treatment equipment. Check the differential-pressure indicator, operating conditions, and maintenance history before deciding whether the element should be replaced.

6. How often should the Ingersoll Rand 24242398 filter element be replaced?

The replacement interval depends on the inlet air quality, operating hours, system pressure, moisture load, and the amount of oil or particulate contamination entering the filter. Instead of relying only on a fixed calendar interval, monitor the differential pressure and follow the maintenance schedule specified for the installed filter system. In heavily contaminated environments, the element may require more frequent inspection. Replace it when it reaches the manufacturer’s replacement limit, becomes damaged, or can no longer provide the required filtration performance.

7. What precautions should be taken when replacing the pipeline filter element?

Before servicing the filter, isolate the air supply and fully depressurize the housing according to the equipment maintenance instructions. Allow hot components to cool, then open the housing carefully and remove the used element without spreading collected contaminants. Inspect the housing interior, sealing surfaces, O-rings, and drain assembly for damage or excessive contamination. Install the correct replacement element and seals, ensure that all components are seated properly, and reassemble the housing according to the manufacturer’s instructions. After restoring the air supply, check for leaks and confirm that the pressure differential and downstream airflow are normal.

8. How can the filtration performance and service life of the element be maintained?

Use the correct filtration grade for the application and ensure that the upstream compressor, aftercooler, moisture separator, and dryer are operating properly. Excessive liquid water or oil entering the filter can increase the contaminant load and shorten element life. Inspect the differential pressure regularly, maintain the housing drain, and investigate any unexpected changes in airflow or compressed air quality. When replacing the element, avoid damaging the sealing surfaces and always verify the part number. Proper system maintenance helps reduce unnecessary pressure loss, protect downstream equipment, and maintain reliable compressed air quality.
