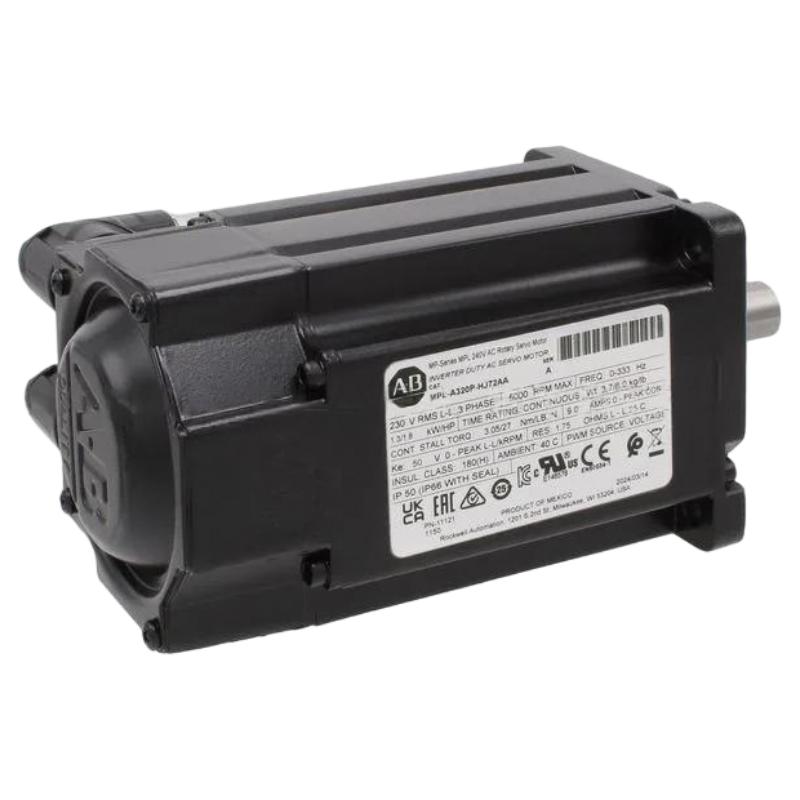

Q1: What type of servo motor is the Allen-Bradley MPL-A320P-HJ72AA?

A: The MPL-A320P-HJ72AA is a low-inertia brushless AC servo motor from the Allen-Bradley MP-Series MPL family. It is designed for industrial automation applications that require accurate positioning, responsive acceleration, and controlled rotational movement. Its low-inertia design supports dynamic motion profiles, making it suitable for machinery that frequently changes speed or direction. Proper motor selection should consider the application’s torque requirements, load inertia, duty cycle, and compatible servo drive.

Q2: What are the rated speed and torque characteristics of this motor?

A: The listed rated speed is 5000 RPM, with a continuous stall torque of 3.05 Nm and a peak torque of 7.91 Nm. Continuous stall torque describes the motor’s torque capability under specified stationary conditions, while peak torque is intended for short-duration demands within the manufacturer’s operating limits. These values should not be treated as the motor’s available torque at every speed. Actual performance depends on the drive, supply conditions, thermal limits, load characteristics, and acceleration profile.

Q3: What type of encoder does the MPL-A320P-HJ72AA use, and why is it important?

A: This model is specified with an incremental encoder rated at 2000 lines per revolution. The encoder provides motion feedback to the servo drive, allowing the control system to monitor shaft movement and regulate position and speed. Correct encoder configuration is essential for stable closed-loop operation. When commissioning or replacing the motor, verify that the drive supports the encoder interface and that the feedback wiring, signal configuration, and electronic settings match the motor’s requirements.

Q4: Does the MPL-A320P-HJ72AA have a built-in holding brake?

A: No. This model does not include an integrated holding brake. If the motor is used in an application where a load must remain stationary after power is removed, a separate mechanical brake or another engineered load-holding mechanism may be required. This is particularly important for vertical axes, where gravity can cause the load to move unexpectedly. A servo motor’s electromagnetic torque should not be relied upon to hold a load when power is unavailable. The braking solution should be selected according to the machine’s safety requirements and operating conditions.

Q5: Which servo drives are compatible with the MPL-A320P-HJ72AA?

A: Compatibility depends on the servo drive’s voltage class, supported feedback interface, motor configuration, and control-system requirements. Some Allen-Bradley Kinetix or Ultra 3000 drive configurations may be suitable, but compatibility should never be assumed from the brand or product family alone. Before installation, check the exact drive catalog number, supported motor specifications, encoder requirements, and applicable firmware or configuration restrictions. Incorrect pairing may cause feedback faults, commissioning difficulties, or poor motion performance.

Q6: What are the advantages of the keyed shaft design?

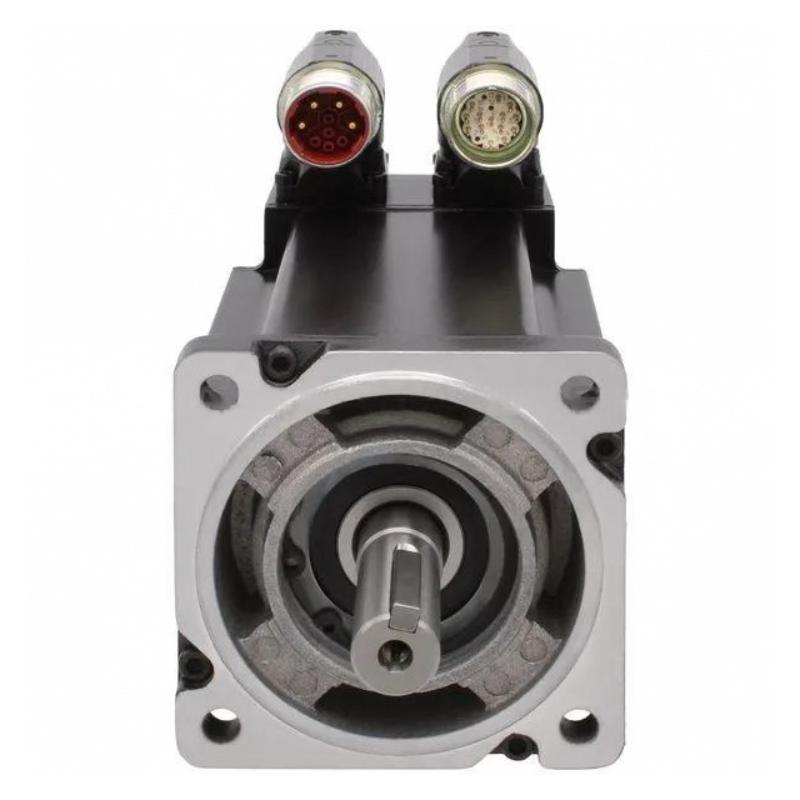

A: The keyed shaft extension provides a mechanical interface for transferring torque to compatible couplings, pulleys, or other transmission components. The key helps prevent relative rotation between the shaft and the connected component when the assembly is properly designed and installed. During installation, confirm the shaft and key dimensions, coupling compatibility, alignment, and fastening requirements. Incorrect assembly can lead to vibration, excessive bearing loads, coupling wear, or mechanical damage, particularly in applications with frequent acceleration and deceleration.

Q7: What should be considered when connecting the motor’s power and feedback cables?

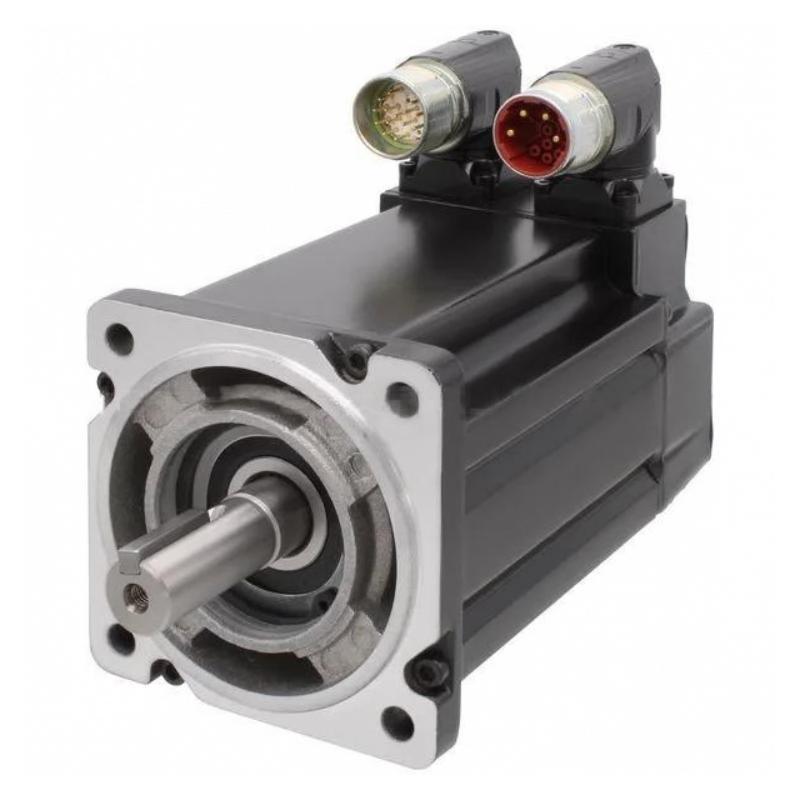

A: The motor uses a SpeedTEC DIN right-angle connector that can be rotated to accommodate different cable-routing arrangements. Use cables and connectors compatible with the motor and selected drive, and ensure that the power and feedback connections are correctly identified before energizing the system. Follow the manufacturer’s requirements for shielding, grounding, cable separation, and bend radius. Poor routing or grounding can introduce electrical noise into feedback signals and lead to position errors, intermittent faults, or unexpected drive trips. Inspect connectors for damage and ensure they are securely fastened before commissioning.

Q8: What should be checked when replacing the MPL-A320P-HJ72AA, and how should a substitute be selected?

A: This model is listed as discontinued, so replacement planning should begin with verification of the original motor’s full catalog number and installed configuration. Compare the voltage class, rated speed, continuous and peak torque, encoder type, shaft design, connector arrangement, mounting interface, and brake requirements. Also confirm that the existing servo drive can support the proposed replacement and that the new motor meets the machine’s load and duty-cycle requirements. A motor with a similar frame size or appearance is not necessarily electrically or mechanically interchangeable. Before returning the machine to service, verify drive parameters, feedback operation, rotation direction, and performance under controlled test conditions.
