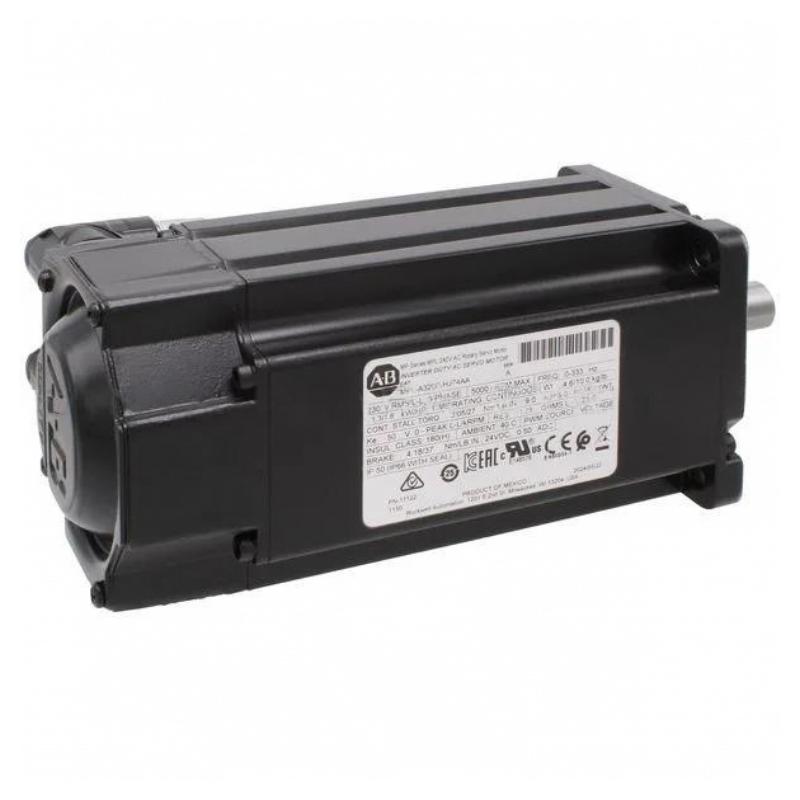

Q1: What type of servo motor is the Allen-Bradley MPL-A320P-HJ74AA?

A: The MPL-A320P-HJ74AA is a low-inertia brushless AC rotary servo motor from the Allen-Bradley MP-Series MPL family. It is designed for industrial automation systems that require precise positioning, responsive acceleration, and reliable speed control. Typical applications include packaging machinery, automated assembly equipment, material handling systems, and production machines with frequent start-stop cycles. When selecting this motor, consider the required torque, operating speed, load inertia, duty cycle, and compatibility with the existing motion-control system.

Q2: What are the rated speed and torque specifications of this servo motor?

A: The MPL-A320P-HJ74AA has a rated speed of 5000 RPM, a continuous stall torque of 3.05 Nm, and a peak torque of 7.91 Nm. These specifications help determine whether the motor can meet an application’s acceleration and load requirements. Peak torque is intended for short-duration operation within the manufacturer’s limits and should not be treated as a continuous operating value. Actual performance depends on the servo drive, supply conditions, load characteristics, thermal limits, and motion profile.

Q3: What feedback system does the MPL-A320P-HJ74AA use?

A: This model uses an incremental encoder with a resolution of 2000 lines per revolution. The encoder provides position and speed feedback to the servo drive, allowing the control system to regulate motor movement through closed-loop control. Correct feedback configuration is essential for stable operation and accurate positioning. During installation or replacement, verify that the selected drive supports the encoder interface and that the feedback cable, signal configuration, and drive parameters are correct.

Q4: Does the MPL-A320P-HJ74AA include a holding brake?

A: Yes. The MPL-A320P-HJ74AA is equipped with a 24 V DC holding brake. The brake helps hold the motor shaft when the motor is stationary and is particularly useful in applications where position must be maintained after motion stops. It should not automatically be treated as a dynamic stopping brake unless the manufacturer’s specifications permit that use. For vertical axes or suspended loads, evaluate the braking requirements carefully and ensure that the control sequence, brake wiring, and safety measures are appropriate for the application.

Q5: Which servo drives are compatible with the MPL-A320P-HJ74AA?

A: Compatibility depends on the drive’s voltage class, supported motor feedback, power and current ratings, and configuration requirements. Allen-Bradley Kinetix and Ultra 3000 drive families include models that support various MP-Series motors, but not every drive is suitable for this specific motor. Before connecting it, check the exact drive catalog number, feedback interface, motor configuration, and applicable documentation. Correct matching helps prevent commissioning faults and supports reliable torque, speed, and position control.

Q6: What is the purpose of the keyed shaft extension?

A: The keyed shaft extension provides a mechanical connection for transferring torque to a compatible coupling, pulley, or other transmission component. The key helps prevent relative rotation between the shaft and the attached component when the assembly is properly matched and secured. During installation, check the shaft and key specifications, coupling fit, alignment, and fastening method. Incorrect assembly can cause vibration, coupling wear, excessive bearing loads, or mechanical failure, especially in equipment that operates at high speed or changes direction frequently.

Q7: What should be considered when installing the motor’s electrical connectors and cables?

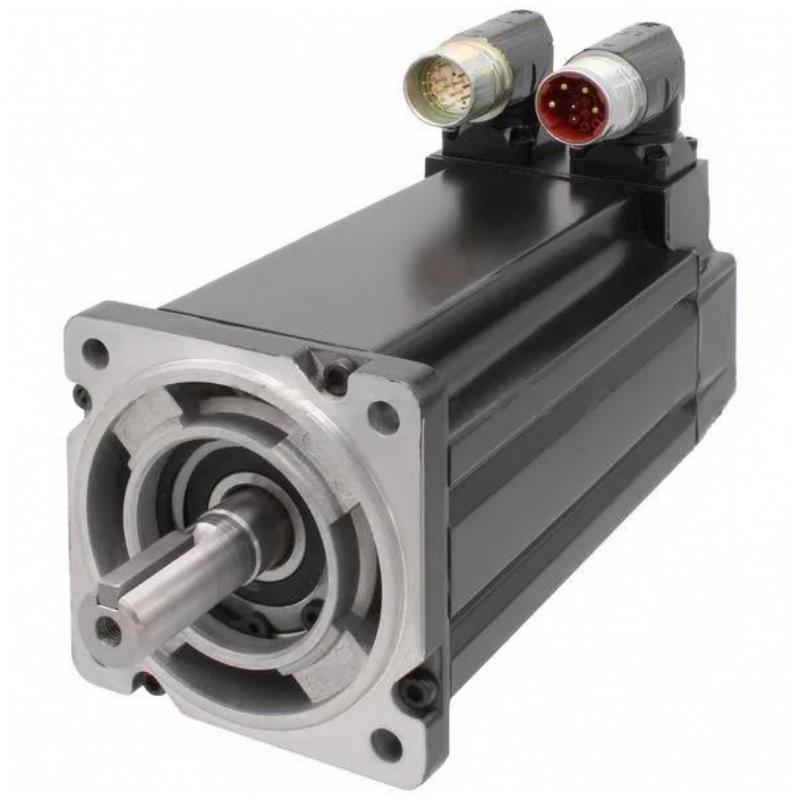

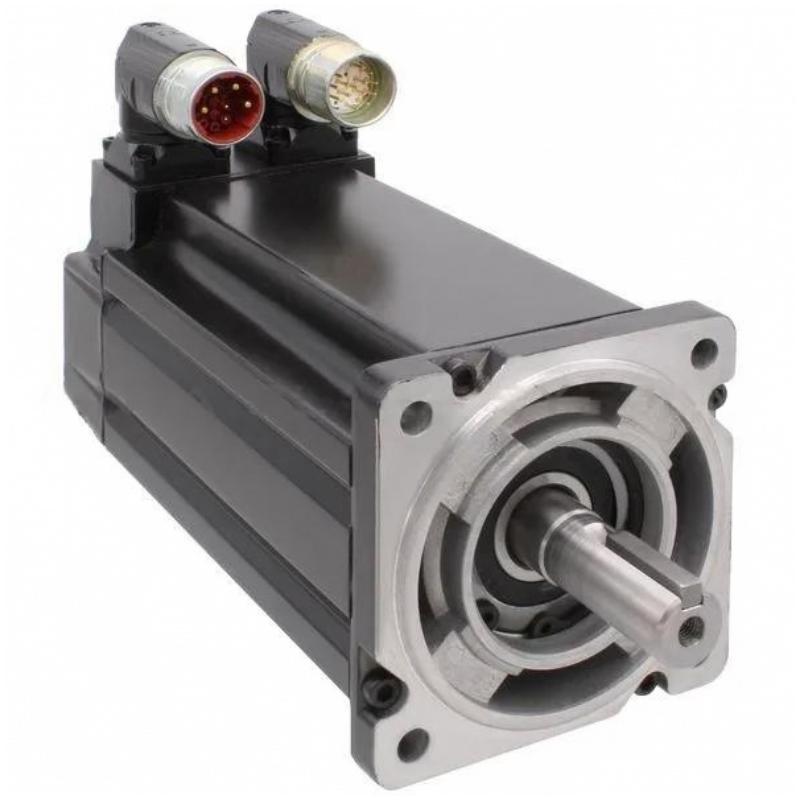

A: The MPL-A320P-HJ74AA uses a right-angle SpeedTEC DIN connector that can be rotated 180° to accommodate different installation layouts. Use compatible motor power and feedback cables, and confirm that each connection matches the intended drive interface. Cable routing should follow the manufacturer’s requirements for shielding, grounding, separation from noise-sensitive signal cables, and minimum bend radius. Before commissioning, inspect the connectors for damage, verify secure connections, and check that the motor feedback and brake circuits are wired correctly.

Q8: What should be checked when replacing the MPL-A320P-HJ74AA servo motor?

A: This model has been discontinued, so replacement planning should begin by confirming the complete catalog number and the motor’s installed configuration. Check the rated speed, torque, voltage class, incremental encoder, 24 V DC brake, keyed shaft, connector arrangement, mounting interface, and protection requirements. A replacement should also be compatible with the existing servo drive and suitable for the machine’s load inertia and duty cycle. A motor with a similar frame size is not necessarily a direct substitute. Before returning the equipment to service, verify the drive settings, feedback signals, rotation direction, brake operation, and motion performance under controlled conditions.
