Q1: What is the Allen-Bradley MPL-A320P-HK72AA servo motor designed for?

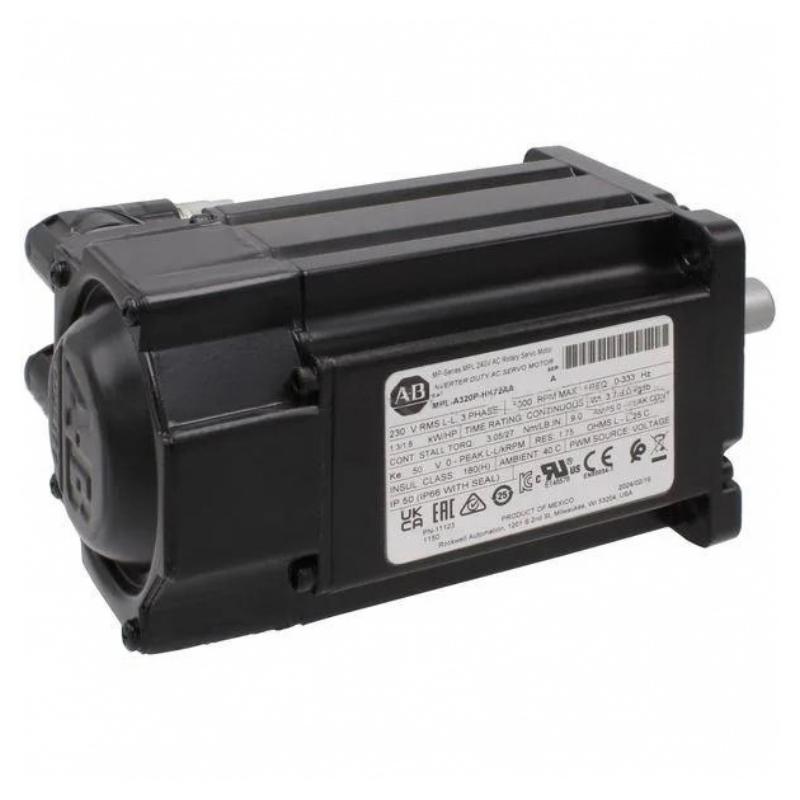

A: The MPL-A320P-HK72AA is a low-inertia brushless AC rotary servo motor from the Allen-Bradley MP-Series MPL family. It is designed for industrial motion-control applications that require accurate positioning, responsive acceleration, and consistent speed regulation. Typical applications include packaging machinery, automated assembly lines, material handling equipment, and production systems with frequent start-stop cycles. When selecting this motor, consider the required torque, operating speed, load inertia, duty cycle, and compatibility with the existing servo drive.

Q2: What are the rated speed and torque specifications of the MPL-A320P-HK72AA?

A: The motor is rated for speeds up to 5000 RPM, with a continuous stall torque of 3.05 Nm and a peak torque of 7.91 Nm. These values help engineers assess its suitability for acceleration, positioning, and load-handling requirements. Peak torque is intended for short-duration operation within the manufacturer’s limits and should not be treated as a continuous torque rating. Actual performance depends on the servo drive, operating conditions, load characteristics, and thermal limitations.

Q3: What feedback system does this servo motor use?

A: The MPL-A320P-HK72AA uses an incremental encoder with a resolution of 2000 lines per revolution. The encoder supplies position and speed feedback to the servo drive, enabling closed-loop motion control. Correct feedback configuration is essential for stable operation, accurate positioning, and predictable motor response. Before installation, verify that the drive supports the encoder interface and that the feedback cable, wiring, and drive parameters are configured correctly.

Q4: Does the MPL-A320P-HK72AA include a holding brake?

A: No. This model does not include an integrated holding brake. If the application requires the motor shaft to remain stationary after power is removed, an external mechanical brake or another suitable load-holding mechanism may be necessary. This is particularly important for vertical axes, where gravity can cause an uncontrolled movement. The motor should not be relied upon to hold a load without power. Evaluate the machine’s safety requirements and select an appropriate braking solution for the application.

Q5: Which servo drives are compatible with the MPL-A320P-HK72AA?

A: Compatibility depends on the drive’s voltage class, encoder interface, motor ratings, and configuration requirements. Selected Allen-Bradley Kinetix and Ultra 3000 servo drives may support this motor, but compatibility should be confirmed using the exact drive catalog number and technical documentation. Before commissioning, verify the motor feedback configuration, power requirements, and drive settings. Using an incompatible drive or incorrect feedback configuration may cause faults or prevent the system from achieving the expected motion performance.

Q6: What is the purpose of the keyless shaft design?

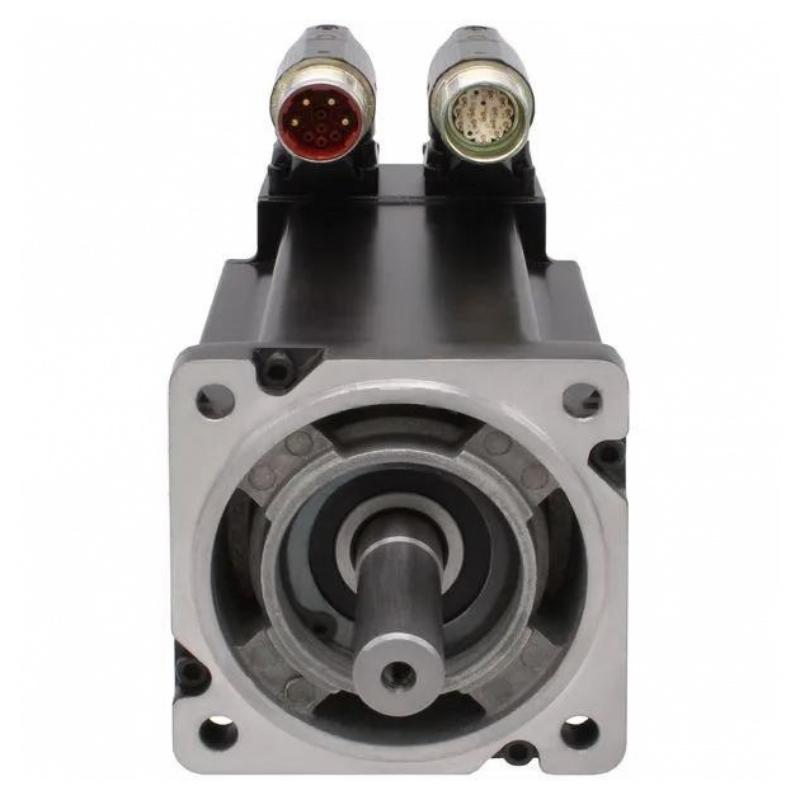

A: The MPL-A320P-HK72AA uses a keyless shaft extension, which relies on a compatible coupling or clamping mechanism to transmit torque. This arrangement can provide a compact mechanical connection without a separate shaft key. The coupling must be selected for the shaft interface, transmitted torque, speed, and application conditions. Proper alignment and fastening are important to reduce slippage, vibration, and excessive bearing loads during operation.

Q7: What should be considered when connecting the motor’s power and feedback cables?

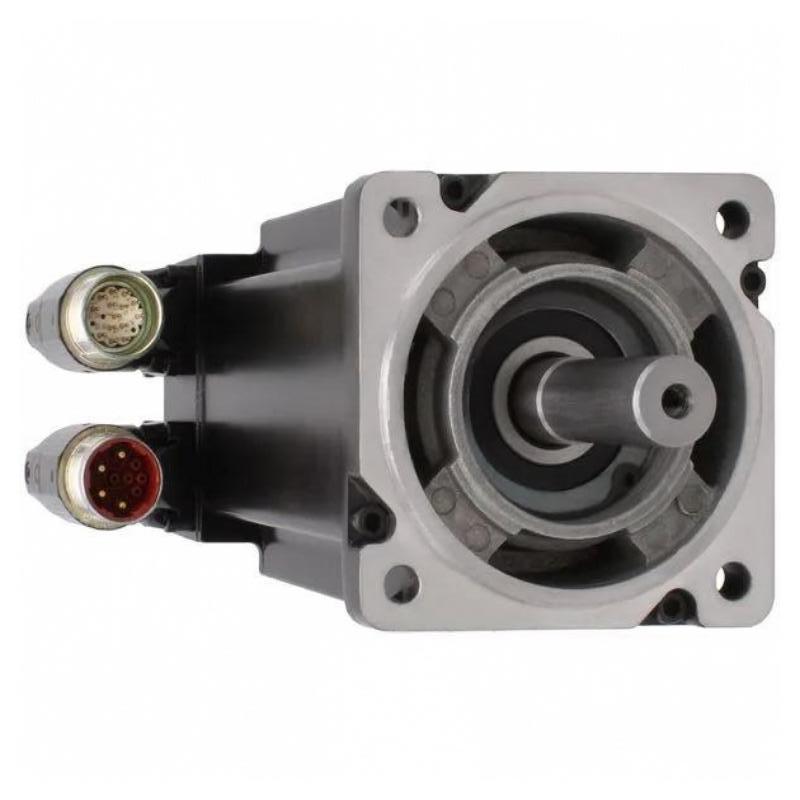

A: This motor uses a right-angle SpeedTEC DIN connector that can be rotated 180° to accommodate different machine layouts. Select compatible power and feedback cables for the motor and servo drive, and verify the connector configuration before wiring. Follow the manufacturer’s requirements for shielding, grounding, cable separation, and bend radius. Incorrect wiring or poor grounding can introduce electrical interference, cause feedback errors, or lead to intermittent drive faults. Inspect the connectors and cables before commissioning.

Q8: What should be checked when replacing the MPL-A320P-HK72AA servo motor?

A: The MPL-A320P-HK72AA has been discontinued, so replacement selection requires careful verification of the original motor configuration. Check the voltage class, rated speed, continuous and peak torque, encoder type, keyless shaft, connector arrangement, mounting interface, and brake requirements. Confirm that the replacement is compatible with the existing servo drive and can meet the machine’s load and duty-cycle requirements. Similar frame sizes do not guarantee direct interchangeability. Before restarting the equipment, verify the drive parameters, feedback signals, rotation direction, mechanical coupling, and motion performance under controlled conditions.
