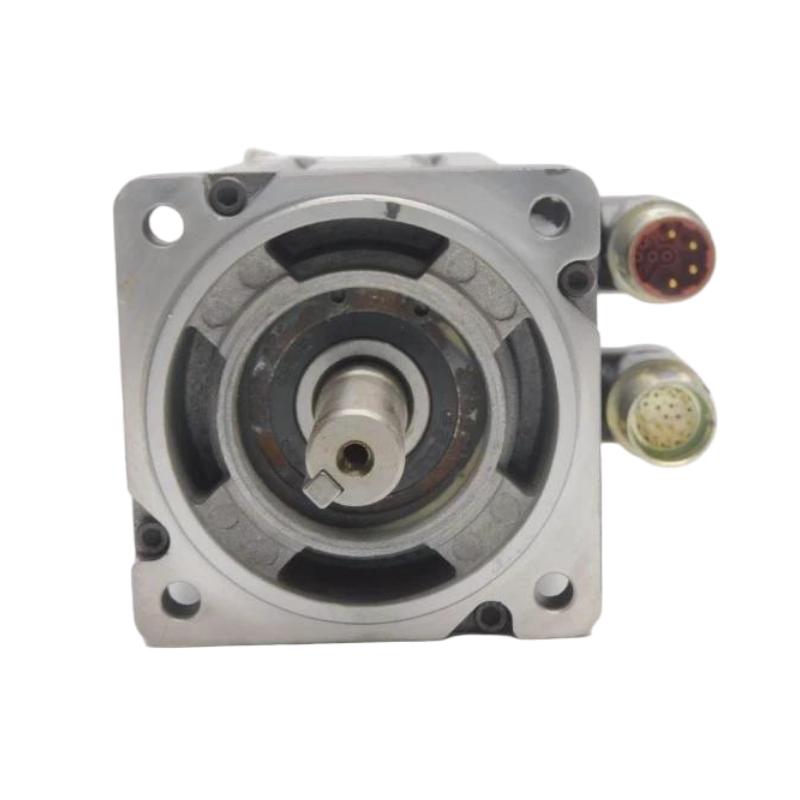

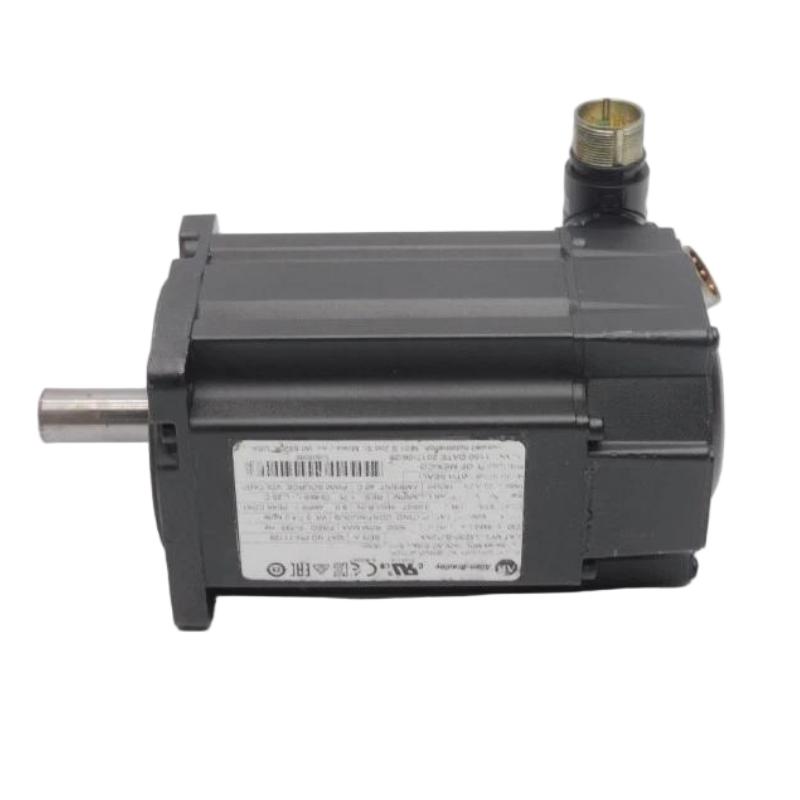

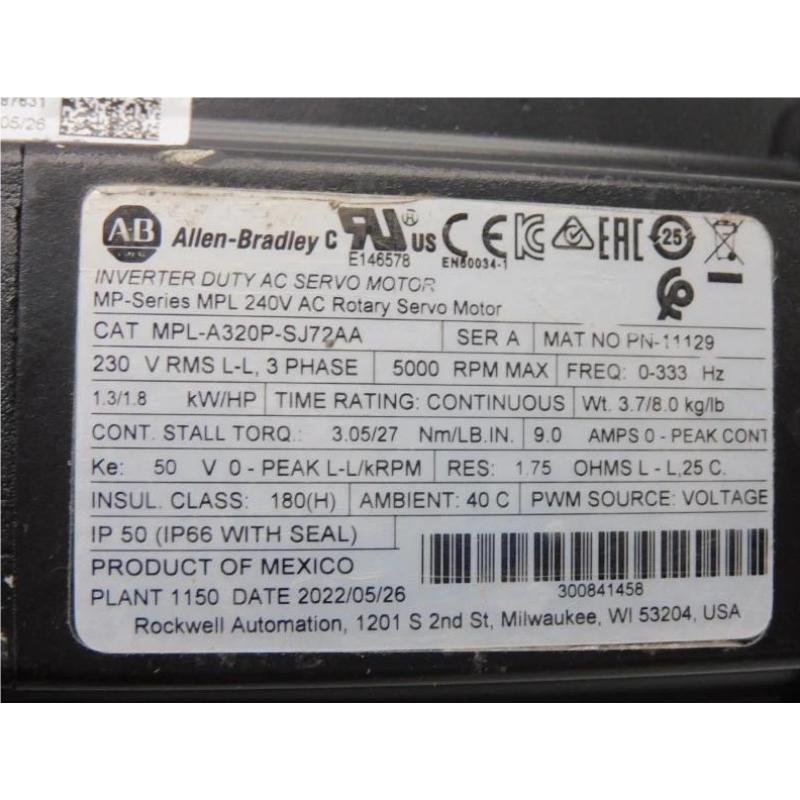

Allen Bradley MPL-A320P-SJ72AA Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Model | MPL-A320P-SJ72AA |
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Product Series | MP-Series MPL |
| Product Type | Low-Inertia Brushless AC Servo Motor |
| Voltage Class | 200 V AC |
| Rated Voltage | 230 V AC |
| Continuous Rated Power | 1.3 kW |
| Rated Speed | 5000 RPM |
| Maximum Speed | 5000 RPM |
| Continuous Output Torque | 3.05 Nm |
| Peak Torque | 7.91 Nm |
| Feedback Type | Single-Turn Absolute High-Resolution Encoder |
| Encoder Resolution | 1024 Sin/Cos Cycles per Revolution |
| Feedback Protocol | Hiperface |
| Shaft Type | Keyed Shaft Extension |
| Holding Brake | No Integrated Brake |
| Connector Type | SpeedTEC DIN Circular Connector |
| Connector Orientation | Right-Angle, 180° Rotatable |
| Mounting Type | IEC Metric Flange Mount, FF Free Mounting Holes |
| Magnet Stack Length | 50.8 mm |
| Frame Size | 100 mm |
| Weight | 3.7 kg |
| Shaft Seal | No Shaft Seal |
| Protection Rating | IP50 |
| Rotor Inertia | 7.8 × 10⁻⁵ kg·m² |
| Operating Temperature | 0°C to 40°C |
| Compatible Servo Drives | Kinetix 5500, 6000, 6200, 6500, 300, 350, 2000, 7000, Ultra 3000 (verify specific drive configuration) |
| Product Status | Active |
FAQ
1. What industrial applications is the Allen-Bradley MPL-A320P-SJ72AA servo motor designed for?
The MPL-A320P-SJ72AA is a low-inertia brushless AC servo motor from the Allen-Bradley MP-Series MPL family. It is designed for precision motion control in industrial automation equipment. With a maximum speed of 5000 RPM and continuous output torque of 3.05 Nm, it is suitable for automated packaging machinery, material handling systems, assembly equipment, indexing machines, and applications requiring responsive motion and accurate positioning.
2. What encoder feedback system does the MPL-A320P-SJ72AA use?
This model uses a single-turn absolute high-resolution encoder with a resolution of 1024 Sin/Cos cycles per revolution and the Hiperface feedback protocol. The encoder provides position feedback to the servo drive, allowing the control system to regulate motor position and speed accurately. During installation, ensure that the feedback cable, connector, and drive parameters are compatible with the motor configuration.
3. Does the MPL-A320P-SJ72AA have an integrated holding brake?
No. The MPL-A320P-SJ72AA does not include an integrated holding brake. When the motor stops or the system loses power, it cannot provide mechanical holding force on its own. Applications involving vertical axes or gravity-loaded mechanisms may require an independent external braking device designed according to the machine’s mechanical and safety requirements. The servo drive’s electrical holding function should not be treated as a substitute for a mechanical brake.
4. What is the purpose of the keyed shaft extension?
The MPL-A320P-SJ72AA features a keyed shaft extension that allows torque transmission through a compatible parallel key and coupling. This connection helps prevent relative slipping between the motor shaft and the driven component. During installation, verify that the key, keyway, and coupling dimensions match. Proper axial retention, shaft alignment, and coupling tightening are also important to minimize vibration and transmission errors.
5. Which servo drives are compatible with the MPL-A320P-SJ72AA?
This motor may be used with compatible Allen-Bradley Kinetix and Ultra 3000 servo drive systems, including selected models from the Kinetix 5500, 6000, 6200, 6500, 300, 350, 2000, and 7000 families. Drive selection must take into account the voltage rating, rated current, encoder feedback interface, and supported motor configuration. Verify the exact drive model before installation.
6. How should positioning errors during operation be diagnosed?
First, inspect the encoder feedback cable and SpeedTEC DIN connector to ensure that connections are secure and that there are no damaged pins or broken wires. Check grounding and shielding to eliminate possible electrical interference. Then verify the motor catalog number, encoder feedback type, and control parameters configured in the drive. If the feedback system is functioning correctly, inspect the coupling, mechanical backlash, load variations, and transmission alignment. Reviewing the servo drive alarm history can help identify the source of the problem.
7. What can cause overheating or overcurrent faults on the MPL-A320P-SJ72AA?
Common causes include loads exceeding the motor’s rated capacity, frequent acceleration and deceleration, excessive mechanical resistance, incorrect drive parameter settings, and insufficient cooling. Worn bearings, coupling misalignment, or mechanical binding can also increase the motor load. Check drive current records, mechanical loading, operating cycles, and ventilation conditions. Avoid continuous operation beyond the motor’s rated limits.
8. What routine maintenance is recommended for the MPL-A320P-SJ72AA?
Routine maintenance should focus on the power connections, encoder feedback cable, SpeedTEC DIN connector, mounting bolts, and shaft coupling. During operation, monitor the motor for abnormal noise, vibration, or temperature increases. Inspect the mechanical transmission system for binding or unexpected load changes. Since this model does not have an integrated holding brake, applications requiring position retention after power loss should also include regular inspections of the external braking device. Maintenance intervals should be based on operating hours, load conditions, and the working environment.
Allen Bradley MPL-A320P-SJ72AA Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
