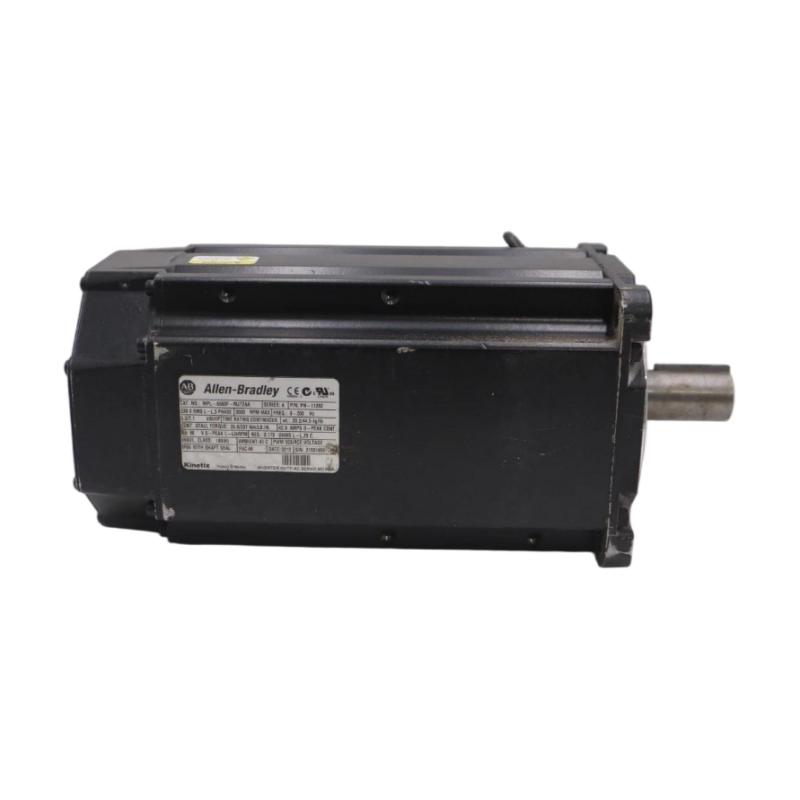

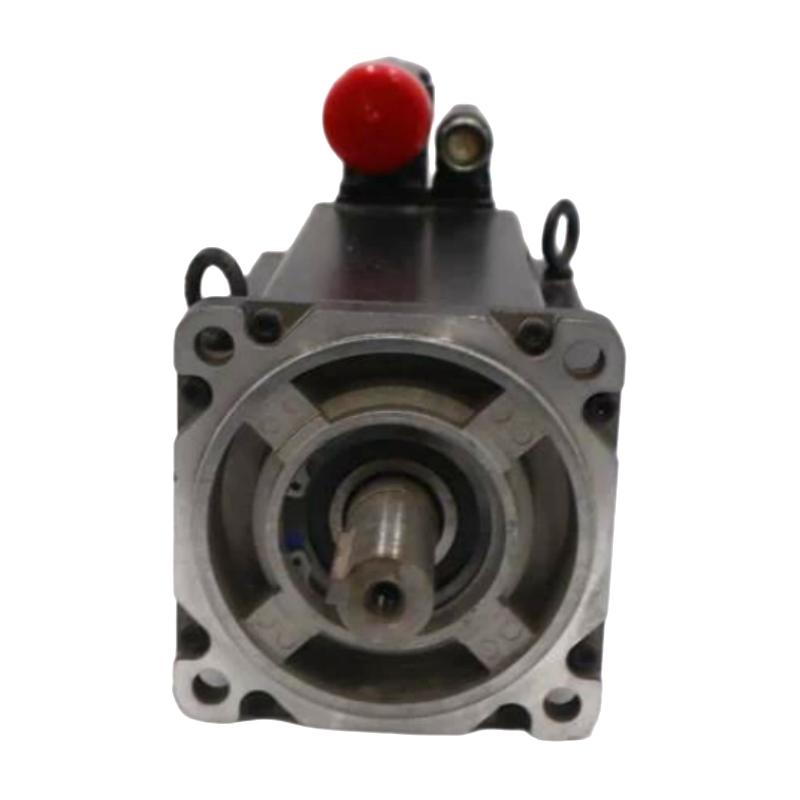

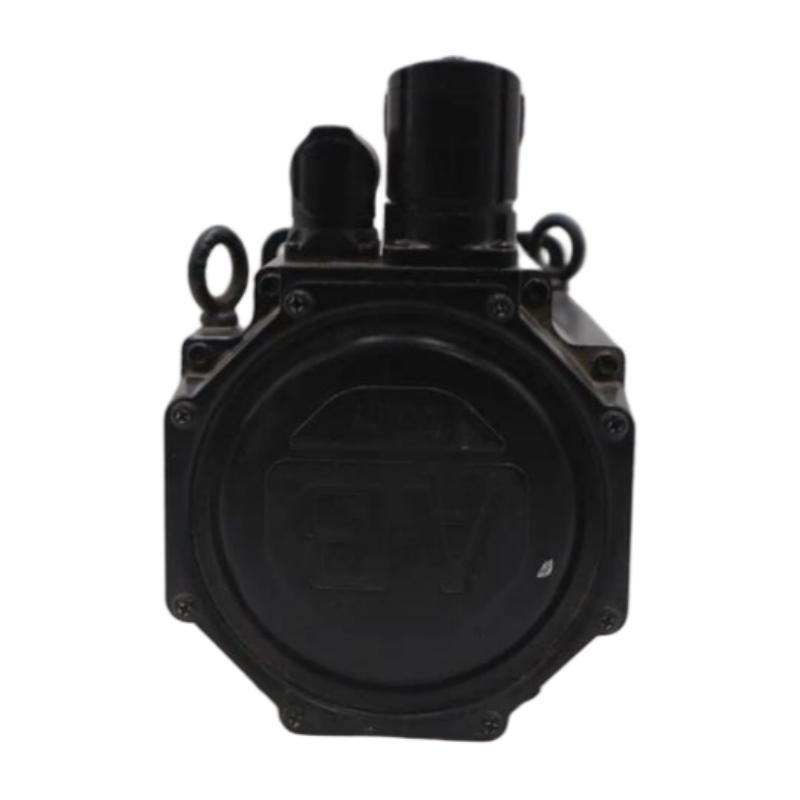

Allen-Bradley MPL-B1530U-VJ72AA MP-Series Low-Inertia Rotary Servo Motor
The Allen-Bradley MPL-B1530U-VJ72AA is a low-inertia brushless AC servo motor from Rockwell Automation’s MP-Series. Designed for precision motion control, it combines high-speed operation with multi-turn absolute encoder feedback. Its keyed shaft, rotatable right-angle connector, and compact 63 mm frame make it suitable for compatible industrial machinery and automated positioning systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B1530U-VJ72AA |
| Product Type | Low-Inertia Rotary Servo Motor |
| Product Series | MP-Series |
| Motor Technology | Brushless AC Servo |
| Voltage Class | 400 V AC |
| Rated System Voltage | 460 V AC |
| Frame Size | 63 mm (2.48 in.) |
| Magnet Stack Length | 76.2 mm (3.0 in.) |
| Rated Speed | 7,000 RPM |
| Rated Output Power | 0.39 kW |
| Continuous Stall Torque | 0.9 N·m |
| Peak Torque | 2.8 N·m |
| Continuous Stall Current | 2.0 A |
| Peak Current | 7.2 A |
| Feedback Device | Multi-turn high-resolution absolute encoder |
| Feedback Protocol | HIPERFACE |
| Shaft Type | Keyed shaft extension |
| Shaft Seal | No shaft seal |
| Holding Brake | No brake |
| Connector | SpeedTEC DIN connector, right-angle, 180° rotatable |
| Mounting Flange | IEC metric, free mounting holes (Type FF) |
| Protection Rating | Confirm the required rating against the specific motor configuration |
| Operating Temperature | 0–40°C |
| Dimensions | 3 × 3 × 14 mm |
| Weight | Approximately 1.6 kg |
| Product Status | Active |
FAQ
Q1: What is the Allen-Bradley MPL-B1530U-VJ72AA?
It is a low-inertia brushless AC servo motor designed for industrial automation applications requiring precise positioning, rapid acceleration, and controlled rotary motion.
Q2: What voltage does this servo motor require?
The motor belongs to the 400 V class and is rated for 460 V AC systems. Check the compatible servo drive’s electrical specifications before installation.
Q3: What are the rated speed and output power?
The rated speed is 7,000 RPM, and the continuous rated output power is approximately 0.39 kW.
Q4: What are the motor’s torque specifications?
The continuous stall torque is approximately 0.9 N·m, while the peak torque is approximately 2.8 N·m. Actual performance depends on drive configuration and operating conditions.
Q5: Does the MPL-B1530U-VJ72AA include a holding brake?
No. This model is supplied without a holding brake. Applications requiring load holding should use an appropriate external mechanical solution where necessary.
Q6: What type of encoder does this motor use?
It uses a multi-turn high-resolution absolute encoder with HIPERFACE feedback for position monitoring and precise motion control.
Q7: What are the dimensions and weight of this motor?
The frame size is 63 mm, and the magnet stack length is 76.2 mm. The approximate weight is 1.6 kg. Consult the manufacturer’s mechanical drawing for exact overall dimensions and mounting measurements.
Q8: What should be checked before replacing this servo motor?
Verify the voltage class, encoder compatibility, shaft and flange dimensions, connector orientation, torque requirements, and brake configuration. Ensure the replacement is compatible with the existing servo drive and machine before installation.
Allen-Bradley MPL-B1530U-VJ72AA MP-Series Low-Inertia Rotary Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
