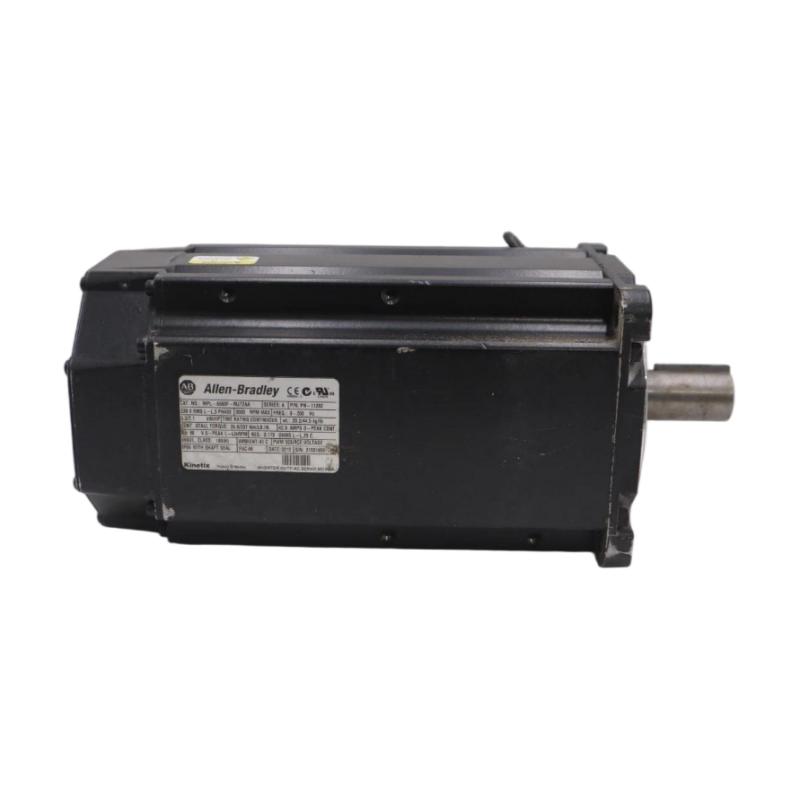

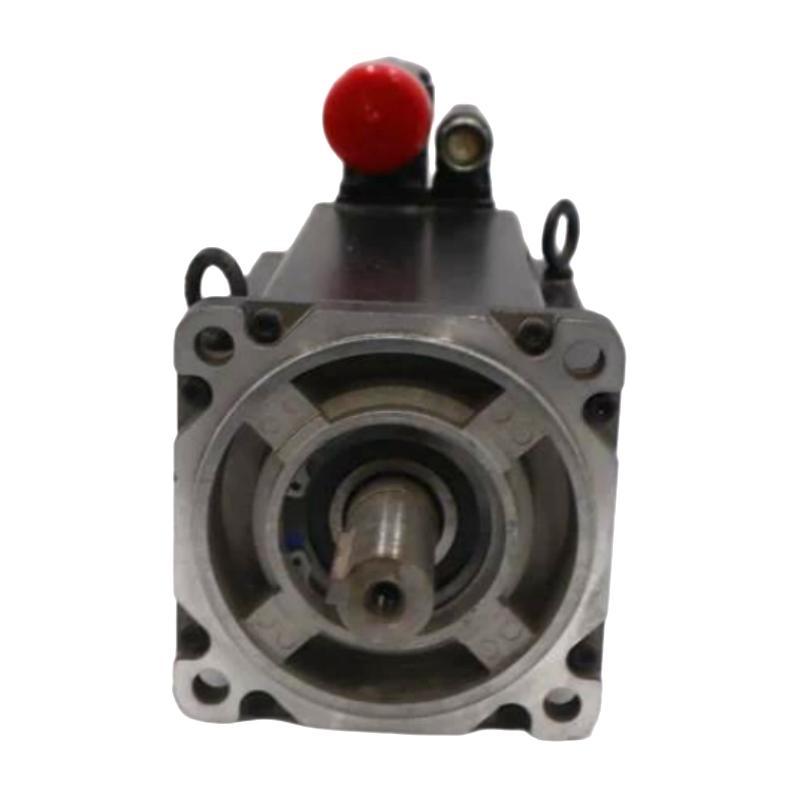

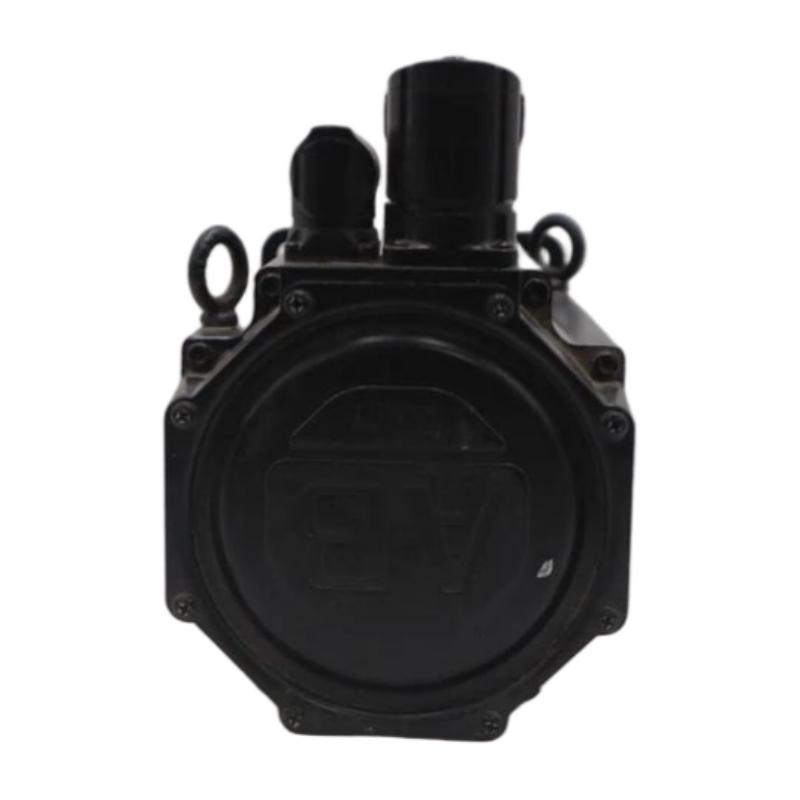

Allen-Bradley MPL-B1530U-VJ74AA MP-Series Low-Inertia Rotary Servo Motor
The Allen-Bradley MPL-B1530U-VJ74AA is a low-inertia brushless AC servo motor designed for precision motion control in industrial automation systems. It features a compact frame, high-speed operation, absolute encoder feedback, and an integrated holding brake. It is suitable for compatible machinery requiring accurate positioning, controlled acceleration, and repeatable motion.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B1530U-VJ74AA |
| Product Type | Low-Inertia Rotary Servo Motor |
| Product Series | MP-Series |
| Motor Technology | Brushless AC Servo |
| Voltage Class | 400 V class |
| Rated System Voltage | 460 V AC |
| Frame Size | 63 mm |
| Magnet Stack Length | 76.2 mm (3.0 in.) |
| Rated Speed | 7,000 RPM |
| Continuous Stall Torque | Approximately 0.9 N·m |
| Peak Torque | Approximately 2.8 N·m |
| Rated Output Power | Approximately 0.39 kW |
| Feedback Device | High-resolution multi-turn absolute encoder |
| Feedback Protocol | HIPERFACE |
| Shaft Type | Keyed shaft extension |
| Shaft Seal | No shaft seal |
| Holding Brake | 24 V DC brake |
| Connector | Right-angle SpeedTEC DIN connector |
| Connector Orientation | 180° rotatable |
| Mounting Flange | IEC metric, free mounting holes |
| Protection Rating | IP50, subject to exact configuration |
| Operating Temperature | 0–40°C |
| Dimensions | 3 × 3 × 14 mm |
| Weight | Approximately 1.6kg; verify the exact configuration |
| Product Status | Verify current availability |
FAQ
Q1: What is the Allen-Bradley MPL-B1530U-VJ74AA?
The MPL-B1530U-VJ74AA is a low-inertia brushless AC servo motor from the MP-Series, designed for precision motion control in industrial automation equipment.
Q2: What is the rated voltage of this servo motor?
It belongs to the 400 V class and is intended for compatible 460 V AC servo systems. Confirm the drive’s electrical requirements before installation.
Q3: What are the rated speed and torque specifications?
The listed rated speed is 7,000 RPM, with continuous stall torque of approximately 0.9 N·m and peak torque of approximately 2.8 N·m. Verify these ratings against the manufacturer’s documentation for the exact model.
Q4: Does the MPL-B1530U-VJ74AA include a holding brake?
Yes, this model designation is associated with a 24 V DC holding brake. Confirm brake wiring and control requirements before connecting it to a servo system.
Q5: What type of encoder does this motor use?
It is specified with a high-resolution multi-turn absolute encoder using the HIPERFACE feedback protocol. The servo drive must support the corresponding feedback interface.
Q6: What shaft and connector configurations does it have?
The motor is specified with a keyed shaft extension and a right-angle connector that can rotate to accommodate different installation and cable-routing requirements.
Q7: What are the dimensions and weight of this motor?
The frame size is 63 mm, with a 76.2 mm magnet stack. The estimated weight is approximately 1.6–1.72 kg. Exact dimensions and weight should be confirmed using the manufacturer’s mechanical drawing and product documentation.
Q8: What should be checked when replacing this servo motor?
Check the complete catalog number, voltage class, encoder compatibility, brake voltage, shaft dimensions, mounting flange, connector orientation, and servo-drive compatibility. Verify all specifications before purchasing or installing a replacement.
Allen-Bradley MPL-B1530U-VJ74AA MP-Series Low-Inertia Rotary Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
