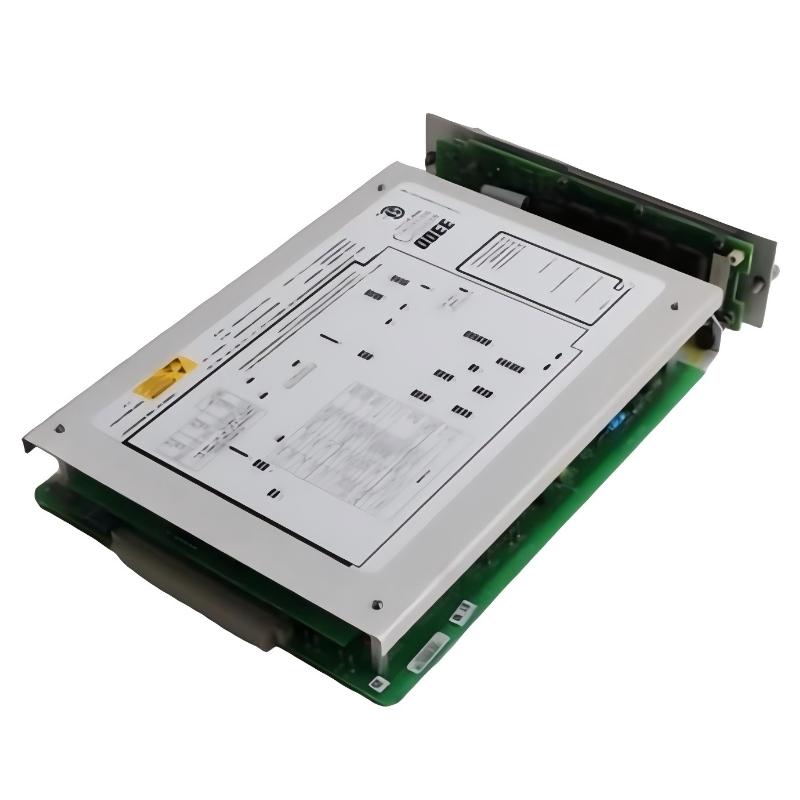

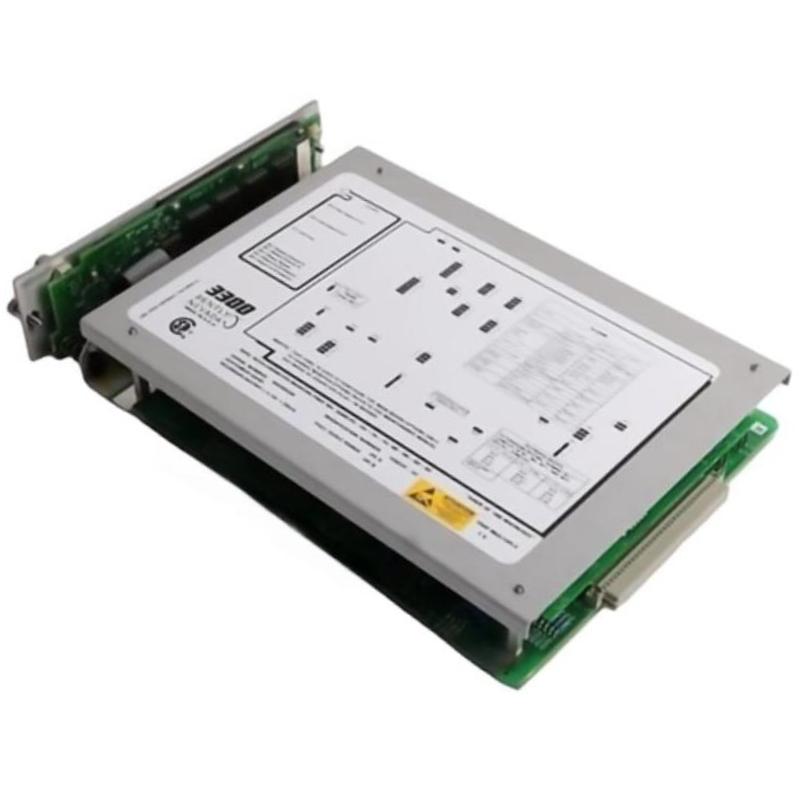

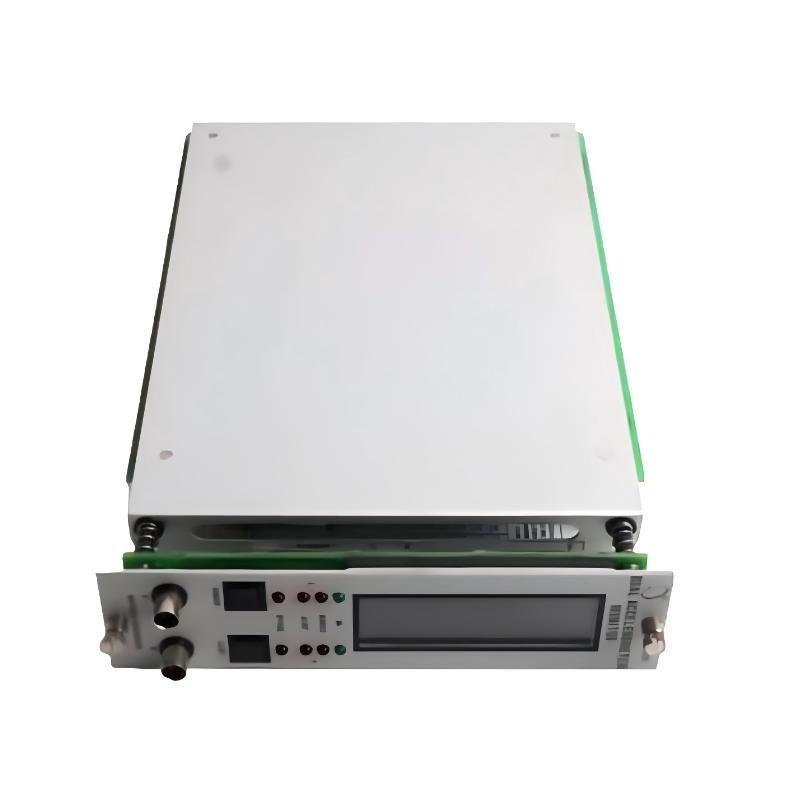

Q1: What is the main function of the Bently Nevada 3300/53 Overspeed Protection System?
A1: The primary function of the 3300/53 module is to continuously monitor the rotational speed of critical machinery and provide immediate protection when an overspeed condition is detected. It compares real-time speed signals against predefined safety thresholds and triggers alarm or trip outputs when limits are exceeded. This ensures that machinery is protected from potentially catastrophic failure caused by excessive rotational speed.

In high-speed rotating equipment such as steam turbines and gas turbines, overspeed events can occur rapidly due to control system failure, load rejection, or mechanical issues. The 3300/53 acts as a dedicated safety layer that operates independently from normal control systems, providing a fast and reliable shutdown signal when required.

Q2: Where is the 3300/53 typically used?
A2: This module is primarily used in critical rotating machinery applications including steam turbines, gas turbines, hydro turbines, large generators, centrifugal compressors, and other high-speed industrial drives. It is widely deployed in power generation plants, oil and gas facilities, petrochemical plants, and heavy industrial environments where overspeed protection is a mandatory safety requirement.

Q3: How does the overspeed protection logic work?
A3: The system receives speed input signals from magnetic pickups or proximity probes installed near a rotating shaft. These signals are converted into real-time speed values. The module continuously compares the measured speed against multiple predefined thresholds such as alarm level, danger level, and trip level.

When speed exceeds the first threshold, an alarm may be triggered to warn operators. If speed continues to rise and reaches the critical limit, the system activates the trip output, initiating an emergency shutdown. This multi-stage logic ensures both early warning and final protective action.

Q4: What makes this module different from standard speed monitoring systems?
A4: Unlike basic speed indicators that only display rotational speed, the 3300/53 is a dedicated safety protection device designed specifically for overspeed events. It features independent protection logic, fast response time, and direct trip output capability. This means it can initiate equipment shutdown without relying on external control systems, significantly improving safety reliability.

Q5: What are common causes of overspeed events?
A5: Overspeed conditions can be caused by sudden load rejection, control valve malfunction, turbine governor failure, mechanical coupling issues, or unexpected system transients. In some cases, sensor faults or signal noise may also lead to false speed readings, which is why proper signal validation and redundancy are important in critical systems.

Q6: How is correct operation of the 3300/53 verified?
A6: Proper operation is typically verified through simulated speed input testing, functional trip testing, and system diagnostic checks. During commissioning, engineers may simulate overspeed conditions to confirm that alarm and trip outputs activate at the correct thresholds. In normal operation, stable speed readings and correct alarm behavior indicate healthy performance.

Q7: Can this module operate continuously in industrial environments?
A7: Yes, the 3300/53 is designed for continuous 24/7 operation in demanding industrial environments. It is built to withstand electrical noise, vibration, and temperature variations commonly found in power generation and heavy industrial facilities. However, long-term reliability depends on proper installation, stable power supply, and routine maintenance.

Q8: How can system reliability and safety be improved when using this module?
A8: Reliability can be improved by ensuring high-quality speed sensor installation, proper shielding and grounding of signal cables, and correct configuration of trip thresholds. Regular proof testing is also essential to confirm that the protection logic responds correctly under simulated fault conditions. In critical applications, redundancy (dual sensors or dual channels) is often used to further enhance safety integrity.

Preventive maintenance, periodic calibration, and monitoring of sensor health also play important roles in maintaining long-term system reliability and ensuring that overspeed protection remains fully functional throughout the equipment lifecycle.
