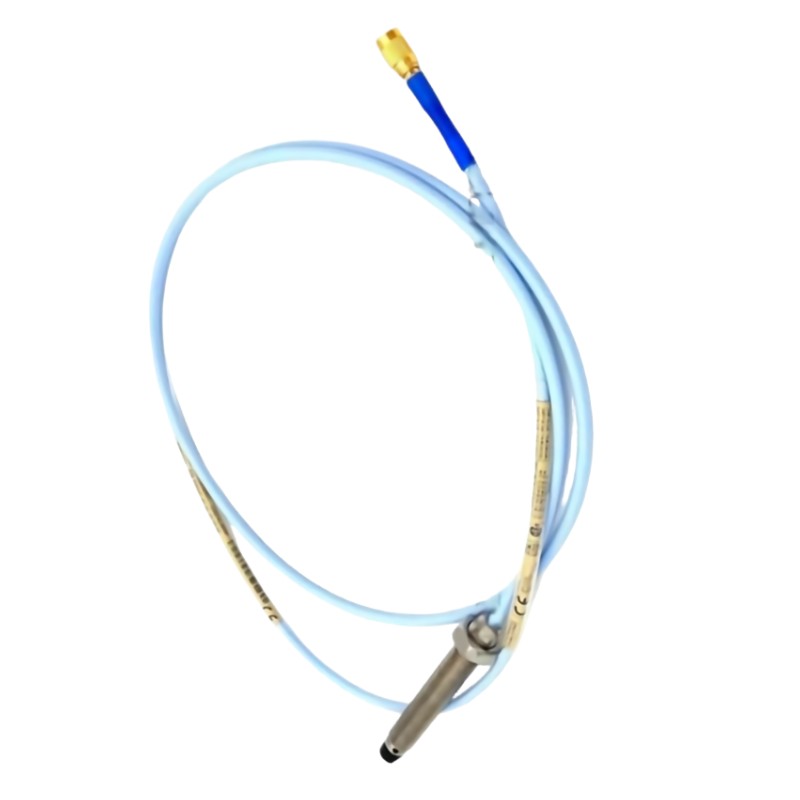

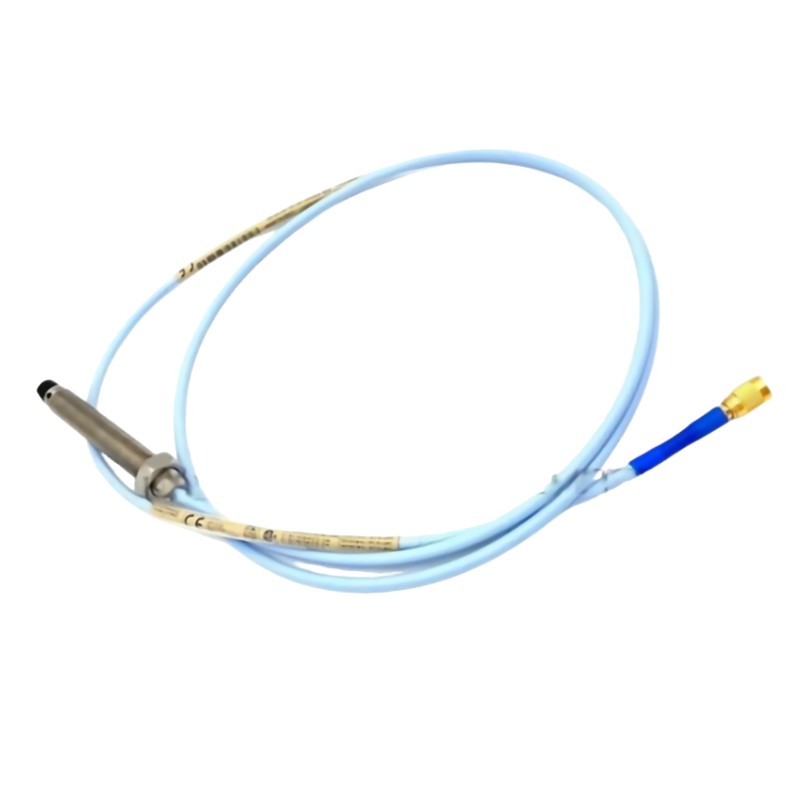

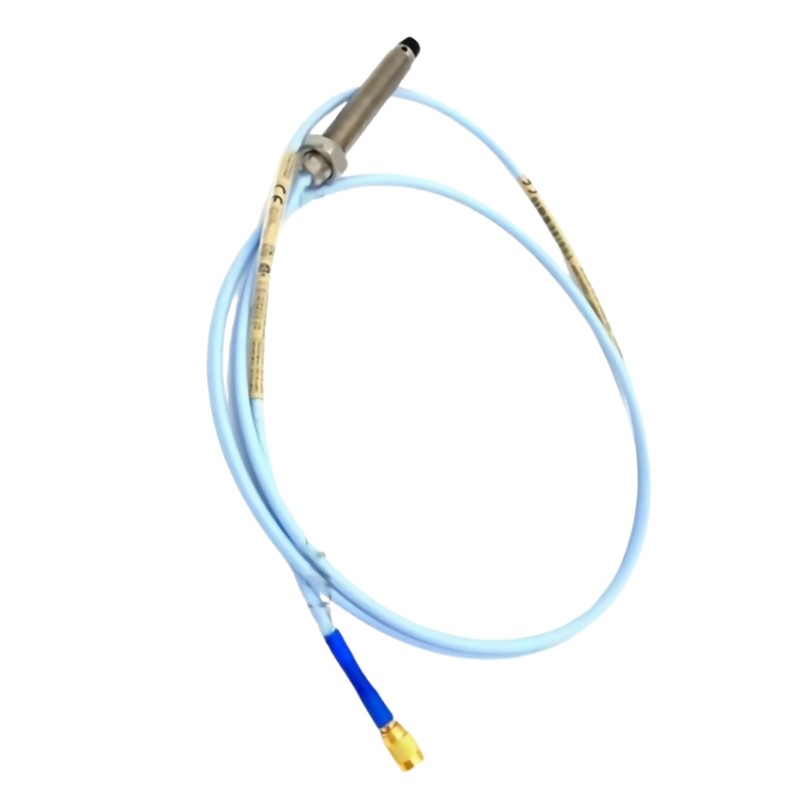

Q1: What is the primary function of the 3300 XL 8 mm Proximity Probe?
A1: The primary function of this probe is to provide continuous, non-contact measurement of the relative distance between the probe tip and a conductive rotating shaft. In practical industrial use, this means it constantly tracks shaft vibration, shaft position, and dynamic motion inside rotating machinery. This data is essential for condition monitoring systems because even very small changes in shaft behavior often indicate early mechanical problems such as imbalance, misalignment, shaft bow, or bearing wear. By detecting these changes early, operators can prevent unexpected failures and improve overall machine reliability.

Q2: How does the eddy current measurement principle work in this probe?
A2: The probe operates by generating a high-frequency electromagnetic field at its sensing tip. When a conductive metal target, such as a steel shaft, enters this field, eddy currents are induced on the surface of the material. These eddy currents create a measurable change in the electrical impedance of the probe coil. The system converts this impedance change into a stable voltage output that is directly proportional to the distance between the probe and the shaft. This allows extremely accurate, repeatable, and stable measurement even in harsh industrial environments with vibration, temperature fluctuations, and electrical noise.

Q3: What types of machinery typically use this probe?
A3: This probe is commonly used in large, high-value rotating equipment such as steam turbines, gas turbines, centrifugal compressors, pumps, and industrial electric motors. It is especially important in industries like power generation, oil and gas, petrochemical processing, and heavy manufacturing. These applications require continuous monitoring because even minor mechanical deviations can lead to significant production losses or safety risks. The probe plays a key role in ensuring stable and efficient operation of critical assets.

Q4: What parameters does this probe measure in real operation?
A4: In real-world monitoring systems, the probe is used to measure radial shaft vibration, shaft position (gap), axial displacement, and rotor eccentricity. When multiple probes are installed around a shaft, they can also help reconstruct rotor orbit patterns. This information allows engineers to evaluate machine behavior in detail and detect conditions such as imbalance, misalignment, thermal growth, shaft bending, or developing bearing faults. Over time, these measurements also provide valuable trend data for performance evaluation and maintenance planning.

Q5: How does this probe integrate into a monitoring system?
A5: The probe works together with a Bently Nevada Proximitor sensor, which conditions the raw signal generated by the probe. The probe itself does not output a standard industrial signal; instead, it produces a raw eddy current response that reflects distance changes. The Proximitor converts this into a standardized voltage signal that can be used by monitoring modules, PLC systems, or protection systems. This integrated setup ensures accurate real-time monitoring, alarm generation, and long-term data trending for machinery protection.

Q6: Why is non-contact measurement preferred in this application?
A6: Non-contact measurement is critical because it eliminates physical contact between the sensor and the rotating shaft. This avoids wear and mechanical loading on the sensor, ensuring long service life and stable performance. It also allows measurement at very high rotational speeds where physical contact would be impossible or unsafe. Additionally, non-contact sensing improves accuracy by avoiding friction-related interference and ensures reliable operation in harsh environments such as high temperature, oil mist, and high vibration conditions.

Q7: What operating environments can this probe handle?
A7: The probe is designed for demanding industrial environments and can operate reliably under conditions such as high temperature, continuous vibration, oil contamination, and strong electromagnetic interference. Its rugged construction allows it to remain stable in long-term installations on critical machinery. Even in fluctuating operating conditions, it maintains consistent measurement accuracy, making it suitable for continuous-duty applications in power plants, refineries, and heavy industrial facilities.

Q8: How does this probe support predictive maintenance strategies?
A8: This probe plays a central role in predictive maintenance by continuously collecting high-resolution vibration and displacement data over time. Instead of only reacting to failures, maintenance teams can analyze trends such as gradual increases in vibration, slow shifts in shaft position, or unstable rotor behavior. These patterns often indicate developing mechanical issues long before failure occurs. By identifying these trends early, operators can schedule maintenance proactively, reduce unplanned downtime, optimize maintenance intervals, and significantly extend the operational life of critical rotating equipment.
