1. What is the Bently Nevada 330902-04-40-10-02-CN Proximity Probe mainly used for?

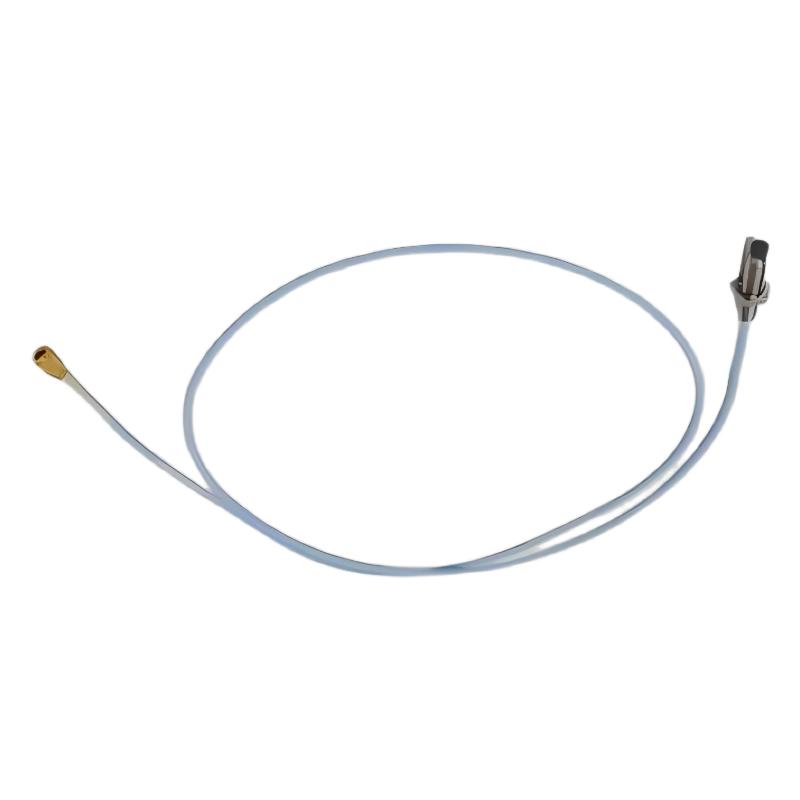

The Bently Nevada 330902-04-40-10-02-CN is a 3300 NSv series Eddy Current Proximity Probe designed for continuous monitoring of rotating machinery operating conditions. It is mainly used for measuring shaft vibration, shaft displacement, and rotor position changes in critical industrial equipment such as steam turbines, compressors, pumps, motors, and generators. The probe uses non-contact sensing technology to detect changes in the distance between the probe tip and the rotating shaft surface and converts mechanical movement into electrical signals for monitoring and analysis. Because there is no direct contact with the rotating shaft, the probe avoids mechanical wear and provides long-term stable operation. It is widely applied in machinery protection systems and predictive maintenance programs to help engineers identify abnormal vibration trends, improve equipment reliability, and reduce unexpected downtime.

2. How does the Bently Nevada 330902-04-40-10-02-CN detect shaft movement?

The 330902-04-40-10-02-CN uses Eddy Current displacement sensing technology to detect shaft movement. The internal sensing coil generates a high-frequency electromagnetic field, and changes in the distance between the probe tip and the conductive shaft surface affect the characteristics of this field. When the rotating shaft moves due to vibration or displacement, the probe detects these changes and converts them into proportional electrical signals. These signals are transmitted to the Bently Nevada monitoring system, where they are processed to evaluate shaft vibration levels, position changes, and overall machine condition. Since the measurement method is non-contact, the probe provides reliable performance without mechanical friction, making it suitable for high-speed rotating machinery monitoring applications.

3. What should be considered when installing the Bently Nevada 330902-04-40-10-02-CN?

When installing the 330902-04-40-10-02-CN, the probe position must be selected according to the mechanical structure and monitoring requirements of the equipment. Proper adjustment of the operating gap between the probe tip and the rotating shaft is essential for accurate measurement. Before installation, check the probe body, cable, and connectors to ensure there is no physical damage or contamination. The mounting position should be secure to prevent additional vibration interference. The connection between the probe and monitoring module must be properly installed to avoid signal instability caused by loose wiring. After installation, engineers should verify the output signal through the monitoring system and confirm that the system parameters are correctly configured for the specific equipment application.

4. How can abnormal output signals from the Bently Nevada 330902-04-40-10-02-CN be troubleshooted?

If the 330902-04-40-10-02-CN produces unstable signals, incorrect readings, or abnormal vibration values, troubleshooting should start with checking the sensor system. First, inspect the probe cable, connectors, terminals, and monitoring module interface to ensure proper electrical connections. Next, verify the installation condition and operating gap of the probe, as incorrect positioning can directly affect signal accuracy. If the sensor connection is normal, inspect the mechanical equipment condition, including shaft surface quality, rotor balance, bearing performance, and actual vibration behavior. The monitoring system settings, power supply stability, and possible electromagnetic interference should also be reviewed. A complete evaluation of the sensor, electrical system, and machinery condition can help identify the actual cause of abnormal signals and support effective corrective actions.

5. What advantages does the Bently Nevada 330902-04-40-10-02-CN provide in industrial monitoring systems?

The 330902-04-40-10-02-CN provides accurate shaft monitoring through non-contact Eddy Current technology, which is one of its main advantages in industrial applications. Unlike conventional vibration sensors that mainly detect vibration from machine structures, this proximity probe directly measures shaft movement and displacement, providing more accurate information about rotor behavior. The non-contact design eliminates mechanical wear and allows stable operation in demanding environments. It can detect early changes in shaft vibration patterns and displacement trends, helping engineers identify possible issues such as rotor imbalance, bearing problems, and mechanical alignment errors. The probe provides reliable measurement data for machinery protection systems, fault diagnosis, and predictive maintenance applications.

6. What maintenance procedures are recommended for the Bently Nevada 330902-04-40-10-02-CN?

Routine maintenance of the 330902-04-40-10-02-CN should include inspection of the probe condition, cable integrity, and connection reliability. Since the probe is installed near rotating equipment, it may be exposed to vibration, temperature changes, oil contamination, and industrial environmental conditions. Maintenance personnel should regularly check whether the cable has damage, aging, or insulation problems and ensure that all electrical connections remain secure. The monitoring system should also be reviewed periodically to confirm that vibration and displacement data remain stable. If abnormal readings occur, engineers should first check installation conditions, wiring, and configuration settings before replacing the sensor. Proper maintenance helps maintain monitoring accuracy and improves overall equipment protection reliability.

7. Why is the Bently Nevada 330902-04-40-10-02-CN suitable for predictive maintenance applications?

The 330902-04-40-10-02-CN is suitable for predictive maintenance because it continuously provides important information about shaft vibration and displacement conditions. By collecting and analyzing long-term operating data, maintenance teams can identify gradual changes in equipment performance and take preventive actions before serious failures occur. For example, increasing shaft vibration levels may indicate rotor imbalance, bearing wear, coupling problems, or alignment issues. Predictive maintenance based on real-time equipment condition helps reduce unnecessary inspections, minimize unexpected downtime, and improve operational efficiency. The stable signal output and reliable measurement performance of the 3300 NSv Proximity Probe make it an important component in industrial machinery health monitoring systems.

8. How should engineers handle abnormal measurement data from the Bently Nevada 330902-04-40-10-02-CN?

When abnormal measurement data is detected from the 330902-04-40-10-02-CN, engineers should follow a structured diagnostic process. First, review alarm records and historical trends from the monitoring system to determine whether the issue is temporary or indicates a developing equipment problem. Next, inspect the probe connection, cable condition, and installation status to confirm that the sensor system is operating correctly. If the sensor system is functioning normally, further investigation should focus on the mechanical condition of the rotating equipment, including rotor balance, bearing condition, coupling alignment, and operating load changes. The monitoring module configuration should also be checked to ensure that incorrect settings are not causing false alarms. By combining sensor inspection, electrical testing, and mechanical analysis, engineers can identify the root cause of abnormal readings and implement effective corrective measures to restore reliable equipment operation.
