1. What is the main function of the Schneider ATS48D62Q soft starter?

The Schneider Electric ATS48D62Q is an Altistart 48 soft starter designed to control the starting and stopping of three-phase asynchronous motors. It uses torque control to progressively establish the motor torque, allowing the motor to accelerate smoothly from standstill to normal operating speed.

Compared with direct-on-line starting, soft starting can reduce electrical and mechanical shock during acceleration. This helps reduce sudden stress on couplings, gearboxes, belts, shafts and other mechanical transmission components.

The ATS48D62Q is suitable for industrial applications including pumps, fans, conveyors, compressors and other heavy-duty motor-driven equipment. Its integrated motor thermal protection, starter thermal protection and phase-failure detection also provide additional protection for the motor control system.

2. What motor power is suitable for the ATS48D62Q?

The applicable motor power depends on the supply voltage, motor connection and duty level. With an in-line connection at 230 V, the ATS48D62Q is suitable for approximately 11 kW severe-duty applications and 15 kW standard-duty applications. At 400 V, the corresponding ratings are approximately 22 kW for severe duty and 30 kW for standard duty.

When an inside-delta connection is used, the applicable motor power is higher. At 230 V, the ratings are approximately 22 kW for severe duty and 30 kW for standard duty. At 400 V, the ATS48D62Q can be used for approximately 45 kW severe-duty and 55 kW standard-duty applications.

Motor rated current should always be considered together with motor power. Starting torque, load inertia, acceleration time and starting frequency should also be evaluated, particularly for high-inertia or frequently started machinery.

3. What supply voltage and frequency does the ATS48D62Q support?

The ATS48D62Q is designed for three-phase AC supply systems from 230 to 415 V, with an applicable supply range of approximately 195–456 V AC. The operating frequency is 50–60 Hz.

Before commissioning, the incoming power supply should be checked against the requirements of both the soft starter and motor. The three-phase supply should also be inspected for phase loss, excessive voltage imbalance and abnormal voltage conditions.

The ATS48D62Q supports both in-line and inside-delta motor connections. Since these configurations have different current and motor power capabilities, the main power circuit must be wired according to the selected connection method.

4. How does the ATS48D62Q provide a smooth motor start?

The ATS48D62Q uses torque-controlled starting to regulate the motor acceleration process. Instead of applying the full starting condition immediately, the soft starter progressively increases the torque supplied to the motor.

This controlled acceleration can reduce mechanical shock and electrical disturbances. It is particularly useful for equipment containing gearboxes, couplings, belts, pumps or other mechanical components that can be affected by sudden torque changes.

For pumps, conveyors, fans and compressors, a properly adjusted soft start can provide smoother acceleration and reduce stress throughout the mechanical system.

The starting parameters should be adjusted according to the actual load. Excessively low starting torque may prevent the motor from accelerating correctly, while an excessively long acceleration period can increase thermal stress on the motor and soft starter.

5. What protection functions are available on the ATS48D62Q?

The ATS48D62Q provides integrated motor thermal protection, starter thermal protection and line phase-failure detection.

Motor thermal protection monitors the thermal load generated during motor starting and operation. Overloading, prolonged acceleration or frequent starts can cause heat to accumulate inside the motor, making correct thermal protection settings important for reliable operation.

Starter thermal protection protects the internal power electronics against excessive thermal stress. Heavy-load starting, long acceleration periods and frequent starting cycles can increase the temperature of the power components.

The phase-failure detection function identifies abnormal three-phase supply conditions. A missing phase can cause current imbalance, reduced motor torque and excessive motor heating. If a phase-related fault occurs, the incoming supply, terminals and motor wiring should be inspected before restarting the equipment.

6. Can the ATS48D62Q communicate with a PLC through Modbus?

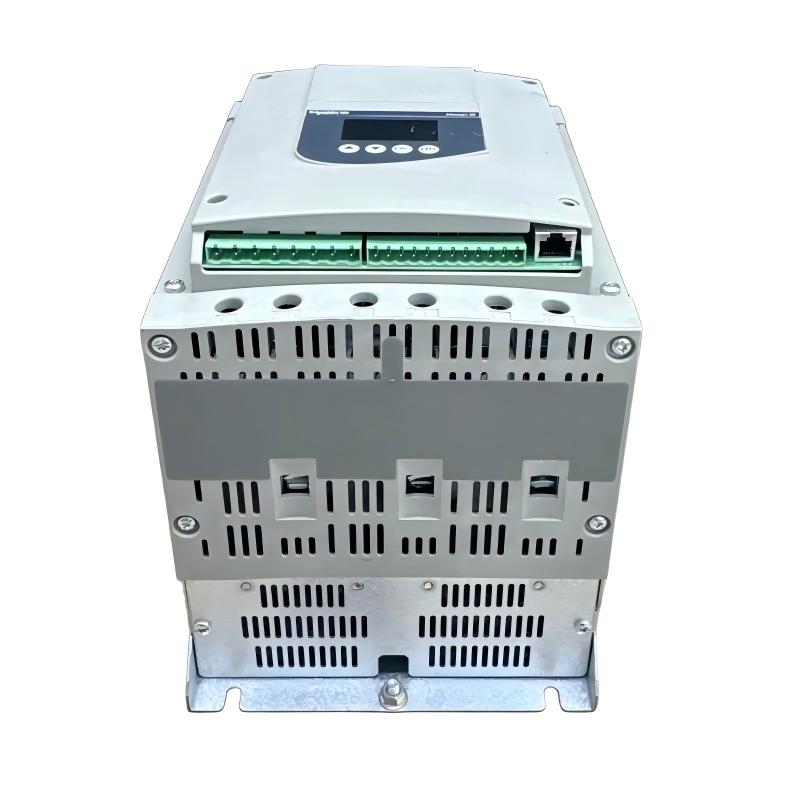

Yes. The ATS48D62Q supports Modbus communication through an RS485 multidrop interface and can be integrated into PLC-based motor control systems and industrial automation networks.

The communication interface uses an RJ45 connector and supports communication speeds of 4800, 9600 and 19200 bps. This allows operating information and available diagnostic data to be exchanged between the soft starter and the automation controller.

During commissioning, the Modbus address, baud rate and other communication parameters should be configured consistently between the ATS48D62Q and the PLC or Modbus master.

If communication is unsuccessful, the troubleshooting process should begin with the communication parameters, RS485 wiring, RJ45 connection and PLC configuration. A Modbus communication problem does not necessarily indicate a failure of the soft starter’s power section.

7. What should be checked if the ATS48D62Q trips during motor starting?

A startup trip can result from incorrect parameters, excessive mechanical load, abnormal power supply conditions, incorrect motor wiring or excessive thermal stress.

The first step is to identify the specific fault or diagnostic condition. The motor rated current should then be compared with the ATS48D62Q rating, followed by a review of the starting torque and acceleration settings.

The incoming three-phase supply should be checked for phase loss, abnormal voltage and significant imbalance. The motor wiring should also be inspected to confirm that the selected in-line or inside-delta configuration has been connected correctly.

Mechanical conditions should be investigated as well. A blocked pump, overloaded conveyor, abnormal compressor pressure or seized bearing can prevent the motor from accelerating normally.

For applications requiring frequent starts, the interval between starting cycles should also be evaluated. Excessive starting frequency can cause thermal accumulation and may eventually activate motor or soft starter thermal protection.

8. What should be considered when selecting and commissioning the ATS48D62Q?

Selection should begin with the motor rated current and supply voltage, followed by an assessment of the actual load characteristics. Motor power, starting torque, load inertia, acceleration time, starting frequency and motor connection method should all be considered.

The connection method is particularly important. At 400 V, the ATS48D62Q supports approximately 22 kW severe-duty and 30 kW standard-duty applications with an in-line connection. With an inside-delta connection, the corresponding ratings are approximately 45 kW for severe duty and 55 kW for standard duty.

During commissioning, motor parameters should be configured correctly and the starting torque, acceleration time and protection settings should be adjusted according to the actual machine.

Before energizing the equipment, the main power circuit, control wiring and grounding should be checked. If PLC control or Modbus communication is used, the digital inputs, digital outputs and communication functions should be tested separately.

After the first startup, monitoring motor current, acceleration behavior, operating status and fault records can help confirm that the ATS48D62Q is properly configured for the actual application. For replacement projects, the motor ratings, control requirements, communication configuration and installation conditions should also be checked before selecting a replacement model.
