1. What is the Schneider ATS490C32Y soft starter mainly used for?

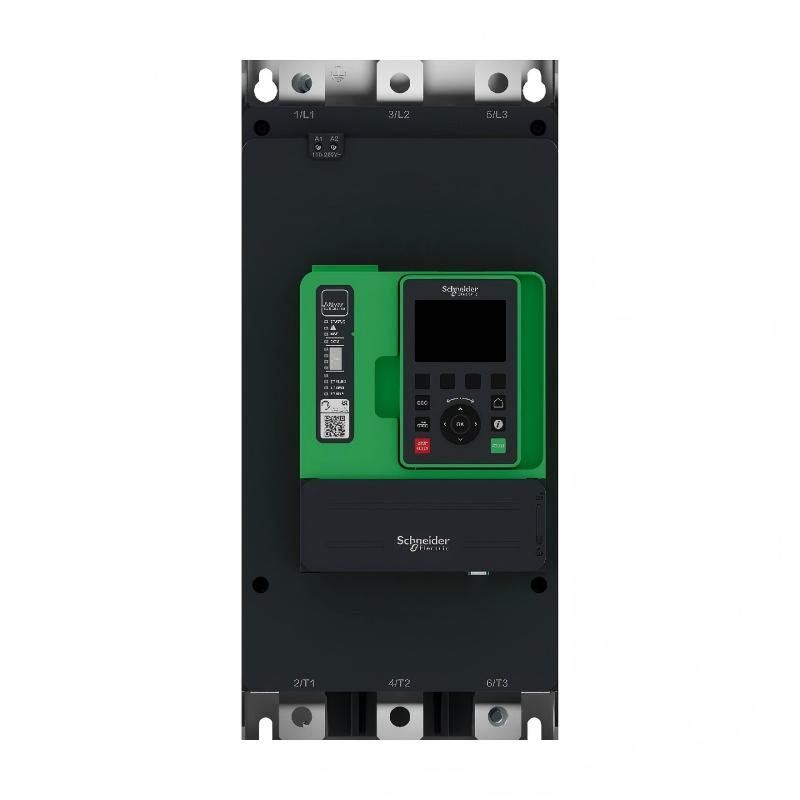

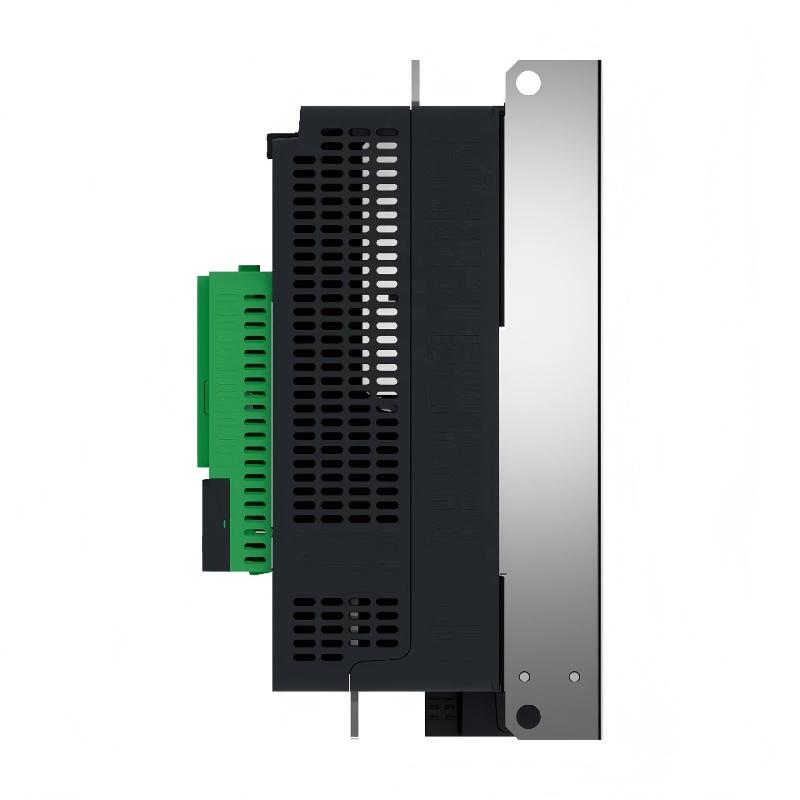

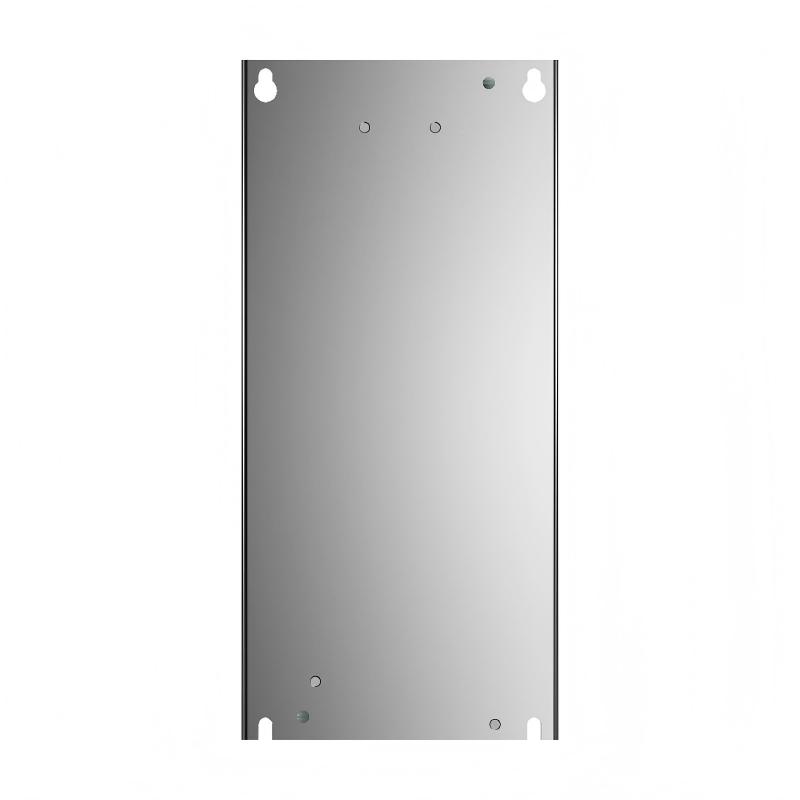

The Schneider ATS490C32Y is a 320 A Altivar Soft Starter designed for controlled starting and stopping of three-phase asynchronous motors. It uses torque control to regulate the motor during acceleration, helping reduce the high starting current and mechanical shock associated with direct-on-line starting. For pumps, fans, compressors, conveyors, mixers, crushers, and other industrial machinery, controlled acceleration can reduce stress on motors, couplings, gearboxes, shafts, and other mechanical components. The ATS490C32Y also integrates motor protection, an internal bypass, communication functions, condition monitoring, and Safe Torque Off. This allows it to operate as part of a complete industrial motor-control system and communicate with PLCs, HMIs, SCADA systems, and other automation equipment.

2. What is the rated current of the ATS490C32Y?

The ATS490C32Y has a rated operational current of 320 A under normal-duty conditions when operating below 40°C. Its heavy-duty rated current is 250 A at 40°C. When selecting the soft starter, the motor nameplate current and actual operating conditions should be considered rather than selecting the unit only according to motor power. Applications involving high starting torque, high inertia, long acceleration times, or frequent starting may require the heavy-duty rating. If the motor current exceeds the applicable rating, the soft starter may experience overload or thermal protection trips. The final selection should therefore consider motor current, starting torque, load inertia, acceleration time, starting frequency, and ambient temperature.

3. What motor power can the ATS490C32Y control?

The applicable motor power depends on the supply voltage and operating duty. Under normal-duty conditions, the ATS490C32Y is typically suitable for motors up to 90 kW at 230 V, 160 kW at 400 V and 440 V, 220 kW at 500 V and 525 V, 250 kW at 660 V, and 315 kW at 690 V. Final selection should be based primarily on the motor’s rated current rather than the kW value alone. High-inertia machines and applications with long acceleration times require additional consideration because they can place greater thermal demands on the soft starter. Starting torque, current limitation, acceleration time, operating cycle, and ambient temperature should all be checked before commissioning.

4. How does the ATS490C32Y provide smooth motor starting?

The ATS490C32Y uses torque control to regulate the motor during acceleration, allowing torque to build progressively instead of applying full voltage to the motor immediately. This helps reduce the sudden increase in current and mechanical torque that occurs during direct-on-line starting. The current limitation can be configured according to the application, with a maximum of 5 × Ie. Proper configuration can reduce voltage disturbances on the electrical network and decrease mechanical stress on the motor and driven equipment. This is particularly useful for pumps, where controlled acceleration can reduce sudden pressure changes in the piping system. The current limit should not be set unnecessarily low, however, because insufficient starting current may result in inadequate starting torque, prolonged acceleration, or failure to reach operating speed.

5. Which communication protocols are supported by the ATS490C32Y?

The ATS490C32Y supports Modbus Serial, Modbus TCP, and EtherNet/IP communication. The serial interface uses a two-wire RS-485 connection, while the Ethernet interface uses 100BASE-TX with an RJ45 connector. Modbus Serial communication supports transmission rates from 4.8 to 38.4 kbps, with device addresses from 0 to 247. Through these interfaces, the soft starter can exchange operating status, measurements, alarms, fault information, and diagnostic data with PLCs, HMIs, SCADA systems, industrial computers, and other automation devices. Remote start and stop commands can also be handled through the control system. During commissioning, the communication address, baud rate, data format, RS-485 wiring, Ethernet parameters, and PLC configuration should all be checked if communication problems occur.

6. What protection functions are included in the ATS490C32Y?

The ATS490C32Y provides multiple protection functions for the motor and soft starter, including mains phase failure, motor phase loss, motor overload, motor underload, motor thermal protection, starter thermal protection, excessive acceleration time, phase reversal, external thermal protection, and motor phase-to-earth short-circuit protection. These functions continuously monitor the operating condition of the motor and starter and can generate alarms or stop the motor when abnormal conditions are detected. Motor thermal protection uses a Class 10E characteristic. The internal protection functions should still be used together with properly selected upstream circuit breakers, fuses, grounding, and cable protection. Motor parameters and protection settings should be configured according to the actual motor nameplate and application conditions.

7. What is the purpose of the internal bypass in the ATS490C32Y?

The internal bypass is designed to reduce power semiconductor losses after the motor has completed its controlled acceleration and reached stable operating conditions. During starting, the power electronics control the motor current and torque. Once normal operation is established, the internal bypass provides a lower-loss operating path, reducing the heat generated by continuous semiconductor conduction. This is particularly beneficial for large industrial motors that operate for extended periods. The bypass is controlled by the soft starter’s internal control system and should not be considered simply as an external bypass contactor. During commissioning, the main circuit wiring, control settings, acceleration process, and transition into normal running should all be checked to ensure stable operation.

8. How should the ATS490C32Y be troubleshot if the motor fails to start or trips repeatedly?

Start by checking the three-phase power supply and the 110–230 V AC control supply. Confirm that the supply voltage is within the permitted range and that there is no phase loss or incorrect phase sequence. Next, inspect the motor power cables, terminals, motor connection, motor rated-current setting, and start/stop commands. If a phase-loss fault occurs, check the upstream circuit breaker, contactor, cables, terminals, and motor windings. If an overload or thermal protection fault occurs, check the actual motor current, mechanical load, cooling conditions, acceleration time, and starting frequency. If the motor begins rotating but cannot reach normal speed, check whether the current limit is too low, whether sufficient starting torque is available, whether the acceleration time is appropriate, and whether the load inertia is excessive. Pumps, fans, and compressors should also be checked for abnormal process loads. If the ATS490C32Y is controlled through Modbus or Ethernet, verify the communication address, network connection, PLC commands, and communication parameters. Reviewing the stored fault and diagnostic information before replacing the soft starter can help distinguish between a starter problem and issues caused by incorrect settings, external wiring, unstable power, or excessive mechanical load.
