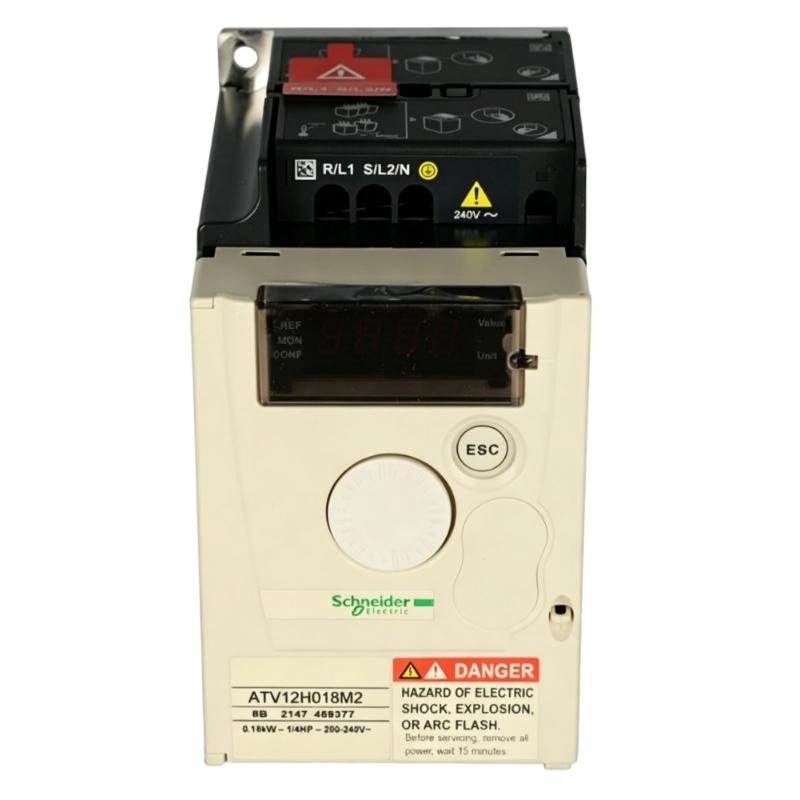

1. What is the main function of the Schneider ATV12H018M2?

The Schneider ATV12H018M2 is a compact variable frequency drive designed to control the speed, acceleration and deceleration of small asynchronous AC motors. It is rated for a 0.18 kW / 0.25 hp motor and operates from a single-phase 200–240 V AC supply. By varying the output frequency and voltage supplied to the motor, the drive can provide adjustable motor speed instead of operating the motor only at its fixed mains frequency. The ATV12H018M2 is particularly suited to simple machines and commercial equipment where compact size, straightforward commissioning and basic motor control are required. It also provides functions such as adjustable acceleration and deceleration, motor thermal protection, PID control and catch-on-the-fly operation.

2. What motor can be connected to the ATV12H018M2?

The ATV12H018M2 is designed for an asynchronous AC motor with a rated power of 0.18 kW (0.25 hp). The drive has a nominal continuous output current of 1.4 A at 4 kHz, so the motor’s rated current should be checked against the drive’s output-current capability before installation. The motor voltage and frequency must also correspond to the configured drive parameters. When commissioning the drive, technicians should enter the motor nameplate information, including rated voltage, current, frequency and power where required. Correct motor parameter settings are important because the drive uses these values for motor control and thermal protection. Using a motor whose rated current is significantly above the drive’s capacity can cause overcurrent, overheating or repeated protective trips.

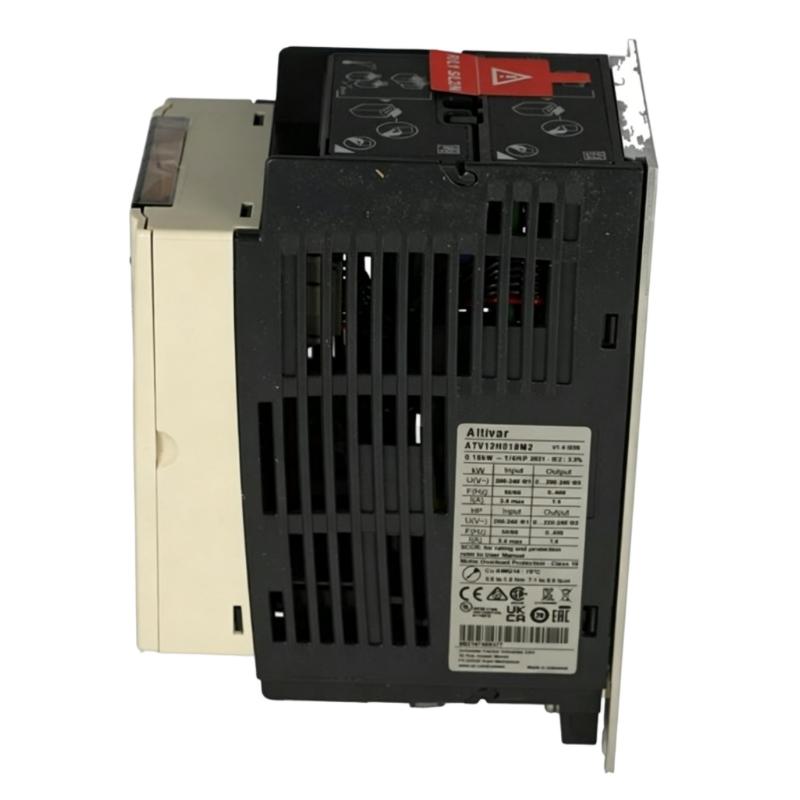

3. What supply voltage does the ATV12H018M2 require?

The ATV12H018M2 is designed for a single-phase 200–240 V AC supply with an allowable voltage range of approximately -15% to +10%. The rated supply frequency is 50/60 Hz with a tolerance of approximately ±5%. The drive itself converts the incoming AC supply into a controlled output for the connected motor, allowing the motor frequency to be adjusted over a range of approximately 0.5–400 Hz. Before energizing the unit, the incoming voltage should be measured and confirmed to be suitable. Incorrect supply voltage can cause undervoltage or overvoltage protection to operate and may result in unstable motor operation or damage to the drive.

4. What control methods are available on the ATV12H018M2?

The ATV12H018M2 supports several asynchronous motor control methods, including voltage/frequency (V/f) control, sensorless flux vector control and quadratic V/f control. V/f control is generally suitable for straightforward applications where a simple relationship between motor frequency and voltage is sufficient. Sensorless flux vector control can provide improved torque behavior and motor control performance without requiring a physical encoder. Quadratic V/f control can be useful for variable-torque applications such as fans and pumps. The appropriate control method depends on the mechanical load and required performance. After selecting the control mode, the motor parameters should be configured correctly so that the drive can provide stable acceleration, speed regulation and protection.

5. Does the ATV12H018M2 support Modbus communication?

Yes. The ATV12H018M2 includes a Modbus communication interface based on 2-wire RS-485 and provides an RJ45 communication connector. Modbus can be used to exchange operating commands, speed references, status information, alarms and diagnostic data between the drive and a PLC, HMI or other automation controller. The supported transmission rates include 4800, 9600, 19200 and 38400 bit/s, with device addresses ranging from 1 to 247. During commissioning, the drive’s communication address, transmission rate, parity and other communication settings must correspond to the master controller. If communication is unsuccessful, technicians should check the RS-485 wiring, polarity, termination, address and communication parameters before investigating the drive’s power section.

6. What should be checked if the ATV12H018M2 trips during motor acceleration?

If the drive trips while the motor is accelerating, first check the motor’s mechanical load and confirm that the shaft can rotate freely without excessive resistance. Then verify the motor nameplate data programmed into the drive, particularly rated current, voltage and frequency. An acceleration time that is too short can cause high motor current, especially when the connected load has significant inertia. Increasing the acceleration time may allow the motor to reach the target speed without triggering overcurrent protection. The motor cable, terminals and phase connections should also be checked for loose connections or insulation problems. If the drive displays an overcurrent, overheating, undervoltage or overvoltage fault, the specific diagnostic information should be reviewed before resetting the unit. Repeated trips should be treated as a fault condition requiring investigation rather than simply being cleared repeatedly.

7. How does the ATV12H018M2 protect the motor?

The ATV12H018M2 provides integrated electronic motor thermal protection based on continuous calculation of the motor’s I²t thermal condition. The drive also incorporates protection against input overvoltage, input undervoltage, output overcurrent, motor phase-to-earth short circuits and drive overheating. These functions help protect both the motor and the variable frequency drive during abnormal operating conditions. Correct motor parameters are essential for reliable thermal protection because the drive needs accurate information about the connected motor to calculate its thermal state properly. For applications with unusual ambient temperatures, frequent acceleration and deceleration or significant load variations, the protection settings should be reviewed carefully during commissioning.

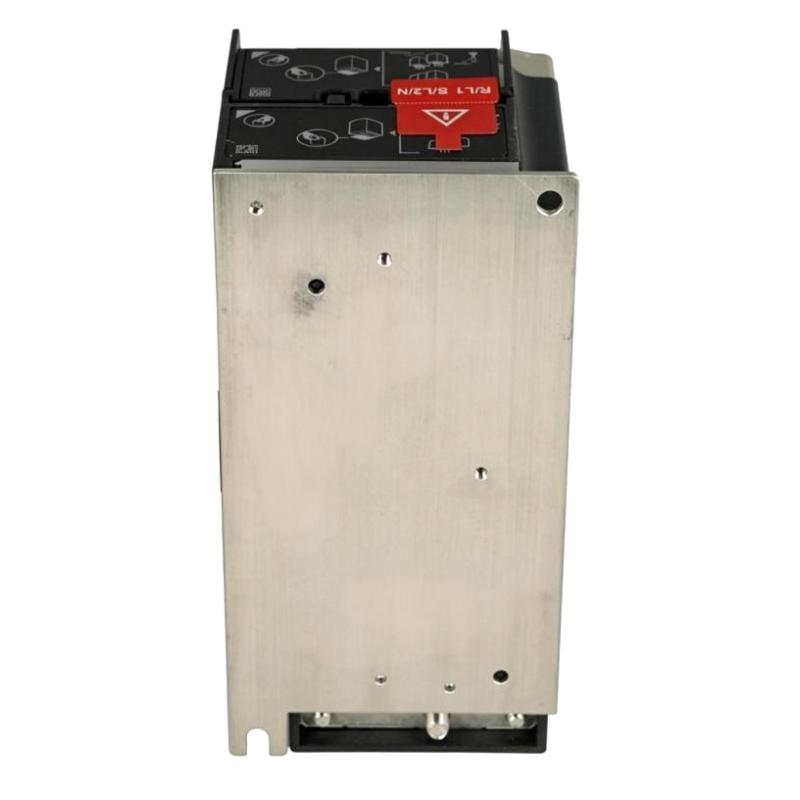

8. What should be considered when installing and commissioning the ATV12H018M2?

The ATV12H018M2 should be installed by qualified personnel in a suitable electrical enclosure or cabinet. Before commissioning, verify the single-phase 200–240 V AC supply, motor wiring, protective earth and control connections. The drive should be installed in the specified vertical orientation and adequate ventilation should be provided around the equipment. The motor nameplate data should be entered accurately, followed by configuration of the control mode, acceleration time, deceleration time, minimum and maximum frequency and required speed reference. If Modbus communication is used, the RS-485 wiring and communication parameters should also be checked. During the first test run, observe motor current, acceleration, operating frequency and abnormal noise or vibration. If the motor does not accelerate correctly or the drive reports a fault, stop the test and check the motor, wiring, parameters and mechanical load before continuing operation.
