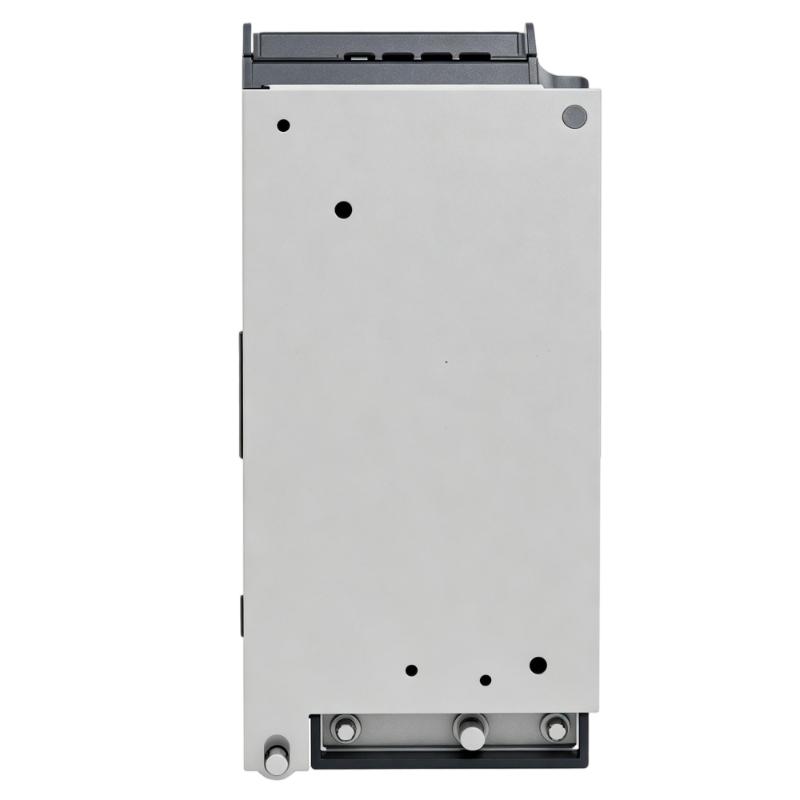

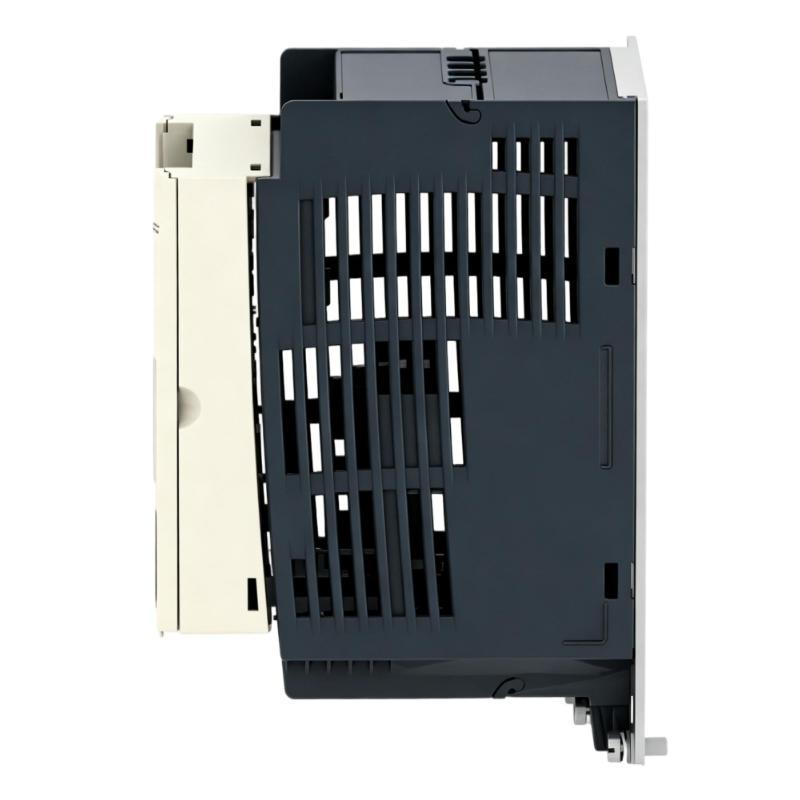

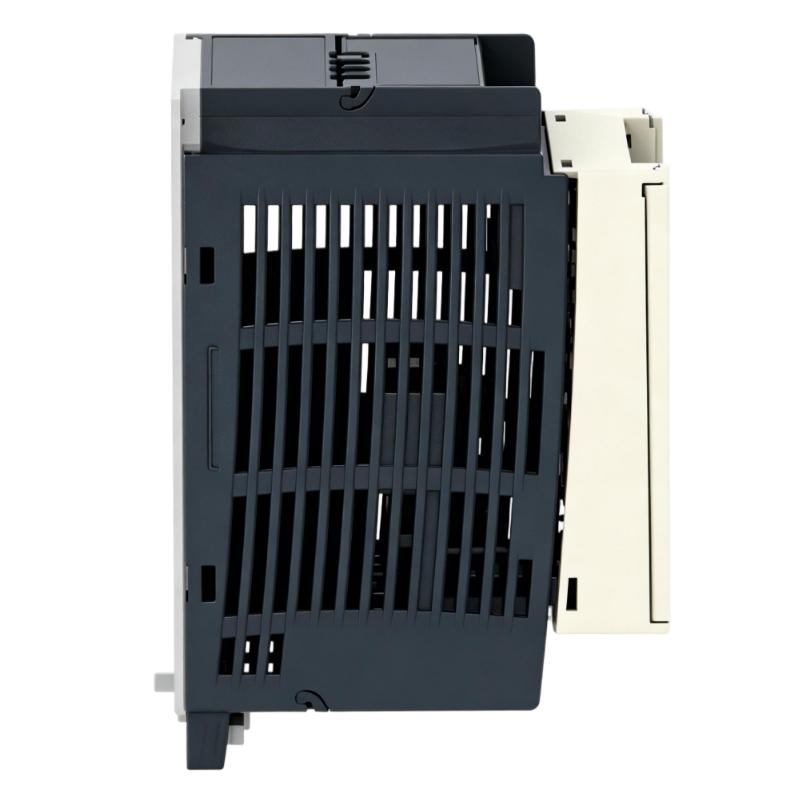

1. What is the main function of the Schneider ATV12H037M3?

The Schneider ATV12H037M3 is a compact variable frequency drive designed to control the speed, starting, stopping, acceleration and deceleration of asynchronous AC motors. It is rated for a 0.37 kW (0.55 hp) motor and uses a three-phase 200–240 V AC input. By adjusting the output frequency and voltage, the drive provides variable-speed motor operation and smoother acceleration compared with direct-on-line starting. It is suitable for simple machines, small conveyors, fans, pumps, ventilation equipment and other general-purpose industrial applications where reliable and flexible motor control is required.

2. What type of motor is suitable for the ATV12H037M3?

The ATV12H037M3 is designed for asynchronous AC motors with a rated power of 0.37 kW (0.55 hp). The nominal output current is 2.4 A, so the motor’s rated current should be checked against the drive rating before installation. The motor voltage and frequency must also match the drive configuration. During commissioning, the motor nameplate data should be entered accurately, including rated voltage, current, frequency and power. Correct parameter configuration allows the drive to provide stable speed and torque control while ensuring that the electronic motor thermal protection operates correctly.

3. What power supply is required for the ATV12H037M3?

The ATV12H037M3 requires a three-phase 200–240 V AC power supply. The allowable input voltage tolerance is approximately -15% to +10%, with an input frequency of 50/60 Hz ±5%. Before powering the drive, the incoming supply should be measured and confirmed to be within the specified range. Excessively low voltage may cause undervoltage protection, while excessive voltage can trigger overvoltage protection. In installations with significant mains fluctuations, the quality and stability of the incoming power should be checked to reduce nuisance trips and unstable operation.

4. Which motor control modes are supported by the ATV12H037M3?

The ATV12H037M3 supports V/f control, sensorless flux vector control and quadratic V/f control. V/f control is suitable for straightforward speed control applications and is relatively simple to configure. Sensorless flux vector control can provide improved torque performance without requiring an encoder, making it useful for applications requiring better low-speed control. Quadratic V/f control is particularly suitable for variable-torque loads such as fans and pumps. The control mode should be selected according to the motor characteristics and mechanical load. Motor nameplate parameters should then be configured correctly to achieve stable operation.

5. Does the ATV12H037M3 support Modbus communication?

Yes. The ATV12H037M3 supports Modbus communication through a 2-wire RS-485 interface with an RJ45 connector. It can communicate with PLCs, HMIs, SCADA systems and other automation controllers. The communication link can be used to exchange commands, speed references, operating status, alarms and diagnostic information. Supported transmission rates include 9.6, 19.2 and 38.4 kbit/s, with Modbus addresses from 1 to 247. When establishing communication, the drive and PLC must use compatible communication settings. If communication fails, the RS-485 wiring, address, baud rate and communication configuration should be checked systematically.

6. What should be checked if the ATV12H037M3 trips during acceleration?

If the drive trips during acceleration, first check whether the motor is mechanically overloaded or obstructed. Excessive friction, seized bearings or high load inertia can cause the motor to draw excessive current. The motor parameters programmed into the drive should then be compared with the motor nameplate, particularly rated voltage, current, frequency and power. If the acceleration ramp is too short, the motor may require excessive current during startup. Increasing the acceleration time can help reduce this demand. The motor cables and terminals should also be checked for loose connections, incorrect phase wiring or insulation problems. The actual fault indication should be reviewed to determine whether the problem is caused by overcurrent, overheating, phase loss, undervoltage or another protection condition.

7. What protection functions does the ATV12H037M3 provide?

The ATV12H037M3 incorporates multiple protection functions, including input overvoltage, input undervoltage, output overcurrent, motor phase-to-earth short circuit, motor phase-to-phase short circuit, overheating and phase-loss protection. It also provides electronic I²t motor thermal protection, which continuously evaluates the motor’s thermal load based on operating current and time. These functions help protect the motor and drive against abnormal operating conditions. Accurate motor nameplate parameters are important because the thermal model relies on correct motor information. For applications with frequent starting and stopping, rapid load changes or demanding duty cycles, the protection settings should be reviewed during commissioning.

8. What should be considered when installing and commissioning the ATV12H037M3?

Before commissioning, verify the three-phase 200–240 V AC supply, motor wiring, protective grounding and control connections. The drive should be mounted vertically and installed in a suitable electrical enclosure with adequate ventilation. Because the unit relies on heatsink cooling, the ventilation area should remain unobstructed. During commissioning, enter the motor nameplate data accurately and configure the motor control mode, minimum and maximum frequency, acceleration and deceleration times, and speed reference. If Modbus communication is required, check the RS-485 wiring and communication parameters before starting the motor. During the initial test, monitor motor current, frequency, acceleration behavior and any abnormal noise or vibration. If a protection fault occurs, stop the system and inspect the motor, load, wiring and configuration before resuming normal operation.
