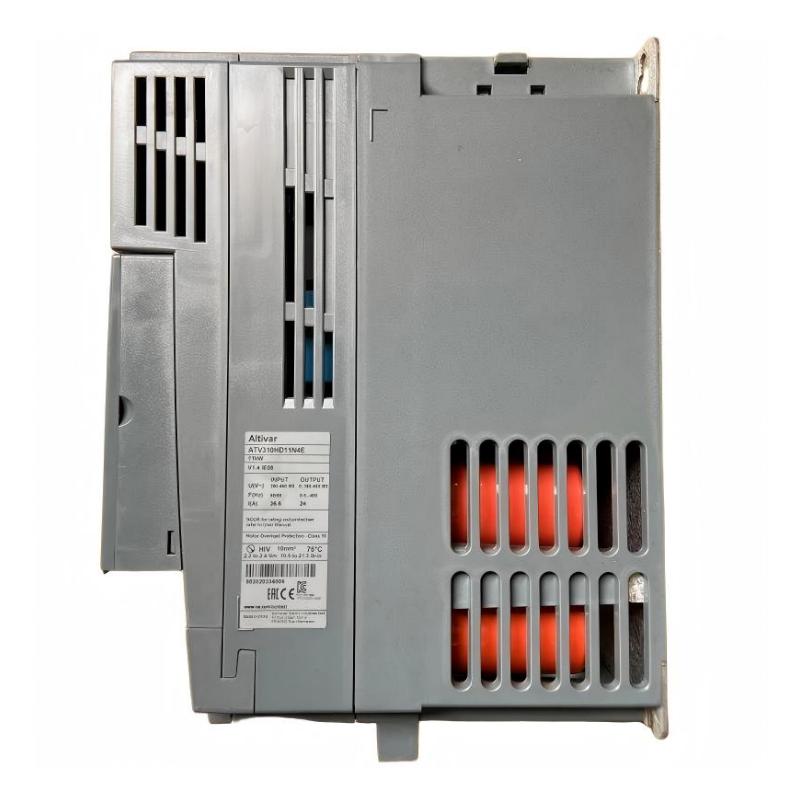

1. What motor power is the Schneider ATV310HD11N4E designed for?

The Schneider ATV310HD11N4E is primarily designed for three-phase asynchronous motors rated at 11 kW, or approximately 15 HP, when operated under Heavy Duty conditions. The same drive platform can support a higher motor rating under Normal Duty conditions, depending on the required load profile and application.

When selecting the drive, the motor’s rated current is particularly important. The application should not be evaluated only by motor power because frequent acceleration, high starting torque, overload periods and continuous heavy loading can significantly affect the required drive rating. For conveyors, material-handling equipment and other machines with demanding load cycles, the Heavy Duty rating should be considered carefully.

2. What type of power supply does the ATV310HD11N4E require?

The ATV310HD11N4E requires a three-phase 380–460 V AC power supply with a frequency of 50/60 Hz.

Under Heavy Duty conditions, the approximate input current is 36.1 A at 380 V and 30.4 A at 460 V. These values should be considered when selecting upstream circuit breakers, disconnect devices, cables and other electrical protection components.

Before energizing the drive, the supply voltage should be checked to ensure that it falls within the permitted range. Proper protective grounding is also essential. The power wiring should be separated appropriately from low-level control and communication wiring to reduce the possibility of electrical interference.

3. What motor control methods are supported by the ATV310HD11N4E?

The ATV310HD11N4E supports sensorless vector control and V/f control.

Sensorless vector control is suitable for applications requiring better torque regulation and speed stability without installing a motor encoder. It can provide improved performance during acceleration, low-speed operation and changes in mechanical load.

V/f control is generally suitable for simpler applications where sophisticated torque regulation is not required. The appropriate control method should be selected according to the motor characteristics and machine requirements.

For reliable commissioning, the motor’s rated voltage, current, frequency and power should be entered accurately. Incorrect motor parameters can lead to poor speed regulation, excessive current or unexpected protective trips.

4. Does the ATV310HD11N4E support Modbus communication?

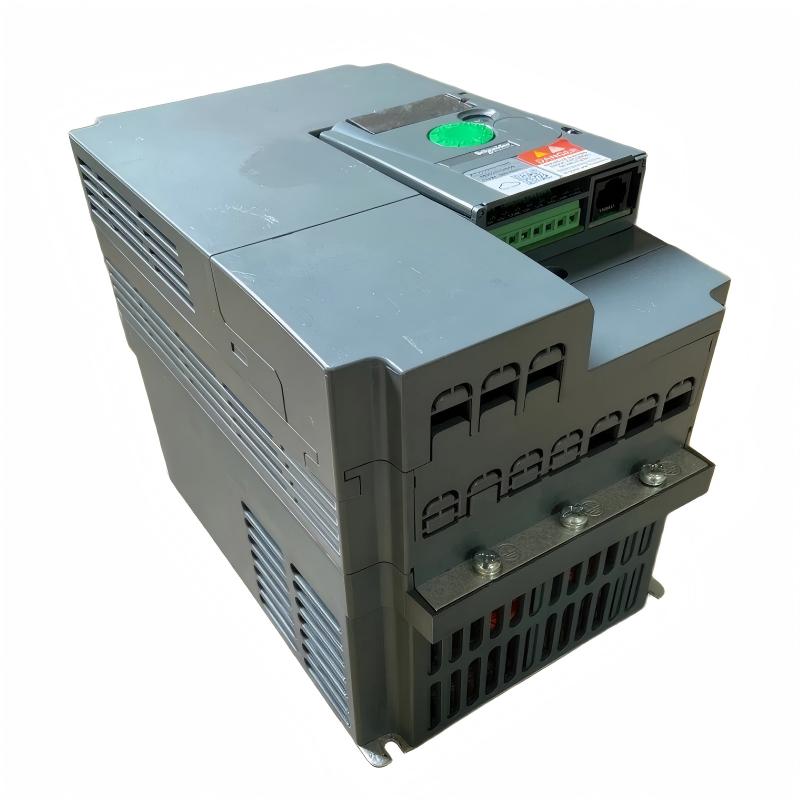

Yes. The ATV310HD11N4E supports Modbus RTU communication through a 2-wire RS-485 interface with an RJ45 connection.

The communication function allows the drive to exchange operating commands and status information with PLCs, HMIs and other industrial automation controllers. Typical functions include start/stop control, speed reference, operating-status monitoring, fault monitoring and parameter access.

When commissioning Modbus communication, the drive and the master controller must use compatible communication settings. The node address, baud rate, parity and other relevant parameters should be configured correctly. RS-485 wiring should also be installed with suitable routing and termination practices, especially where long communication distances or electrically noisy industrial environments are involved.

5. What is the output frequency range of the ATV310HD11N4E?

The ATV310HD11N4E provides an output frequency range of 0.5–400 Hz, with a nominal switching frequency of 4 kHz.

The output frequency should not simply be set to the maximum available value. The appropriate operating frequency depends on the motor’s rated frequency, allowable rotational speed, load characteristics and the mechanical limitations of the driven machine.

When the motor operates above its rated frequency, available torque can change and motor cooling may become less effective, particularly with self-ventilated motors. The mechanical system must also be capable of safely handling the increased rotational speed.

For normal industrial applications, the frequency limits should therefore be configured according to the motor and machine manufacturer’s operating requirements rather than using the maximum frequency as a default setting.

6. What protection functions does the ATV310HD11N4E provide?

The ATV310HD11N4E includes several protection functions designed to protect both the drive and connected motor during abnormal operating conditions. These include overcurrent, overload, overvoltage, undervoltage, overheating, short-circuit and phase-loss protection.

Electronic thermal protection monitors the motor’s operating condition and helps prevent excessive thermal loading. Correct motor nameplate information should be entered during commissioning so that the thermal model can operate appropriately.

If a protective trip occurs, the fault code should be recorded before resetting the drive. The timing of the fault can also provide useful diagnostic information. For example, a fault occurring immediately during acceleration may indicate excessive load or an overly aggressive acceleration ramp, while a fault occurring after prolonged operation may indicate thermal stress, insufficient cooling or sustained overload.

Repeatedly resetting the drive without identifying the cause is not recommended because the underlying mechanical or electrical problem may remain unresolved.

7. How should the ATV310HD11N4E be commissioned with a new motor?

Commissioning should begin with a complete inspection of the installation. Verify the three-phase input supply, motor terminals, protective grounding, control wiring and communication connections before applying power.

After energizing the drive, enter the motor nameplate data, including rated voltage, rated current, rated frequency and rated power. Select the appropriate motor-control method and configure acceleration and deceleration times based on the machine’s inertia and load characteristics.

If an analog reference or external control signal is used, verify the signal range and corresponding parameter settings. For Modbus operation, configure the communication address, baud rate, parity and control parameters before attempting remote operation.

During the first motor test, use a low operating speed and check the motor’s rotation direction, current, vibration and mechanical response. If the rotation direction is incorrect, the motor connection or control configuration should be corrected according to the applicable installation procedure.

Once the motor operates correctly without abnormal current or mechanical behavior, gradually increase the operating speed and load until the normal operating condition is reached.

8. What should be checked if the ATV310HD11N4E frequently trips during operation?

The first step is to identify the exact fault code and determine when the trip occurs. The operating stage is important because a fault during startup can have a different cause from one occurring after several hours of continuous operation.

For overcurrent or overload faults, inspect the motor load, mechanical transmission, bearings, acceleration time and motor wiring. A mechanically jammed machine or excessively short acceleration time can cause the drive to reach its current limit quickly.

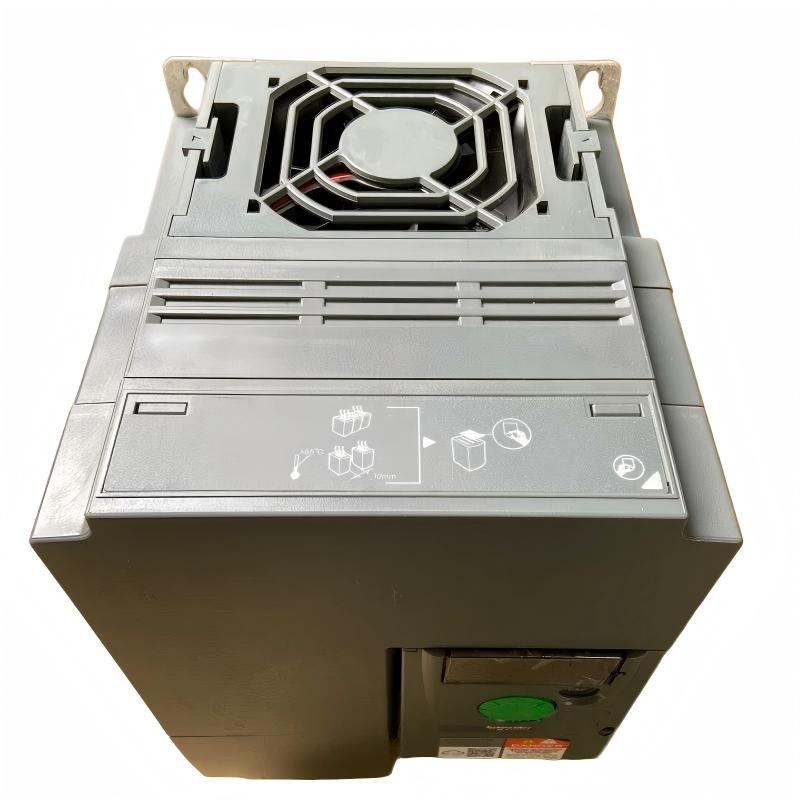

For overheating faults, check ambient temperature, ventilation, fan operation, load level and switching-frequency settings. High load combined with poor cooling can gradually increase the internal temperature of the drive.

For overvoltage or undervoltage faults, measure the incoming three-phase supply and inspect the associated electrical connections. Sudden voltage changes can also occur during certain switching or regenerative conditions.

Finally, verify the motor parameters stored in the drive. Incorrect rated current, voltage or frequency settings can cause abnormal motor behavior and unnecessary protective actions. If the problem remains after these checks, the power supply, motor, mechanical load, control wiring and drive should be tested systematically to locate the actual source of the fault.
