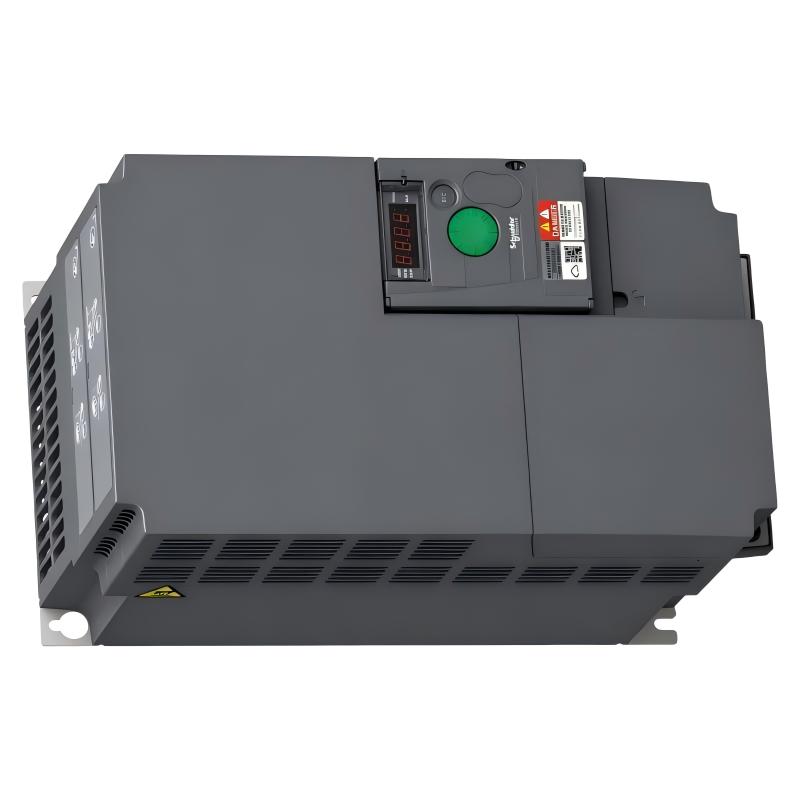

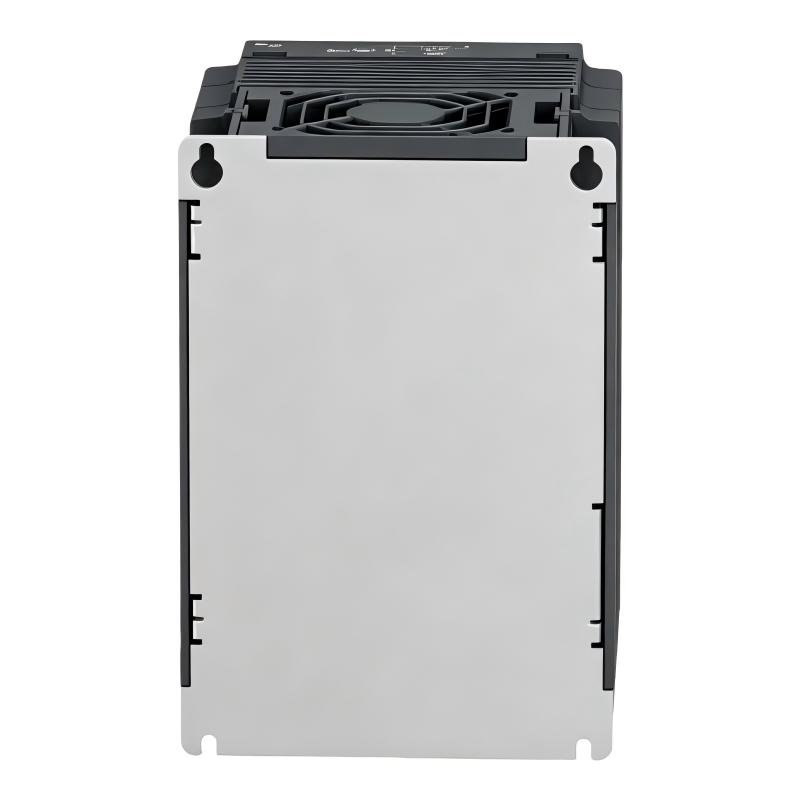

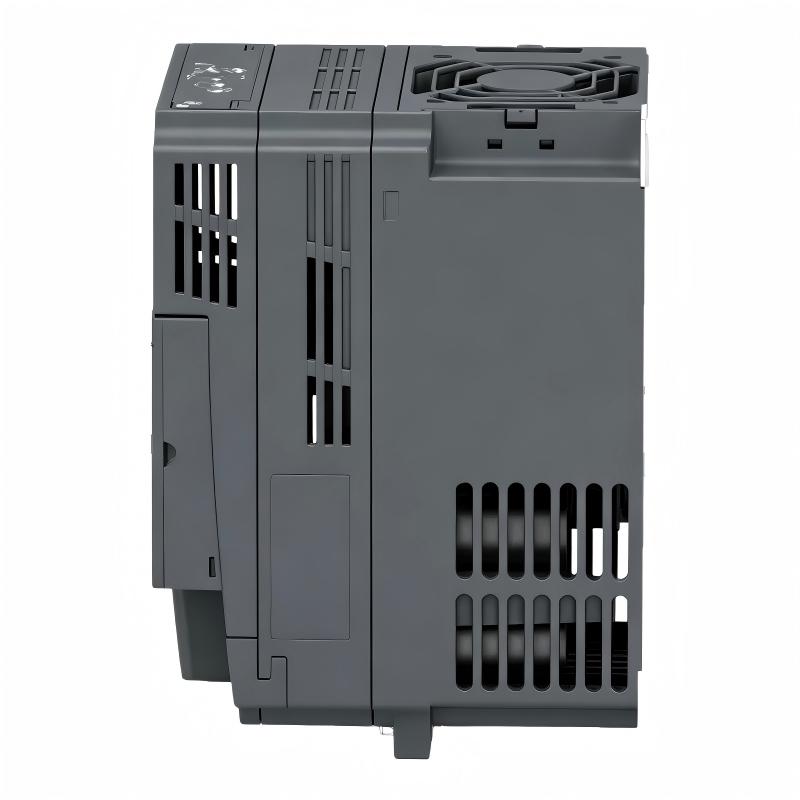

1. What is the main function of the Schneider ATV310HD22N4E?

The Schneider ATV310HD22N4E is a variable-speed drive designed to control three-phase asynchronous motors in industrial machinery and simple machine applications. It regulates the motor’s output voltage and frequency to control starting, stopping, acceleration, deceleration, speed, and torque. The drive supports multiple motor-control methods, including U/F control and sensorless vector control, allowing it to be adapted to different load characteristics. It also integrates motor and drive protection functions to help maintain stable operation under abnormal electrical or mechanical conditions.

2. What motor power ratings are supported by the ATV310HD22N4E?

The ATV310HD22N4E supports a 22 kW / 30 hp motor under heavy-duty conditions and a 30 kW / 40 hp motor under normal-duty conditions. The heavy-duty rating is intended for applications requiring significant overload capability, while the normal-duty rating is suitable for applications with less demanding overload requirements. When selecting the drive, the motor’s rated current and the actual load profile should be considered in addition to motor power. Applications with frequent starting, high starting torque, rapid acceleration, or substantial load variation should generally be evaluated using the heavy-duty rating.

3. What type of power supply is required for the ATV310HD22N4E?

The ATV310HD22N4E is designed for a three-phase AC supply from 380 to 460 V, with a supply frequency of 50/60 Hz ±5%. The actual incoming voltage should be checked before commissioning to ensure that it is suitable for the drive. Proper upstream protection, grounding, cable sizing, and phase connections are also required. Incorrect input voltage, phase loss, poor connections, or insufficient power capacity can result in drive protection trips and unstable operation. The installation should therefore be checked carefully before the drive is placed under load.

4. Which motor-control modes are available on the ATV310HD22N4E?

The ATV310HD22N4E supports conventional U/F control, energy-saving quadratic U/F control, and sensorless vector control. U/F control is suitable for applications where simple and reliable speed control is sufficient. Quadratic U/F control can be useful for load characteristics associated with applications such as fans and pumps. Sensorless vector control provides more advanced torque and speed regulation without requiring a physical encoder. The appropriate control mode should be selected according to the motor characteristics, load requirements, starting torque, and desired speed-control performance.

5. What communication interface does the ATV310HD22N4E provide?

The drive provides Modbus RTU communication through a two-wire RS-485 interface with an RJ45 connector. It can communicate with PLCs, HMIs, industrial controllers, and other Modbus master devices for functions such as speed reference, run commands, status monitoring, parameter access, and fault diagnosis. Supported transmission rates include 4800, 9600, 19200, and 38400 bit/s, while Modbus addresses can be configured from 1 to 247. If communication is unstable, check the RS-485 wiring, communication parameters, device address, master configuration, and network connections systematically.

6. Why does the ATV310HD22N4E trip during motor acceleration?

An acceleration trip can occur when the motor requires more current or torque than expected during startup. The acceleration ramp should be checked first because an excessively short ramp can create a high current demand. The motor’s rated voltage, current, frequency, power, and speed parameters should also be verified. Mechanical factors are equally important; excessive inertia, a blocked machine, high friction, or an overloaded mechanism can significantly increase the torque required during acceleration. If the electrical and motor parameters are correct, increasing the acceleration time can reduce the instantaneous current demand. If the problem persists, the motor cable, motor insulation, mechanical load, and drive output stage should be inspected.

7. How should an overcurrent fault on the ATV310HD22N4E be diagnosed?

The first step is to determine when the overcurrent occurs. An immediate trip after a start command may indicate incorrect motor wiring, a short circuit, incorrect motor parameters, or a mechanical problem. An overcurrent condition during acceleration can be related to an overly short acceleration ramp or excessive load inertia. If the fault occurs during constant-speed operation, check the motor load, machine torque requirements, and possible mechanical blockage. If it occurs during deceleration, inspect the deceleration ramp and braking conditions. The motor cable and insulation should also be checked for damage. Repeated overcurrent faults should be investigated systematically rather than simply increasing current limits, because doing so may conceal an underlying electrical or mechanical fault.

8. What should be checked when commissioning a replacement ATV310HD22N4E?

Before commissioning, verify the three-phase input supply, protective grounding, motor connections, control terminals, and upstream protection devices. Enter the motor nameplate data accurately, including rated voltage, current, frequency, power, and speed. Select the appropriate U/F or sensorless vector control mode and configure suitable acceleration and deceleration ramps. Perform an initial low-speed test to confirm the motor rotates in the correct direction and that the output current and operating frequency are normal. If Modbus is used, verify communication between the drive and PLC or controller before enabling automatic operation. After confirming that there are no abnormal alarms, gradually increase the load while monitoring motor current, speed stability, drive temperature, and diagnostic information. This staged commissioning process helps identify configuration or wiring problems before the machine reaches full operating conditions.
