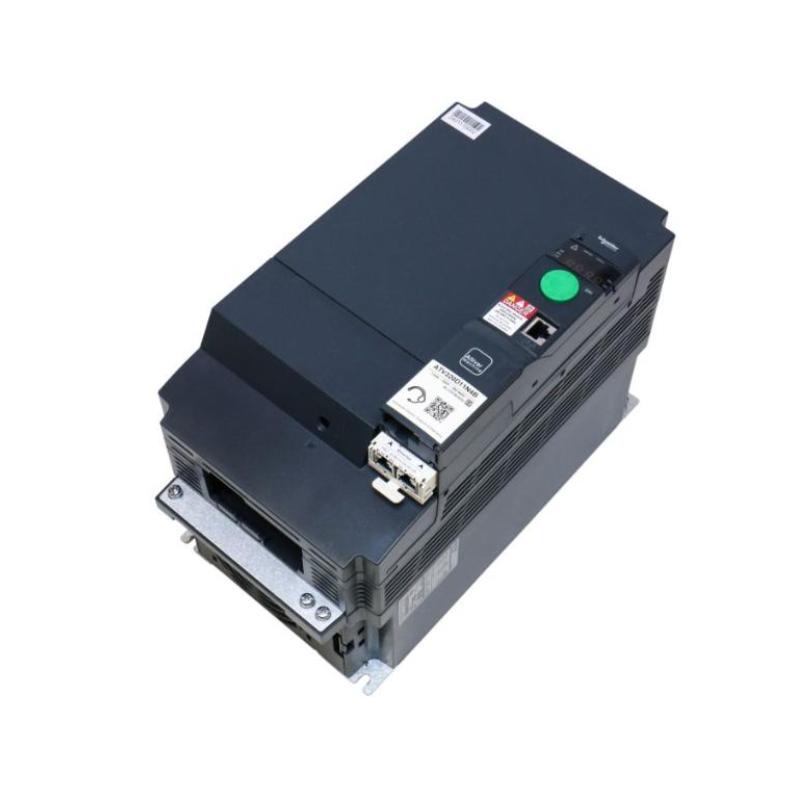

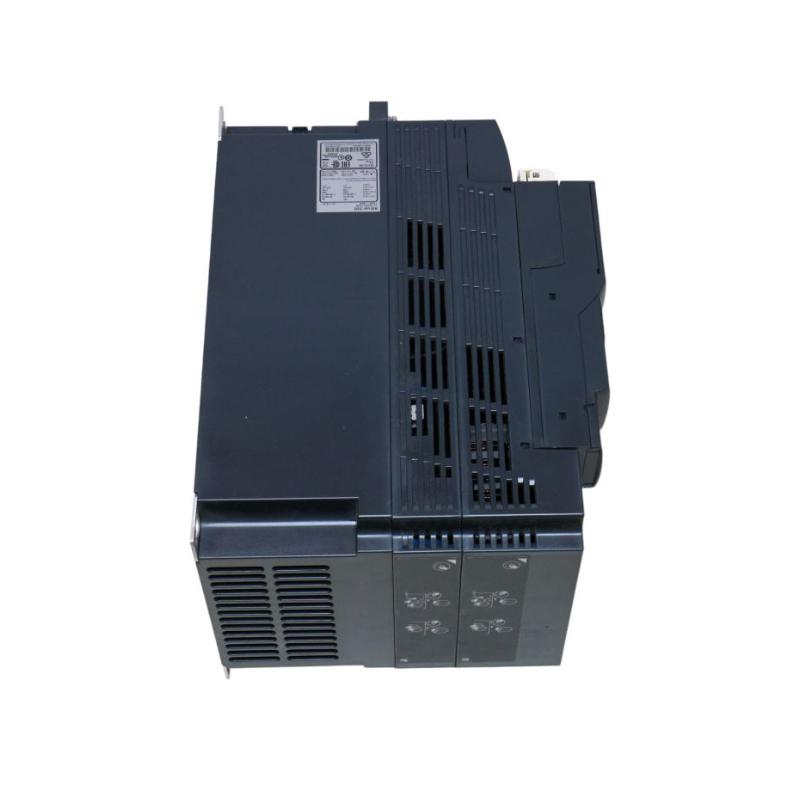

Schneider ATV320D15N4B Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
ATV320D15N4B Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | ATV320D15N4B Variable Frequency Drive |
| Brand | Schneider Electric |
| Product Type | Industrial Equipment |
| Series | Altivar 320 |
| Drive Type | Variable Frequency Drive (VFD) |
| Input Voltage | 380–500 V AC, 3-Phase |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0–500 V AC |
| Rated Output Current | 32 A |
| Rated Power | 15 kW (20 HP) |
| Motor Control Type | V/Hz Control, Sensorless Flux Vector Control |
| Output Frequency Range | 0–599 Hz |
| Overload Capacity | 150% of Rated Current for 60 Seconds |
| Integrated EMC Filter | Class C2 EMC Filter |
| Communication Protocols | Modbus RTU, CANopen |
| Digital Inputs | 6 |
| Analog Inputs | 3 |
| Analog Outputs | 1 |
| Relay Outputs | 2 |
| Safety Function | Safe Torque Off (STO) |
| Protection Rating | IP20 |
| Mounting Type | Panel Mount |
| Cooling Method | Forced Air Cooling |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Relative Humidity | 5%–95% Non-Condensing |
| Certifications | CE, UL, cUL, RoHS |
| Lifecycle Status | Active |
| Dimensions (H × W × D) | Approx. 340 × 180 × 232 mm |
| Weight | Approx. 7.5 kg |
| Typical Applications | Conveyors, packaging machines, pumps, fans, compressors, material handling systems, mixers, industrial automation equipment |
FAQ
What is the ATV320D15N4B used for?
The ATV320D15N4B is a variable frequency drive designed to provide precise speed and torque control for three-phase AC motors used in industrial machinery and automation systems.
What motor size can this drive control?
This model is rated for motors up to 15 kW (20 HP) operating on a 380–500 V three-phase power supply.
Which communication protocols are supported?
The drive includes Modbus RTU and CANopen communication as standard, allowing easy integration into industrial control networks.
Does the drive include built-in safety functions?
Yes. The ATV320D15N4B includes a Safe Torque Off (STO) safety function that helps meet modern machine safety requirements.
What motor control modes are available?
The drive supports V/Hz control and Sensorless Flux Vector Control, enabling efficient operation across a wide range of applications.
Can this drive be used for high-speed motor applications?
Yes. It supports output frequencies up to 599 Hz, making it suitable for applications requiring extended speed ranges.
What environmental conditions can the drive operate in?
The drive is designed to operate in temperatures from -10°C to 50°C with relative humidity levels up to 95% non-condensing.
Which industries commonly use the ATV320D15N4B?
It is widely used in manufacturing, packaging, material handling, water treatment, food processing, HVAC systems, and general industrial automation applications.
Schneider ATV320D15N4B Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
