1. What is the main function of the Schneider ATV320U02M2C?

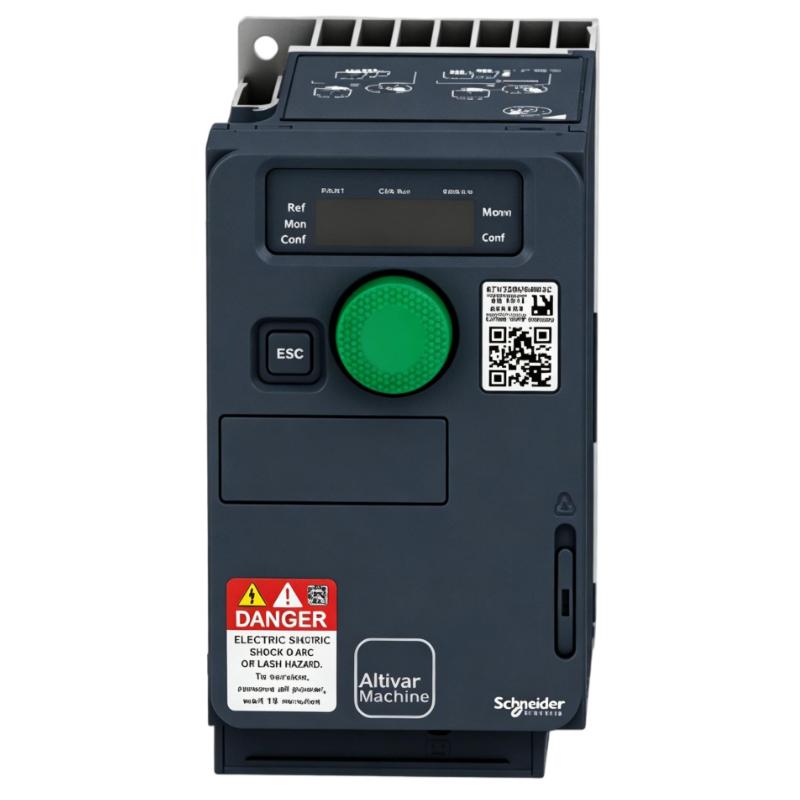

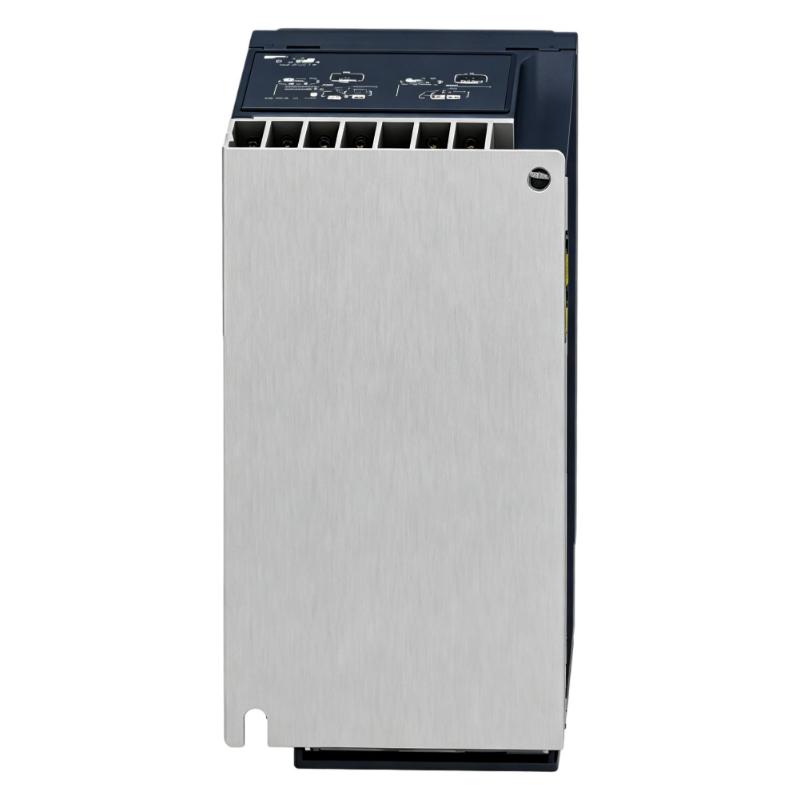

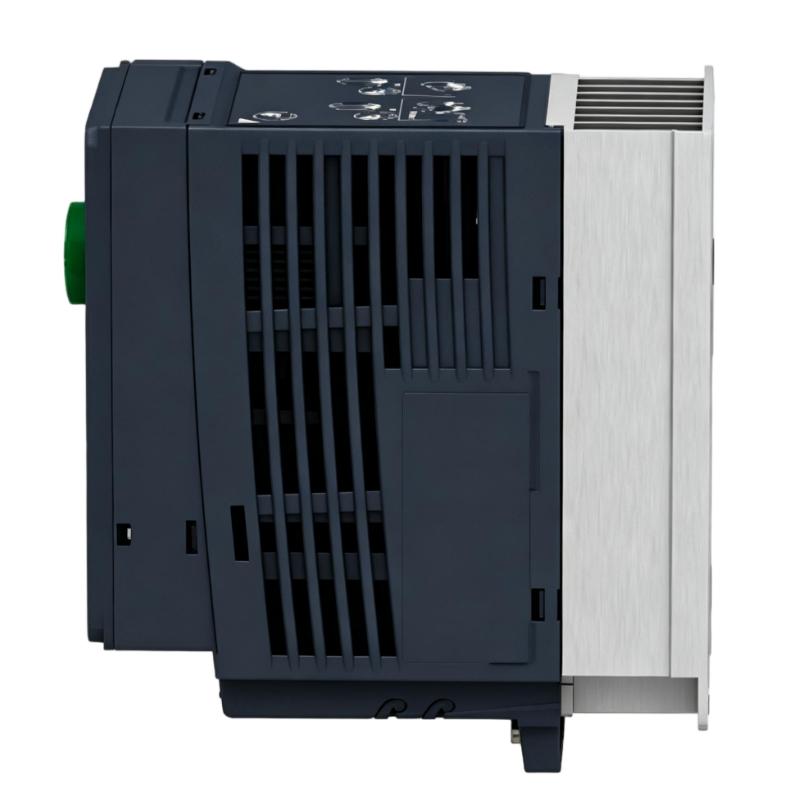

The Schneider Electric ATV320U02M2C is a compact variable-speed drive designed to control compatible AC motors in industrial machinery and automation systems. It regulates the frequency and voltage supplied to the motor, allowing controlled starting, acceleration, deceleration, stopping and speed adjustment. With a 0.18 kW motor rating and single-phase 200–240 V AC input, it is particularly suitable for smaller machine applications where precise and reliable motor control is required. The drive also incorporates control, protection, communication and safety functions that allow it to be integrated into a broader automation system.

2. What type of motor can the ATV320U02M2C control?
The ATV320U02M2C can control compatible asynchronous and synchronous AC motors. The appropriate motor-control mode should be selected according to the motor type and application requirements. During commissioning, the motor nameplate information should be entered accurately, including rated voltage, rated current, rated frequency, rated power and rated speed. Incorrect motor parameters can result in excessive current, poor acceleration, unstable low-speed operation or insufficient torque. Proper motor identification and parameter configuration are therefore important before placing the machine into normal operation.

3. How should the motor parameters be configured on the ATV320U02M2C?
Motor parameters should be taken directly from the connected motor’s nameplate and entered into the drive. Typical settings include rated voltage, rated current, rated frequency, rated power and rated speed. After entering these values, select the appropriate motor-control mode and configure acceleration and deceleration times according to the mechanical load. If the motor does not accelerate smoothly, draws excessive current or produces unstable torque, the motor parameters and mechanical load should be checked first. The drive should not be operated continuously with estimated or incorrect motor data because this can affect both motor performance and protection behavior.

4. What can cause an overcurrent fault on the ATV320U02M2C?
An overcurrent fault may be caused by excessive mechanical load, a blocked machine, incorrect motor parameters, an acceleration time that is too short, incorrect motor wiring or a motor fault. A sudden increase in load torque can also cause the output current to rise rapidly. If the fault occurs immediately after a start command, inspect the motor wiring, motor condition and mechanical load. If the fault occurs mainly during acceleration, check the acceleration time and motor-control settings. The drive’s fault history can be useful for identifying the operating stage in which the overcurrent occurs and narrowing down the cause.

5. Why might the ATV320U02M2C trip during motor acceleration?
During acceleration, the motor requires additional torque, which normally increases the output current. If the mechanical load is too high or the programmed acceleration time is too short, the drive may reach its current or protection limits. Incorrect motor parameters can produce similar symptoms because the drive may not have an accurate representation of the connected motor. Troubleshooting should begin by confirming that the mechanical system is free to move and that the motor is correctly wired. The motor nameplate settings should then be checked. If the application permits, increasing the acceleration time can reduce the instantaneous current demand. Persistent faults require further inspection of the motor, load and control configuration.

6. How can communication problems with the ATV320U02M2C be diagnosed?
The ATV320U02M2C supports Modbus and CANopen communication for integration with automation controllers and industrial networks. When communication fails, first verify that the communication protocol selected in the drive is consistent with the PLC or network controller. Check the device address and communication parameters, followed by the communication cable and connectors. The PLC program should also be checked to confirm that valid commands are being transmitted and that the drive’s status information is being interpreted correctly. For intermittent communication problems, inspect cable shielding, grounding, termination and routing. Communication cables should be routed appropriately to reduce the effects of electromagnetic interference from motor cables and other high-power equipment.

7. What should be checked if the ATV320U02M2C experiences overheating or thermal protection?
Overheating should be investigated by checking the installation environment, ventilation and operating load. Make sure the drive is not installed in an area where airflow is severely restricted and verify that the surrounding temperature remains within the permitted operating range. The motor load and output current should also be examined because continuous high-current operation increases thermal stress. Frequent starts, rapid acceleration, high mechanical torque or continuous operation near the drive’s limits can contribute to thermal problems. If overheating continues while the load and environmental conditions appear normal, inspect the cooling arrangement, electrical connections and drive operating parameters to identify the underlying cause.

8. What precautions should be taken when installing, replacing or commissioning the ATV320U02M2C?
Before installation, wiring or maintenance, completely isolate the drive from the power supply and follow the required electrical safety procedures. Verify the input power connections, motor wiring, protective grounding and control terminals before applying power. During commissioning, enter the correct motor nameplate data and configure the required motor-control mode, acceleration time, deceleration time and protection settings. The initial motor test should be performed under controlled conditions while checking rotation direction, motor current, acceleration response and fault indications. If the drive is connected to a PLC or communication network, verify both command transmission and status feedback. Any abnormal current, repeated protection trip or unstable motor behavior should be investigated and corrected before the equipment is returned to normal production.
