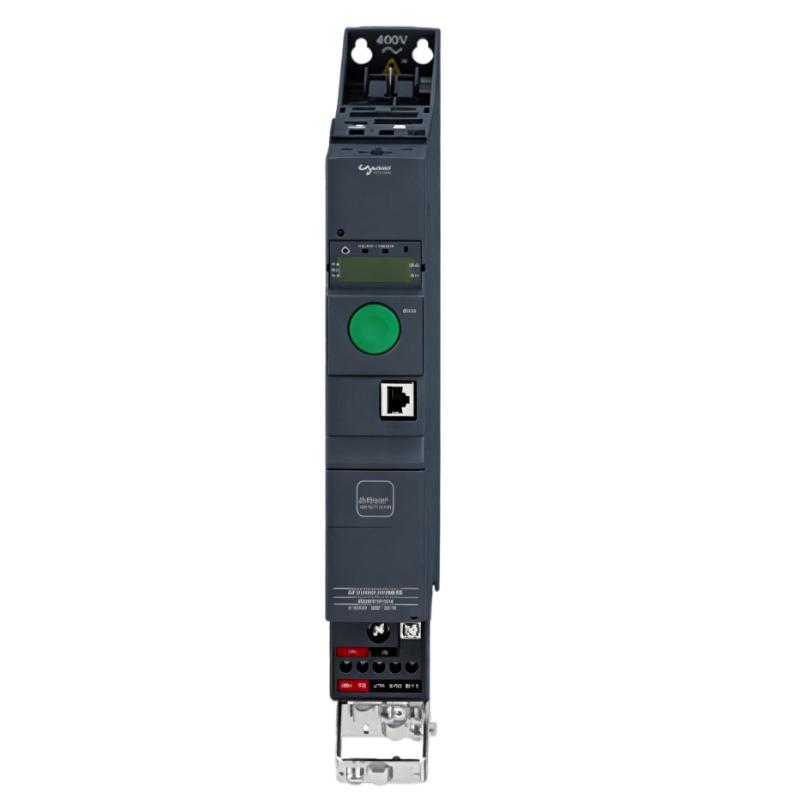

1. What is the main function of the Schneider ATV320U04M2B?
The Schneider Electric ATV320U04M2B is a variable-speed drive designed to control compatible AC motors in industrial machinery and automation systems. It controls motor speed and torque by regulating the frequency and voltage supplied to the motor. With a rated motor power of 0.37 kW and a single-phase 200–240 V AC input, it is suitable for small industrial machines and equipment requiring controlled motor operation. The drive can provide smooth starting, acceleration, deceleration and stopping, helping reduce mechanical shock and improve the overall operating performance of the machine. It can also be integrated with automation controllers through its control and communication functions.

2. What type of motor can the ATV320U04M2B control?
The ATV320U04M2B is designed for compatible asynchronous and synchronous AC motors. It supports different motor-control methods, including V/F control and sensorless vector control, allowing the drive to be configured according to the motor and application. During commissioning, the motor nameplate information should be entered accurately, including rated voltage, rated current, rated frequency, rated power and rated speed. Correct motor parameter configuration is important for stable operation, particularly when the application requires high starting torque, frequent acceleration and deceleration, or stable low-speed operation.

3. How should the motor parameters be configured on the ATV320U04M2B?
Motor parameters should be taken directly from the actual motor nameplate. The main settings normally include rated voltage, rated current, rated frequency, rated power and rated speed. After entering the motor data, select the appropriate control mode and configure acceleration and deceleration times according to the mechanical characteristics of the equipment. If the motor produces excessive current, insufficient torque or unstable speed, verify the motor parameters before changing other settings. Incorrect motor data can affect the drive’s control accuracy, starting performance and protection behavior, so accurate configuration should be completed before full-load operation.

4. What can cause an overcurrent fault on the ATV320U04M2B?
An overcurrent fault may be caused by excessive mechanical load, a blocked machine, incorrect motor parameters, an acceleration ramp that is too short, incorrect motor wiring or a motor problem. If the fault occurs immediately after issuing a start command, inspect the motor connections and mechanical system first. If the fault appears mainly during acceleration, check the acceleration time and motor-control parameters. The motor’s rated current should also be compared with the drive configuration to ensure that the settings are appropriate. Reviewing the fault history can help determine when the excessive current occurs and can make troubleshooting more efficient.

5. Why does the ATV320U04M2B trip during motor acceleration?
Acceleration requires additional torque, which naturally increases motor current. If the mechanical load is too high, the acceleration time is too short, or the motor parameters are incorrect, the current may reach the drive’s protection threshold. Start troubleshooting by checking whether the mechanical equipment moves freely and whether the connected load is within its expected operating range. Then verify the motor nameplate settings and selected control mode. If the machine allows a longer acceleration period, increasing the acceleration time can reduce the instantaneous current requirement. If the problem remains after these checks, inspect the motor, output wiring, mechanical load and drive configuration for other possible causes.

6. How can communication problems with the ATV320U04M2B be diagnosed?
The ATV320U04M2B supports Modbus Serial and CANopen communication for integration with PLCs and other automation controllers. When communication is unavailable, first check that the same communication protocol and compatible parameters are configured on both devices. Verify the drive address, communication settings, cable connections and connectors. If commands are being sent but the expected drive status is not received, check the control-word, status-word and data-mapping configuration. Intermittent communication faults may be related to poor cable shielding, grounding, termination or electromagnetic interference. Communication cables should be routed carefully and kept away from high-power motor cables whenever possible.

7. What should be checked if the ATV320U04M2B experiences overheating or thermal protection?
When a thermal protection fault occurs, first check the surrounding installation conditions and cooling airflow. Make sure the drive is installed in an environment where heat can be dissipated effectively and that nearby components are not blocking the ventilation path. The cooling fan and airflow should be checked for abnormal operation. The motor load and output current should also be monitored because prolonged operation at high current can significantly increase thermal stress. Frequent starting, rapid acceleration, high torque requirements and continuous operation near the rated load can contribute to overheating. If the problem continues despite normal loading and suitable environmental conditions, the cooling system, electrical installation, motor parameters and operating cycle should be examined in detail.

8. What precautions should be taken when installing, replacing or commissioning the ATV320U04M2B?
Before installation, replacement or maintenance, completely disconnect the drive from the power supply and follow the applicable electrical safety procedures. Confirm the input power wiring, motor output connections, protective grounding and control terminals before energizing the equipment. During commissioning, enter the actual motor nameplate parameters and select the appropriate motor-control mode. Acceleration and deceleration times should be configured according to the machine’s mechanical characteristics. The initial motor test should be performed under controlled conditions while monitoring motor direction, output current, acceleration behavior and fault indications. When the drive is connected to a PLC or communication network, verify both command transmission and status feedback. Any repeated fault, abnormal current, overheating or unstable motor behavior should be corrected before the machine is placed into normal continuous operation.
