1. What is the main function of the Schneider ATV340D15N4?

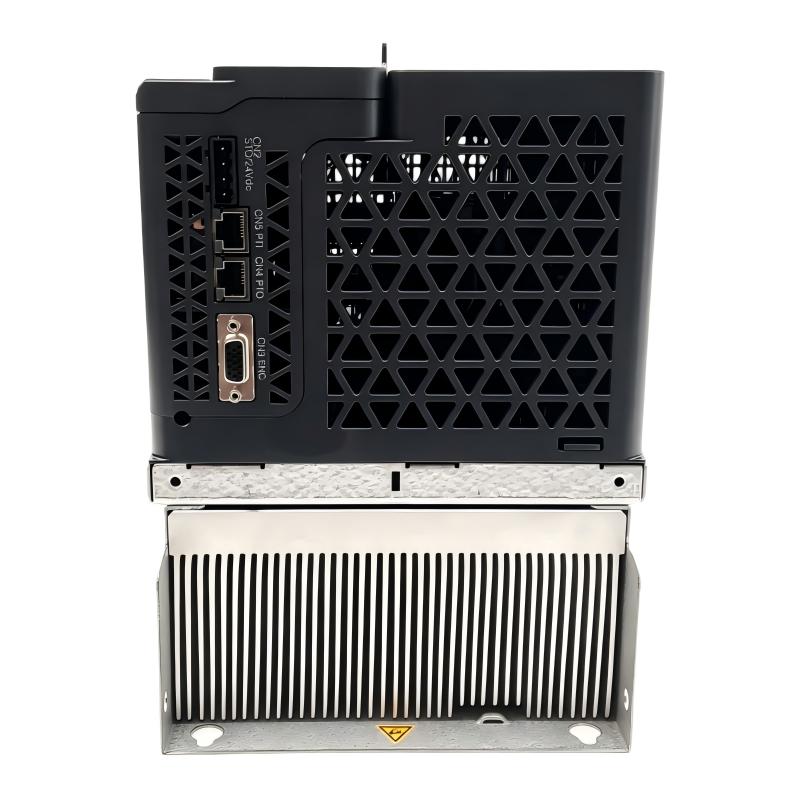

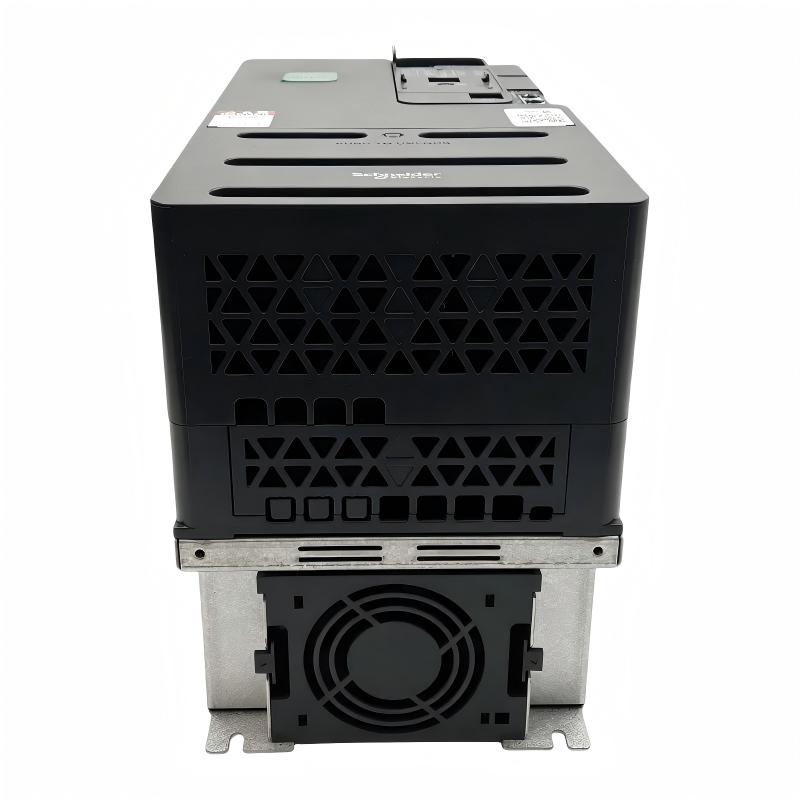

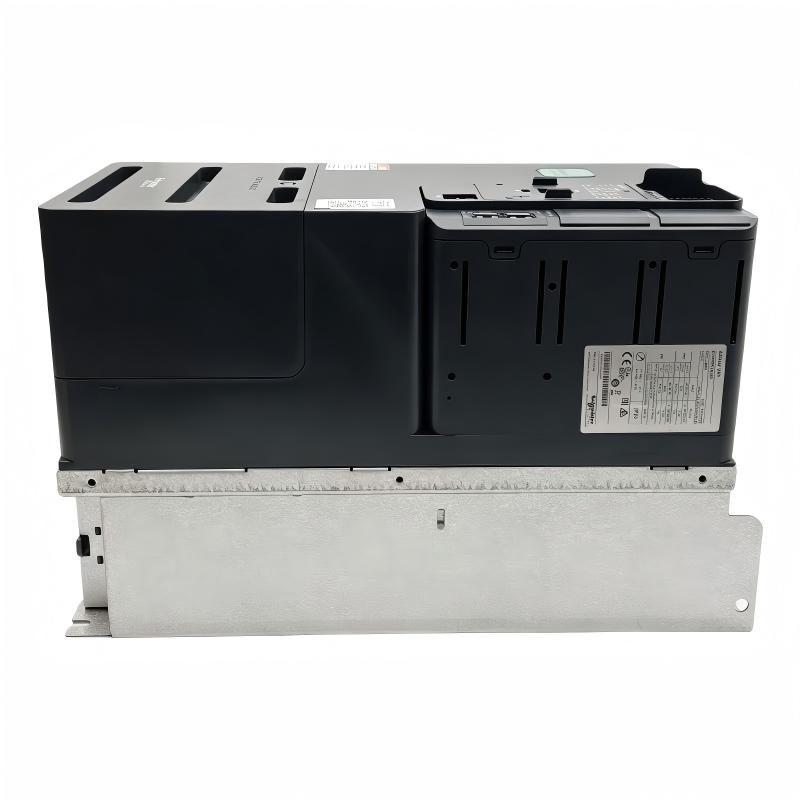

The ATV340D15N4 is a variable-speed drive designed to control the speed, torque, acceleration and deceleration of three-phase motors. It is rated for 15 kW heavy-duty motor applications and can also be used with motors up to 18.5 kW under normal-duty conditions. The drive is designed for industrial machines where stable motor control, adjustable speed and reliable protection are required.

2. What power supply is required for the ATV340D15N4?
The ATV340D15N4 operates from a three-phase 380–480 V AC supply with a frequency of 50–60 Hz ±5%. The permitted supply voltage tolerance is -15% to +10%. The incoming power system should be checked before installation, including phase balance, protective devices, grounding and cable sizing. The drive should be selected according to both motor current and load duty, not simply the motor nameplate power.

3. What is the difference between the heavy-duty and normal-duty ratings?
For heavy-duty applications, the ATV340D15N4 is rated for a 15 kW motor with a nominal output current of 32 A. For normal-duty applications, it can be used with an 18.5 kW motor and provides a higher continuous output-current rating. Heavy-duty operation is normally associated with applications requiring higher starting torque or more demanding overload performance, so the correct duty rating should be selected according to the actual mechanical load.

4. Which motors can be controlled by the ATV340D15N4?
The ATV340D15N4 supports three-phase asynchronous motors and synchronous motors. During commissioning, the motor nameplate information should be entered accurately, including rated voltage, current, frequency and speed. Correct motor parameters are particularly important when using vector-control functions because inaccurate motor data can result in unstable speed regulation, excessive current or poor torque response.

5. What should be checked if the motor does not run after a start command?
First check whether the drive has an active fault or warning. Then verify the selected command channel and confirm that the start command is actually reaching the drive. The speed reference should also be checked because a valid run command with a zero speed reference will not produce normal motor rotation. If STO is being used, both safety inputs must be in the correct state. For PLC-controlled applications, also verify the communication command word and reference value.

6. Why does the ATV340D15N4 trip on overcurrent during acceleration?
Acceleration overcurrent can be caused by excessive mechanical load, an acceleration ramp that is too short, incorrect motor parameters, motor cable problems or a mechanically restricted motor. Check the motor current and fault code first. If the mechanical system is operating normally, increasing the acceleration time can reduce the current peak. The motor nameplate data and autotuning settings should also be checked before making major changes to current or protection parameters.

7. How can communication problems between the ATV340D15N4 and a PLC be diagnosed?
Start by checking the physical communication connection and the status of the communication interface. For Modbus serial communication, verify the node address, baud rate, parity and data format. If an optional Ethernet-based communication module is used, check the network address and PLC device configuration. After confirming the physical network, verify that the PLC is writing to the correct command and speed-reference parameters. If status data can be read but the motor cannot be started, the command-source configuration should be checked.

8. What precautions should be taken when replacing an ATV340D15N4?
Before replacement, disconnect the incoming power and allow sufficient time for the DC bus to discharge. Record the existing motor parameters, control mode, command source, speed-reference source, communication settings and protection parameters. The replacement drive should be verified for the same voltage, current and duty requirements. After wiring, carefully check the mains, motor, grounding and control connections. The first test should be performed under controlled conditions, confirming motor direction, current, acceleration, deceleration and PLC communication before returning the machine to normal operation.
