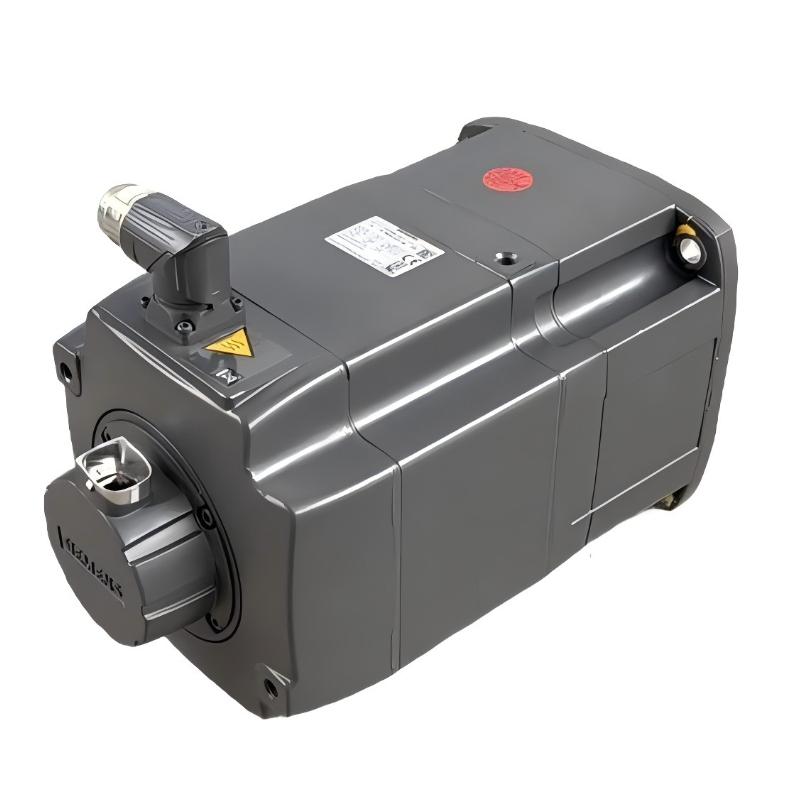

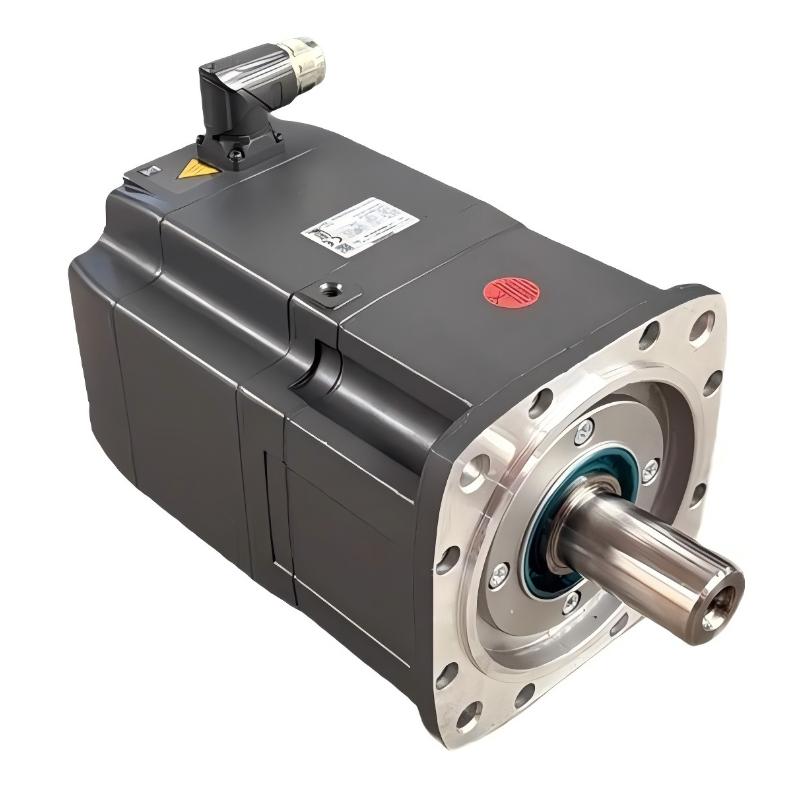

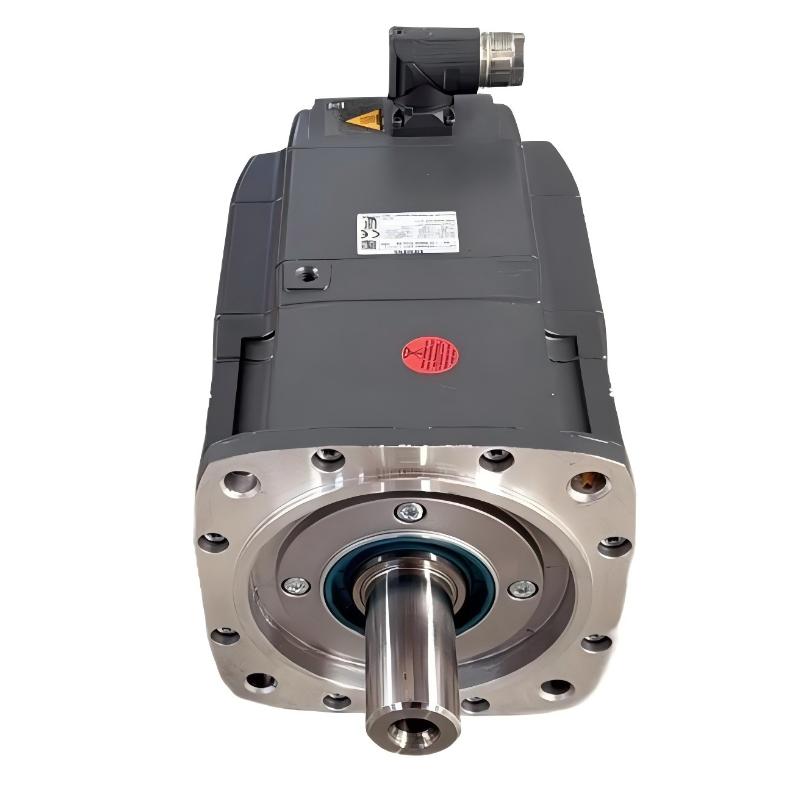

Siemens 1FK7083-2AF71-1CH1 Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 1FK7083-2AF71-1CH1 |
| Product Series | SIMOTICS S-1FK7 |
| Product Type | Servo Motor |
| Motor Type | Permanent-Magnet Synchronous Motor |
| Rated Power | 3.3 kW |
| Rated Speed | 3000 rpm |
| Rated Torque | 10.5 Nm |
| Standstill Torque | 16 Nm |
| Rated Current | 7.2 A |
| Maximum Mechanical Speed | 6000 rpm |
| Maximum Torque | 50 Nm |
| Number of Poles | 8 |
| Shaft Height | 80 mm |
| Cooling Method | Natural Cooling |
| Mounting Type | IM B5, IM V1, IM V3 |
| Flange Size | Flange 1 |
| Encoder | AM24DQI Absolute Encoder |
| Encoder Resolution | 24-bit Singleturn + 12-bit Multiturn |
| Encoder Interface | DRIVE-CLiQ |
| Multiturn Range | 4096 revolutions |
| Shaft Design | Plain Shaft |
| Shaft Tolerance | Tolerance N |
| Holding Brake | Integrated Holding Brake |
| Holding Torque | 22 Nm |
| Brake Supply | DC 24 V ±10% |
| Temperature Monitoring | Pt1000 Temperature Sensor |
| Protection Rating | IP65 |
| Electrical Connection | Rotatable Power and Signal Connectors |
| Vibration Severity Grade | Grade A |
| Torque Constant | 1.58 Nm/A |
| Winding Resistance | 0.38 Ω at 20°C |
| Rotating Field Inductance | 7.0 mH |
| Efficiency | 93.0% |
| Moment of Inertia | 29.5 kg·cm² |
| Weight | 15.900 kg |
FAQ
1. What type of servo motor is the Siemens 1FK7083-2AF71-1CH1?
The Siemens 1FK7083-2AF71-1CH1 is a SIMOTICS S-1FK7 permanent-magnet synchronous servo motor designed for high-dynamic motion control applications. It provides precise speed, torque, and position control when combined with a compatible Siemens SINAMICS drive system.
2. What are the rated torque and standstill torque of this servo motor?
The motor has a rated torque of 10.5 Nm and a standstill torque of 16 Nm. The standstill torque provides sufficient holding and acceleration capability for demanding positioning applications when the motor and drive are correctly configured.
3. What encoder is installed on the 1FK7083-2AF71-1CH1?
This model uses an AM24DQI absolute encoder with 24-bit singleturn and 12-bit multiturn resolution. The encoder communicates through the DRIVE-CLiQ interface, providing high-resolution position feedback for closed-loop motion control.
4. Does the 1FK7083-2AF71-1CH1 include a holding brake?
Yes. The motor is equipped with an integrated holding brake with a holding torque of 22 Nm. The brake is supplied by 24 V DC and is primarily intended for holding the motor shaft when the servo system is stopped or de-energized.
5. What cooling method is used by this Siemens servo motor?
The 1FK7083-2AF71-1CH1 uses natural cooling. Proper ventilation around the motor should be maintained during installation so that heat generated during continuous operation can dissipate effectively.
6. Which mounting configurations are available?
The motor supports IM B5, IM V1, and IM V3 mounting configurations. Correct flange alignment and mechanical installation are important to prevent excessive radial or axial forces on the motor shaft and bearings.
7. What should be checked if the motor does not rotate after commissioning?
Check the motor power supply, drive enable signals, control wiring, DRIVE-CLiQ connection, and encoder feedback first. The SINAMICS drive should also be checked for active fault codes. If the holding brake is not properly released, it can prevent the shaft from rotating even when the drive is receiving a motion command.
8. What are common causes of vibration or inaccurate positioning?
Vibration and positioning errors can result from incorrect servo tuning, mechanical coupling problems, excessive load inertia, encoder feedback faults, or unsuitable acceleration and deceleration parameters. Inspect the mechanical transmission and feedback connections before adjusting drive parameters. If vibration occurs at specific operating speeds, mechanical resonance should also be investigated.
Siemens 1FK7083-2AF71-1CH1 Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
