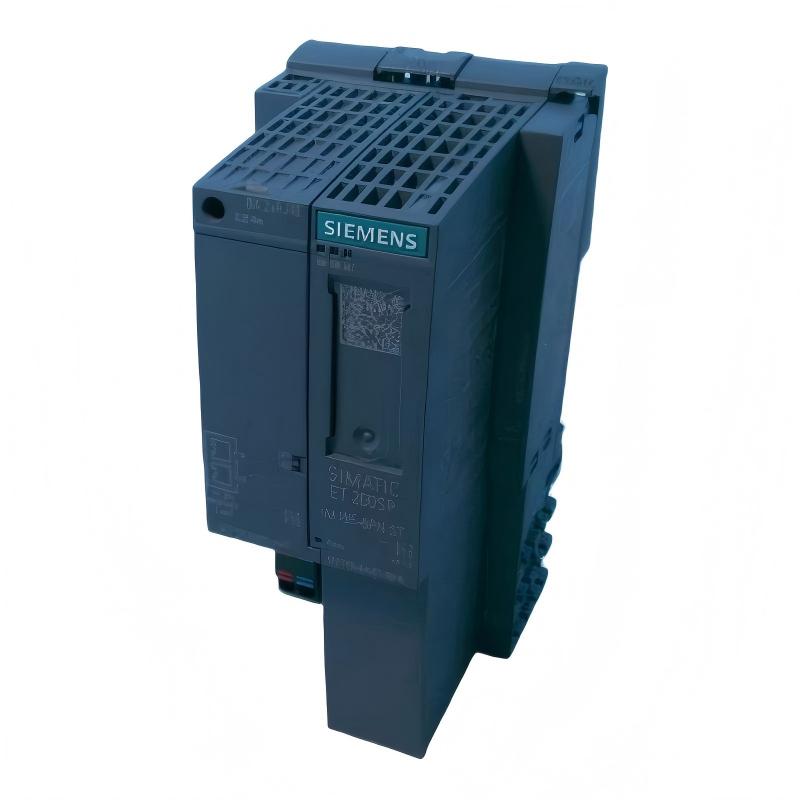

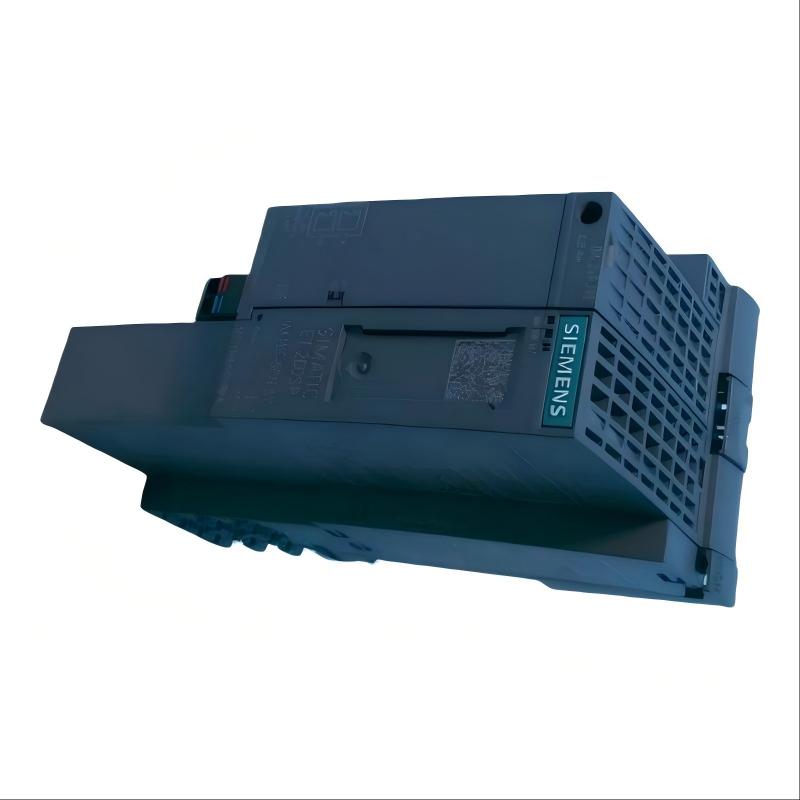

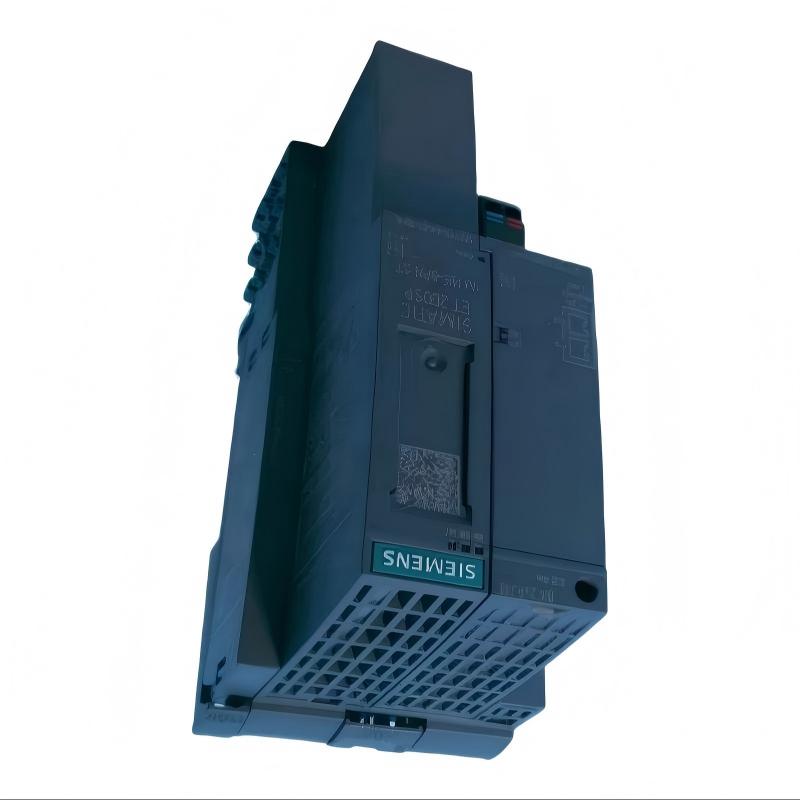

Siemens 6AG1155-6AA01-7BN0 Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6AG1155-6AA01-7BN0 |
| Product Name | SIPLUS ET 200SP IM 155-6 PN ST Interface Module |
| Product Type | PROFINET Interface Module |
| Product Series | SIPLUS ET 200SP |
| Base Model | 6ES7155-6AA01-0BN0 |
| Main Function | Connects ET 200SP distributed I/O stations to a PROFINET network |
| Communication Protocol | PROFINET IO |
| PROFINET Interface | 1 interface with 2 ports and an integrated switch |
| Bus Adapter | BA 2×RJ45 included |
| Network Speed | 100 Mbps, full duplex |
| Media Redundancy | Supports PROFINET MRP |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage | 19.2–28.8 V DC |
| Rated Current Consumption | 450 mA |
| Maximum Current Consumption | 550 mA |
| Backplane Bus Power Supply | 4.5 W |
| Maximum Expansion Capacity | Up to 32 ET 200SP I/O modules and 16 ET 200AL modules |
| Hot Swapping | Supports single-module hot swapping |
| Operating Temperature | -40 to +70°C, subject to installation conditions |
| Protection Features | Conformal coating for enhanced environmental resistance |
| Status Indicators | RUN, ERROR, MAINT, PWR, and network link/activity LEDs |
| Configuration Software | Siemens STEP 7 / TIA Portal, with compatible version |
| Mounting Type | DIN rail |
| Protection Rating | IP20 |
| Dimensions | 50 × 117 × 74 mm |
| Weight | 0.19 kg |
FAQ
Q1: What is the Siemens 6AG1155-6AA01-7BN0 interface module used for?
The Siemens 6AG1155-6AA01-7BN0 is a SIPLUS ET 200SP interface module designed to connect a distributed I/O station to a PROFINET industrial network. It enables a central PLC or automation controller to exchange process data with remote input and output modules.
Q2: What is the difference between the 6AG1155-6AA01-7BN0 and the standard ET 200SP interface module?
The 6AG1155-6AA01-7BN0 belongs to the SIPLUS range and features a conformal coating designed to improve resistance to challenging environmental conditions. It is based on the corresponding standard ET 200SP interface module, with an extended specified operating temperature range.
Q3: Which communication protocol does this module support?
The module supports PROFINET IO communication and provides two Ethernet ports through an integrated switch. It supports 100 Mbps full-duplex communication and PROFINET media redundancy using MRP.
Q4: What power supply is required for the 6AG1155-6AA01-7BN0?
The module requires a nominal 24 V DC supply and supports an operating range of 19.2–28.8 V DC. The power supply and wiring must meet the installation requirements of the ET 200SP system.
Q5: How many I/O modules can be connected to this interface module?
The module supports up to 32 ET 200SP I/O modules and up to 16 ET 200AL modules, subject to the system configuration and applicable hardware limits. The selected modules must be supported by the interface module and configured in the engineering software.
Q6: Which software is used to configure the module?
The module can be configured using compatible versions of Siemens STEP 7 or TIA Portal. The exact software version and hardware support should be checked before commissioning, especially when integrating the module into an existing PLC project.
Q7: Can the module be replaced while the system is running?
The module supports single-module hot swapping in compatible configurations. Before replacing any hardware, confirm the system design supports the operation, follow the manufacturer’s procedure, and assess the impact on connected I/O and the controlled process.
Q8: What should be checked if the module cannot communicate with the PLC?
Check the 24 V DC supply, PROFINET cable connections, BusAdapter installation, network topology, device name, IP configuration where applicable, and hardware configuration in TIA Portal. The RUN, ERROR, MAINT, and link/activity LEDs can help identify the source of the communication fault.
Siemens 6AG1155-6AA01-7BN0 Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
