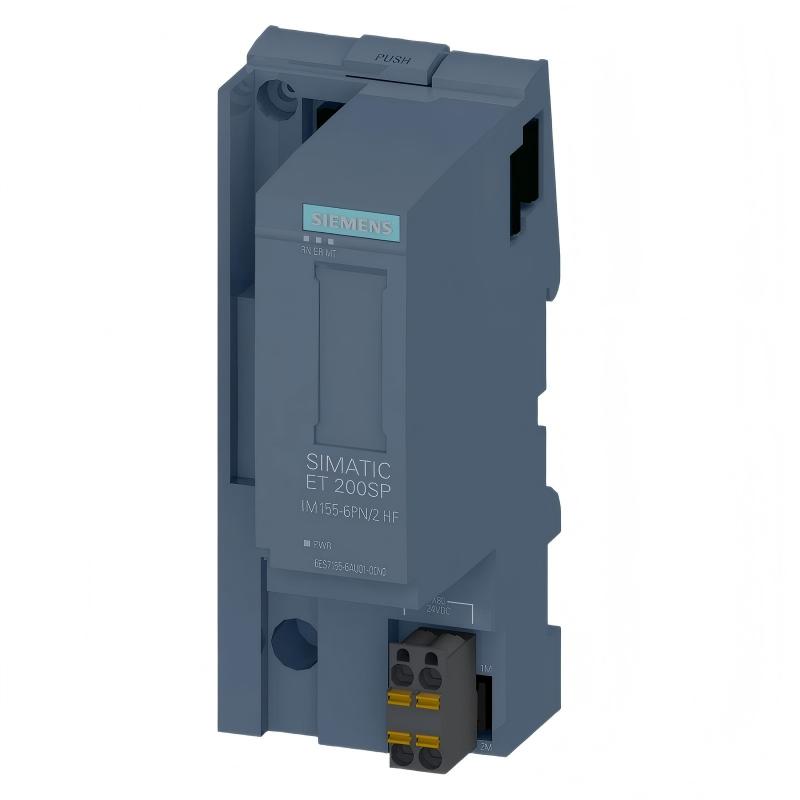

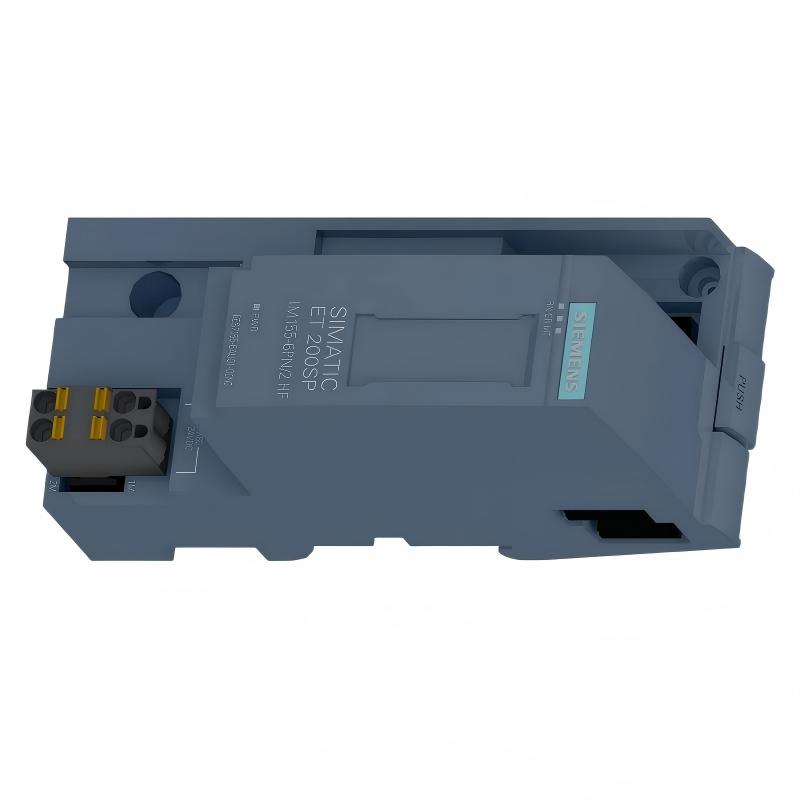

Siemens 6AG1155-6AU01-7CN0 Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6AG1155-6AU01-7CN0 |
| Product Name | SIPLUS ET 200SP IM 155-6 PN/2 HF Interface Module |
| Product Type | PROFINET Interface Module |
| Product Series | SIPLUS ET 200SP |
| Base Model | 6ES7155-6AU01-0CN0 |
| Main Function | Connects distributed I/O stations to a PROFINET industrial network |
| Communication Protocol | PROFINET IO, Open IE |
| PROFINET Interface | 1 interface with 2 ports via a compatible BusAdapter |
| Integrated Switch | Yes |
| Network Speed | 100 Mbps, full duplex |
| Media Redundancy | Supports PROFINET MRP |
| System Redundancy | Supports PROFINET S2 redundancy |
| Rated Supply Voltage | 24 V DC |
| Permissible Supply Voltage Range | 19.2–28.8 V DC |
| Maximum Current Consumption | 700 mA |
| Maximum Inrush Current | 4.5 A |
| Typical Power Dissipation | 2.4 W |
| Maximum I/O Expansion | Up to 64 ET 200SP I/O modules and 16 ET 200AL modules |
| Maximum Address Space | 1,440 bytes per station, depending on configuration |
| Isochronous Mode | Supported; minimum cycle time of 250 μs |
| Hot-Swapping Function | Supports multi-module hot swapping in compatible configurations |
| Configuration Software | Siemens STEP 7 / TIA Portal, with compatible version |
| Environmental Protection | Conformal coating for demanding industrial environments |
| Operating Temperature | -40 to +70°C for horizontal installation; up to +50°C for vertical installation |
| Protection Rating | IP20 |
| Included Accessory | Server module 6AG1193-6PA00-7AA0 |
| Mounting Type | DIN rail mounting within an ET 200SP station |
| Dimensions | 50 × 117 × 74 mm |
| Weight | 0.12 kg |
FAQ
Q1: What is the Siemens 6AG1155-6AU01-7CN0 interface module used for?
The Siemens 6AG1155-6AU01-7CN0 is a SIPLUS ET 200SP IM 155-6 PN/2 HF interface module. It connects a distributed I/O station to a PROFINET network, allowing a central PLC to exchange process data with remote I/O modules and connected field devices.
Q2: What is the difference between this SIPLUS module and the standard ET 200SP version?
This SIPLUS model is based on the standard 6ES7155-6AU01-0CN0 and features conformal coating to improve resistance to demanding environmental conditions. It supports an extended operating temperature range of -40 to +70°C for horizontal installation, with a maximum of +50°C for vertical installation.
Q3: What power supply does the 6AG1155-6AU01-7CN0 require?
The module requires a nominal 24 V DC supply, with a permissible operating range of 19.2–28.8 V DC. Its maximum current consumption is 700 mA. The power supply must also accommodate the requirements of the connected ET 200SP station.
Q4: How many I/O modules can be connected to this interface module?
The module supports up to 64 ET 200SP I/O modules and 16 ET 200AL modules, subject to the system configuration and hardware limits. The complete station must be configured using compatible Siemens engineering software.
Q5: Does the 6AG1155-6AU01-7CN0 support PROFINET redundancy?
Yes. The module supports PROFINET Media Redundancy Protocol (MRP) and S2 system redundancy. These features can help maintain communication availability when the network topology and controller configuration are designed to support redundancy.
Q6: Can this module be used for synchronized, high-speed applications?
Yes. The module supports isochronous operation with cycle times starting at 250 μs. This function is useful for applications requiring synchronized data exchange, although actual performance depends on the PLC, network configuration, and connected I/O modules.
Q7: Can I replace I/O modules while the ET 200SP station is operating?
The interface module supports multi-module hot swapping in compatible configurations. Before replacing components during operation, verify that the station configuration supports the procedure and follow Siemens installation instructions to avoid disrupting the controlled process.
Q8: What should I check if the interface module cannot communicate with the PLC?
Check the 24 V DC supply, BusAdapter installation, Ethernet cabling, PROFINET device name, network topology, and hardware configuration in TIA Portal. Inspect the RUN, ERROR, MAINT, PWR, and link/activity indicators to help identify the cause of the communication fault.
Siemens 6AG1155-6AU01-7CN0 Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
