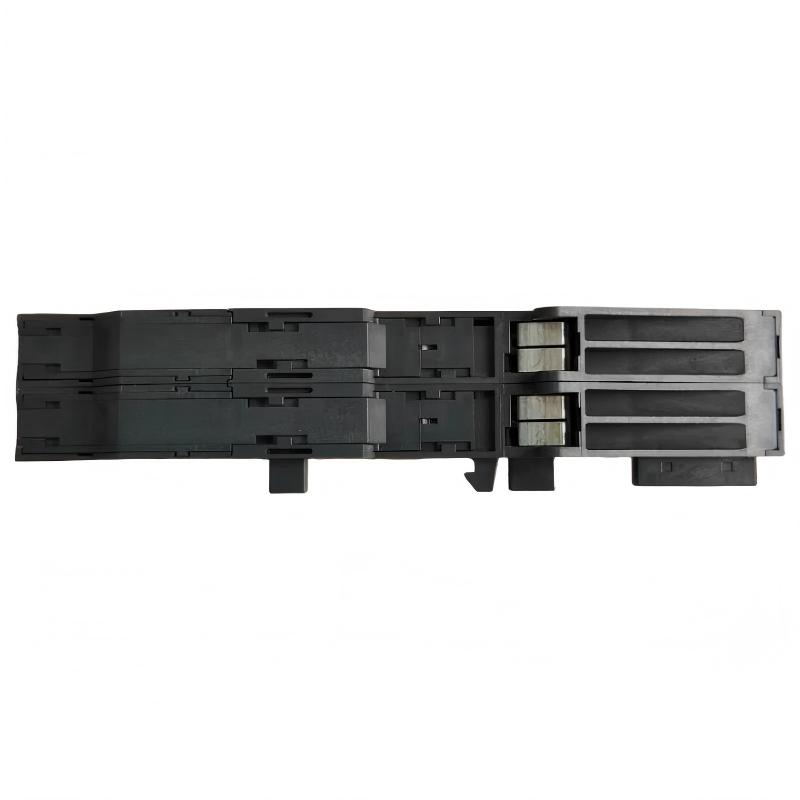

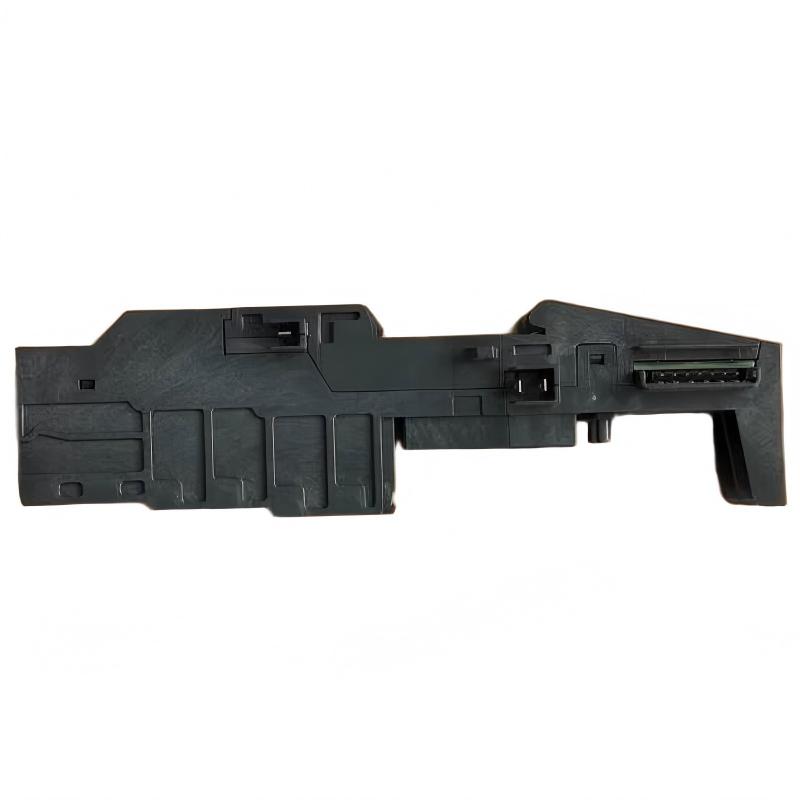

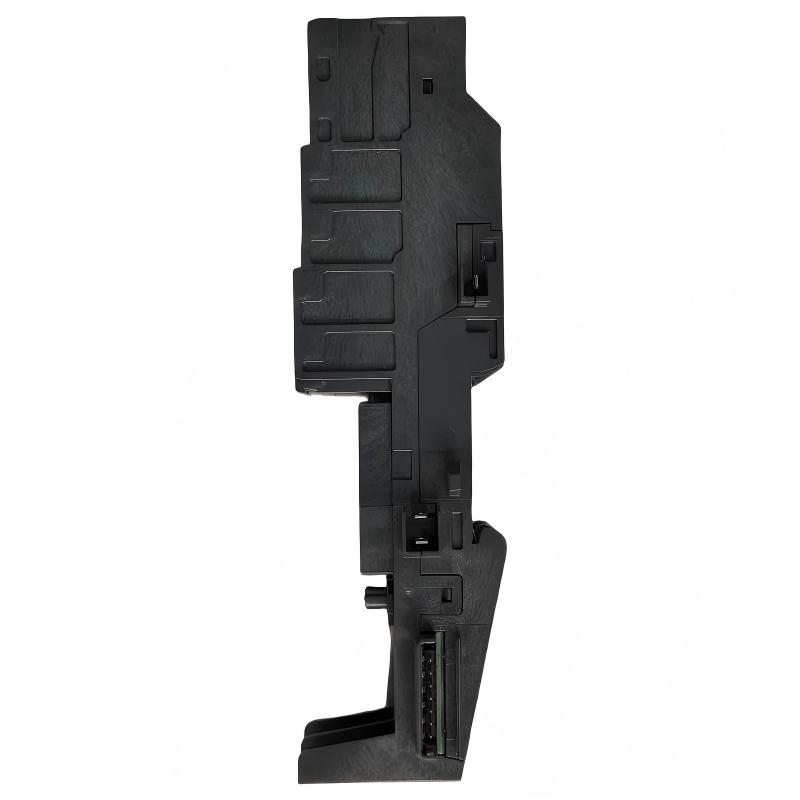

Siemens 6AG1193-4CA40-2AA0 Terminal Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6AG1193-4CA40-2AA0 |
| Product Name | SIPLUS ET 200S TM-E15S26-A1 Terminal Module |
| Product Series | SIPLUS ET 200S |
| Base Model | 6ES7193-4CA40-0AA0 |
| Product Type | Terminal Module |
| Main Function | Provides electrical connections for compatible ET 200S electronic modules |
| Compatible System | Siemens SIMATIC ET 200S |
| Compatible Module Width | 15 mm |
| Connection Type | Screw terminals |
| Number of Terminal Connections | 2 × 6 |
| AUX1 Terminal Access | Available |
| AUX1 Bus Configuration | Continuous |
| Conformal Coating | Yes |
| Operating Temperature | -40 to +70°C |
| Installation Type | ET 200S station mounting |
| Packaging Quantity | 5 units per original packaging unit |
| Product Status | Discontinued; spare-part supply may be available |
| Dimensions | 15 × 157 × 43 mm |
| Weight | 0.083 kg |
FAQ
1. What is the main function of the Siemens 6AG1193-4CA40-2AA0 Terminal Module?
The 6AG1193-4CA40-2AA0 is a SIPLUS ET 200S terminal module designed to provide electrical connections for compatible electronic modules. It serves as the wiring interface within a distributed I/O station, helping organize field connections and simplify installation and maintenance.
2. Which electronic modules are compatible with this terminal module?
This terminal module is designed for electronic modules with a 15 mm width in the Siemens SIMATIC ET 200S system. Before installation, verify the electronic module’s connection requirements and compatibility with the TM-E15S26-A1 terminal module.
3. What type of electrical connections does the module provide?
The module uses screw terminals and provides 2 × 6 terminal connections. Screw terminals allow conductors to be secured mechanically, making them suitable for industrial control cabinets where reliable wiring and routine maintenance are important.
4. What is the purpose of the AUX1 connection?
The module provides terminal access to AUX1, with AUX1 configured as a continuous connection. This arrangement supports auxiliary potential distribution within a compatible ET 200S station. The actual wiring and electrical use must follow the system design and applicable Siemens documentation.
5. What environmental conditions can the 6AG1193-4CA40-2AA0 withstand?
The SIPLUS version features conformal coating and is specified for an operating temperature range of -40 to +70°C. These characteristics make it suitable for demanding industrial environments. Installation conditions, humidity, and exposure to corrosive substances should still be evaluated before use.
6. Can this terminal module be used with the standard 6ES7193-4CA40-0AA0 version?
The 6AG1193-4CA40-2AA0 is based on the standard 6ES7193-4CA40-0AA0 model and uses the same TM-E15S26-A1 terminal module design. However, the SIPLUS version has additional environmental protection features. Confirm the complete part number and application requirements before substituting one version for another.
7. What should be checked if a connected electronic module has a wiring fault?
Check that the conductors are connected to the correct terminals and that the screw terminals are securely tightened according to the manufacturer’s requirements. Also inspect for loose wires, damaged conductors, incorrect signal assignments, and missing auxiliary connections. Use PLC diagnostics and module status indicators to help identify the cause.
8. Is the Siemens 6AG1193-4CA40-2AA0 still available for new installations?
This model has been discontinued by Siemens, so availability may depend on remaining inventory and specialist spare-parts suppliers. Before purchasing, verify the exact part number, product condition, and compatibility with the existing ET 200S station. For new installations, consider an officially supported alternative after checking the required electrical and mechanical characteristics.
Siemens 6AG1193-4CA40-2AA0 Terminal Module is in stock. Please contact us for a quick quote and competitive pricing.
