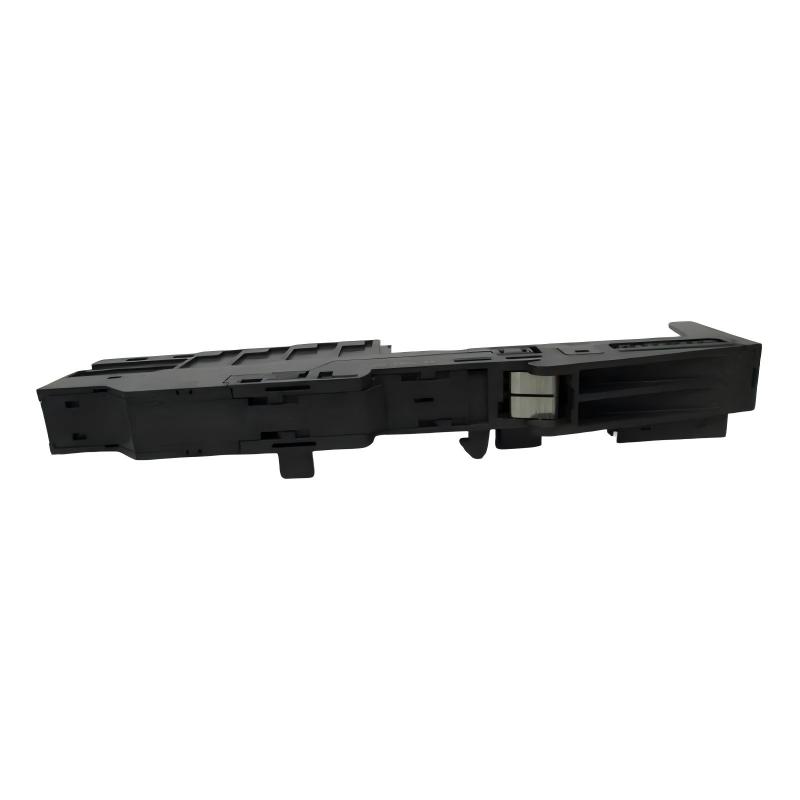

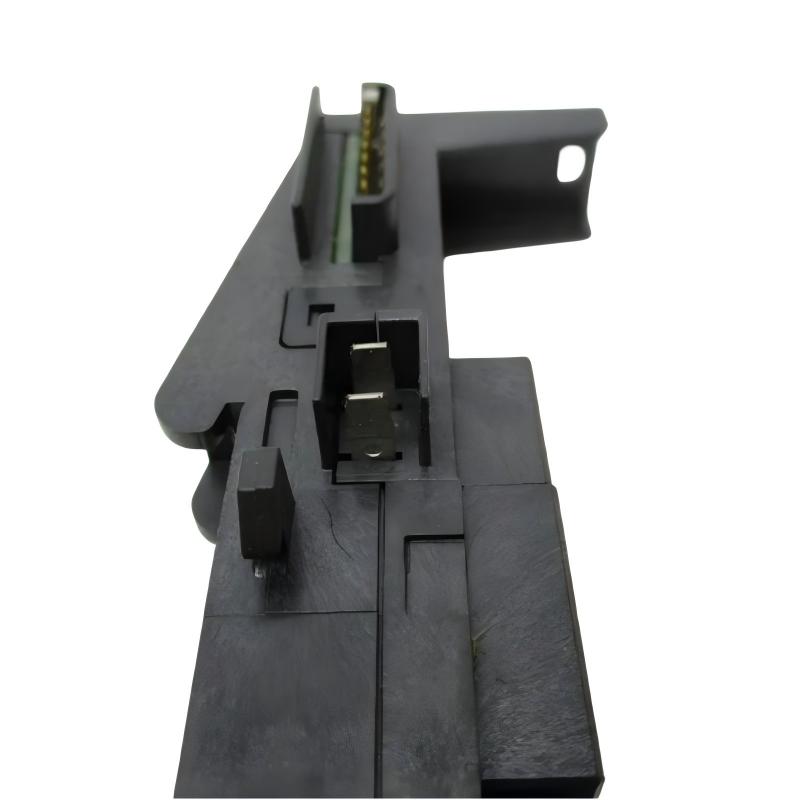

Siemens 6AG1193-4CA50-2AA0 Terminal Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6AG1193-4CA50-2AA0 |
| Product Name | SIPLUS ET 200S TM-E15C26-A1 Terminal Module |
| Product Series | SIPLUS ET 200S |

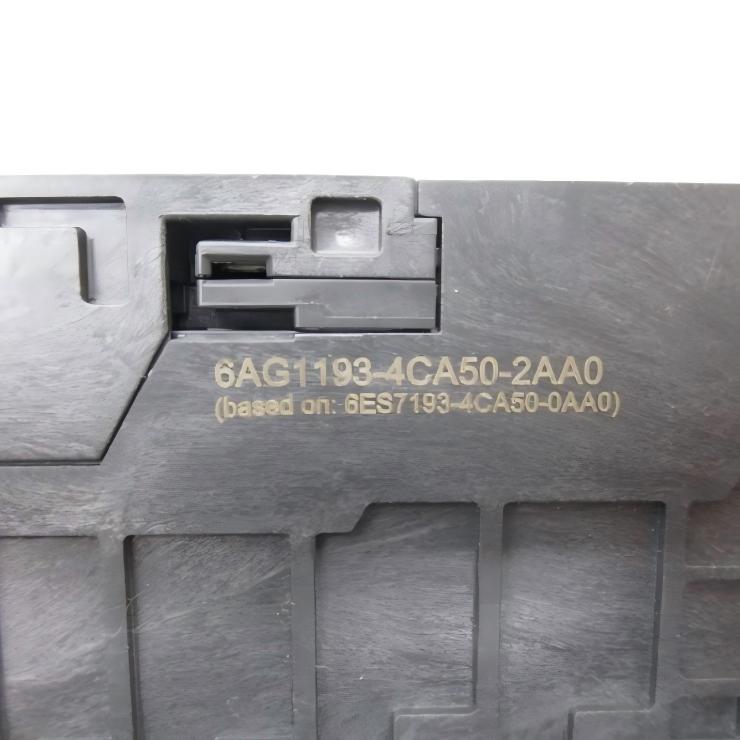

| Base Model | 6ES7193-4CA50-0AA0 |
| Product Type | Terminal Module |
| Main Function | Provides electrical connections for compatible ET 200S electronic modules |
| Compatible System | Siemens SIMATIC ET 200S |
| Compatible Module Width | 15 mm |
| Terminal Type | Spring-loaded terminals |
| Number of Terminal Connections | 2 × 6 |
| AUX1 Terminal Access | Available |
| AUX1 Bus Configuration | Continuous |
| Conformal Coating | Yes |
| Operating Temperature | -40 to +70°C |
| Maximum Installation Altitude | 5,000 m above sea level, subject to specified operating conditions |
| Relative Humidity | Up to 100%, including condensation and frost under specified test conditions |
| Environmental Resistance | Designed for demanding industrial environments |
| Mounting Type | ET 200S station mounting |
| Packaging Quantity | 5 units per packaging unit |
| Product Status | Check current availability with the supplier |
| Dimensions | 15 × 157 × 43 mm |
| Weight | 0.07 kg |
FAQ
1. What is the main function of the Siemens 6AG1193-4CA50-2AA0 Terminal Module?
The 6AG1193-4CA50-2AA0 is a SIPLUS ET 200S terminal module designed to provide electrical connections for compatible electronic modules. It serves as the wiring interface within a distributed I/O station, helping organize field connections and simplify installation and maintenance in industrial automation systems.
2. Which electronic modules are compatible with this terminal module?
This module is designed for electronic modules with a width of 15 mm in the Siemens SIMATIC ET 200S system. Before installation, verify the electronic module’s connection arrangement and compatibility with the TM-E15C26-A1 terminal module to ensure proper electrical and mechanical integration.
3. What type of terminals does the 6AG1193-4CA50-2AA0 use?
The module uses spring-loaded terminals and provides 2 × 6 terminal connections. This design allows conductors to be secured without conventional screw tightening, helping speed up wiring and making installation more convenient in industrial control cabinets.
4. What is the purpose of the AUX1 connection?
The module provides terminal access to the AUX1 bus, configured as a continuous connection. This arrangement supports auxiliary potential distribution within a compatible ET 200S station. The actual electrical function and wiring must follow the system design and the relevant Siemens documentation.
5. What makes the SIPLUS version suitable for demanding industrial environments?
The 6AG1193-4CA50-2AA0 features conformal coating and supports an operating temperature range of -40 to +70°C. Its environmental specifications also cover demanding humidity and contamination conditions under defined limits. The installation environment should still be evaluated to ensure the module is suitable for the application.
6. Can this terminal module replace the standard 6ES7193-4CA50-0AA0?
The 6AG1193-4CA50-2AA0 is based on the standard 6ES7193-4CA50-0AA0 terminal module design. The SIPLUS version adds conformal coating and an extended operating temperature range. Before replacement, confirm the complete order number, terminal arrangement, and environmental requirements of the existing system.
7. What should be checked if a connected electronic module does not operate correctly?
Check that the electronic module is correctly seated and that all conductors are inserted into the intended spring-loaded terminals. Inspect for loose wiring, damaged conductors, incorrect terminal assignments, and missing auxiliary connections. Then review the PLC diagnostics and module status indicators to help identify whether the fault originates from wiring, the electronic module, or the system configuration.
8. What should be considered when purchasing or replacing the 6AG1193-4CA50-2AA0?
Verify the full Siemens order number and confirm compatibility with the existing ET 200S station. Check the terminal configuration, environmental requirements, and product condition before purchasing. If the module is being used as a replacement part, ensure that the selected unit matches the original system requirements and follow the applicable electrical safety procedures during installation.
Siemens 6AG1193-4CA50-2AA0 Terminal Module is in stock. Please contact us for a quick quote and competitive pricing.
