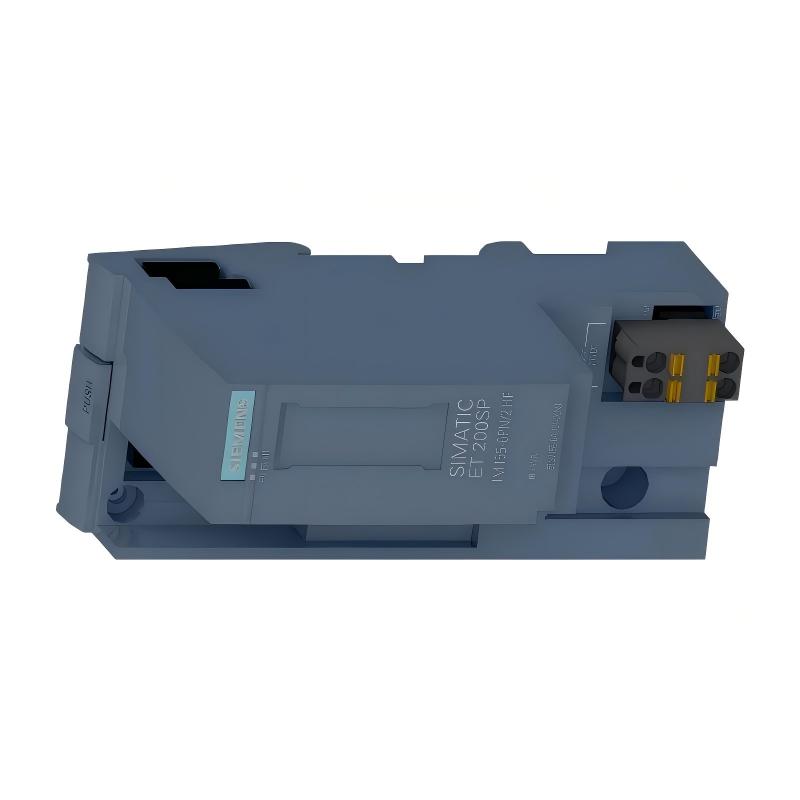

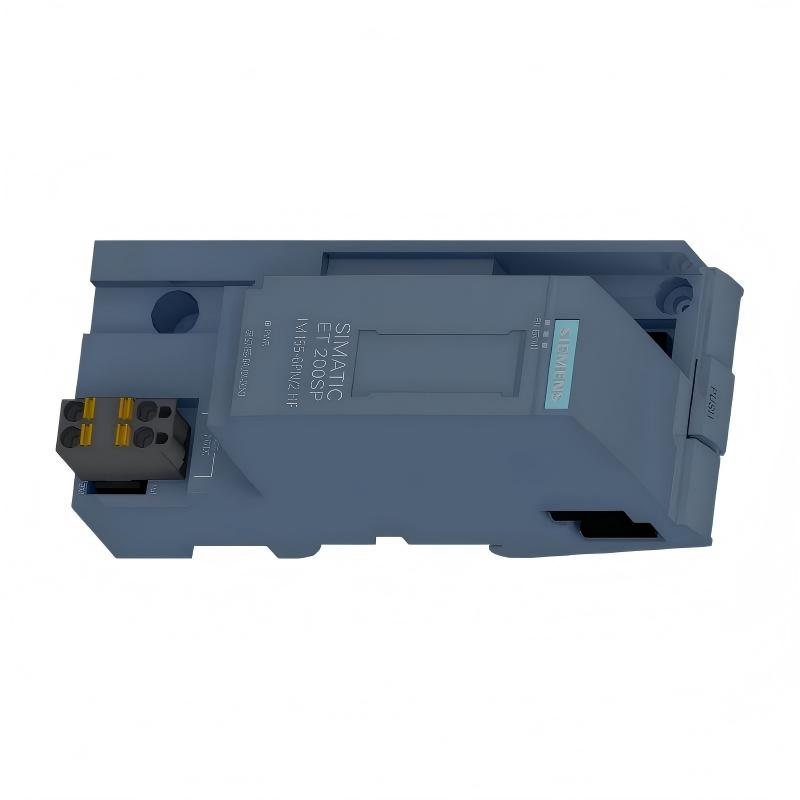

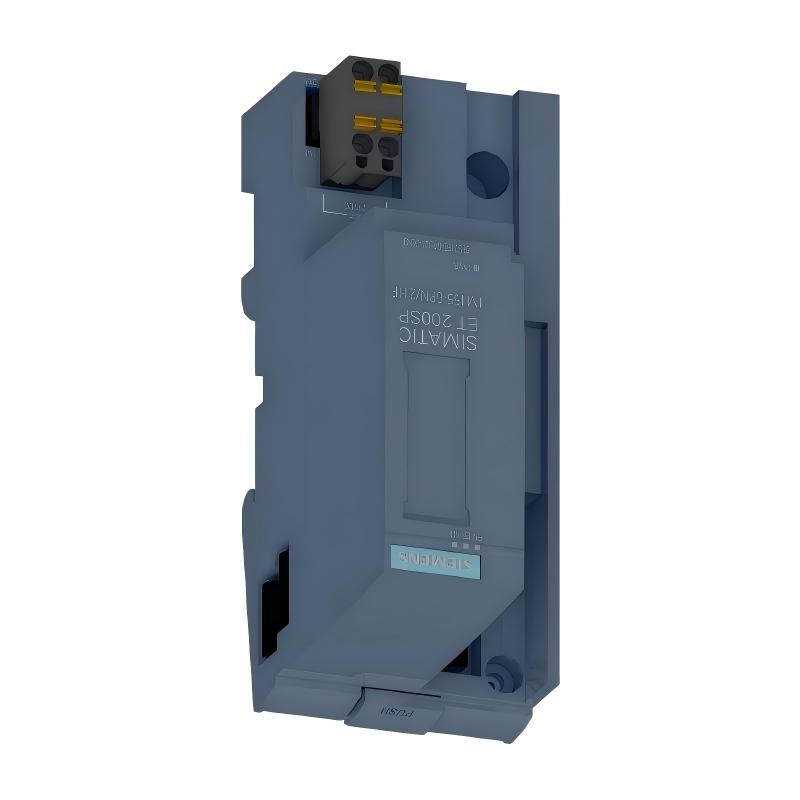

Siemens 6AG1155-6AU01-2CN0 Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Siemens |
| Model Number | 6AG1155-6AU01-2CN0 |
| Product Type | Interface Module |
| Product Series | SIPLUS ET 200SP |
| Main Function | Connects a distributed I/O station to an industrial automation network |
| Application | Distributed automation and remote I/O systems |
| Communication Protocol | Must be confirmed against the exact product variant |
| Compatible I/O System | Siemens ET 200SP, subject to model compatibility |
| Configuration Software | Compatible Siemens engineering software, depending on the module variant |
| Installation Type | DIN rail mounting within a compatible ET 200SP station |
| Environmental Design | SIPLUS product variant for specified environmental conditions |
| Protection Rating | Depends on the complete installation and system configuration |
| Dimensions | 50 × 117 × 74 mm |
| Weight | 0.12 kg |
FAQ
Q1: What is the Siemens 6AG1155-6AU01-2CN0 interface module used for?
The Siemens 6AG1155-6AU01-2CN0 is a SIPLUS ET 200SP IM 155-6 PN/2 HF interface module. It connects a distributed I/O station to a PROFINET network, allowing a central PLC to exchange process data with remote I/O modules and connected field devices.
Q2: What is the difference between this SIPLUS module and the standard ET 200SP version?
This SIPLUS model is based on the standard 6ES7155-6AU01-0CN0 interface module and features conformal coating for improved environmental resistance. It is designed for an extended operating temperature range of -40 to +60°C, making it suitable for specified demanding industrial environments.
Q3: What power supply does the 6AG1155-6AU01-2CN0 require?
The module requires a nominal 24 V DC supply, with a permissible voltage range of 19.2–28.8 V DC. The power supply must provide sufficient current for the interface module and the overall ET 200SP station.
Q4: How many I/O modules can this interface module support?
The module supports up to 64 ET 200SP I/O modules and up to 16 ET 200AL modules, subject to the system configuration and applicable hardware limits. The complete station must be configured using compatible Siemens engineering software.
Q5: Does the 6AG1155-6AU01-2CN0 support redundant PROFINET communication?
Yes. The module supports PROFINET system redundancy S2 and Media Redundancy Protocol (MRP). These functions can help improve communication availability when the network and controller architecture are designed to support the corresponding redundancy configuration.
Q6: Can the module be used for high-speed or synchronized applications?
Yes. The module supports isochronous operation with a minimum clock cycle of 250 μs. This capability is useful in applications requiring synchronized data exchange, although the achievable performance depends on the controller, network configuration, and connected I/O modules.
Q7: Can I replace I/O modules while the ET 200SP station is operating?
The module supports multi-module hot swapping in compatible configurations. Before replacing components during operation, verify that the station configuration supports the procedure and follow Siemens installation instructions to avoid disrupting the controlled process.
Q8: What should I check if the interface module fails to establish PROFINET communication?
Check the 24 V DC supply, BusAdapter installation, Ethernet cabling, network topology, PROFINET device name, and hardware configuration in the engineering project. Also inspect the module’s status indicators and confirm that the controller and interface module use compatible configuration settings.
Siemens 6AG1155-6AU01-2CN0 Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
