Technical Specifications
| Parameter | Specification |
|---|---|

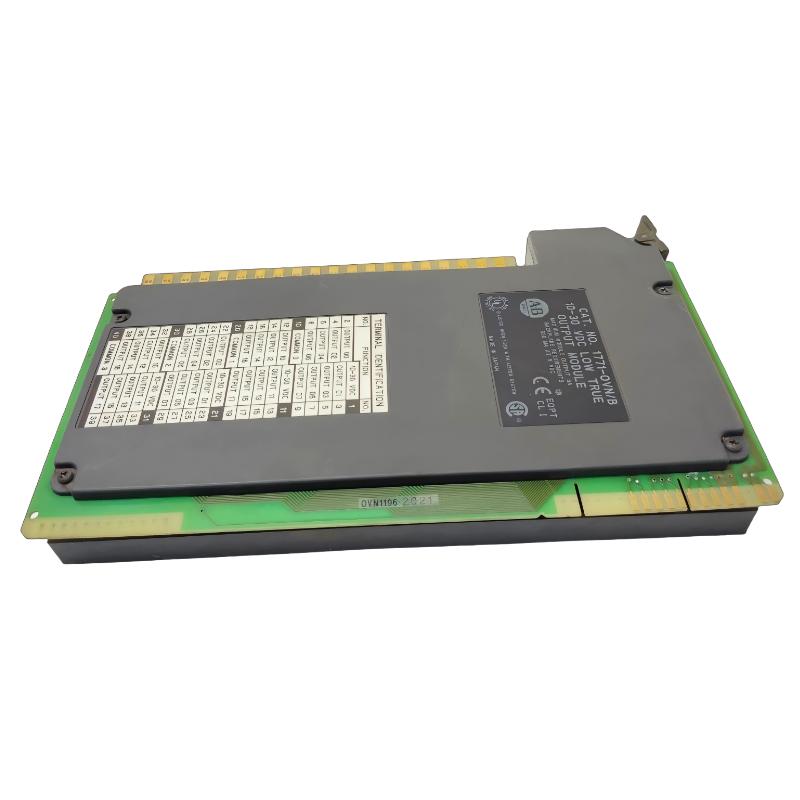

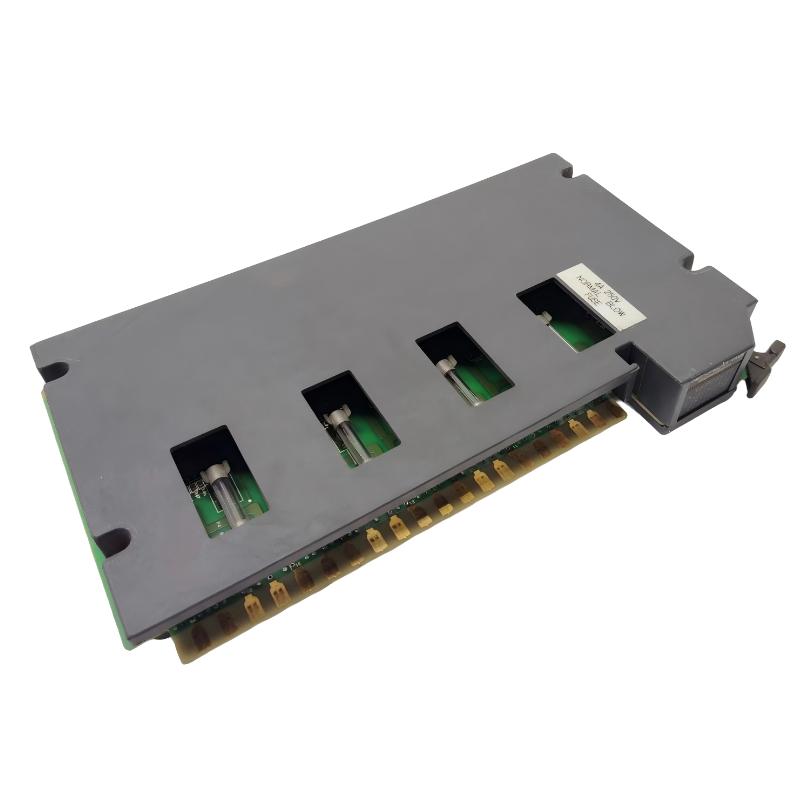

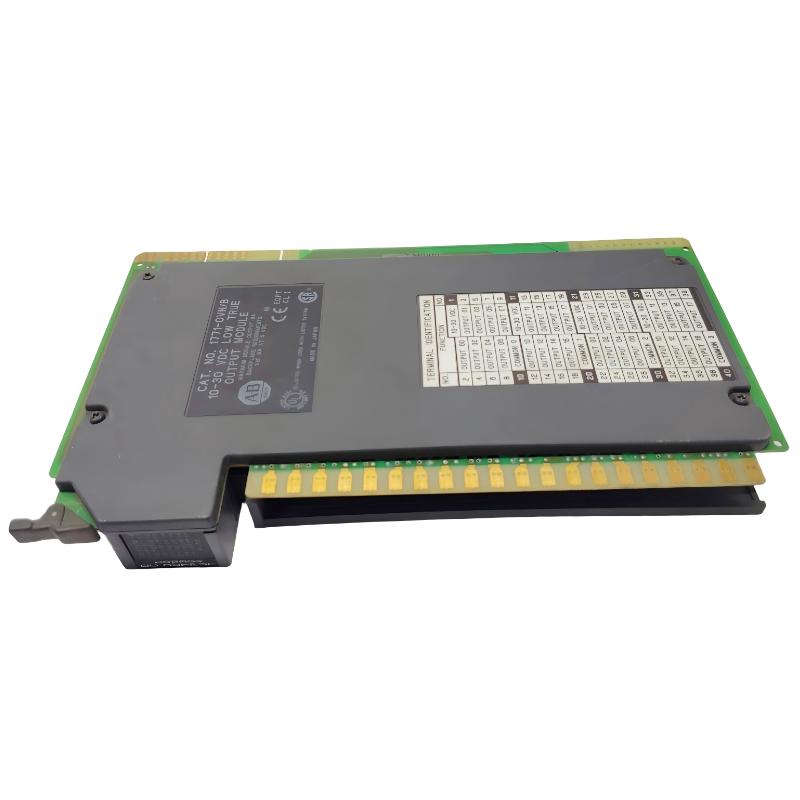

| Product Name | 1771-OVN/B Output Module |
| Product Type | Industrial Equipment |
| Series | Allen-Bradley PLC-5 / 1771 I/O Series |
| Module Type | Discrete DC Output Module |
| Output Channels | 32-point sinking outputs |
| Output Configuration | 4 groups × 8 outputs |
| Output Voltage Range | 10–32 V DC |
| Operating Voltage | 10–30 V DC nominal |
| Output Current | 0.5 A per channel |
| Maximum Module Current | 8 A total |
| Backplane Current | ~330 mA @ 5 V DC |
| Isolation | Optical isolation (field to logic, ~1500 V class) |
| Response Time | ~45–50 ms switching delay |
| Off-State Leakage | ≤ 1 mA per point |
| On-State Voltage Drop | ~1.5 V DC at rated load |
| Wiring System | 1771-WH wiring arm compatible |
| Mounting Type | 1771 I/O chassis rack-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
| Dimensions (H × W × D) | Approx. 250 × 35 × 180 mm |
| Weight | ~0.4–0.6 kg |
| Typical Applications | Solenoids, relays, indicator lamps, DC actuators, machine-level control switching |
FAQ
What is the 1771-OVN/B used for?
It is a high-density DC sinking output module used in PLC-5 systems to control multiple field devices such as relays, solenoids, and indicators.
How many outputs does it provide?
It provides 32 discrete DC outputs arranged in four groups of eight.
What does the “/B” revision indicate?
It indicates a hardware revision update, typically involving minor internal improvements while keeping the same electrical and functional behavior.
What voltage range does it support?
It operates in the 10–32 V DC range for field devices.
Is this module still manufactured?
No, it is a discontinued legacy module from the Allen-Bradley PLC-5 / 1771 I/O platform.
Does it provide electrical isolation?
Yes, it includes optical isolation between the field wiring and control logic for protection and noise reduction.
What is the maximum current per output?
Each output supports up to 0.5 A, with a total module limit of about 8 A.
Where is it commonly used?
It is typically found in legacy industrial automation systems such as manufacturing lines, process control cabinets, and machine-level DC switching applications.
Allen Bradley 1771-OVN/B Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
