1. What type of industrial applications is the 20BC170G0ANNANC0 suitable for?

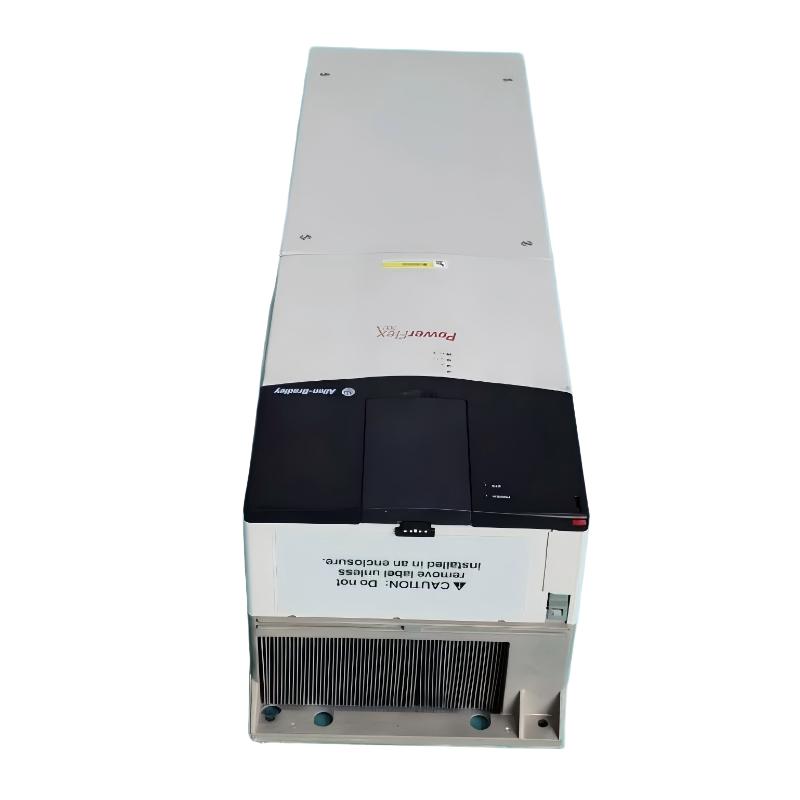

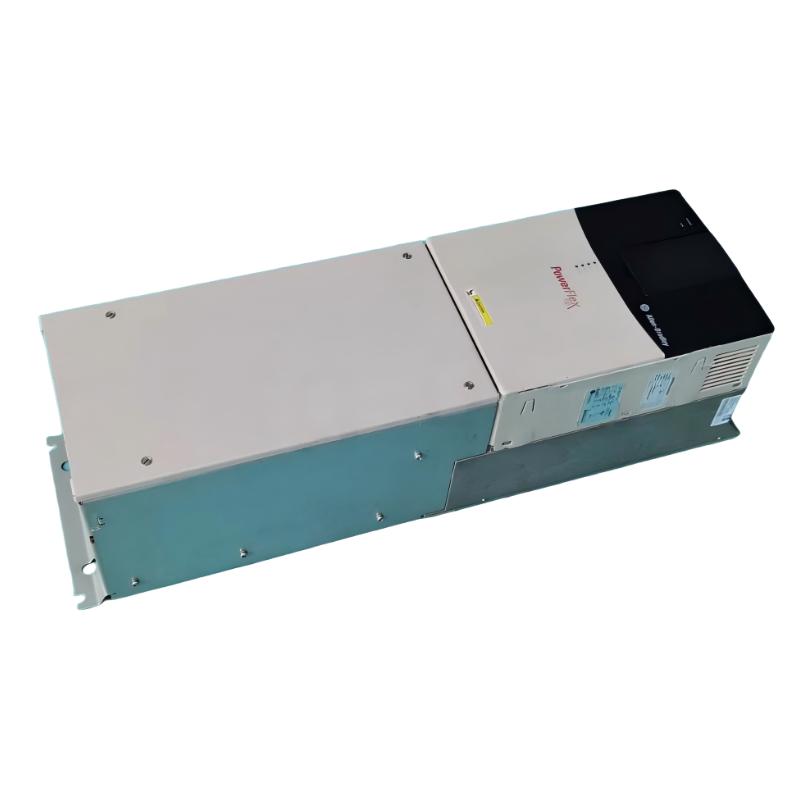

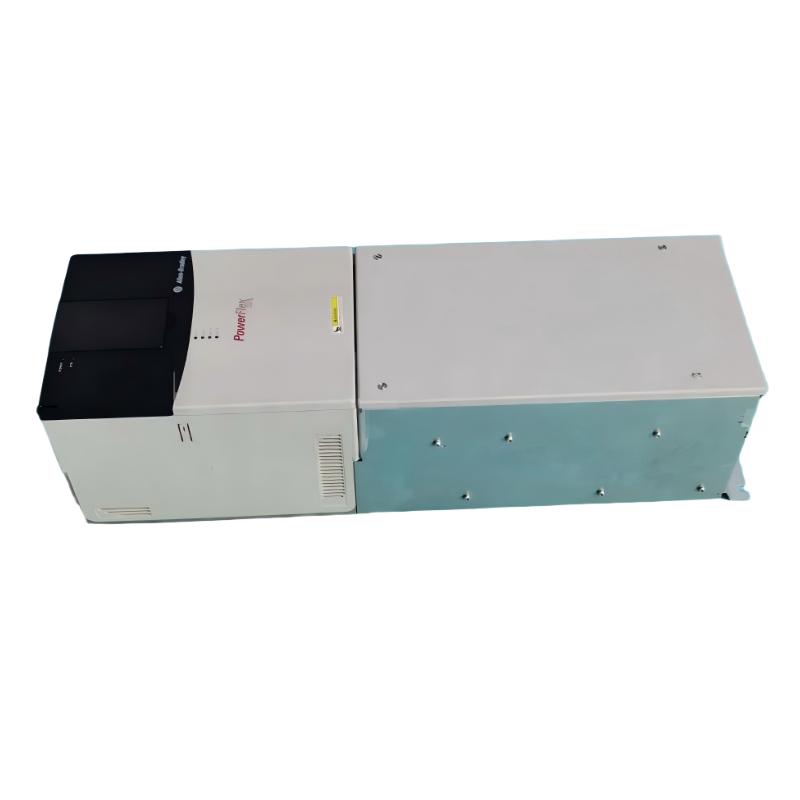

The 20BC170G0ANNANC0 is a high-power three-phase AC drive designed for controlling the speed, torque, and operating characteristics of industrial motors. With a continuous output rating of approximately 170 A and a normal-duty power rating of 90 kW, it can be applied to relatively large motor-driven equipment where reliable variable-speed control is required. Typical applications can include pumps, fans, conveyors, material-handling systems, compressors, machine tools, and general-purpose industrial machinery. The drive supports multiple motor-control strategies, allowing the control method to be selected according to the requirements of the application. Before installation, the motor’s rated current, voltage, power, speed, load characteristics, and starting requirements should be compared with the drive ratings to ensure that the selected configuration is appropriate.

2. What input power supply does the 20BC170G0ANNANC0 require?

The 20BC170G0ANNANC0 is designed for a three-phase AC input supply in the 380–480 VAC range, with 400 VAC being a typical rated operating voltage. The input supply must be compatible with the drive’s electrical specifications and should have sufficient capacity for the connected motor and expected operating conditions. Proper upstream protection, including appropriately rated circuit breakers or fuses, should be installed according to the application and applicable electrical standards. During wiring, the incoming power conductors must be connected to the designated input terminals, while the motor conductors must be connected to the designated output terminals. Incorrectly connecting the incoming power directly to the drive output can cause serious damage to the power section.

3. Which motor control methods are available on the 20BC170G0ANNANC0?

The 20BC170G0ANNANC0 supports several motor-control approaches, including V/Hz control and vector-based control. V/Hz control is generally suitable for applications where straightforward speed regulation is sufficient and the load does not require particularly high dynamic performance. Sensorless vector control can provide improved speed and torque control without requiring a conventional motor encoder feedback system, making it useful for many general industrial applications. Vector-based control is more appropriate when the application requires better dynamic response, improved low-speed performance, or more precise torque regulation. Correct motor nameplate data and appropriate drive parameters are important for achieving stable operation, particularly when using vector-control functions.

4. Does the 20BC170G0ANNANC0 support closed-loop encoder feedback?

The specific 20BC170G0ANNANC0 configuration is intended as a drive without a standard closed-loop encoder feedback arrangement. For applications where moderate speed regulation is sufficient, sensorless vector control can often provide effective motor control without installing an encoder on the motor shaft. However, applications requiring highly accurate speed regulation at very low speed, precise positioning, or tightly controlled closed-loop torque may require additional feedback hardware or a different drive configuration. Before attempting to integrate encoder feedback, the complete PowerFlex 700 hardware configuration should be checked to confirm compatibility with the required feedback interface and control architecture. The motor, feedback device, expansion hardware, and drive firmware should all be considered as part of the system design.

5. What should be checked when the 20BC170G0ANNANC0 reports an overcurrent fault?

An overcurrent fault should first be investigated from the motor and mechanical load side before assuming that the drive itself has failed. Check whether the motor shaft, gearbox, pump, conveyor, or other driven mechanism is mechanically blocked or experiencing an abnormal increase in load torque. The motor cable should also be inspected for phase-to-phase shorts, phase-to-ground faults, damaged insulation, loose terminals, or incorrect wiring. If the fault occurs mainly during acceleration, the acceleration time may be too short for the connected load, causing the motor current to rise rapidly. Motor nameplate data, current limits, acceleration settings, control mode, and motor-tuning parameters should also be reviewed. If the external wiring and mechanical system are confirmed to be normal but excessive current remains present, the drive’s power components and current-sensing circuits may require further technical inspection.

6. How can overheating of the 20BC170G0ANNANC0 be prevented?

Preventing overheating requires attention to both the electrical load and the installation environment. The drive should be installed in a location where adequate ventilation is available and where the ambient temperature remains within the specified operating range. Air passages, cooling components, and ventilation areas should be kept free from dust, dirt, and other contaminants that could restrict heat dissipation. The cooling fan and associated components should also be inspected periodically, particularly when the drive operates continuously or in a dusty industrial environment. In addition, the motor load should be checked to determine whether the drive is continuously operating near its rated current or experiencing frequent overload conditions. High ambient temperature combined with sustained heavy loading can significantly increase thermal stress. Reviewing the drive’s operating current, fault history, duty cycle, and environmental conditions can help identify the actual cause of repeated thermal protection events.

7. How should the acceleration and deceleration times be configured on the 20BC170G0ANNANC0?

Acceleration and deceleration times should be selected according to the motor characteristics, load inertia, required production cycle, and mechanical limitations of the equipment. A large-inertia load generally requires more time to accelerate smoothly because attempting to reach the target speed too quickly can result in high motor current and an overcurrent condition. Deceleration requires particular attention because a motor can return regenerative energy to the drive’s DC bus when the load is slowing down. If the deceleration time is too short, the DC-bus voltage can rise rapidly and potentially cause an overvoltage fault. A practical commissioning approach is to begin with conservative acceleration and deceleration settings, verify stable operation under the actual load, and then gradually reduce the times if the process requires faster speed changes. Any adjustment should be evaluated together with the mechanical system and the required stopping performance.

8. Can the 20BC170G0ANNANC0 be used for applications requiring frequent braking and rapid deceleration?

The 20BC170G0ANNANC0 configuration does not include an internal braking resistor and does not provide an integrated braking IGBT as part of the specified configuration. This is important when the drive is used with high-inertia loads or applications involving frequent rapid deceleration. During deceleration, the motor can operate regeneratively and transfer energy back into the drive’s DC bus. If the regenerated energy is greater than what the system can dissipate or otherwise manage, the DC-bus voltage can rise and trigger an overvoltage protection event. For applications such as high-inertia conveyors, centrifuges, hoists, or machinery requiring repeated fast stops, the braking requirements should therefore be evaluated before commissioning. An appropriate external braking or regenerative solution may be required, together with suitable deceleration settings and protection parameters, to ensure reliable operation under the expected duty cycle.
