FAQ

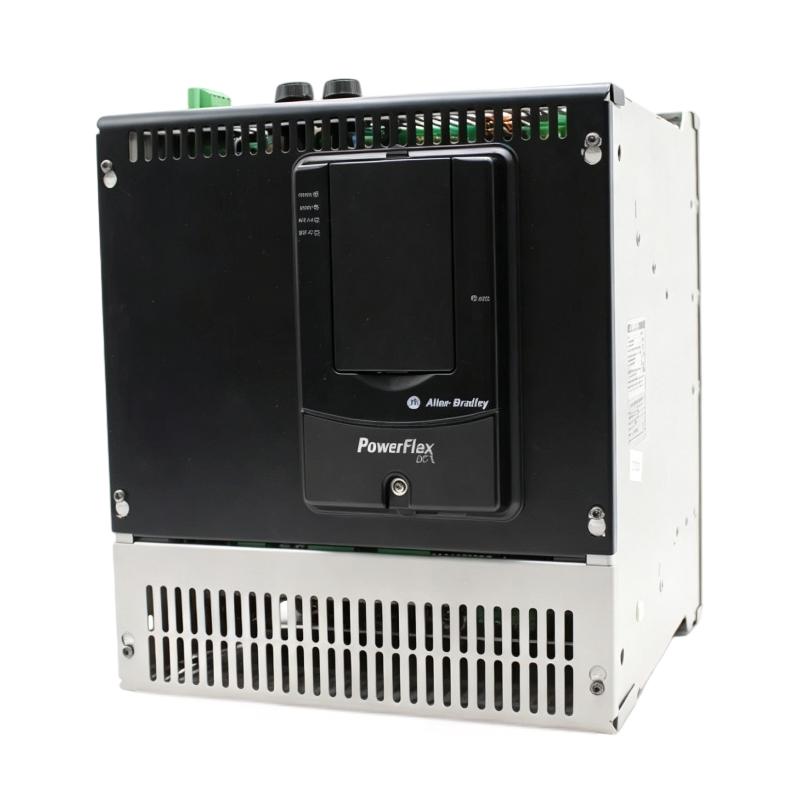

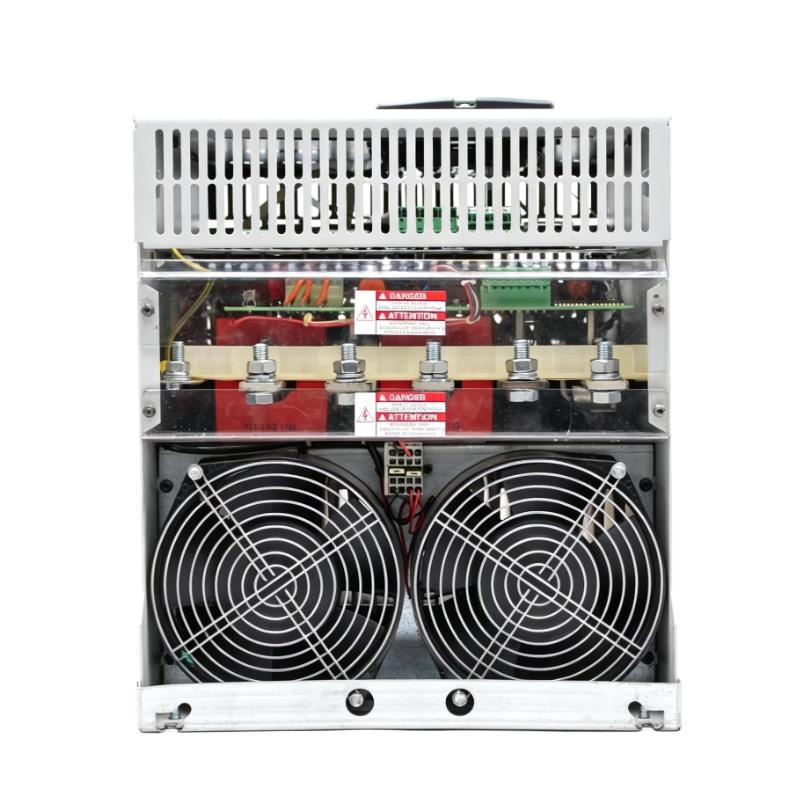

Q1: What is the primary function of the 20P41AD330RA0NNN?

A: The Allen-Bradley 20P41AD330RA0NNN is a PowerFlex DC drive designed to regulate the speed and operating performance of industrial DC motors. It provides controlled motor acceleration, deceleration, and braking, helping maintain stable operation under changing load conditions. With a rated output current of 330 A and a stated motor power rating of 200 HP, approximately 149 kW, it is intended for applications requiring substantial DC motor drive capacity. Before selecting this model, engineers should verify the motor’s armature voltage, rated current, field requirements, load characteristics, and operating duty to ensure compatibility with the complete drive system.

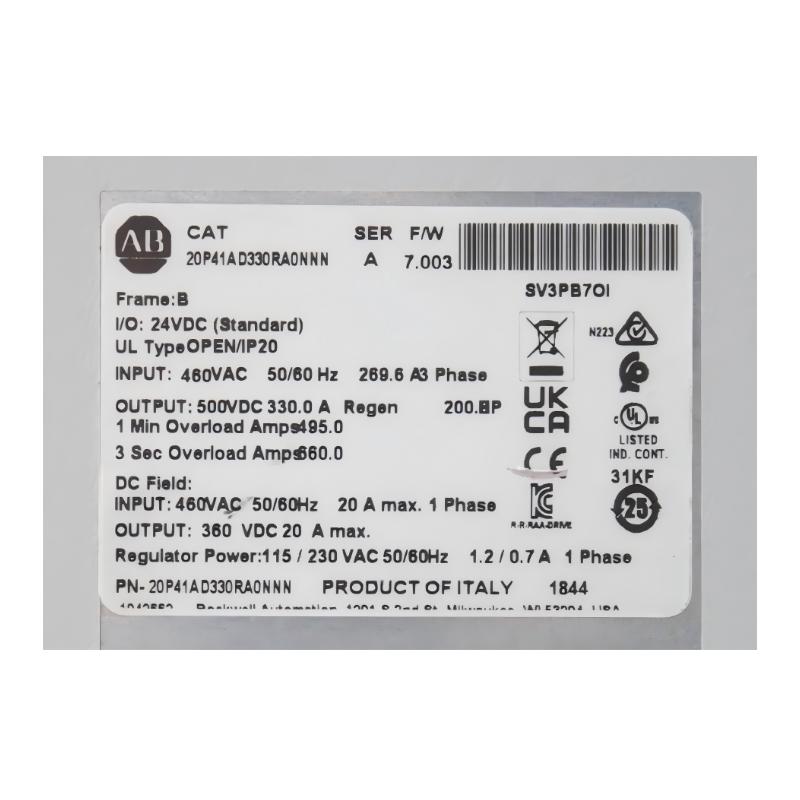

Q2: What are the input voltage, rated output current, and motor power?

A: The specified input voltage is 480 VAC, three-phase, and the model designation is associated with a rated output current of 330 A and a motor power rating of 200 HP, approximately 149 kW. These values provide an initial basis for evaluating the drive, but final selection should also account for the motor’s rated armature voltage, field current, overload requirements, and operating cycle. Applications involving frequent starts, rapid deceleration, or heavy loads may impose additional electrical and thermal demands. Confirm the ratings against the manufacturer’s documentation for the exact catalog number and hardware configuration before installation.

Q3: Does the 20P41AD330RA0NNN support four-quadrant operation and regenerative braking?

A: This model is specified for four-quadrant regenerative operation, allowing the drive to control motor operation in forward and reverse motoring and braking conditions. During deceleration or when an external load drives the motor, the motor may generate electrical energy. With a correctly configured regenerative system, this energy can be returned to the AC supply instead of being dissipated entirely as heat. This capability is useful for high-inertia machinery, reversing applications, and equipment that frequently accelerates and decelerates. The supply arrangement, protective devices, motor parameters, and control configuration must all be suitable for regenerative operation.

Q4: What electrical conditions should be checked before installation?

A: Before installing the drive, verify the three-phase supply voltage, available power capacity, grounding, upstream protection, and cable ratings. Check the motor nameplate to confirm that the armature voltage, rated current, and field requirements are compatible with the drive. Control wiring and feedback connections should follow the manufacturer’s instructions, with appropriate separation between power cables and low-level signal wiring to minimize electrical interference. The drive should be installed in a suitable enclosure with adequate ventilation and heat dissipation. Because the unit has an IP20 open-type enclosure, the installation must provide appropriate protection against environmental contaminants and accidental contact. Installation and maintenance should be carried out by qualified personnel using proper electrical isolation procedures.

Q5: Can this drive connect directly to a PLC or industrial communication network?

A: The standard configuration does not include a communication module, so direct connectivity to a specific industrial network should not be assumed. PLC integration depends on the available control interfaces and any additional communication hardware installed in the system. Hardwired control may be used for compatible start and stop commands, speed references, and operating-status signals. If network-based control is required, verify the compatible communication options, supported protocols, firmware requirements, and PLC configuration. The control design should also address communication loss, fault reporting, and interlocking so that the system responds appropriately if commands or feedback signals become unavailable.

Q6: How can the drive be configured without a Human Interface Module?

A: The specified configuration does not include a Human Interface Module and uses a blank cover. Before commissioning, determine which parameter-access and diagnostic methods are supported by the installed hardware. Depending on the system configuration, a compatible programming tool, interface, or external control system may be needed to configure and monitor the drive. Important settings include motor ratings, current limits, field parameters, acceleration and deceleration rates, speed feedback, and protective functions. If a DC tachometer or encoder is used, verify that the feedback device, wiring, and configuration are compatible with the installed control hardware. Follow the documentation for the exact hardware and firmware revision when performing setup and commissioning.

Q7: How should overcurrent, overheating, or unstable motor speed be diagnosed?

A: Start by recording the fault code, operating conditions, and events immediately preceding the fault. Overcurrent problems may result from short circuits, grounding faults, incorrect wiring, excessive mechanical loading, or mismatched motor parameters. Overheating may be caused by inadequate cabinet ventilation, restricted airflow, high ambient temperature, excessive loading, or cooling problems. If motor speed fluctuates or does not follow the reference command, inspect the feedback device, speed-reference signal, field circuit, and relevant control parameters. Check external circuits and mechanical conditions before concluding that the drive itself has failed. Isolate electrical power before inspection and avoid repeatedly resetting the drive without identifying the underlying cause.

Q8: What should be considered when replacing or repairing the 20P41AD330RA0NNN?

A: Before replacement, confirm the complete catalog number and compare the proposed unit’s electrical ratings and functional capabilities with the existing installation. Important considerations include input voltage, rated output current, motor power, regenerative operation, field supply, feedback interfaces, communication options, and control hardware. Drives with similar current ratings may still differ in configuration or compatibility, so matching the current rating alone is insufficient. Before removing the original unit, record its parameter settings, wiring connections, fault history, and hardware or firmware information. Inspect the power supply, motor, feedback devices, and external control circuits to rule out faults outside the drive. After installation, verify all connections, restore the correct parameters, test protective interlocks, and conduct a controlled commissioning run before returning the equipment to normal operation.
